PAC Yamaha WaveRunner FX, VX, GP Battery Upgrade Kit with XS Power PSX30L
The Direct Bolt-In Battery Upgrade Your Yamaha WaveRunner Has Been Waiting For!
Upgrade your compatible Yamaha WaveRunner from the smaller factory TX20L-size battery to the higher-capacity XS Power PSX30L with one matched, ready-to-install package!

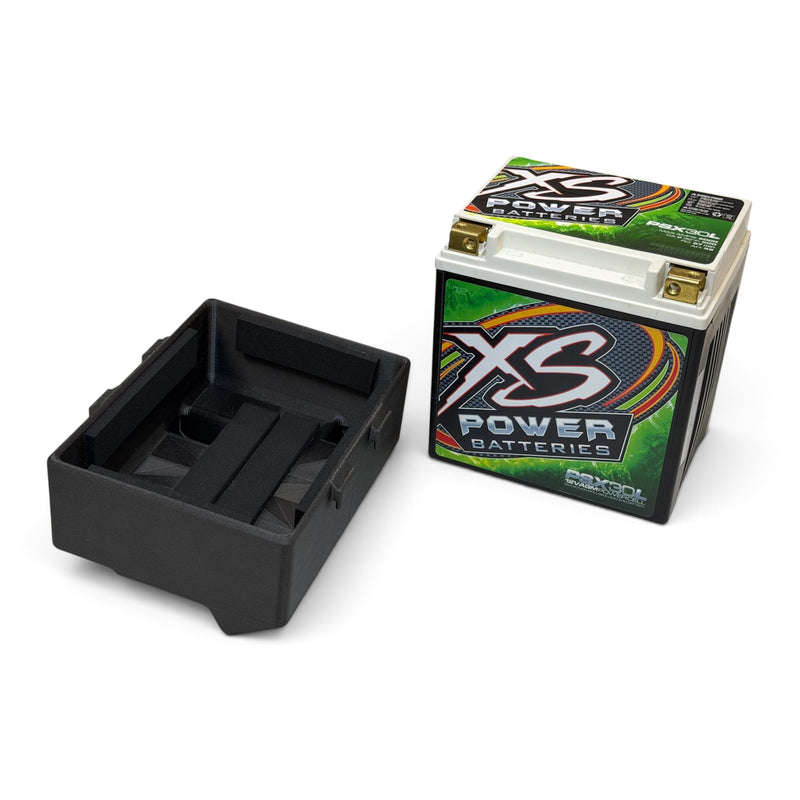

The PAC Yamaha WaveRunner Battery Upgrade Kit includes our USA-made PETG-CF replacement battery upgrade tray and an XS Power PSX30L 32Ah battery. The tray installs in the original Yamaha battery location using the factory mounting hardware and original battery hold-down straps.
No cutting, drilling, or custom fabrication is required on verified direct-fit applications. Remove the factory tray, bolt the PAC tray into the same location, install the PSX30L, and reinstall the factory straps.
This upgrade is ideal for Yamaha WaveRunner owners running high-output audio systems, lighting, GPS equipment, fish finders, USB charging accessories, and other electronics that demand more reserve capacity than the factory-size battery can provide.
Complete Matched Upgrade Package
This bundle eliminates the uncertainty of selecting a compatible battery.
Included
Reused From the WaveRunner
- Factory mounting hardware
- Factory battery hold-down straps
Not Included
- Replacement mounting bolts
- Replacement battery straps
Why Upgrade?
Many compatible Yamaha WaveRunner models originally use a TX20L-size battery rated around:
- 18–20Ah capacity
- 270 cold cranking amps
The included XS Power PSX30L provides:
- 32Ah capacity🔋
- 440 cold cranking amps⚡️
- Up to approximately 78% more battery capacity
- Approximately 63% more cold cranking power
This gives upgraded WaveRunners more electrical reserve for accessories and greater starting capability than a typical factory-size battery.
Built for WaveRunners with Added Electronics
The additional reserve capacity is especially useful for WaveRunners equipped with:
- Upgraded marine audio systems
- Amplifiers and additional speakers
- RGB, accent, or underwater lighting
- GPS and navigation equipment
- Fish finders
- USB charging ports
- Fishing electronics
- Other power-demanding accessories
Actual accessory runtime depends on battery condition, amplifier consumption, listening level, electrical load, charging-system performance, and how long equipment is operated with the engine off.

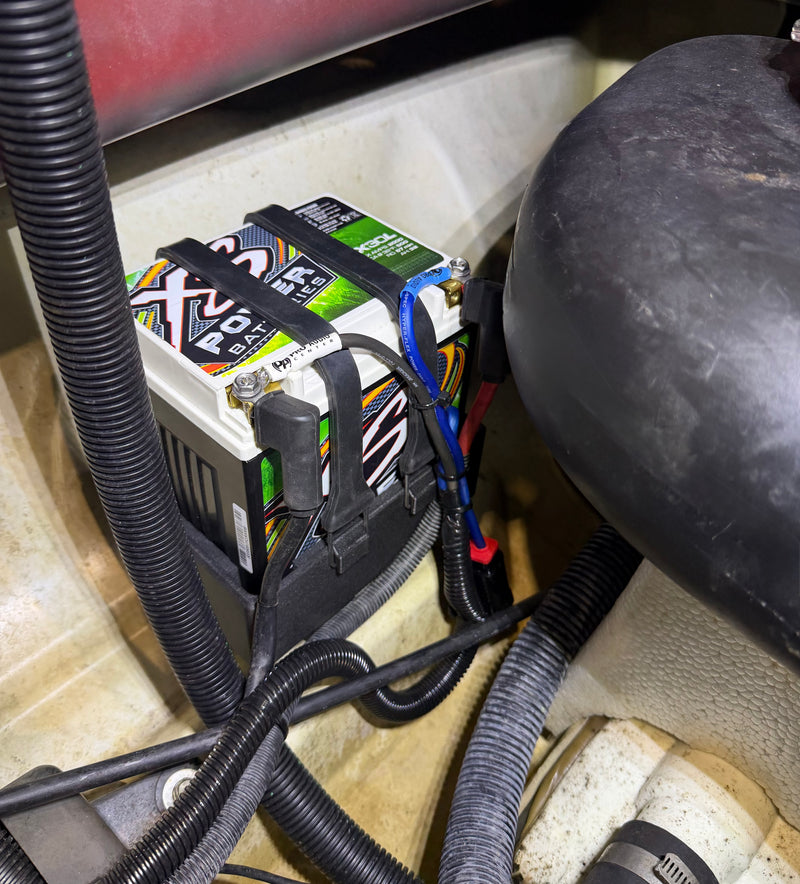

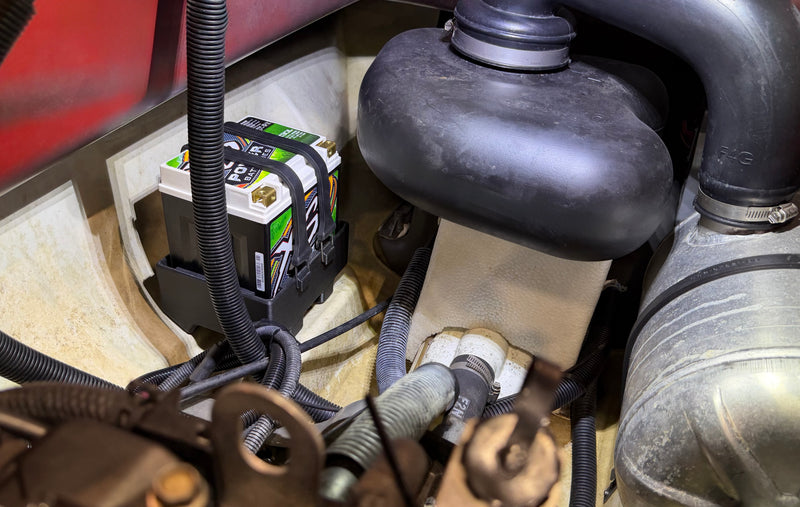

Direct Bolt-In Installation
The PAC tray is designed to make the larger battery upgrade straightforward.
- Replaces the original Yamaha battery tray
- Installs in the original battery location
- Uses the factory mounting points
- Reuses the original Yamaha mounting hardware
- Reuses the factory battery hold-down straps
- No drilling or cutting
- No custom brackets or fabrication
- No permanent WaveRunner modification on verified direct-fit models
- Typically requires only a 10mm socket for install

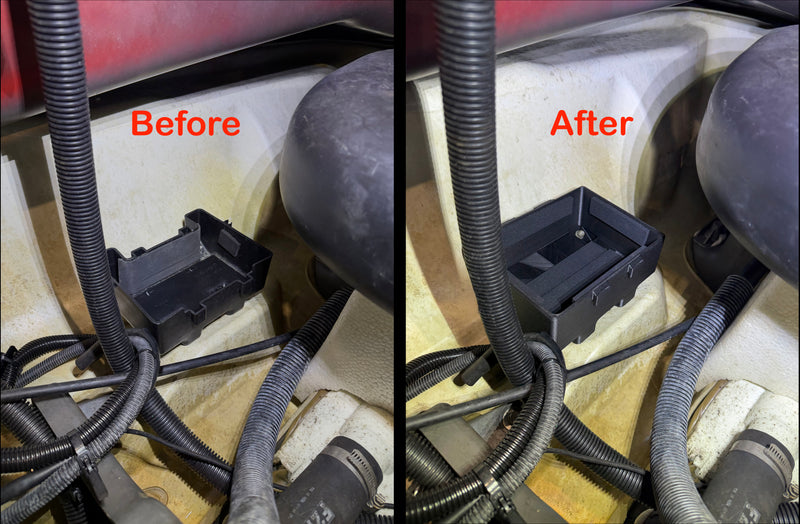

Typical Installation Process
- Disconnect and remove the existing battery.
- Unbolt and remove the factory battery tray.
- Install the PAC tray using the original mounting hardware.
- Place the XS Power PSX30L into the PAC tray.
- Reinstall the factory battery hold-down straps.
- Reconnect the battery cables and verify secure fitment.
Always disconnect the negative cable first and reconnect it last.

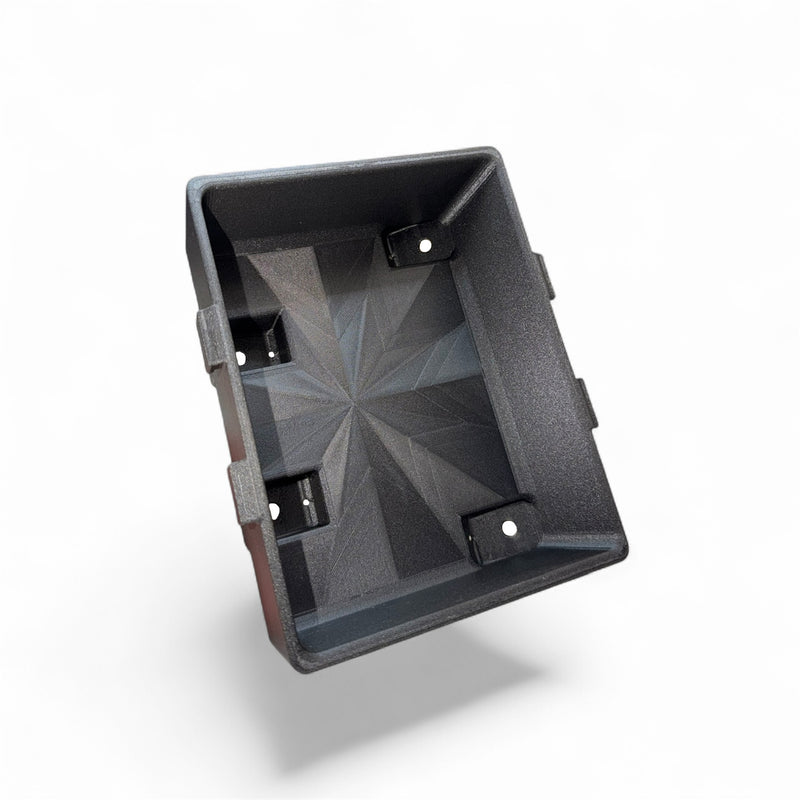

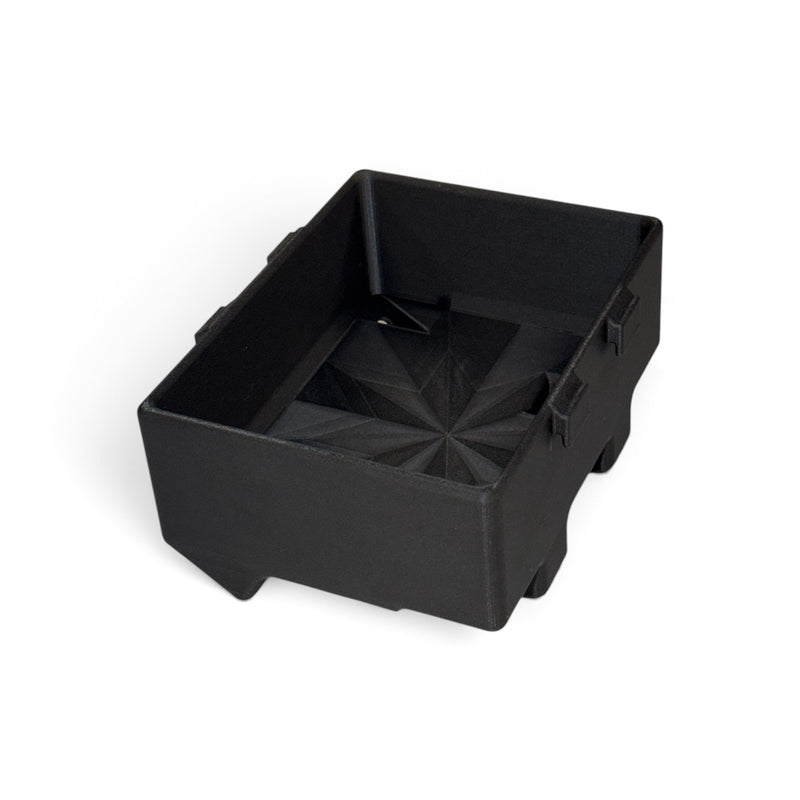

PAC Battery Tray Features

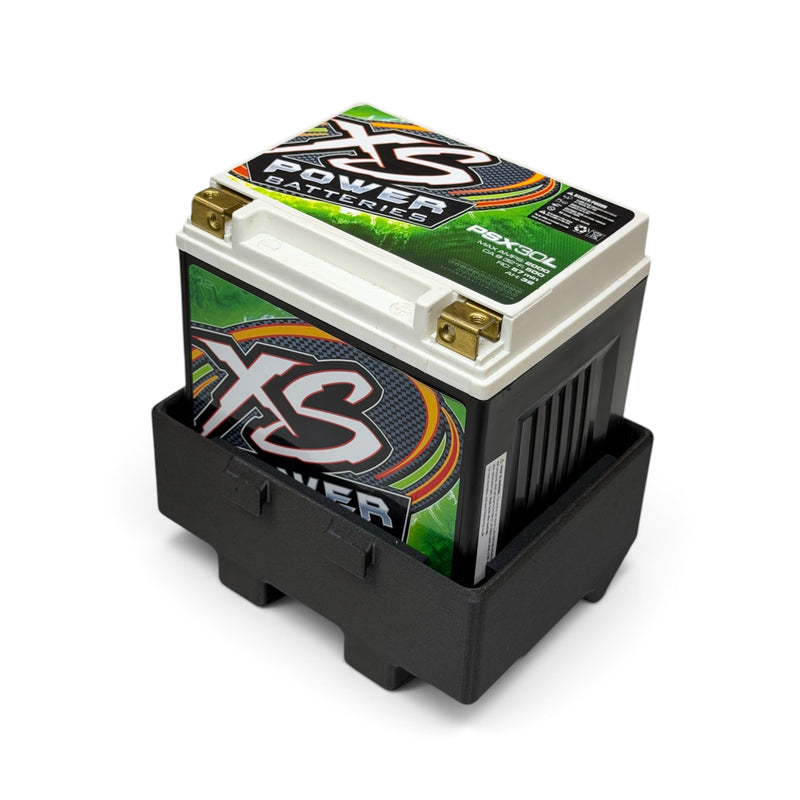

Designed Around the XS Power PSX30L
The tray is purpose-built around the included PSX30L battery dimensions for a secure, matched installation.

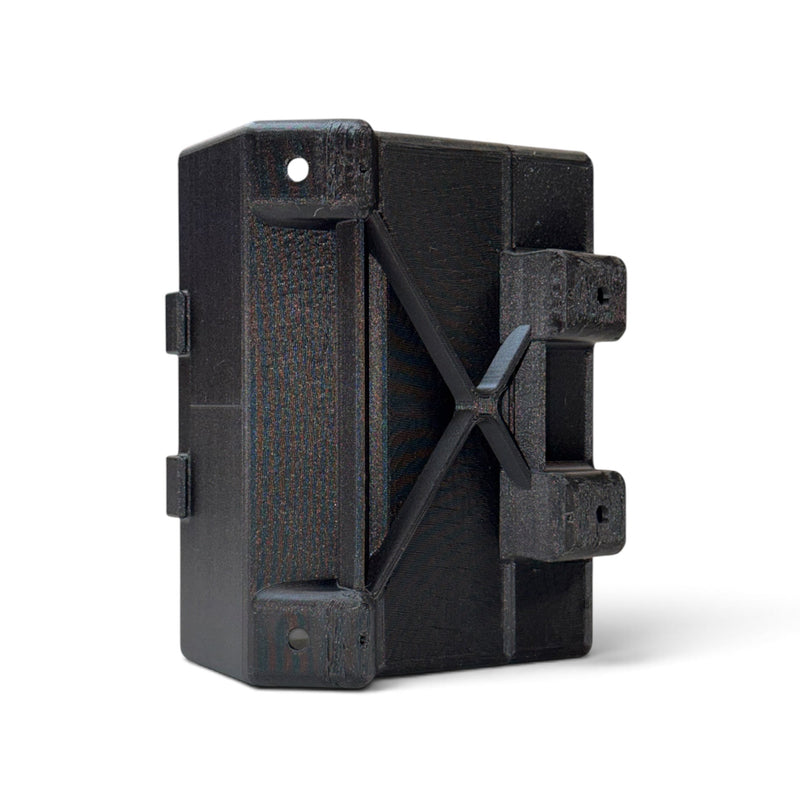

Carbon-Fiber-Reinforced PETG
Manufactured from PETG-CF, a carbon-fiber-reinforced PETG material selected for rigidity, durability, dimensional stability, and moisture resistance.

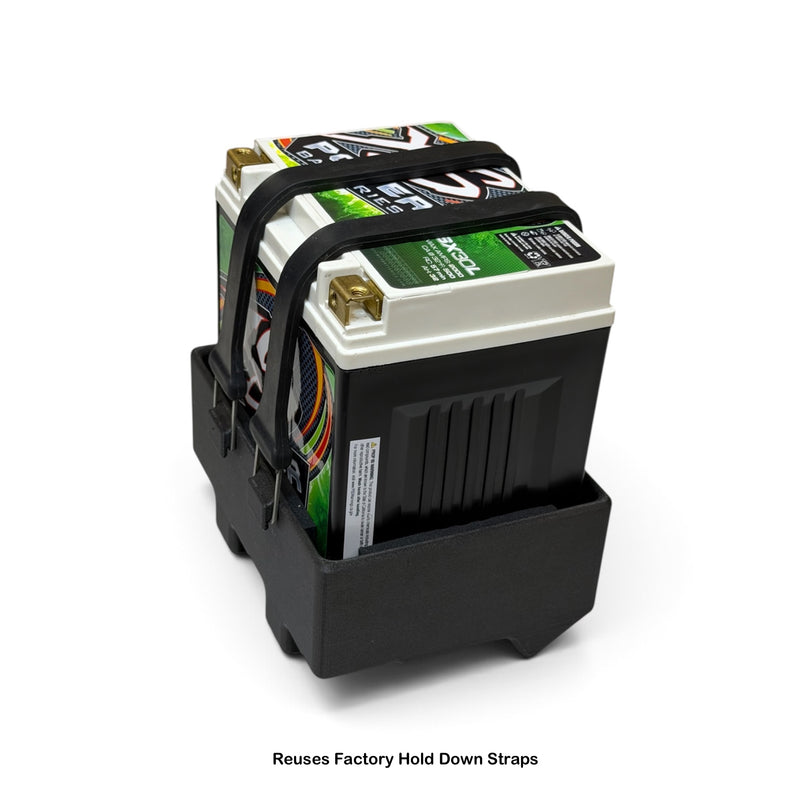

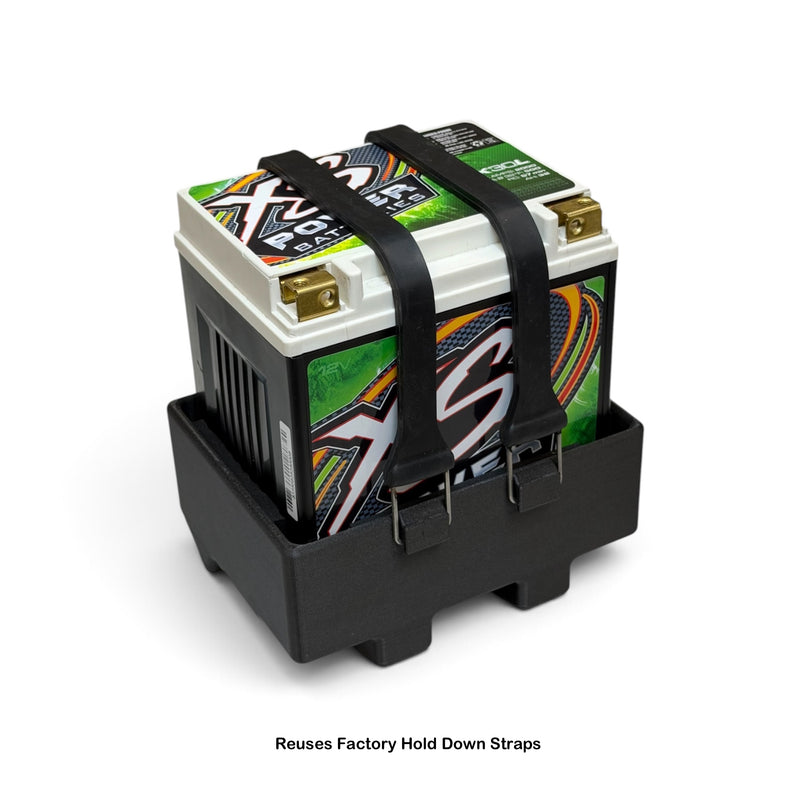

Factory-Style Retention
The original Yamaha battery straps secure the upgraded battery without requiring an aftermarket hold-down system.
USA Designed and Manufactured
The tray is designed, developed, and manufactured in the United States by Pro Audio Center.
XS Power PSX30L Specifications
| Specification | Rating |
|---|---|
| Battery model | XS Power PSX30L |
| Battery size | 30L |
| Capacity | 32Ah |
| Cold cranking amps | 440 CCA |
| Weight | 21 lb |
| Length | 6.57 in |
| Width | 4.97 in |
| Height | 6.58 in |
Â
Vehicle Fitment
Verified Fitment
Direct installation has been confirmed on the following model-year ranges:
- 2012–2019 Yamaha FX Series

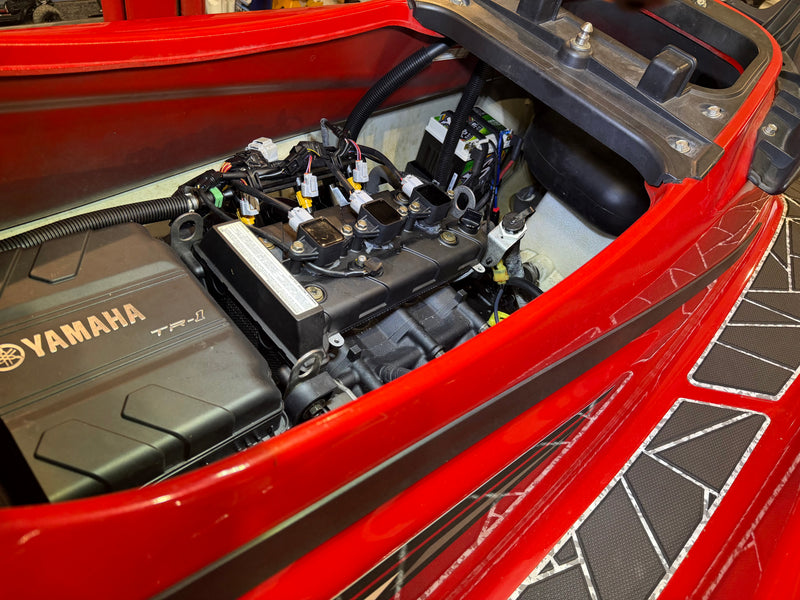

- 2015–2020 Yamaha VX Series
- 2017–2020 Yamaha GP Series
These applications have been confirmed to use the PAC tray in the original battery location.
The kit is also expected to fit most:
- 2021–2026 Yamaha FX Series
- 2021–2026 Yamaha VX Series
- 2021–2026 Yamaha GP Series
Most applications should retain the same straightforward bolt-in tray installation. However, select newer models—particularly certain configurations with factory audio or additional electronics—may have an amplifier, electrical module, or bracket positioned beside the battery.
That nearby component may need to be repositioned to provide adequate clearance for the larger PSX30L battery.
Important fitment note: Tray compatibility does not guarantee unrestricted 30L battery clearance on every factory equipment configuration. Owners of 2021–2026 models should inspect the area beside the factory battery before ordering. Pro Audio Center can also assist with fitment when provided with a clear battery-compartment photo.
Not Compatible
- Yamaha EX Series
- Yamaha EX Cruiser
- Yamaha JetBlaster models
Frequently Asked Questions
What is included with this bundle?
The bundle includes:
The WaveRunner’s original tray bolts and factory battery hold-down straps are reused and are not included.
Is this everything needed to upgrade the battery?
Yes. The bundle includes the two main components required for the physical upgrade: the PAC tray and the matched XS Power PSX30L battery.
Customers will reuse their WaveRunner’s:
- Factory tray-mounting bolts
- Factory battery hold-down straps
- Existing battery cables
Why purchase the bundle instead of the tray and battery separately?
The bundle provides a matched tray-and-battery combination and removes the uncertainty of choosing the correct battery dimensions.
The PAC tray was designed specifically around the XS Power PSX30L. The bundle also provides a small savings compared with purchasing the two products separately.
How does the XS Power PSX30L compare with the factory battery?
Many compatible Yamaha WaveRunner models use a TX20L-size battery rated around 18–20Ah and 270 CCA.
The included PSX30L is rated at:
- 32Ah
- 440 CCA
Depending on the original battery, that represents:
- Approximately 60–78% more battery capacity
- Approximately 63% more cold-cranking amps
Factory battery specifications can vary by model, model year, and previously installed replacement battery.
Will the larger battery make my audio system play longer?
The additional 32Ah capacity provides more reserve energy than a typical 18–20Ah factory-size battery, which can support longer accessory use.
Does this upgrade increase the WaveRunner’s charging output?
No. The larger battery increases available storage capacity and cranking capability, but it does not increase the output of the factory charging system.
High-demand audio and electronics must still be properly designed, wired, and fused. The battery should also be fully charged with an appropriate charger when necessary.
Does installation require cutting or drilling?
No cutting, drilling, or custom fabrication is required on verified direct-fit applications.
The PAC tray installs in the original battery-tray location using the factory mounting points and original hardware.
Can the factory battery straps be reused?
Yes. The tray is designed to retain the original Yamaha battery hold-down straps.
Both straps should be correctly installed and securely tightened before operating the WaveRunner.
What tools are needed?
Most installations require:
- 10mm socket
- Ratchet
- Basic hand tools for removing and reconnecting the battery terminals
Always disconnect the negative cable first and reconnect it last.
How long does installation take?
A straightforward installation can typically be completed in approximately 10–20 minutes.
Additional time may be required when:
- Existing accessory wiring is present
- Battery cables need to be rerouted
- A nearby factory module requires repositioning
- Corroded or damaged factory hardware must be addressed
Will the factory battery cables reach the PSX30L?
Yes in most all applications the factory battery cables will reach without any modification needed. Cable fit can vary based on the WaveRunner model, terminal configuration, and any previous electrical modifications.
Will this kit fit 2021–2026 Yamaha WaveRunners?
The kit is expected to fit most 2021–2026 Yamaha FX, VX, and GP models.
However, select models may have a factory amplifier, control module, electrical component, or mounting bracket located beside the battery. That component may need to be repositioned to create enough clearance for the larger PSX30L.
Customers with newer models should inspect the battery compartment or provide Pro Audio Center with a clear photo before ordering when fitment is uncertain.
Does it fit Yamaha EX or JetBlaster models?
No. This kit is not compatible with:
- Yamaha EX models
- Yamaha EX Cruiser models
- Yamaha JetBlaster models
What is the tray made from?
The tray is manufactured from PETG-CF, a carbon-fiber-reinforced PETG material selected for its rigidity, durability, dimensional stability, and moisture resistance.
The tray is designed and manufactured in the USA.
How much does the complete kit weigh?
The XS Power PSX30L weighs approximately 21 lb, and the PAC tray weighs approximately 410 grams, or about 0.9 lb.
The combined tray-and-battery weight is therefore approximately 21.9 lb, excluding packaging and reused factory hardware.
What warranty is included?
Battery warranty coverage is provided according to the applicable XS Power 2 year manufacturer warranty terms and procedures.
Th warranty does not cover damage caused by:
- Improper installation
- Incorrect or incompatible batteries
- Loose or missing hold-down straps
- Modification of the tray
- Impact or collision
- Misuse or neglect
Expert Recommendation
The PAC Yamaha WaveRunner Battery Upgrade Kit with XS Power PSX30L is the best choice for riders who want a complete, matched upgrade without having to research battery dimensions separately.
It is especially useful for WaveRunners equipped with:
- Upgraded marine audio systems
- Additional amplifiers and speakers
- RGB or accent lighting
- GPS and navigation equipment
- Fish finders
- USB charging ports
- Other onboard electronics
The included PSX30L’s 32Ah capacity provides substantially more reserve energy than a typical 18–20Ah factory battery, while its 440 CCA rating provides considerably more cranking capability than a typical 270 CCA factory-size battery.
For customers with verified model years, installation remains simple and factory-like. Owners of 2021–2026 WaveRunners should inspect the space beside the battery for any factory amplifier or electrical module before ordering.
Recommended Charging and Maintenance Notes
To support battery performance and service life:
- Fully charge the battery before first use.
- Use a charger compatible with the battery manufacturer’s requirements.
- Recharge the battery after extended audio or accessory use.
- Do not store the WaveRunner with the battery deeply discharged.
- Inspect the tray, straps, terminals, and mounting hardware periodically.
- Keep battery terminals clean, tight, and protected from corrosion.
