Get the deep, powerful bass you want without giving up valuable installation space. The Sundown Audio Horizon HZS 12 was engineered specifically for enthusiasts who need true low-frequency performance in shallow mounting applications. Whether you're building a truck enclosure, upgrading a Jeep, or designing a stealth audio system, the HZS 12 delivers authentic Sundown Audio performance while fitting where many traditional subwoofers simply can't.

Rated at 600 Watts RMS, the HZS 12 features the new heavy-duty cast aluminum basket, a 2.5-inch black aluminum voice coil, high-roll surround, progressive spider suspension, and an advanced vented motor design to provide excellent thermal management, reliability, and clean bass performance. The larger 12-inch cone area moves more air than the 10-inch model, making it an excellent choice for customers seeking deeper bass and increased low-frequency output while maintaining a shallow mounting profile.

Why You'll Love It

✔ 600 Watts RMS Continuous Power Handling

✔ New Heavy-Duty Cast Aluminum Basket Design

✔ Dual 4 Ohm Voice Coils

✔ Designed Specifically for Shallow Mount Installations

✔ Larger 12-Inch Cone for Greater Low-Frequency Output

✔ Excellent Performance in Compact Sealed or Ported Enclosures

✔ High-Roll Surround for Increased Linear Excursion

✔ Progressive Spider Suspension for Outstanding Control

✔ Vented Motor Design for Improved Cooling & Reliability

✔ Built for Years of Daily Performance

Perfect For

• Behind Truck Seat Enclosures
• Under-Seat Truck Box Builds
• SUVs & Crossovers
• Space-Limited Installations
• Stealth Audio Systems
• Daily Driver Bass Upgrades
• High-Performance SQL Builds
• Customers Wanting More Output Than a Typical 10-Inch Shallow Subwoofer

Product Overview

The Horizon HZS Series was created to deliver serious bass performance where installation space is at a premium. Instead of compromising output to achieve a shallow mounting depth, Sundown Audio engineered the HZS platform from the ground up using proven design principles focused on strength, thermal performance, and clean excursion.

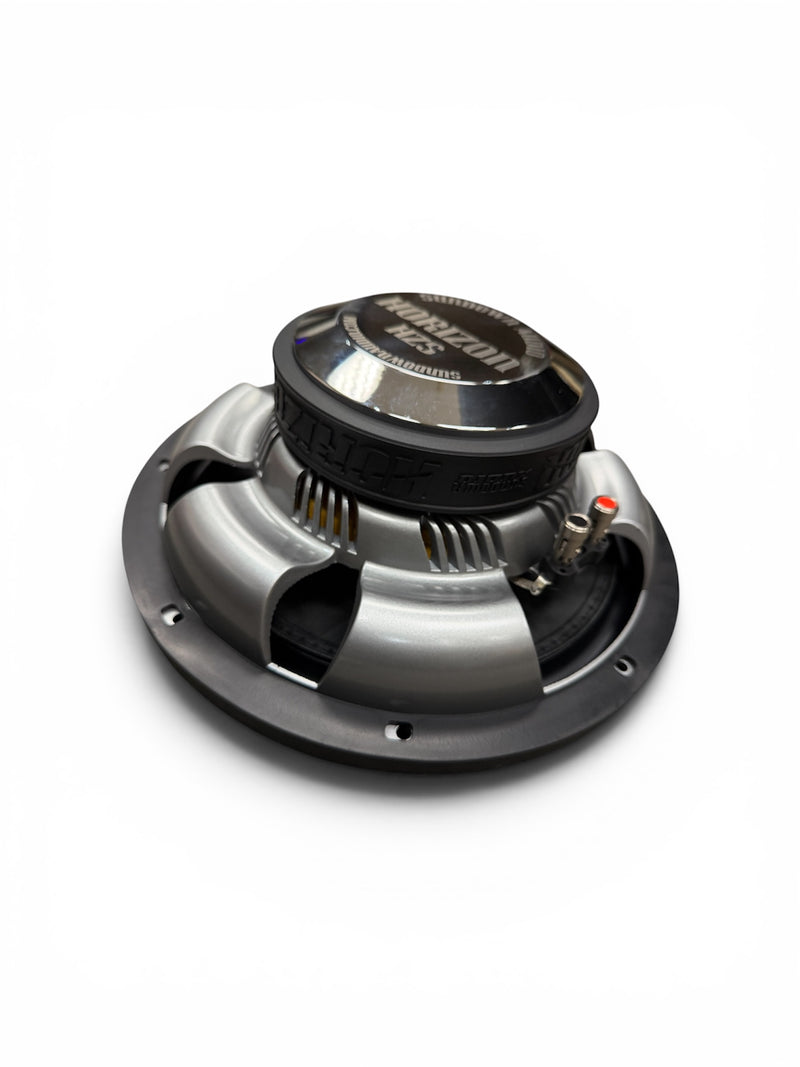

The new cast basket version improves structural rigidity and provides a stronger foundation for the moving assembly, helping reduce unwanted resonance while increasing long-term durability. Combined with a vented motor gap, solid pole piece cooling, stitched mini-XL tinsel leads, and a progressive spider suspension, the HZS 12 is built to perform consistently through years of demanding daily use.

Its larger cone area allows it to produce deeper bass and move more air than smaller shallow-mount subwoofers, making it an excellent choice for truck owners, Jeep enthusiasts, SUV builds, and custom installations where preserving cargo space is just as important as achieving impressive low-frequency performance.

Whether installed in a compact sealed enclosure or a properly designed ported enclosure, the HZS 12 provides the combination of output, reliability, and installation flexibility that has made Sundown Audio one of the most respected names in high-performance mobile audio.

Ideal Applications

The Horizon HZS 12 is ideal for customers who want stronger low-frequency performance while maintaining a compact installation footprint.

It performs exceptionally well in:

• Behind-seat truck enclosures
• Under-seat truck systems
• SUV stealth installations
• Daily-driver SQL systems
• Custom fiberglass enclosures
• Space-conscious high-performance audio systems

If you're looking for a shallow-mount subwoofer that delivers deeper extension and increased output without requiring excessive mounting depth, the HZS 12 is an outstanding solution.

Key Features

• 12-Inch Shallow Mount Subwoofer
• New Cast Aluminum Basket Design
• 600 Watts RMS Power Handling
• Dual 4 Ohm Voice Coils
• 2.5-Inch Black Aluminum Voice Coil
• Vented Motor Gap
• Solid Pole Piece Cooling
• High-Roll Foam Surround
• Progressive Spider Suspension
• Stitched Mini-XL Tinsel Leads
• Bolt-Through Motor Assembly
• Optimized for Compact Enclosures
• Designed for Daily High-Performance Use

Technical Specifications

Brand: Sundown Audio

Series: Horizon HZS

Model: HZS 12

SKU: SW-HZS12D4

Speaker Size: 12"

Subwoofer Type: Shallow Mount

Power Handling (RMS): 600 Watts

Voice Coil Configuration: Dual 4 Ohm

Voice Coil Diameter: 2.5"

Voice Coil Former: Black Aluminum

Basket: Cast Aluminum (New Version)

Motor Cooling: Vented Motor Gap & Solid Pole Piece

Suspension: Progressive Spider

Surround: High-Roll Foam

Lead Wires: Stitched Mini-XL Tinsel Leads

Recommended Sealed Enclosure: 1.0 ft³ Net

Driver Displacement: 0.05 ft³

Mounting Depth: 4.1"

Overall Diameter: 12.8"

Cutout Diameter: 11.3"

Thiele / Small Parameters

Re: 6.850 Ohms

Fs: 32.802 Hz

Vas: 56.708 L

Qes: 0.564

Qms: 3.240

Qts: 0.480

BL: 21.348 N/A

Mms: 182.051 g

Cms: 129.313 µm/N

Sensitivity: 87.4 dB (1W/1M)

Xmax: Not Published by Manufacturer

Enclosure Recommendations

The Horizon HZS 12 was engineered to deliver outstanding bass performance in compact enclosures while maintaining the reliability and output expected from Sundown Audio.

Recommended Sealed Enclosure

• Net Air Space: 1.0 ft³
• Driver Displacement: 0.05 ft³

A properly built sealed enclosure delivers accurate, controlled bass with excellent musical detail while maximizing available cargo space.

Ported Enclosures

The HZS Series was designed to perform exceptionally well in properly engineered ported enclosures when higher output is desired.

Installation Notes

With a mounting depth of only 4.1 inches, the HZS 12 is an excellent solution for installations where conventional 12-inch subwoofers simply won't fit.

Popular applications include:

• Behind-seat truck enclosures
• Under-seat truck systems
• SUVs and crossovers
• Custom fiberglass installations

For best performance, install the HZS 12 in a properly constructed enclosure and pair it with an amplifier capable of delivering approximately 600 Watts RMS at the final wired impedance.

Pro Audio Center Tip

Shallow-mount subwoofers have come a long way, and the Horizon HZS Series is a great example of how thoughtful engineering can overcome limited installation space.

Rather than simply reducing mounting depth, Sundown Audio designed the HZS platform with a purpose-built motor, progressive suspension, and efficient cooling system to deliver clean, reliable bass performance in applications where traditional subwoofers aren't practical.

If space is limited but quality matters, the HZS 12 is an excellent option.

Build Your System

Complete your installation with:

• Monoblock amplifier rated around 600 Watts RMS
• OFC amplifier wiring kit
• High-quality RCA cables
• Sound deadening material
• AGM battery upgrade (recommended for larger systems)
• Custom sealed or ported enclosure
• Bass remote level control (when supported by your amplifier)

Expert Recommendation from Pro Audio Center

The Horizon HZS 12 is a great choice for customers who want to retain valuable interior space without giving up the performance expected from a premium subwoofer.

We especially like this model for trucks, SUVs, and custom installations where mounting depth is limited but reliability and sound quality remain priorities. The updated cast aluminum basket adds strength and rigidity, while the 600 Watt RMS rating makes it easy to pair with a wide variety of quality monoblock amplifiers.

Matched with a properly designed enclosure and the right amplifier, the HZS 12 delivers the dependable performance that has made Sundown Audio one of the most respected names in mobile audio.

Why Buy From Pro Audio Center?

At Pro Audio Center, we know that choosing the right subwoofer involves more than comparing specifications. The enclosure, amplifier, and overall system design all play an important role in achieving the performance you're looking for.

Our goal is to help you build a system that performs as well in the real world as it does on paper. Whether you're upgrading a daily driver, outfitting a truck, or designing a custom installation, we're here to help you select equipment that works together seamlessly.

When you purchase from Pro Audio Center, you're buying from enthusiasts who are passionate about mobile electronics and committed to helping you get the most from your investment.

Frequently Asked Questions

Is the HZS 12 a true shallow-mount subwoofer?

Yes. The Horizon HZS Series was engineered specifically for shallow mounting applications while maintaining the performance and durability expected from Sundown Audio.

How much power does the HZS 12 handle?

The HZS 12 is rated to handle 600 Watts RMS continuous power.

What amplifier should I use?

For the best results, we recommend a quality monoblock amplifier capable of producing approximately 600 Watts RMSat the final impedance of your system.

Is this subwoofer compatible with sealed and ported enclosures?

Yes. The HZS 12 performs well in both sealed and properly designed ported enclosures. Sundown Audio provides a recommended sealed enclosure specification, while custom ported enclosures can be designed for customers seeking higher output.

Will this fit under the seat of my truck?

In many applications, yes. With a mounting depth of only 4.1 inches, the HZS 12 was developed specifically for installations where space is limited. We recommend measuring your available mounting depth before purchasing.

What are the benefits of the new cast basket design?

The updated cast aluminum basket provides greater structural rigidity and durability than traditional stamped baskets, helping maintain consistent performance during demanding operation.

Is the HZS 12 a good daily driver subwoofer?

Absolutely. The Horizon HZS Series was designed for dependable everyday performance while delivering the clean, musical bass that Sundown Audio enthusiasts have come to expect.
