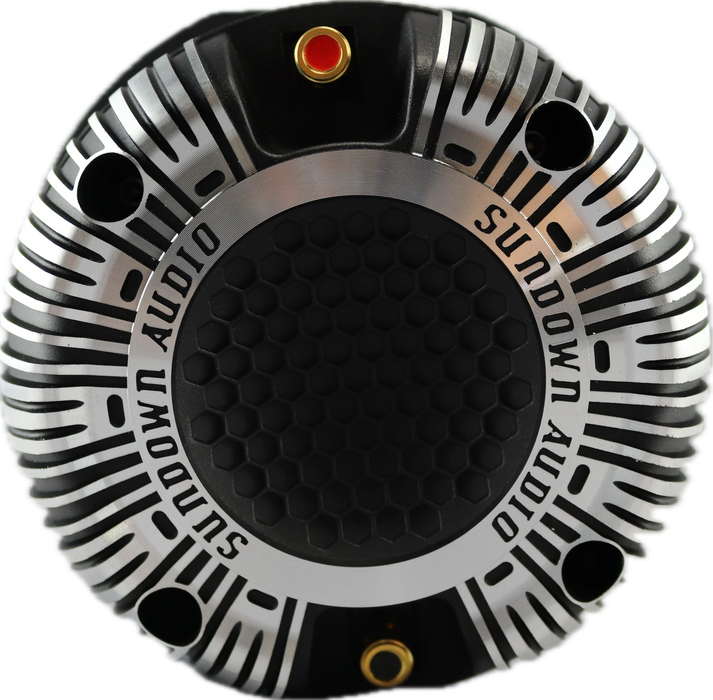

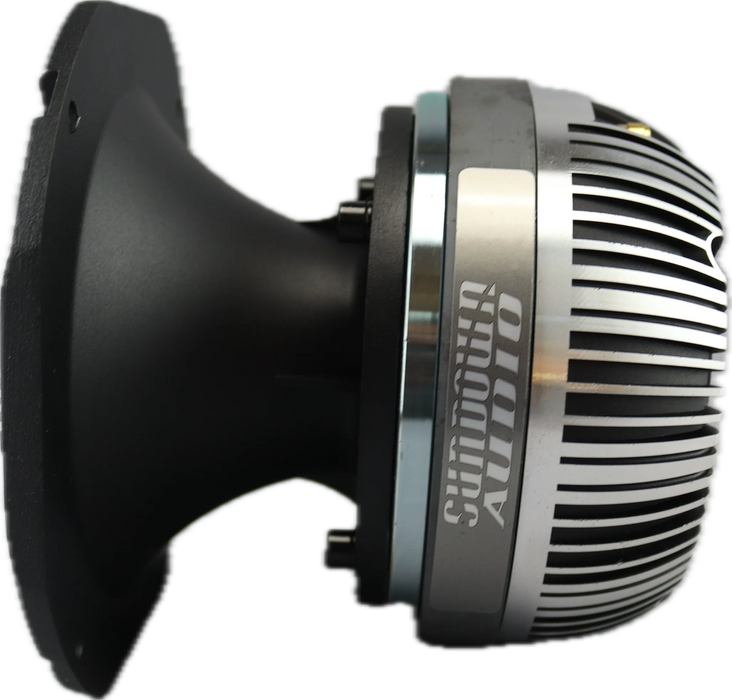

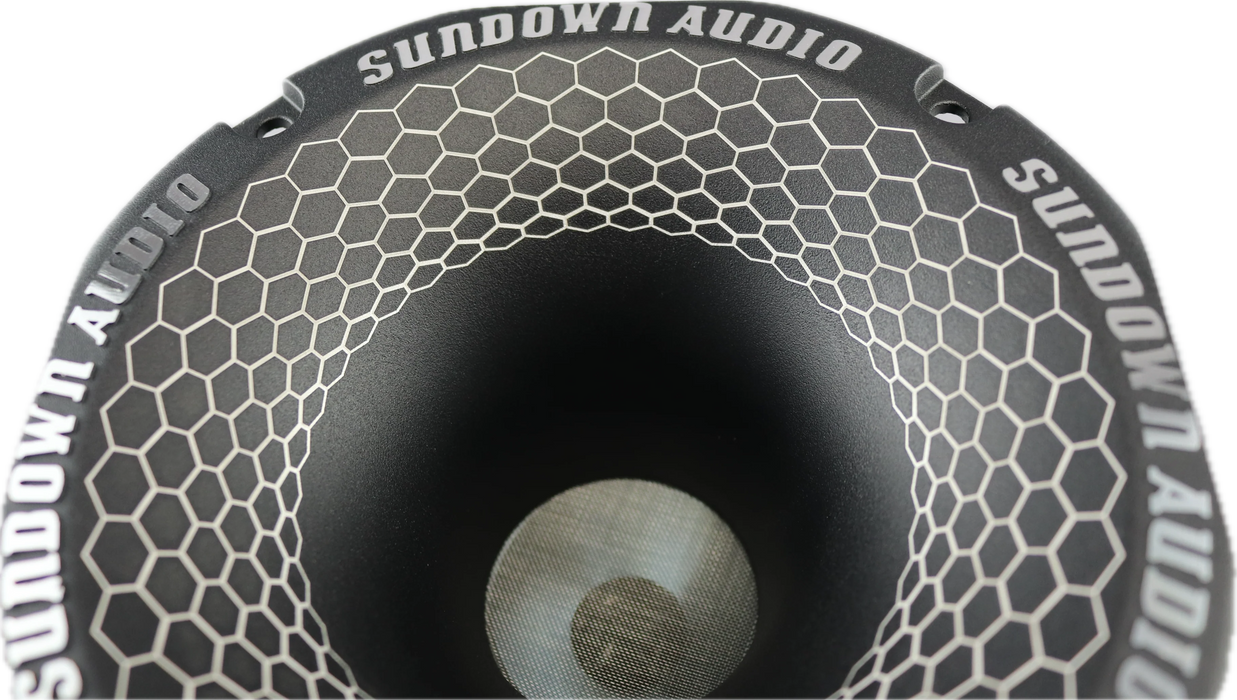

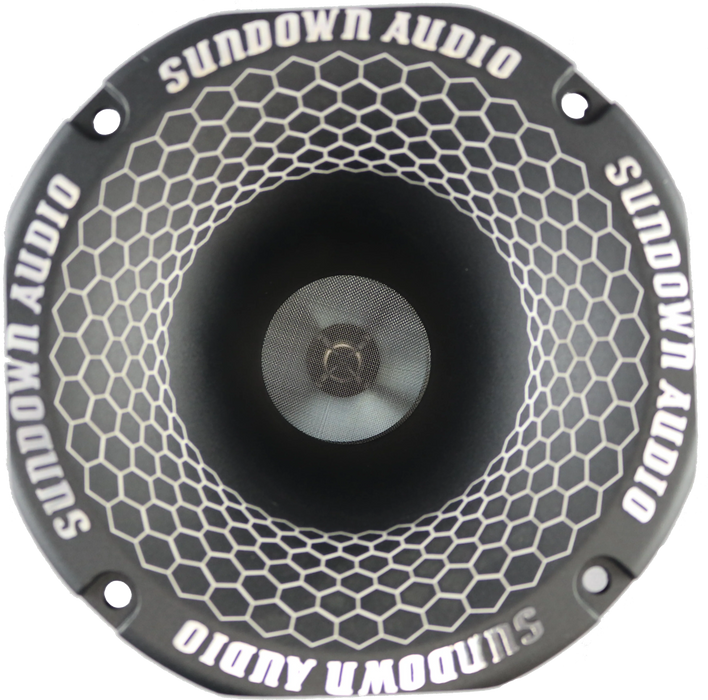

2" THROAT SHORT SUPER HORN WITH FERRITE MAGNET

 Description

• 2in Horn driver
• Strontium Ferrite Magnet
• Die-cast Aluminium Cover
• Die-cast Aluminium Horn
• Titanium Diaphragm
• 4 Ohm
• 80 Wrms
• Exit Throat Diameter @ inch – 2
• Rated Impedance @Ohm – 4
• Power Handling Capacity @ Watt – 80
• Program Power @Watt – 160
• Sensitivity(1W/1m) @ Hz – 115
• Frequency Range @ Hz – 1,000-20,000
• Voice Coil Diameter @ inch - 2
• Voice Coil Material - CCAW
• Voice Coil Former Material - Kapton
• Voice Coil Winding Depth @ mm - 2
• Cutout – 5.5”
• Mounting Depth – 5.15”
• Gap Height @ mm – 2.5
• Driver Size @ in 5.28*2.5”
• Back Cover Material – Die-cast Aluminium
• Diaphragm Material - Titanium
• Horn Material – Die-cast Aluminium
• Product Dimension @ in – L6.75*W6.75*H5.5”

Key Features

• Efficient Power Handling: Rated at 80W RMS and 160W program power, this driver offers a balance of power and performance for demanding setups.
• Wide Frequency Range: Covers frequencies from 1,000Hz to 20,000Hz, ensuring crisp and detailed sound.
• High Sensitivity: A sensitivity of 115 dB (1W/1m @ Hz) delivers excellent output with minimal power consumption.

Specifications

• Exit Throat Diameter: 2 inches
• Impedance: 4 Ohms
• Cutout Size: 5.5 inches
• Mounting Depth: 5.15 inches
• Driver Size: 5.28 x 2.5 inches
• Product Dimensions: 6.75 x 6.75 x 5.5 inches (L x W x H)

• Voice Coil Winding Depth: 2 mm
• Gap Height: 2.5 mm
• Materials: Titanium diaphragm, Kapton former, and die-cast aluminum components provide durability and optimized performance.
