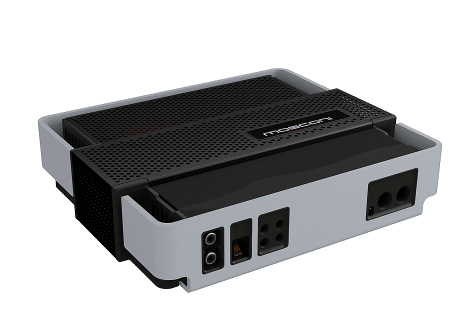

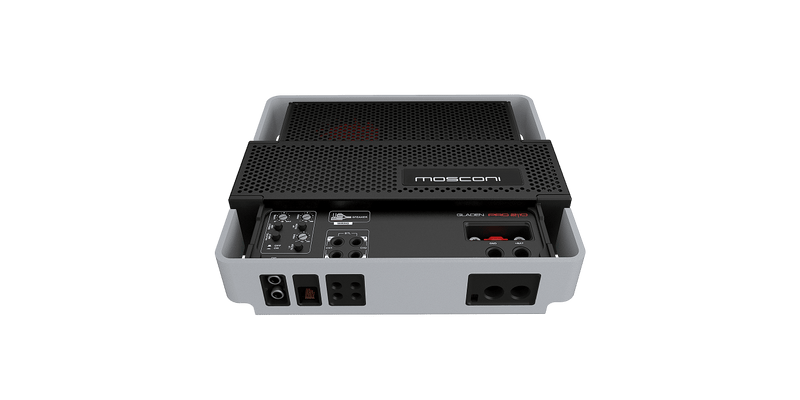

PRO 2|10 Mosconi Gladen Pro Line 2 Channel Class A/B Full Range Amplifier 2x240W 4 Ohm, 2x360W 2 Ohm, Car Audio Amplifier

• 2 channel amplifier
• Available in Black/Silver finishing
• Power Rating: 240 Watt per channel @ 4 Ohm < 1% THD+N
• Click here to download the Specifications

• Class AB power amplifier full MOSFET
• Unregulated power supply
• High level input with autosense power-on
• Cross Over with independent High Pass and Low Pass filter
• Direct DSP
• Remote Volume Control RTC (optional)

SPECS:

Target powers:

• 240×2 Watt (Stereo) @ 4 Ohm
• 360×2 Watt (Stereo) @ 2 Ohm
• 720×1 Watt (BTL) @ 4 Ohm

Input sensitivity: (Power rating ref)

• 0.35V ÷ 12V (6.2V in DDSP mode)

Xover functions:

• LOW PASS 43 ÷ 300Hz [24 dB/oct]
• HIGH PASS 18 ÷ 280Hz [24 dB/oct]

Special features:

• DDSP / Direct DSP (bypass all the preamplifier circuitry but the differential input interface)
• High Level / Low Level selectable input
• Autosense (BTL mode only)
• RTC – Allow to regulate the volume by a remote position (optional)
• Controlled via uC – Internally controlled via Atmel Processor

Size:

• 235 x 205 x 55 mm / 9.25" x  8.07" x  2.17" inches

Weight:

• 2.3 Kg / 5.07 lbs
