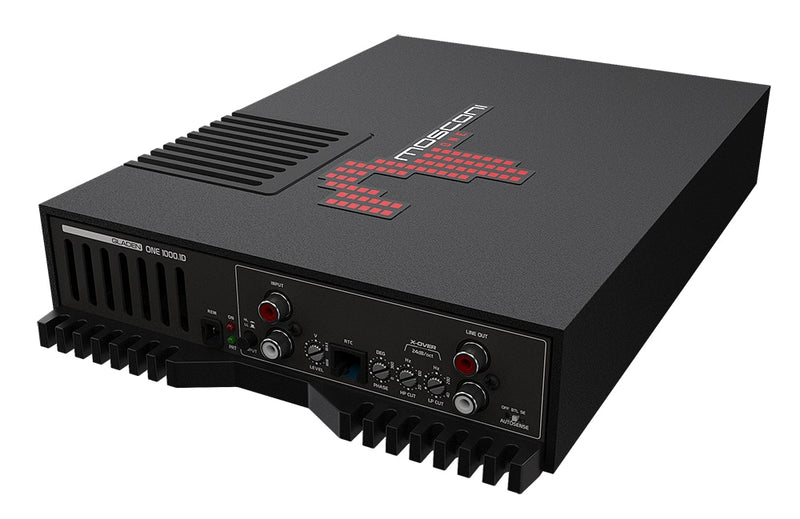

ONE 1|1000 Mosconi One Line Class D Mono Subwoofer Amplifier 1x600W 4 Ohm, 1x1000W 2 Ohm Car Audio Amplifier

by Mosconi
Save 17% Save 17%
Original price $1,380.00
Original price $1,380.00 - Original price $1,380.00
Original price $1,380.00
Current price $1,149.99
$1,149.99 - $1,149.99
Current price $1,149.99
🚚 Order within the next 2 hours, 15 minutes for delivery by 24 May, 2024.
Availability:
Low stock

ONE 1|1000

Mono Class D Subwoofer Amplifier

FEATURES:

  • Mono channel D class amplifier
  • Black finishing. Power Rating: 554 Watt @ 4 Ohm < 1%
  • THD+N Sn Ratio: > 80 dBA (ref: 1 Watt into 4 Ohm)
  • HANDY POWERFUL RANGE
  • The smallest line with fresh and dynamic young sound recommended also for OEM applications. Absolutely great features on board like High Level Input with auto-switch on. Besides, thermo controlled fans and Plug & Play wiring harness (optional). Low Level (LL) and High Level (HL) input.
  • Also available in 24 Volt
  • VERY IMPORTANT NOTE – READ CAREFULLY:
    This amplifier is designed to play music on real speakers. It is not rated to drive static signals on pure resistive loads.

SPECIFICATIONS:

Target Powers (@ 4 Ohm) 600 Watt
Target Powers (@ 2 Ohm) 1000 Watt
Input Sensitivity (Power rating ref) 0.2 V ÷ 4 V (Low Level)
0.5 V ÷ 10 V (High Level)
X-over functions: (always in line) Subsonic Filter: (20 ÷ 100 Hz – 24 dB/oct)
Low Pass Filter: (40 ÷ 280 Hz – 24 dB/oct)
Special Features:

Remote Volume Control (optional)
Phase Shift (always in line): 0° ÷ 360°
Low Level / High Level imput mode (by switch)
Auto Sense (only in High Level mode)
Low Level Output (like HLA)

Size: 310x200x50 mm / 12.2" x 7.87" x 1.97"

Weight 2.7 Kg / 5.95 lbs
Download Specsheet
