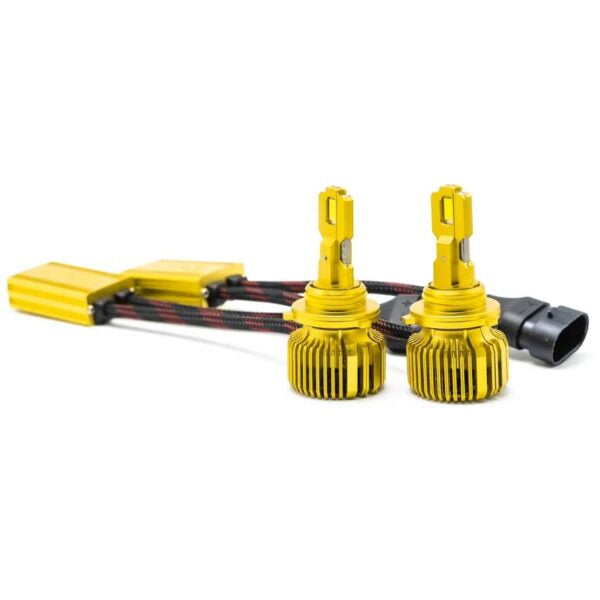

L5-9005/6 Lucas Lighting 9005/9006 LED Headlight Bulbs – 24,000 Lumens, High Beam, Pair

Lucas Lighting L5-9005/6 LED Headlight Bulbs – 24,000 Lumens, High Beam Pair

Upgrade your vehicle's 9005/9006 lighting with the Lucas Lighting L5-9005/6, the highest-output LED replacement in the Lucas Lighting L Series. Designed around a light-bar-inspired approach to high-beam performance, the L5 Series delivers an impressive 24,000 lumens per pair while maintaining a compact design for broad application compatibility.

The L5-9005/6 uses a single-beam output and is designed for vehicles using 9005/9006-style bulbs, with Lucas also cross-referencing 9011, 9040, 9055, 9140, 9145, 9150, 9155, HB3, HB4, and H10 applications. Always verify the original bulb size in your vehicle before ordering.

Unlike lower-output LED replacements, the L5 Series is engineered specifically for maximum range and high-beam performance. Lucas Lighting describes the L5 as its highest-output kit, with a light-bar-style output from the high-beam position. The result is a powerful, bright-white lighting upgrade designed to significantly improve forward illumination where additional range is needed.

The L5-9005/6 features a brushless cooling fan, IP65+ protection, 9–30V operation, wide CANBUS compatibility, and an estimated 10,000+ hour life. It is compatible with both standard reflector and projector-style housings and provides instant-on LED performance without requiring wiring modifications in compatible applications.

Key Features

• 24,000 lumens per pair
• 9005/9006 single-beam LED replacement
• Light-bar-style output from the high-beam position
• Lucas Lighting's highest-output LED replacement series
• Bright white LED output
• Brushless cooling fan
• 9–30V operating range
• IP65+ rated
• Wide CANBUS compatibility to help avoid bulb-out errors
• Instant-on LED performance
• 10,000+ hour expected life
• Compatible with standard reflector and projector-style housings
• Designed to provide high output without requiring wiring modifications in compatible applications
• Sold as a pair of 2 bulbs
• Intended for off-road and fog-light applications according to Lucas Lighting

9005/9006 Cross-Reference

The Lucas Lighting L5-9005/6 is listed as a replacement for the following bulb sizes:

• 9005
• 9006
• 9011
• 9040
• 9055
• 9140
• 9145
• 9150
• 9155
• HB3
• HB4
• H10

Important: Always verify the bulb number specified for your vehicle before ordering. A vehicle's application, beam function, and factory headlight housing should be confirmed before installation.

Why Choose the L5-9005/6?

The L5 Series was developed for drivers looking for the highest level of output Lucas Lighting offers in its replacement LED lineup. Its light-bar-inspired output is particularly suited to applications where maximum forward visibility and high-beam range are the priority.

The 24,000-lumen-per-pair output gives the L5-9005/6 a substantial step up from lower-output Lucas Lighting series, while the brushless cooling fan and 9–30V operating range help support the high-output design.

For customers wanting a premium, maximum-output 9005/9006 LED upgrade rather than simply replacing halogen bulbs with a basic LED alternative, the L5-9005/6 is designed specifically around that goal.

Quick Specifications

Specifications based on current Lucas Lighting product information.

What's Included

• 2 × Lucas Lighting L5-9005/6 LED Bulbs
• Integrated LED drivers
• Brushless cooling fans
• Installation components as supplied by Lucas Lighting

Installation & Compatibility

The L5-9005/6 is designed as a replacement for compatible 9005/9006-style halogen bulbs and is intended to provide a straightforward installation without custom wiring in compatible applications.

The bulbs are compatible with both standard reflector and projector-style housings. However, bulb compatibility should always be verified using the vehicle's original bulb number and application before ordering.

Lucas Lighting also offers dedicated decoder modules for certain vehicles and headlight circuits where additional CANBUS correction is required. Flickering, bulb-out warnings, or other vehicle-specific electrical behavior can indicate the need for additional equipment.

Important Application Information

The Lucas Lighting L5 Series is designed for high-output lighting applications and is rated for 9–30V operation.

Lucas Lighting states that L5 bulbs should not be used on circuits below 55 watts. Verify the vehicle's original bulb and electrical specifications before installation.

Lucas Lighting also identifies its front-firing automotive replacement LED bulbs as being intended for off-road and fog-light applications. Check applicable local laws and regulations before using aftermarket LED replacement bulbs on public roads.

Frequently Asked Questions

How many lumens are the L5-9005/6 bulbs?

The Lucas Lighting L5-9005/6 produces 24,000 lumens per pair.

Is the L5-9005/6 a single-beam bulb?

Yes. The L5-9005/6 is the single-beam version designed for 9005/9006-style applications.

What bulbs does the L5-9005/6 replace?

Lucas Lighting lists 9005/9006, 9011, 9040, 9055, 9140, 9145, 9150, 9155, HB3, HB4, and H10 in its cross-reference for this bulb size.

Do the L5-9005/6 bulbs work with projector headlights?

Yes. Lucas Lighting states that the L5 Series is compatible with both standard reflector and projector-style housings.

Do the L5-9005/6 bulbs have cooling fans?

Yes. The L5-9005/6 uses a brushless cooling fan to help manage heat generated by its high-output LED system.

Are the L5-9005/6 bulbs CANBUS compatible?

The L5 Series features wide CANBUS compatibility designed to help prevent bulb-out errors. Certain vehicle-specific electrical systems may still require an additional decoder.

How long do the L5-9005/6 bulbs last?

Lucas Lighting rates the L5 Series at 10,000+ hours of life.

What voltage do the L5-9005/6 bulbs support?

The L5 Series operates from 9–30 volts, making it suitable for a wide range of automotive and powersports electrical systems within the specified operating range.

Are these bulbs sold individually?

No. The L5-9005/6 is sold as a pair of two bulbs.
