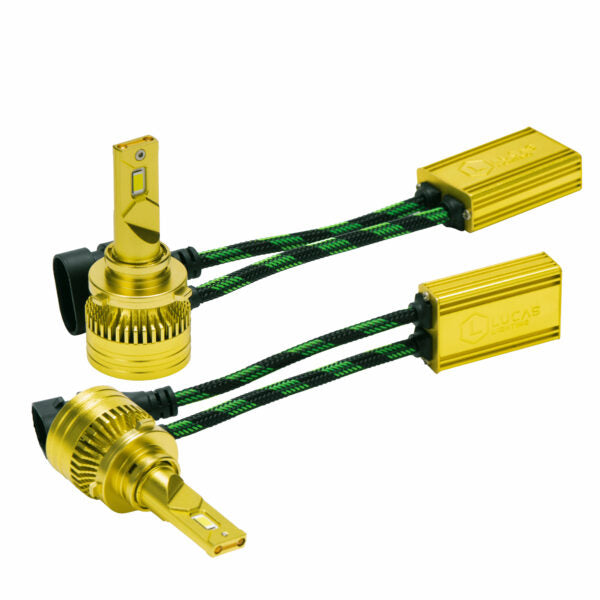

L3-9005/6 Lucas Lighting 9005/9006 LED Headlight Bulbs – 16,000 Lumens, Single Beam, Pair

Lucas Lighting L3-9005/6  9005/9006 LED Headlight Bulbs – 16,000 Lumens, Single Beam

Upgrade your vehicle's factory 9005 or 9006 lighting with the Lucas Lighting L3-9005/6 LED Headlight Bulbs. Designed as a high-output LED replacement for compatible 9005/9006 applications, the L3-9005/6 delivers 16,000 lumens per pair with a single-output design for applications using 9005/9006-style bulbs.

The Lucas Lighting L3 Series combines high-output LED performance with an upgraded CANBUS chipset, IP67-rated moisture resistance, and compatibility with both standard reflector and projector-style housings. The result is a bright, focused lighting upgrade designed to improve forward illumination while maintaining a compact replacement-bulb format.

The L3-9005/6 is also designed to draw approximately 40% less current than halogen bulbs, helping reduce electrical demand compared with traditional halogen lighting. The bulbs feature instant-on operation and are sold as a complete pair for vehicles using compatible 9005/9006-style applications.

Key Features

• 16,000 lumens per pair
• 9005/9006 replacement
• Single-beam / single-output design
• Compatible with both standard reflector and projector-style housings
• Upgraded CANBUS chipset
• IP67-rated moisture resistance
• Approximately 40% less current draw than halogen bulbs
• Instant-on LED operation
• Compatible with multiple 9005/9006 cross-reference bulb numbers
• Sold as a pair of 2 bulbs
• Lucas Lighting L3 Series performance and construction

9005 / 9006 Compatibility

The Lucas Lighting L3-9005/6 is designed for compatible vehicles using 9005/9006-style bulbs.

Lucas Lighting's current L3 fitment chart also lists the following bulb designations under the 9005/9006 L3 bulb:

• 9005
• 9006
• 9011
• 9040
• 9055
• 9140
• 9145
• 9150
• 9155
• HB3
• HB4
• H10

Always verify the factory bulb size and vehicle-specific application before ordering. Vehicle fitment can vary by year, make, model, trim level, and factory lighting configuration.

Single-Beam LED Design

The L3-9005/6 is a single-output LED bulb.

This makes it different from dual-beam bulbs such as the L3-9007, L3-H4, and L3-H13. The L3-9005/6 should be used for applications where the factory 9005/9006-style bulb performs a single lighting function.

Reflector & Projector Compatibility

Lucas Lighting designed the L3 Series to work with both standard reflector and projector-style housings.

Proper bulb orientation and headlight aim are important for achieving the intended beam pattern. Always verify the beam pattern after installation and adjust the headlight aim if necessary.

Upgraded CANBUS Technology

The L3-9005/6 features an upgraded CANBUS chipset designed to provide broad compatibility with modern vehicle electrical systems.

Because vehicle electrical systems vary, some applications may require additional components. Verify your specific vehicle's requirements before installation.

IP67 Moisture Resistance

The L3-9005/6 features an IP67-rated design, providing protection against dust and moisture for demanding automotive applications.

Instant-On LED Performance

LED technology provides instant-on illumination, allowing the bulbs to reach full output immediately rather than gradually warming up like traditional halogen lighting.

Lower Current Draw

Lucas Lighting states that L3 Series bulbs use approximately 40% less current than halogen bulbs, providing high-output LED illumination while reducing electrical demand compared with the factory halogen technology.

6-Volt DRL Compatibility

Lucas Lighting's current documentation states that 2025-production H11 and 9005/9006-style L3 bulbs support 6-volt daytime running light circuits that are not PWM, operating at approximately 20% of full output when the vehicle is operating in 6-volt mode.

This feature can be particularly useful on vehicles that use 9005/9006-style bulbs as part of their daytime running light system.

Important Application Information

Lucas Lighting states that its automotive replacement front-firing LED bulbs are intended for off-road and fog-light applications. Always verify applicable lighting regulations and vehicle requirements before using aftermarket LED replacement bulbs on public roads.

What's Included

• 2 × Lucas Lighting L3-9005/6 LED bulbs

Quick Specifications

*Lucas Lighting's 3-year limited warranty applies to manufacturing defects when professionally installed by a Lucas Lighting retailer under the manufacturer's stated conditions.

Frequently Asked Questions

Is the Lucas Lighting L3-9005/6 a dual-beam bulb?

No. The L3-9005/6 is a single-output, single-beam bulb. It is designed for applications using a 9005/9006-style bulb for a single lighting function.

Does the L3-9005/6 replace both 9005 and 9006 bulbs?

Yes. The L3-9005/6 is designed for compatible 9005/9006 applications. Lucas Lighting also lists several additional cross-reference bulb numbers for this L3 bulb.

What other bulb sizes does the L3-9005/6 replace?

Lucas Lighting lists 9011, 9040, 9055, 9140, 9145, 9150, 9155, HB3, HB4, and H10 in addition to 9005/9006.

How many lumens does the L3-9005/6 produce?

The L3-9005/6 is rated at 16,000 lumens per pair.

Is the L3-9005/6 CANBUS compatible?

Yes. The L3 Series uses an upgraded CANBUS chipset designed for broad vehicle compatibility.

Will the L3-9005/6 work in projector headlights?

Yes. Lucas Lighting states that the L3 Series is compatible with both standard reflector and projector-style housings.

Are the L3-9005/6 bulbs sold individually?

No. The L3-9005/6 is sold as a pair of two bulbs.

Does the L3-9005/6 use less current than halogen?

Yes. Lucas Lighting states that the L3 Series uses approximately 40% less current than halogen bulbs.

Does the L3-9005/6 support 6-volt DRL systems?

Lucas Lighting states that 2025-production 9005/9006-style L3 bulbs support 6-volt daytime running light circuits that are not PWM, operating at approximately 20% of full output in 6-volt mode.
