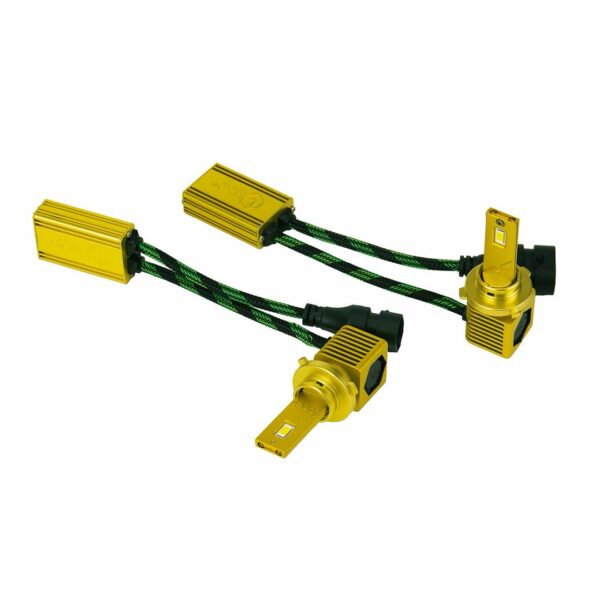

L2-9005/6 Lucas Lighting 9005/9006 LED Headlight Bulbs – 13,000 Lumens, Single Beam, Pair

Lucas Lighting L2-9005/9006 LED Headlight Bulbs – 13,000 Lumens, Single Beam

Upgrade your vehicle's lighting with the Lucas Lighting L2-9005/6 LED Headlight Bulbs, designed to deliver a brighter, whiter and sharper beam pattern than traditional halogen bulbs. Producing 13,000 lumens per pair, the L2 Series combines high-output LED technology with a focused light pattern and compact physical design.

The L2-9005/6 is designed for vehicles using 9005 or 9006-style bulbs and also cross-references with several related bulb numbers, including 9011, 9040, 9055, 9140, 9145, 9150, 9155, HB3, HB4 and H10. Always verify your factory bulb size before ordering.

Lucas Lighting's L2 Series uses a dedicated outboard controller to provide broad CANBUS compatibility while moving critical electronics away from the LED heat source. This allows the bulb itself to maintain a compact housing with a side-firing fan, which can be particularly useful in applications with limited clearance behind the headlight housing.

The L2-9005/6 is compatible with both standard reflector and projector-style housings and installs as a direct plug-and-play replacement in compatible applications. The bulbs are also designed to support 6-volt daytime running light systems, producing approximately 20% of full output when operating at 6 volts on supported non-PWM systems.

Sold as a pair of 2 bulbs.

Key Features

• 13,000 lumens per pair for a significant lighting upgrade
• 9005/9006 single-beam replacement
• Compatible with both reflector and projector-style housings
• Dedicated outboard controller for expanded CANBUS compatibility
• Compact bulb body with side-firing fan
• IP67-rated or better construction
• High-quality LED chipset
• 10,000-hour lifespan or better
• Bright white LED output
• Instant-on operation
• Direct plug-and-play replacement
• Supports compatible 6V daytime running light systems
• Sold as a pair of 2 bulbs
• 1-year consumer warranty / 3-year professional-installation warranty
• Intended for off-road and fog-light applications per Lucas Lighting

9005 / 9006 Fitment & Cross-Reference

The Lucas Lighting L2-9005/6 is designed for vehicles using the following original bulb numbers:

• 9005
• 9006
• 9011
• 9040
• 9055
• 9140
• 9145
• 9150
• 9155
• HB3
• HB4
• H10

These cross-references are provided by Lucas Lighting. Always confirm the bulb number installed in your vehicle before purchasing.

Single Beam Design

The L2-9005/6 is a single-beam bulb, meaning each bulb provides one lighting function. If your vehicle uses separate bulbs for high and low beam, the appropriate bulb size should be selected for each application.

L2 Series Technology

13,000 Lumens Per Pair

The L2 Series produces 13,000 lumens per pair, giving the 9005/9006 application a substantial increase in usable illumination compared with traditional halogen technology.

Outboard CANBUS Controller

Unlike basic LED replacement bulbs, the L2 Series places its control electronics in a dedicated external module. This provides broader CANBUS compatibility while moving critical components away from the LED heat source.

Compact Side-Firing Design

The L2's outboard electronics allow Lucas Lighting to keep the actual bulb housing compact while using a side-firing fan. This design can be beneficial where space behind the headlight is limited.

Reflector & Projector Compatible

L2 bulbs are designed for use in both standard reflector and projector-style housings, making them suitable for a wide range of factory headlight configurations. Proper bulb alignment and headlight aiming remain important for achieving the intended beam pattern.

6V DRL Compatibility

The 9005/9006 version supports compatible 6-volt daytime running light systems. Lucas Lighting specifies approximately 20% of full output when voltage drops to 6 volts on supported non-PWM systems.

Why Choose the Lucas Lighting L2-9005/6?

The L2-9005/6 is designed for customers who want more than a basic LED bulb conversion. It combines 13,000 lumens per pair, a compact bulb design, side-firing cooling, an external CANBUS controller and IP67-rated constructioninto one plug-and-play lighting upgrade.

For customers comparing Lucas Lighting's L Series, the L2 sits above the L1 and below the higher-output L3. Lucas states that the primary difference between L Series levels is light output, with higher series numbers generally producing more light and requiring more current.

Quick Specifications

Specifications based on current Lucas Lighting L2 Series information.

What's Included

• 2 × Lucas Lighting L2-9005/6 LED Bulbs
• Integrated wiring/connectors
• Outboard control modules
• Cooling fans
• Installation hardware as supplied by Lucas Lighting

Installation & Compatibility

The L2-9005/6 is designed as a direct replacement for compatible 9005/9006-style applications.

Before ordering:

1. Verify your vehicle's factory bulb size.
2. Confirm whether your vehicle uses 9005, 9006 or one of the listed cross-reference numbers.
3. Check available clearance behind the headlight housing.
4. Confirm your vehicle's electrical system and DRL configuration if applicable.
5. After installation, verify proper bulb alignment and headlight aim.

Some vehicles may still require an additional decoder depending on their factory lighting system. Lucas Lighting offers dedicated L-Series decoder modules for applications experiencing dashboard bulb warnings or LED flickering, including a 9005/9006-specific decoder.

Frequently Asked Questions

Are the L2-9005/6 bulbs sold individually?

No. The Lucas Lighting L2-9005/6 is sold as a pair of 2 bulbs.

How bright are the L2-9005/6 bulbs?

Lucas Lighting rates the L2 Series at 13,000 lumens per pair.

Are the L2-9005/6 bulbs high beam or low beam?

The 9005/9006 designation is a single-beam application. The exact function depends on how your vehicle uses the factory bulb.

Will these work in projector headlights?

Yes. Lucas Lighting states that L2 Series bulbs are compatible with both standard reflector and projector-style housings.

Do these bulbs support CANBUS?

Yes. The L2 Series uses a dedicated outboard controller designed to provide broader CANBUS compatibility and help avoid bulb-out errors.

Do the L2-9005/6 bulbs work with 6V DRLs?

Yes, on supported 6V non-PWM daytime running light systems. Lucas Lighting states that the bulbs produce approximately 20% of their full output when operating at 6 volts.

What vehicles use the 9005/9006 bulb?

The 9005/9006 bulb family is used across many vehicles, but exact fitment varies by year, make, model and lighting configuration. Always verify the original bulb number before ordering.

Will I need a decoder?

Many vehicles will work without an additional decoder because the L2 Series includes CANBUS support. However, some vehicles may still require a decoder to resolve bulb-out warnings or flickering. Lucas specifically offers a 9005/9006 L-Series decoder for these situations.
