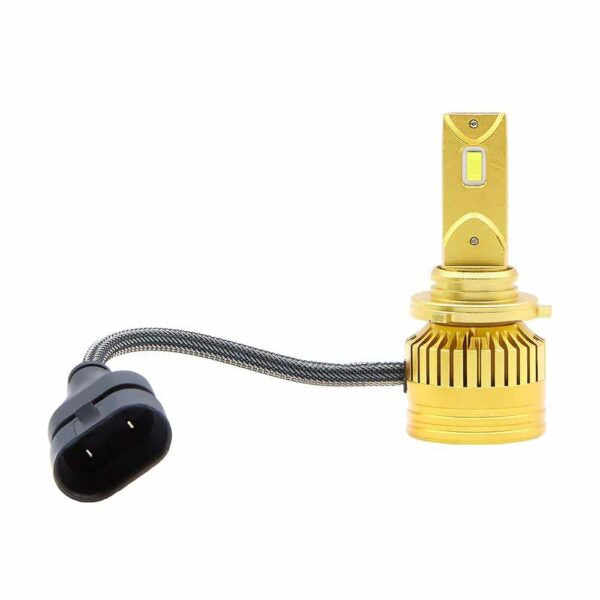

L1-9005/6 Lucas Lighting 9005/9006 LED Headlight Bulbs – 10,000 Lumens, Single Beam, Pair
Lucas Lighting L1-9005/9006 LED Headlight Bulbs – 10,000 Lumens, Single Beam
Upgrade your vehicle's lighting with the Lucas Lighting L1-9005/6 LED Headlight Bulbs, delivering 10,000 lumens per pair with a bright white output and a large, properly focused light point.
Designed as a direct replacement for compatible 9005 and 9006 applications, the L1-9005/6 also covers a range of related factory bulb numbers including 9011, 9040, 9055, 9140, 9145, 9150, 9155, HB3, HB4 and H10. Always verify your vehicle's original bulb size before ordering.
The Lucas Lighting L1 Series was engineered to provide the light pattern, fitment and reliability expected from a higher-end LED conversion while maintaining a more accessible price point. The L1-9005/6 features an overbuilt LED chipset, IP65-rated-or-better construction, approximately 10,000 hours of normal-use life, and compatibility with both reflector and projector-style housings.
The L1-9005/6 is also designed to support compatible 6-volt daytime running light systems, producing approximately 20% of full output when operating at 6 volts on supported non-PWM systems.
Sold as a pair of 2 bulbs.
Key Features
- 10,000 lumens per pair
- 9005/9006 single-beam LED replacement
- Compatible with 9005, 9006 and related cross-reference numbers
- Large, properly focused light point
- Compatible with reflector and projector-style housings
- High-quality, overbuilt LED chipset
- IP65-rated or better
- Approximately 10,000-hour lifespan
- Bright white LED output
- Easy plug-and-play installation
- Supports compatible 6V DRL systems
- 2025-production 9005/6 bulbs support approximately 20% output in 6V mode
- 1-year consumer warranty
- 3-year warranty when professionally installed by a Lucas Lighting retailer
- Sold as a pair of 2 bulbs
- Intended for off-road and fog-light applications per Lucas Lighting
9005 / 9006 Fitment & Cross-Reference
The Lucas Lighting L1-9005/6 corresponds to the following factory bulb numbers:
- 9005
- 9006
- 9011
- 9040
- 9055
- 9140
- 9145
- 9150
- 9155
- HB3
- HB4
- H10
These cross-references come directly from Lucas Lighting's current L1 Series information. Always verify the bulb installed in your vehicle before ordering.
Single-Beam Design
The L1-9005/6 is a single-beam bulb. The exact function—high beam, low beam, fog light or another application—depends on how the factory 9005/9006 bulb is used in your vehicle.
L1 Series Technology
10,000 Lumens Per Pair
The L1-9005/6 produces 10,000 lumens per pair, giving customers a substantial upgrade from traditional halogen lighting while maintaining a properly focused light point. Lucas Lighting describes the L1 Series as providing three times or more the light output of original halogen bulbs while retaining similar low-beam cutoff characteristics.
Large, Correct Focus Point
Rather than simply maximizing raw output, the L1 Series is engineered around a large and properly focused light point. This helps maintain a useful beam pattern when installed in compatible reflector or projector housings.
Reflector & Projector Compatible
L1 Series bulbs are designed for use in both standard reflector and projector-style housings, providing broad application compatibility.
Overbuilt LED Chipset
Lucas Lighting uses a high-quality, overbuilt chipset in the L1 Series to provide dependable performance and approximately 10,000 hours of normal-use lifespan.
6V DRL Support
The 9005/6 version supports compatible 6-volt daytime running light circuits using non-PWM systems. When operating at 6 volts, Lucas specifies approximately 20% of full output.
Why Choose the Lucas Lighting L1-9005/6?
The L1-9005/6 is designed for customers who want a quality Lucas Lighting LED upgrade without stepping up to the higher-priced L2 Series.
Compared with basic aftermarket LED bulbs, the L1 combines 10,000 lumens per pair, a focused light point, reflector/projector compatibility, an overbuilt chipset, IP65-or-better protection and approximately 10,000 hours of normal-use life.
For customers who want additional CANBUS functionality and a more compact bulb design with an external controller, the L2-9005/6 is the next step up in the Lucas Lighting lineup.
Quick Specifications
| Specification | Details |
|---|---|
| Brand | Lucas Lighting |
| Series | L1 |
| Part Number | L1-9005/6 |
| Bulb Size | 9005/9006 |
| Beam Type | Single Beam |
| Output | 10,000 Lumens Per Pair |
| Quantity | 2 Bulbs |
| Housing Compatibility | Reflector & Projector |
| LED Chipset | High-Quality Overbuilt Chipset |
| Water Resistance | IP65 or Better |
| Lifespan | 10,000 Hours Normal Use |
| DRL Support | 6V Non-PWM Systems |
| 6V Output | Approximately 20% |
| Installation | Plug & Play |
| Warranty | 1-Year Consumer / 3-Year Professional |
| Application | Off-Road & Fog Light Applications |
Specifications based on Lucas Lighting's current L1 Series information.
What's Included
- 2 × Lucas Lighting L1-9005/6 LED Bulbs
- Integrated plug-and-play connectors
- Bulb wiring/components supplied by Lucas Lighting
Installation & Compatibility
The L1-9005/6 is designed to plug directly into the factory connector on compatible vehicles with little or no modification.
Before installation:
- Verify that your factory bulb is 9005, 9006 or one of the listed cross-reference numbers.
- Confirm adequate clearance behind the headlight housing.
- Check the factory connector and wiring before connecting the LED bulbs.
- Verify correct polarity before final installation.
- Properly align the bulbs after installation.
- Check and adjust headlight aim as necessary.
Important Polarity Notice
Lucas Lighting specifically notes that 2025-production L1 9005/6 bulbs can be damaged if connected with incorrect polarity. Test the factory harness and verify polarity before connecting the bulbs.
Some vehicle applications may require additional installation components. Lucas Lighting recommends checking its bulb finder for application-specific requirements.
Frequently Asked Questions
Are the L1-9005/6 bulbs sold individually?
No. The Lucas Lighting L1-9005/6 is sold as a pair of 2 bulbs.
How bright are the L1-9005/6 bulbs?
The L1 Series is rated at 10,000 lumens per pair.
Are the L1-9005/6 bulbs high beam or low beam?
The L1-9005/6 is a single-beam bulb. Its specific function depends on how the 9005/9006 bulb is used by the vehicle manufacturer.
What bulb numbers does the L1-9005/6 replace?
Lucas Lighting lists 9005, 9006, 9011, 9040, 9055, 9140, 9145, 9150, 9155, HB3, HB4 and H10 as compatible factory bulb numbers.
Will these work in projector headlights?
Yes. Lucas Lighting states that L1 Series bulbs are compatible with both standard reflector and projector-style housings.
Do the L1-9005/6 bulbs work with 6V DRLs?
Yes, on compatible 6V non-PWM daytime running light circuits. Lucas Lighting specifies approximately 20% of full output when operating at 6 volts.
Do I need a CANBUS decoder?
The L1 Series does not have the dedicated outboard CANBUS controller used by the L2 Series. Some vehicles may therefore require additional components depending on their factory lighting system. Lucas Lighting provides application-specific installation guidance and additional components where required.
Do I need to check polarity before installation?
Yes. Lucas Lighting specifically warns that 2025-production L1 9005/6 bulbs can be damaged by incorrect polarity. Verify the factory harness before connecting the bulbs.
