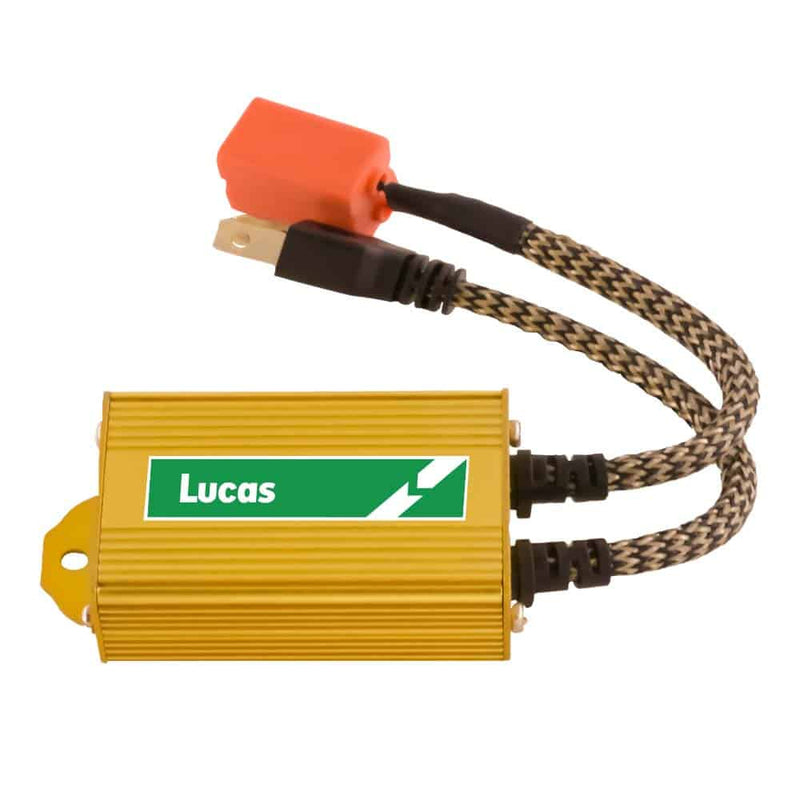

L-H7DE Lucas Lighting Intelligent Decoder – H7 LED Headlight CANBUS Decoder (Pair)
Lucas Lighting Intelligent Decoder – H7 LED Headlight CANBUS Decoder (Pair)
Upgrade your H7 LED headlight installation with the Lucas Lighting L-H7DE Intelligent Decoder, designed to help resolve common electrical compatibility issues that can occur when replacing factory H7 halogen bulbs with LED bulbs.
If your vehicle produces a bulb-out warning, headlight error message, LED flickering, or other electrical issue after an H7 LED conversion, the L-H7DE can help stabilize the lighting circuit and improve compatibility with modern vehicle electronics.
Lucas Lighting offers the H7DE as part of its L-Series decoder lineup and identifies its Intelligent Decoders as solutions for bulb-monitoring systems, pulse-width-modulated (PWM) headlight circuits, and certain CANBUS-equipped vehicles. Lucas specifically recommends decoders for many German vehicles and Chrysler/Dodge/Jeep/Ram vehicles after 2007, although exact vehicle requirements vary.
Key Features
- Lucas Lighting L-H7DE Intelligent Decoder
- Designed for H7 LED headlight applications
- Helps resolve bulb-out warning messages
- Helps correct LED headlight flickering
- Improves compatibility with CANBUS and PWM lighting systems
- Helps stabilize the electrical signal supplied to the LED bulb
- Helps address certain factory bulb-monitoring systems
- Can help resolve certain radio interference issues caused by LED installations
- Plug-and-play inline installation
- Installs between the vehicle wiring harness and H7 LED bulb
- Lucas recommends grounding the decoder's mounting tab to the vehicle chassis for best performance
- Some vehicle applications may require an additional resistor
What Does the L-H7DE Decoder Do?
Modern vehicles can monitor the electrical characteristics of their factory halogen bulbs. Because LED bulbs operate differently from halogen bulbs, some vehicles may interpret an LED conversion as a failed or malfunctioning bulb.
The Lucas Lighting L-H7DE Intelligent Decoder is designed to help compensate for these differences and provide more stable operation.
Helps With Bulb-Out Warnings
If the vehicle detects the lower electrical load of an LED bulb and displays a bulb warning on the dashboard, the decoder can help provide the electrical characteristics needed by the factory monitoring system.
Helps Stop LED Flickering
Some factory lighting systems use pulse-width modulation (PWM) to control the headlight circuit. Because LEDs react almost instantly to changes in voltage, PWM-controlled circuits can cause visible flickering.
Lucas decoders incorporate capacitance to help smooth the modulated electrical signal supplied to the LED bulb.
Improves CANBUS Compatibility
The L-H7DE provides additional compatibility for vehicles that actively monitor their lighting circuits. This can be especially useful on vehicles where an H7 LED bulb otherwise produces a bulb-out warning or other electrical issue.
Helps With Other Electrical Issues
Lucas also identifies its Intelligent Decoders as a solution for certain cases of radio reception interference and electrical back-feed that can occur after converting halogen lighting to LED.
Designed for H7 LED Applications
The L-H7DE is specifically intended for H7 applications and can be used as a compatibility accessory with compatible H7 LED bulbs.
Common symptoms that may indicate a decoder is needed include:
- Bulb-out warning
- Headlight error message
- LED flickering
- Unstable LED operation
- Certain PWM-related issues
- Certain CANBUS compatibility problems
- Electrical back-feed
- Radio interference after an LED conversion
The decoder is not automatically required for every H7 LED installation. Many vehicles will operate properly without an additional decoder.
Recommended for Certain Vehicle Systems
Lucas Lighting recommends its Intelligent Decoders for many German vehicles and Chrysler, Dodge, Jeep, and Ram vehicles after 2007. Lucas also identifies PWM-controlled headlight circuits and certain other vehicle-specific applications where a decoder may be required.
Because vehicle electrical systems differ by year, trim level, and lighting configuration, always verify compatibility for the specific vehicle.
Some applications may require an additional resistor along with the decoder.
Plug-and-Play Inline Installation
The L-H7DE is designed to install inline between the vehicle's factory connector and the H7 LED bulb.
Basic Installation
- Turn off the vehicle and lighting system.
- Connect the decoder to the vehicle's factory H7 wiring.
- Connect the H7 LED bulb to the decoder.
- Verify correct positive and negative polarity where applicable.
- Secure the decoder so it does not hang freely inside the engine compartment.
- Lucas recommends using the mounting tab to ground the decoder to the vehicle chassis for best performance.
- Test the headlights and check for warning messages or flickering before completing reassembly.
Lucas emphasizes maintaining correct polarity on applicable two-pin connections and securely mounting the decoder after installation.
Pairing With Lucas H7 LED Bulbs
The L-H7DE is a natural compatibility accessory for customers purchasing Lucas Lighting H7 LED bulbs.
Compatible Lucas H7 applications include:
- Lucas Lighting L1-H7
- Lucas Lighting L2-H7
- Other compatible Lucas H7 LED applications
Lucas states that L2 Series and higher bulbs include CANBUS support that eliminates the need for an external decoder in many, but not all, vehicles. This makes the L-H7DE particularly useful as a problem-solving accessory when a vehicle still produces warnings, flickering, or other compatibility issues.
