L-H13DE Lucas Lighting Intelligent Decoder – H13 LED Headlight CANBUS Decoder (Pair)
Lucas Lighting Intelligent Decoder – H13 LED Headlight CANBUS Decoder (Pair)

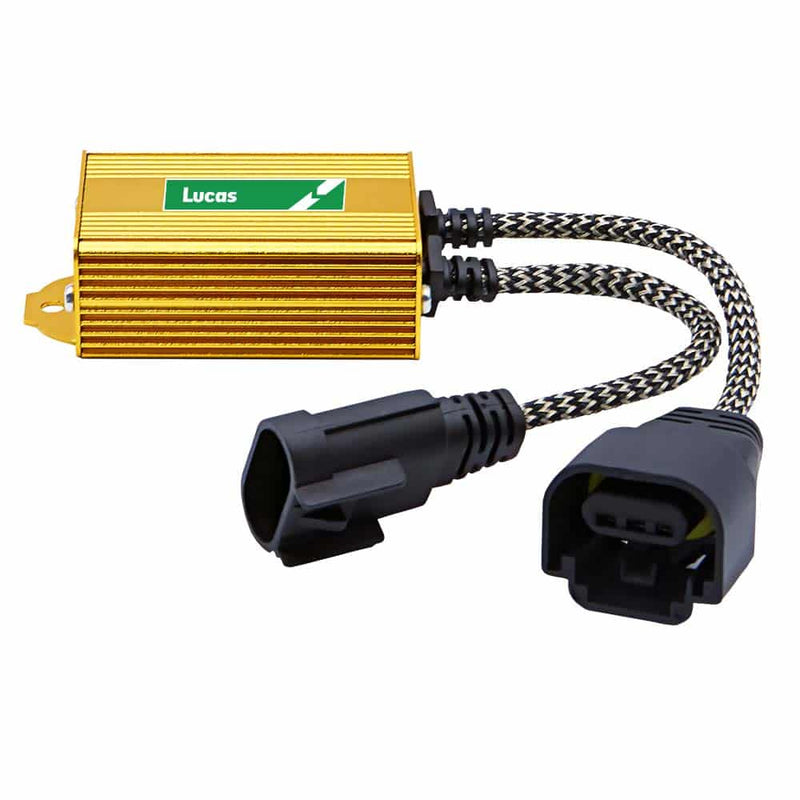

The Lucas Lighting L-H13DE Intelligent Decoder is designed to help resolve common compatibility issues that can occur when installing LED headlight bulbs in vehicles with sensitive factory lighting systems.
If your LED headlights cause a dashboard bulb-out warning, flickering, light error message, or other electrical compatibility issue, the L-H13DE can help correct the problem by connecting between the vehicle's factory headlight harness and compatible Lucas Lighting H13 LED bulbs.
The L-H13DE is particularly useful for vehicles with CANBUS-controlled or pulse-width-modulated (PWM) headlight circuits and is recommended by Lucas Lighting for many German vehicles and Chrysler, Dodge, Jeep and Ram vehicles from 2007 and newer. Some vehicle applications may also require a separate resistor.
The decoder uses a simple plug-and-play connection, making installation straightforward without requiring modifications to the factory wiring harness.
The L-H13DE is specifically designed for H13 applications and is an ideal accessory for compatible Lucas Lighting H13 LED headlight installations, including the L1-H13.
Key Features
- Designed specifically for H13 LED headlight applications
- Helps eliminate LED bulb-out warning messages
- Helps resolve LED headlight flickering
- Designed for vehicles with CANBUS and PWM lighting circuits
- Can help address certain radio reception issues caused by LED headlights
- Simple plug-and-play installation
- Connects between the vehicle harness and LED bulb
- Recommended for many German vehicles
- Recommended for many Chrysler/Dodge/Jeep/Ram vehicles 2007 and newer
- Useful for certain Toyota high-beam applications
- Mounting tab can be grounded to the chassis for best performance
- May be used with a separate resistor on certain vehicle applications
- Designed for compatible H13 LED bulbs
What Does the Lucas L-H13DE Decoder Do?
Modern vehicles often monitor the electrical characteristics of their factory halogen bulbs. When an LED replacement bulb is installed, the vehicle may detect a different electrical load and interpret the change as a failed bulb.
This can result in:
- Bulb-out warnings
- Dashboard lighting errors
- Headlight flickering
- Other electrical compatibility issues
The L-H13DE Intelligent Decoder is designed to help address these issues between the vehicle's factory wiring and the LED headlight bulb.
Designed for H13 Applications
The L-H13DE is the H13-specific decoder in Lucas Lighting's L-Series decoder lineup.
It is designed for compatible:
- H13
- 9008
LED headlight applications.
This makes it a natural accessory for Lucas Lighting H13 LED bulbs such as the L1-H13.
Plug-and-Play Installation
The L-H13DE installs inline between the vehicle's factory headlight harness and the LED bulb.
Basic Installation
- Turn the vehicle and headlights off.
- Disconnect the factory headlight bulb.
- Connect the L-H13DE decoder to the vehicle's factory harness.
- Connect the H13 LED bulb to the decoder.
- Secure the decoder using the provided mounting provisions.
- Lucas Lighting recommends using the mounting tab to ground the chassis of the decoder for best performance.
- Test the headlights for proper low- and high-beam operation.
- Confirm that any warning messages or flickering have been resolved.
No cutting or modification of the factory wiring should normally be required for the plug-and-play connection.
When Should I Use an L-H13DE?
The decoder is most useful when an LED headlight installation produces an electrical compatibility problem.
Consider an L-H13DE if you experience:
Dashboard Warning
The vehicle displays a bulb-out, headlight or lighting-system warning after installing LED bulbs.
Flickering
The LED bulb flickers instead of maintaining a steady output.
Vehicle-Specific Compatibility Issues
The vehicle has a sensitive CANBUS or PWM lighting system known to require additional LED compatibility components.
German Vehicles
Lucas Lighting recommends its decoders at installation for many German vehicle applications.
Chrysler / Dodge / Jeep / Ram
Lucas Lighting recommends its decoders for many Chrysler, Dodge, Jeep and Ram vehicles from 2007 and newer.
Important Compatibility Information
The L-H13DE is not automatically required for every H13 LED installation.
Many vehicles will operate properly without an additional decoder. The need for a decoder depends on the vehicle's factory electrical system and how it monitors the headlight circuit.
Lucas Lighting also notes that some specific applications may require a resistor in addition to the decoder.
For this reason, the L-H13DE should be viewed as a vehicle-specific compatibility accessory, rather than a required component for every H13 LED bulb installation.
