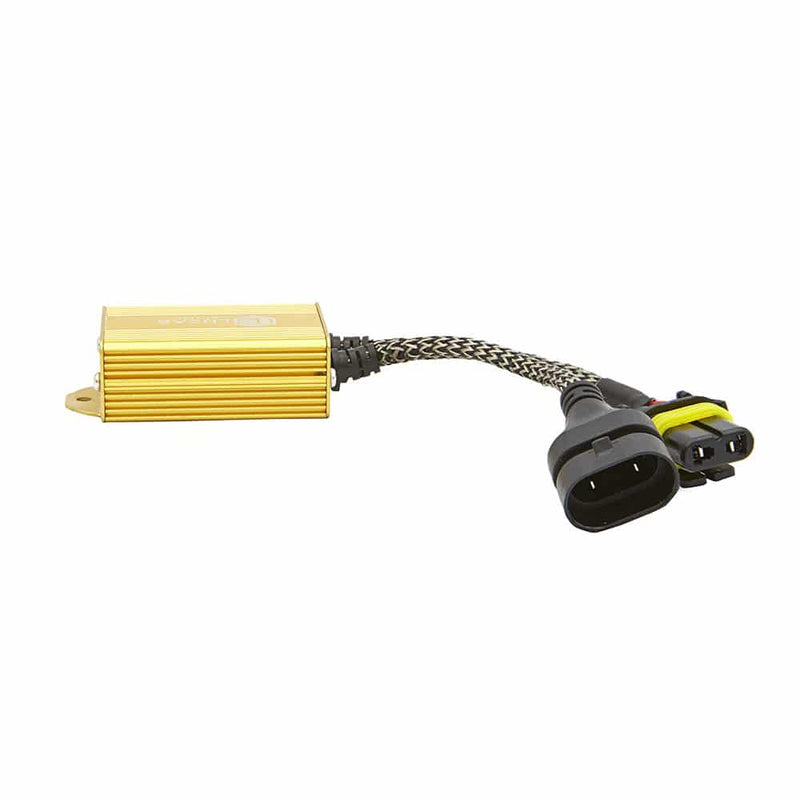

L-9005/9006DE Lucas Lighting Intelligent Decoder – 9005/9006 LED Headlight CANBUS Decoder (Pair)
Lucas Lighting Intelligent Decoder – 9005/9006 LED Headlight CANBUS Decoder (Pair)
Upgrade your 9005 or 9006 LED headlight installation with the Lucas Lighting L-9005/9006DE Intelligent Decoder, designed to help resolve common electrical compatibility issues between LED bulbs and modern vehicle lighting systems.
If your vehicle produces a bulb-out warning, headlight error message, LED flickering, or other electrical issue after installing 9005/9006 LED bulbs, the Lucas Intelligent Decoder can help stabilize the lighting circuit and improve compatibility with the vehicle's factory electronics.
Lucas Lighting specifically lists 9005/9006DE as one of its L-Series decoder styles. The decoder is designed for modern bulb-monitoring systems, pulse-width-modulated (PWM) lighting circuits, and other applications where an LED conversion requires additional electrical compatibility.
Key Features
- Lucas Lighting L-9005/9006DE Intelligent Decoder
- Designed for 9005/9006 LED bulb applications
- Helps resolve bulb-out warning messages
- Helps correct LED headlight flickering
- Improves compatibility with CANBUS and PWM lighting systems
- Helps stabilize the electrical signal supplied to the LED bulb
- Helps address factory bulb-monitoring systems
- Helps isolate certain electrical back-feed issues
- Can help resolve certain AM/FM radio interference issues caused by LED installations
- Plug-and-play inline installation
- Installs between the vehicle wiring harness and LED bulb
- Lucas recommends grounding the decoder's mounting tab to the vehicle chassis for best performance
- Some vehicle applications may require an additional resistor
What Does the L-9005/9006DE Decoder Do?
Modern vehicles can monitor the electrical characteristics of their factory halogen bulbs. When an LED bulb replaces a halogen bulb, the lower electrical load and different electrical characteristics can sometimes cause the vehicle to detect a problem.
The Lucas L-9005/9006DE Intelligent Decoder is designed to help compensate for these differences and provide more stable LED operation.
Helps With Bulb-Out Warnings
If your vehicle detects the lower electrical load of an LED bulb and displays a bulb warning or headlight error, the decoder can help provide the electrical characteristics needed by the factory monitoring system.
Helps Stop LED Flickering
Some vehicles use pulse-width modulation (PWM) to control the factory lighting circuit. Since LEDs respond almost instantly to electrical changes, PWM-controlled circuits can cause visible flickering.
Lucas decoders use resistance for CANBUS compliance and capacitance to smooth the modulated electrical signal, helping provide a more consistent voltage to the LED bulb.
Improves CANBUS Compatibility
The L-9005/9006DE provides additional compatibility for vehicles that actively monitor their lighting circuits.
This can be particularly useful when a 9005/9006 LED conversion produces a bulb-out warning or other electrical compatibility issue.
Helps With Electrical Back-Feed
Certain vehicles can back-feed electrical current through the lighting circuit after converting from halogen to LED. Lucas identifies this as a potential issue in vehicles where lighting functions are electronically interconnected.
A decoder can help isolate this back-feed and restore proper operation.
May Help With Radio Interference
Lucas also notes that some vehicles can experience AM/FM radio reception problems after installing LED lighting. Installing an appropriate decoder can normally resolve this type of interference.
Designed for 9005/9006 LED Applications
The L-9005/9006DE is specifically designed for the 9005/9006 bulb family.
It can be used when a 9005/9006 LED installation produces symptoms such as:
- Bulb-out warning
- Headlight error message
- LED flickering
- Unstable LED operation
- PWM-related issues
- CANBUS compatibility problems
- Electrical back-feed
- Radio interference after LED installation
The decoder is not automatically required for every 9005/9006 LED installation. Many vehicles will operate correctly without an additional decoder.
9005/9006 Applications & Cross-References
The Lucas 9005/9006 LED bulb family covers a number of common factory bulb designations, including:
- 9005
- 9006
- HB3
- HB4
- H10
- 9011
- 9040
- 9055
- 9140
- 9145
- 9150
- 9155
Lucas identifies these applications under its 9005/9006 bulb size.
Important: Always verify the original bulb number in the vehicle before selecting a replacement or decoder.
Recommended for Certain Vehicle Systems
Lucas Lighting recommends its Intelligent Decoders for many German vehicles and Chrysler, Dodge, Jeep, and Ram vehicles after 2007. Lucas also identifies PWM-controlled lighting circuits and some Toyota high-beam applications as situations where a decoder may be necessary.
Vehicle requirements can vary by year, trim, headlight configuration, and factory electronics, so compatibility should be verified for the specific vehicle.
Some applications may require an additional resistor along with the decoder.
Plug-and-Play Inline Installation
The L-9005/9006DE is designed to install inline between the vehicle's factory wiring and the LED bulb.
Basic Installation
- Turn off the vehicle and lighting system.
- Connect the decoder to the vehicle's factory 9005/9006 wiring.
- Connect the LED bulb to the decoder.
- Verify correct positive and negative polarity where applicable.
- Secure the decoder so it does not hang freely inside the engine compartment.
- Lucas recommends using the decoder's mounting tab to ground it to the vehicle chassis for best performance.
- Test the lighting system and check for warning messages or flickering before completing reassembly.
Lucas's installation manual emphasizes maintaining correct polarity through the vehicle connector, decoder, and bulb, particularly with two-pin harnesses. The decoder should also be securely mounted rather than left dangling.
Pairing With Lucas 9005/9006 LED Bulbs
The L-9005/9006DE is a natural compatibility accessory for customers purchasing Lucas Lighting 9005/9006 LED bulbs.
It can be paired with:
- Lucas Lighting L1-9005/6
- Lucas Lighting L2-9005/6
- Lucas Lighting L3-9005/6
- Other compatible 9005/9006 LED applications
The L2 Series and higher already include CANBUS functionality designed to provide wider vehicle compatibility, so an additional decoder may not be necessary in many applications. However, the decoder remains useful when a vehicle still produces warning messages, flickering, or other electrical compatibility issues.
