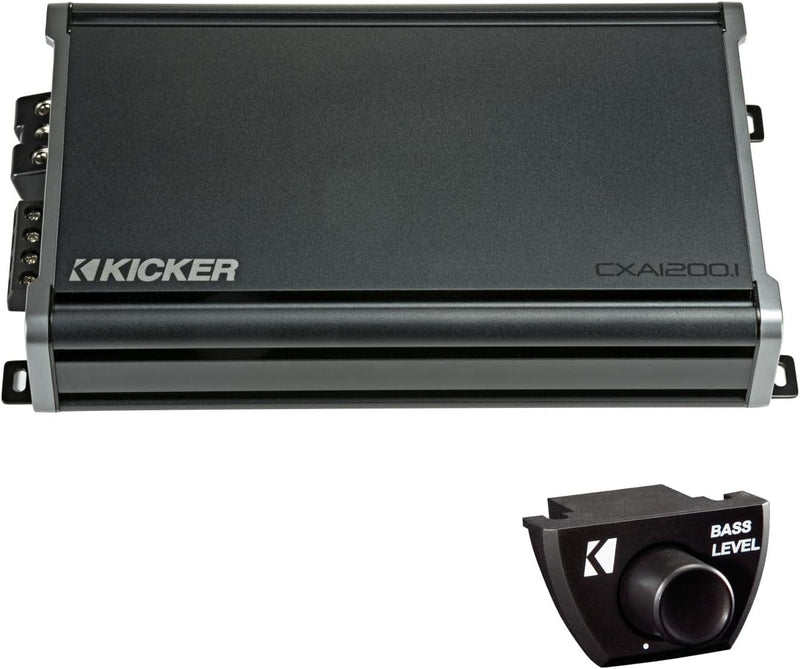

KICKER CXA 1200W Mono Class D Subwoofer Amplifier + CXARC Remote Bass Control Bundle
Get Powerful KICKER Bass Control in One Complete Package
Take control of your subwoofer system with the KICKER CXA1200.1 1200W Mono Class D Subwoofer Amplifier and CXARC Remote Bass Control Bundle. This package combines KICKER's powerful CX-series mono amplifier with the matching CXARC remote bass controller, giving you serious subwoofer power and convenient bass-level adjustment from the driver's seat.

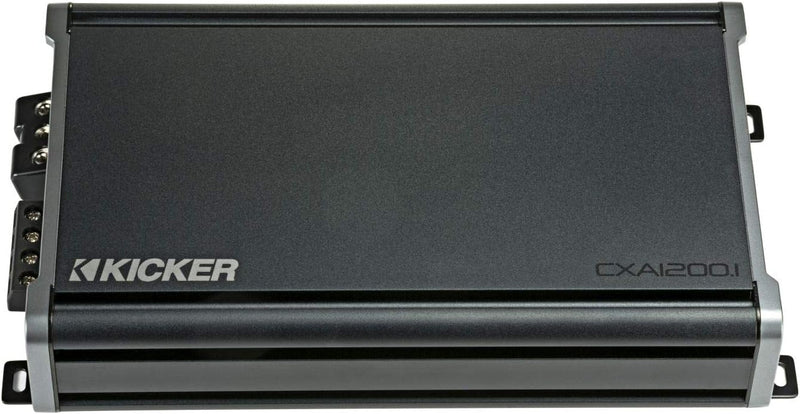

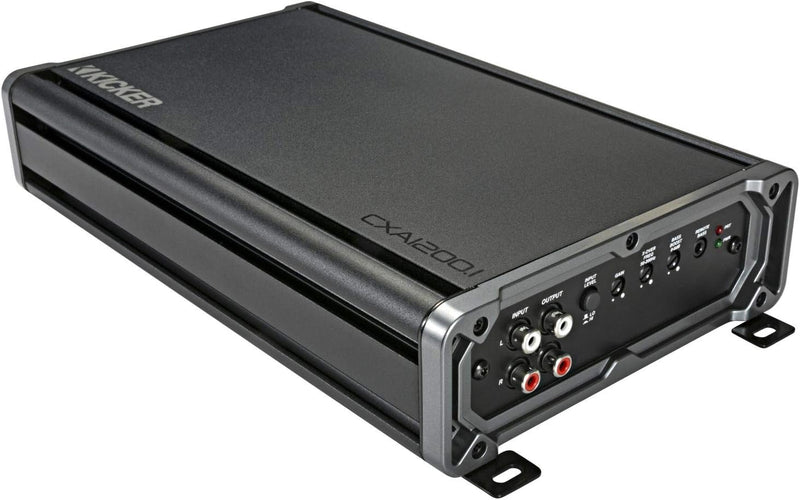

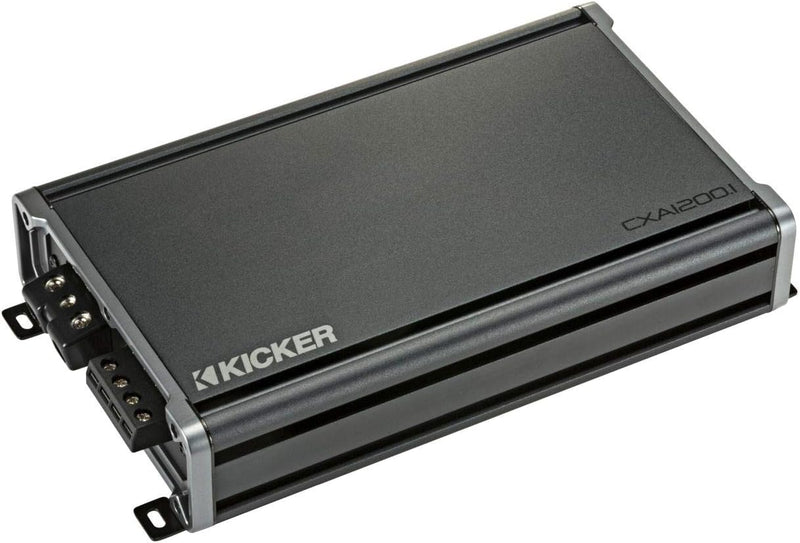

The CXA1200.1 is a highly efficient Class D mono amplifier designed to deliver up to 1,200 watts of power to a single bass channel. It is rated at 600 watts x 1 at 4 ohms and 1,200 watts x 1 at 2 ohms or 1 ohm, giving you flexible wiring options for a wide range of subwoofer systems.
The included KICKER CXARC Remote Bass Control mounts within easy reach of the driver and lets you adjust bass level from the front seat. Its included 19.75-foot cable provides plenty of length for convenient installation in most vehicles.
What's Included
- 1 × KICKER CXA1200.1 / 46CXA12001T Mono Class D Subwoofer Amplifier
- 1 × KICKER CXARC / 46CXARCT Remote Bass Control
- CXARC remote connection cable
- Amplifier installation hardware as supplied by KICKER
KICKER CXA1200.1 Amplifier Highlights
- 1200W Max Power Output
- 1200W x 1 @ 2 Ohms
- 1200W x 1 @ 1 Ohm
- 600W x 1 @ 4 Ohms
- Efficient Class D amplifier design
- Mono subwoofer amplifier
- One-ohm stable
- Variable 12dB low-pass crossover
- 24dB subsonic filter
- KickEQ™ variable bass boost up to +6dB
- Accepts up to 40V of speaker-level input
- FIT+™ integration technology
- Compact footprint for easier installation
- Full-range outputs for system expansion
- Remote bass control compatible
The CXA1200.1 features a variable 12dB low-pass crossover from 50–200 Hz, a 25 Hz subsonic filter at 24dB/octave, and KickEQ™ bass boost adjustable from 0–6dB at 40 Hz.
Convenient Bass Adjustment From the Driver's Seat

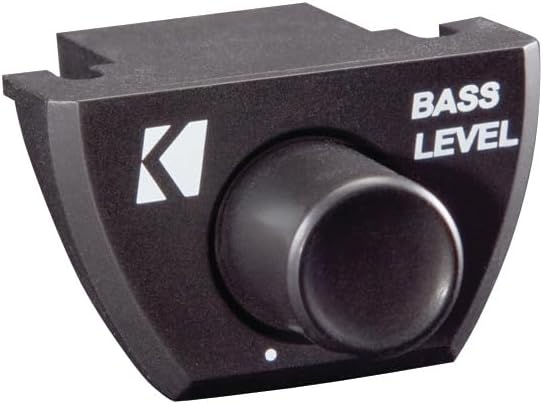

The included KICKER CXARC Remote Bass Control puts subwoofer level adjustment right at your fingertips.
Instead of reaching for the amplifier or adjusting settings through the head unit, you can use the remote knob from the front seat to quickly increase or decrease bass output to match your music.
The CXARC includes a 19.75-foot cable, making it easy to route the controller from the amplifier to a convenient location on the dash or center console.
Built for Flexible Subwoofer Systems
The CXA1200.1 gives you substantial power across multiple impedance configurations:
| Subwoofer Load | Amplifier Power |
|---|---|
| 4 Ohms | 600W x 1 |
| 2 Ohms | 1,200W x 1 |
| 1 Ohm | 1,200W x 1 |
This makes the CXA1200.1 a versatile choice for customers building a single-subwoofer system or a multi-subwoofer system wired to the appropriate final impedance.
Always configure your subwoofer system so the final impedance is compatible with the amplifier and use proper installation practices.
Easy Integration With Factory or Aftermarket Systems
The CXA1200.1 is designed to work with a wide range of source units and can accept up to 40 volts of speaker-level input signal. KICKER's FIT+™ technology helps provide compatibility with nearly every radio, making the amplifier suitable for both aftermarket and many factory-radio installations.
Why Buy the Amplifier + Remote as a Bundle?
Buying these components together gives you the complete CXA1200.1 setup without having to purchase the remote separately.
You get:
- Powerful 1200W mono subwoofer amplification
- 1-ohm stability
- Flexible 1Ω, 2Ω and 4Ω operation
- Built-in crossover and subsonic filtering
- Adjustable KickEQ™ bass boost
- Convenient driver-accessible bass control
- Long 19.75-foot remote cable
- Matching KICKER CX-series components
Ideal For
This bundle is an excellent choice for customers looking to build or upgrade:
- Single-subwoofer systems
- Dual-subwoofer systems
- High-output car audio systems
- Daily-driver bass systems
- Factory-radio upgrades
- Aftermarket head-unit systems
- 1-ohm or 2-ohm subwoofer systems
For best results, match the amplifier's output to the subwoofer system's RMS power handling and final impedance.
Specifications
Amplifier: KICKER CXA1200.1
Part Number: 46CXA12001T
Type: Mono Class D Subwoofer Amplifier
Power @ 4Ω: 600W x 1
Power @ 2Ω: 1,200W x 1
Power @ 1Ω: 1,200W x 1 ±10%
Frequency Response: 25–200 Hz
Low-Level Input Sensitivity: 125mV–5V
High-Level Input Sensitivity: 1V–40V
Signal-to-Noise Ratio: 95dB
Low-Pass Crossover: 50–200 Hz, 12dB/octave
Subsonic Filter: 25 Hz, 24dB/octave
KickEQ™: 0–6dB @ 40 Hz
Remote Bass Control: Compatible
Dimensions: 2-3/8" H × 6-3/4" W × 12" L
Remote: KICKER CXARC
Part Number: 46CXARCT
Cable Length: 19.75 ft
Function: Remote bass-level control
FAQ
Is the CXARC remote included with the amplifier?
The CXARC is normally sold separately by KICKER. This bundle combines the CXA1200.1 amplifier with the CXARC remote so you receive both together.
How much power does the CXA1200.1 produce?
The amplifier is rated at 600W x 1 at 4 ohms and 1,200W x 1 at both 2 ohms and 1 ohm.
Can the CXA1200.1 run at 1 ohm?
Yes. The CXA1200.1 is one-ohm stable and is rated for 1,200W x 1 at 1 ohm.
What does the CXARC remote do?
The CXARC is a remote bass controller that allows you to adjust bass level from the front seat.
How long is the CXARC cable?
The included remote cable is 19.75 feet long.
Can I use this amplifier with a factory radio?
Yes. The CXA1200.1 accepts up to 40 volts of speaker-level input and incorporates KICKER FIT+™ technology for broad source-unit compatibility.
What subwoofers should I use with the CXA1200.1?
Choose subwoofers with RMS power handling appropriate for the amplifier's output and wire the system to a compatible final impedance. At 1 or 2 ohms, the amplifier can deliver up to 1,200 watts to the bass channel.
Does the amplifier include a bass boost?
Yes. KickEQ™ provides variable 0–6dB bass boost centered at 40 Hz.
Expert Recommendation
The KICKER CXA1200.1 + CXARC bundle is a smart choice for customers who want a powerful mono subwoofer amplifier while also having convenient control over bass output from the driver's seat.
With 1,200 watts available at 1 or 2 ohms, the CXA1200.1 is well suited to serious subwoofer systems, while its built-in crossover, subsonic filter, KickEQ™ bass boost and speaker-level input capability make it flexible enough for a wide range of installations.
Adding the CXARC to the package makes the system even more practical. We recommend this bundle for customers who want a clean, straightforward KICKER solution with strong output and convenient day-to-day bass control.
