Serious Bass Power in a Compact CX-Series Amplifier

The KICKER 53CXA9001 CXA900.1 delivers up to 900 watts RMS of mono power at 1 ohm in a compact Class-D design built for modern 12-volt audio systems.

Designed to provide strong subwoofer power without requiring a large amplifier footprint, the CXA900.1 combines KICKER's proven CX-series amplifier platform with features designed to make installation, tuning, and integration easier.

With rated output of:

350W RMS × 1 @ 4 Ohms
600W RMS × 1 @ 2 Ohms
900W RMS × 1 @ 1 Ohm

the CXA900.1 gives you the flexibility to match amplifier power to a wide range of subwoofer configurations.

Whether you're replacing an existing amplifier or building a new bass system, the 53CXA9001 provides a compact, efficient way to add substantial subwoofer power.

What Makes the KICKER CXA900.1 Different?

The CXA900.1 isn't designed around a giant chassis or unnecessary complexity.

Instead, KICKER focuses on delivering the power needed for a modern subwoofer system while keeping the amplifier compact and installation-friendly.

Several features make the CXA900.1 particularly useful in today's vehicles.

900W RMS at 1 Ohm

The amplifier is stable down to 1 ohm, allowing it to deliver its full rated 900W RMS when paired with an appropriate 1-ohm subwoofer configuration.

FIT+ Integration

KICKER's FIT+ Fail-safe Integration Technology-PLUS allows the amplifier to accept input signals up to 40 volts.

This gives the CXA900.1 the flexibility to work with a wide range of factory and aftermarket source units without typically requiring a separate line output converter.

Gain-Match LEDs

The gain control incorporates built-in LEDs that help indicate the appropriate gain setting.

Instead of relying entirely on guesswork, the Gain-Match system provides a visual reference while setting the amplifier's input level.

Start/Stop Compatibility

Modern vehicles frequently shut the engine off temporarily at stoplights and restart automatically.

The CXA900.1 is designed to remain compatible with Start/Stop vehicle electrical systems across an input voltage range of 6V–15.6V.

Compact Class-D Design

The Class-D design helps reduce current draw and operating temperatures while allowing KICKER to deliver substantial output from a relatively compact chassis.

900W RMS of Subwoofer Power

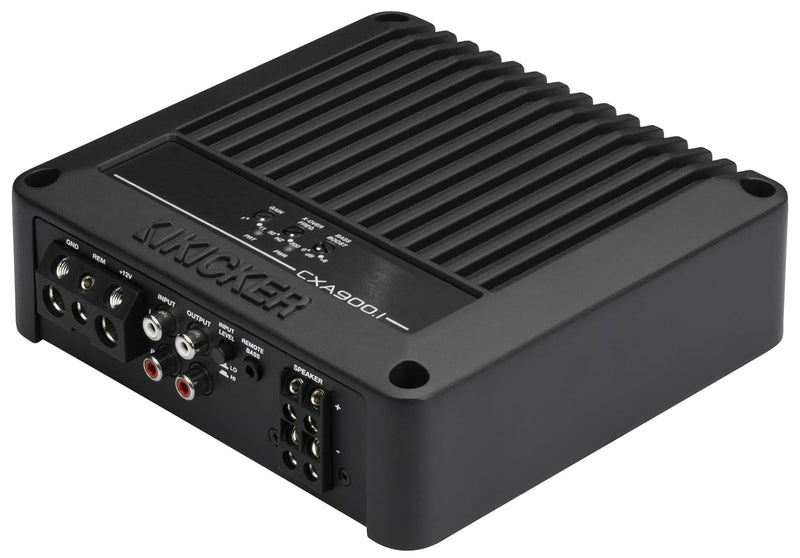

The CXA900.1 provides three primary power configurations.

4-Ohm Output

350W RMS × 1 @ 4 Ohms

This configuration works well with a 4-ohm subwoofer or a subwoofer configuration presenting a 4-ohm final load.

2-Ohm Output

600W RMS × 1 @ 2 Ohms

A 2-ohm final load allows the amplifier to provide 600W RMS.

1-Ohm Output

900W RMS × 1 @ 1 Ohm

This is the amplifier's maximum rated RMS output and is the configuration to use when pairing the CXA900.1 with a compatible 1-ohm subwoofer load.

Always make sure the final subwoofer impedance is compatible with the amplifier before connecting the system.

Built Specifically for Subwoofers

The CXA900.1 is a dedicated mono subwoofer amplifier designed to provide the power and filtering needed for low-frequency systems.

Its frequency response is:

15Hz–200Hz

This keeps the amplifier focused on the bass frequencies that matter most in a dedicated subwoofer system.

The amplifier also includes an adjustable low-pass crossover and fixed subsonic filter to help shape the signal reaching the subwoofer.

Variable Low-Pass Crossover

The CXA900.1 includes a variable active low-pass crossover adjustable from:

50Hz–200Hz

with a steep:

24dB/octave slope

This allows the amplifier to limit higher frequencies and keep the subwoofer focused on reproducing bass.

A typical starting point for many systems is around 80Hz, although the ideal setting depends on the subwoofer, enclosure, front speakers, vehicle, and overall system tuning.

Fixed 15Hz Subsonic Filter

The CXA900.1 includes a fixed:

15Hz Subsonic Filter

with a:

24dB/octave slope

A subsonic filter reduces extremely low frequencies that may provide little audible benefit while placing additional mechanical demand on the subwoofer.

The fixed 15Hz filter provides an additional layer of protection for the subwoofer system while allowing the amplifier to retain strong low-frequency capability.

KickEQ Bass Boost

The CXA900.1 features KICKER's KickEQ™ bass boost.

The control provides:

0–6dB of boost at 40Hz

This allows the installer to add a controlled amount of additional emphasis around 40Hz when desired.

Bass boost should be used carefully because increasing output at a specific frequency also increases the power and excursion demands placed on the subwoofer.

FIT+ Makes Factory Integration Easier

One of the most important features of the CXA900.1 is KICKER's FIT+ technology.

FIT+ allows the amplifier to accept input signals from:

125mV–40V

This wide input range makes the amplifier compatible with virtually any factory or aftermarket source unit.

For many installations, this means the amplifier can connect directly to the vehicle's factory speaker-level signal without requiring an additional line output converter.

That makes the CXA900.1 particularly useful for modern vehicles where retaining the factory radio is important.

Designed for Modern Start/Stop Vehicles

The CXA900.1 supports Start/Stop vehicle technology with an operating voltage range of:

6V–15.6V

This helps the amplifier remain compatible with vehicles that temporarily reduce system voltage during automatic engine stop/start cycles.

This is an important consideration when installing an aftermarket amplifier in a newer vehicle with modern electrical-management systems.

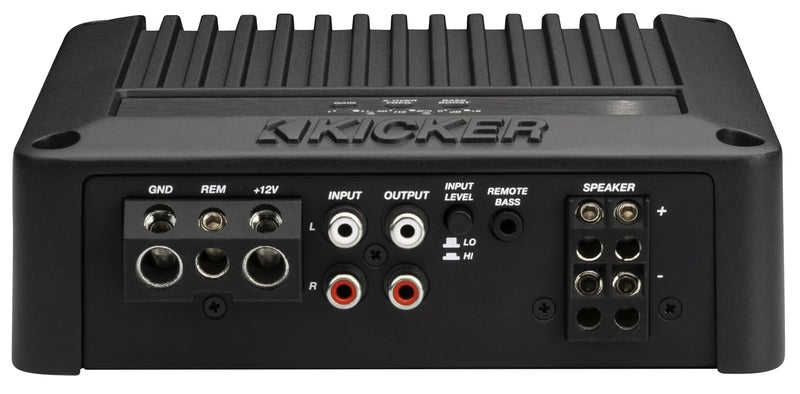

Gain-Match LEDs Make Setup Easier

The gain knob on the CXA900.1 incorporates Gain-Match LEDs.

These LEDs provide a visual indication to help the installer identify the appropriate gain setting.

Proper gain adjustment is important for getting strong output while minimizing unwanted clipping and distortion.

The Gain-Match system makes this process easier without requiring the installer to rely solely on trial and error.

Remote Bass Control Ready

The CXA900.1 is compatible with the optional:

KICKER 53CXARC Remote Bass Level Control

Adding the optional CXARC allows the driver to adjust subwoofer level from the front of the vehicle.

This is particularly useful for customers who want quick bass-level adjustment for different types of music or listening environments.

The remote is optional and is not included with the amplifier.

Compact Design for Easier Installation

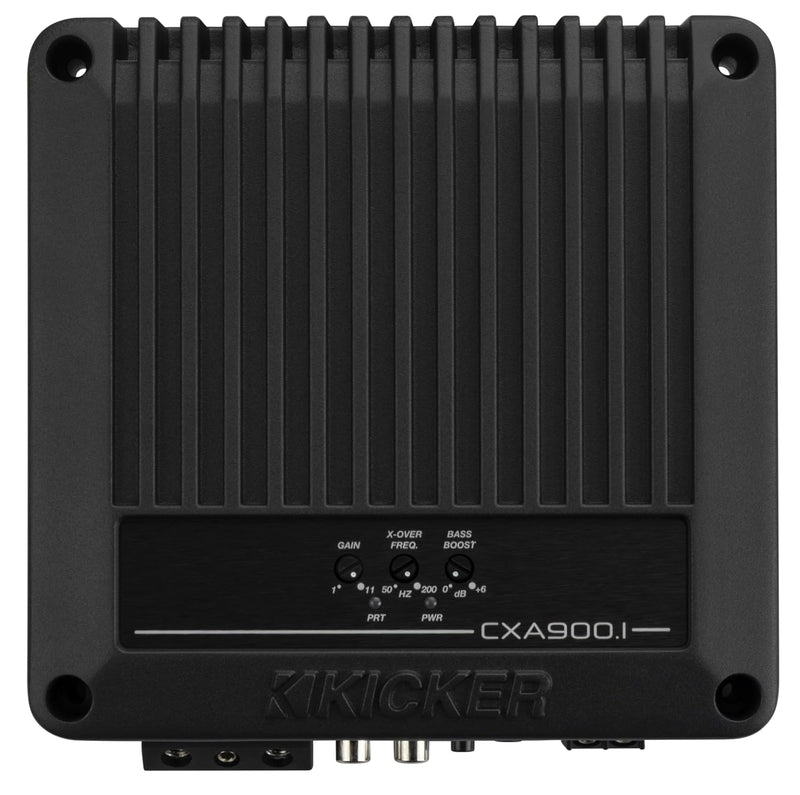

The CXA900.1 measures approximately:

7.07" Long × 6.84" Wide × 2.22" Tall

Its compact footprint makes it easier to install in locations where a larger amplifier may not fit.

Potential installation locations can include:

• Under or behind seats
• Trunk or cargo areas
• Side panels
• Custom amplifier racks
• Behind interior panels when adequate ventilation is maintained

Always follow the installation instructions and maintain appropriate clearance around the amplifier.

Class-D Efficiency & Active Thermal Rollback

The CXA900.1 uses a Class-D design intended to provide substantial output while reducing current draw and operating temperatures compared with less efficient amplifier designs.

KICKER also incorporates active thermal rollback, which helps manage amplifier operation during extended periods of high-temperature use.

This makes the amplifier well suited to customers who want strong bass performance during extended listening sessions.

Key Features

• 900W RMS maximum rated output
• Mono Class-D subwoofer amplifier
• 350W RMS × 1 @ 4 Ohms
• 600W RMS × 1 @ 2 Ohms
• 900W RMS × 1 @ 1 Ohm
• Stable into 1 ohm
• Compact chassis design
• KICKER FIT+ technology
• Accepts input signals up to 40V
• Gain-Match LEDs built into gain control
• Variable 50–200Hz low-pass crossover
• 24dB/octave low-pass slope
• Fixed 15Hz subsonic filter
• 24dB/octave subsonic slope
• KickEQ bass boost
• 0–6dB bass boost at 40Hz
• Start/Stop vehicle compatible
• 6V–15.6V Start/Stop voltage range
• Active thermal rollback
• Compatible with optional 53CXARC remote bass control
• Compact 7.07" × 6.84" × 2.22" chassis
• 1000W dynamic power rating

Technical Specifications

Amplifier

Brand: KICKER
Model: 53CXA9001
Series: CXA
Amplifier Type: Mono Subwoofer Amplifier
Amplifier Class: Class-D
Channels: 1
Dynamic Power: 1000W

RMS Power

4 Ohms: 350W × 1
2 Ohms: 600W × 1
1 Ohm: 900W × 1

Audio Performance

Frequency Response: 15Hz–200Hz
Signal-to-Noise Ratio: >95dB @ rated power
Input Sensitivity: 125mV–40V with FIT+

Crossover & Bass Control

Low-Pass Crossover: Variable 50–200Hz
Low-Pass Slope: 24dB/octave
Subsonic Filter: Fixed 15Hz
Subsonic Slope: 24dB/octave
KickEQ Bass Boost: 0–6dB @ 40Hz

Vehicle Compatibility

Start/Stop Compatible: Yes
Start/Stop Voltage Range: 6V–15.6V
Minimum Speaker Load: 1 Ohm

Dimensions

Length: 7.07" / 18cm
Width: 6.84" / 17.4cm
Height: 2.22" / 5.6cm

Remote Control

Remote Bass Control Ready: Yes
Compatible Remote: KICKER 53CXARC
Remote Included: No

Installation & Fitment Considerations

The CXA900.1 is compact, but proper installation is still important because this is a high-output subwoofer amplifier.

Before installation, verify:

• Available mounting space
• Adequate ventilation
• Proper power and ground wiring
• Correct fuse and wire sizing
• Subwoofer impedance
• Subwoofer RMS power handling
• Signal connection method
• Remote bass-control cable routing if applicable
• Adequate clearance around the amplifier

The amplifier is stable down to 1 ohm, but the connected subwoofer system must also be designed to operate safely at the amplifier's selected load.

Do not connect a final speaker load below the amplifier's rated minimum impedance.

Who Is the KICKER 53CXA9001 For?

The CXA900.1 is an excellent fit for customers who want to add a serious subwoofer amplifier while maintaining a relatively compact installation.

It is particularly suited for:

• Factory-radio upgrades
• Aftermarket radio systems
• Daily-driver bass systems
• Compact subwoofer builds
• Truck and SUV audio systems
• Jeep audio systems
• Factory-integration installations
• 1-ohm subwoofer systems
• 2-ohm subwoofer systems
• 4-ohm subwoofer systems

Its FIT+ input capability also makes it especially useful when the customer wants to retain the factory radio instead of replacing it.

____________________________________________________________________________________________

OPTIONAL BASS CONTROL

KICKER 53CXARC Remote Bass Level Control

Add the optional KICKER 53CXARC to control your subwoofer level from the driver's seat.

The remote is designed specifically for compatible KICKER amplifiers and provides convenient front-of-vehicle bass-level adjustment. The CXARC is sold separately.

Recommended add-on for:

• Daily-driver systems
• Factory-radio installations
• Systems where quick bass adjustment is useful
• Drivers who want control without accessing the amplifier

______________________________________________________________________________________________

FREQUENTLY ASKED QUESTIONS

Is the KICKER 53CXA9001 a mono amplifier?

Yes. The 53CXA9001 is a mono Class-D subwoofer amplifier designed specifically to power a dedicated bass system.

How much power does the 53CXA9001 produce?

The amplifier is rated at:

• 350W RMS x 1 @ 4 ohms
• 600W RMS x 1 @ 2 ohms
• 900W RMS x 1 @ 1 ohm

Is the KICKER 53CXA9001 1-ohm stable?

Yes. The amplifier is designed to operate at a final 1-ohm load and produces its rated 900W RMS at 1 ohm.

Can I use the 53CXA9001 with a factory radio?

Yes. FIT+ is designed to allow the amplifier to integrate with a wide range of factory and aftermarket radios. It accepts input signals up to 40 volts, and a separate line output converter is not required in most installations.

Do I need a line output converter?

Not necessarily. FIT+ is designed to handle a broad range of input signals, including high-level factory-radio signals. However, the exact integration requirements can vary by vehicle and factory audio system.

What subwoofer should I use with the 53CXA9001?

Choose a subwoofer system based on its RMS power handling and final wired impedance. As a general guide, target approximately 350W RMS at 4 ohms, 600W RMS at 2 ohms or 900W RMS at 1 ohm.

Can I run a dual-voice-coil subwoofer?

Yes, provided the voice coils can be wired to an appropriate final impedance for the amplifier. Always verify the final load before installation.

Does the 53CXA9001 include a bass knob?

No. The optional KICKER 53CXARC Remote Bass Level Control is sold separately.

What does the Gain-Match LED do?

The Gain-Match LEDs help indicate when the amplifier's gain is properly adjusted, making it easier to set the amplifier for the intended input signal.

What crossover controls are included?

The amplifier includes a variable low-pass crossover from 50Hz–200Hz, a fixed 15Hz subsonic filter and variable KickEQ bass boost.

Is the 53CXA9001 compatible with Start/Stop vehicles?

Yes. The amplifier is designed for vehicles equipped with Start/Stop technology and supports an operating voltage range of 6V–15.6V.

Is the 53CXA9001 only for subwoofers?

Yes. This is a dedicated mono subwoofer amplifier rather than a full-range multi-channel amplifier.

Is the amplifier compact?

Yes. The 53CXA9001 measures approximately 2.22" high x 6.84" wide x 7.07" long, making it well suited to installations where space is limited.

What is included with the amplifier?

The package includes the 53CXA9001 amplifier, Quick Start Guide, mounting hardware and Allen key.
