53CXA15001 KICKER CX Series 1500W Mono Class D Subwoofer Amplifier 1-Ohm

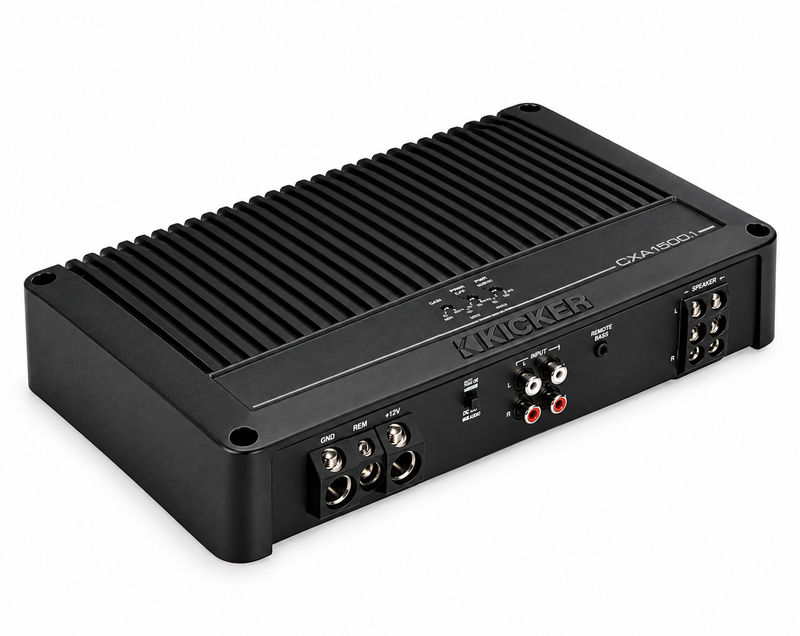

KICKER 53CXA15001 CXA1500.1 — 1500W RMS Mono Class-D Subwoofer Amplifier
Power a serious subwoofer system with the KICKER 53CXA15001 CXA1500.1, a high-output mono Class-D amplifier engineered for powerful bass performance, efficient operation and reliable system control.
Delivering up to 1,500 watts RMS at 1 ohm, the CXA1500.1 provides substantial power for demanding subwoofer setups. Its output is rated at 550 watts RMS at 4 ohms, 1,000 watts RMS at 2 ohms and 1,500 watts RMS at 1 ohm, giving you flexibility when matching the amplifier to your subwoofer configuration.
Built for high-current applications, the CXA1500.1 features 0-gauge power and ground inputs to support a properly designed electrical installation. Gain-Match LED indicators help simplify gain adjustment, while the 24dB Linkwitz-Riley crossover and fixed 15Hz subsonic filter provide essential control over the signal sent to your subwoofer.
The updated thermal-management system includes active thermal rollback beginning around 167°F (75°C), helping manage output as temperatures rise, and thermal protection at 185°F (85°C). Start/Stop compatibility down to 7 volts also makes the amplifier suitable for supported modern vehicle electrical systems.
Whether you're upgrading a single high-output subwoofer or building a powerful multi-subwoofer system, the KICKER 53CXA15001 delivers the power and control needed for a properly matched bass setup.
What Makes the KICKER CXA1500.1 Stand Out?
1,500W RMS at 1 Ohm
The CXA1500.1 delivers substantial subwoofer power in a dedicated mono amplifier. Its 1-ohm-stable design provides flexibility for compatible subwoofer wiring configurations.
Rated RMS output:
-
550W × 1 at 4 ohms
-
1,000W × 1 at 2 ohms
-
1,500W × 1 at 1 ohm
Always verify the final wired impedance of your subwoofer system before connecting it to the amplifier.
0-Gauge Power and Ground Inputs
High-output amplifiers require an electrical system capable of supplying the current they demand. The CXA1500.1 features 0-gauge power and ground inputs to accommodate appropriately sized high-current wiring.
Use wiring, fuse protection and electrical-system components selected for the amplifier's installation requirements.
Gain-Match LED Indicators
The built-in Gain-Match LEDs help indicate when the amplifier's input sensitivity is appropriately adjusted for the source signal. This visual feedback makes setup easier and helps reduce the guesswork involved in setting amplifier gain.
Correct gain adjustment is important for achieving clean output and minimizing clipping.
Advanced Thermal Rollback
The CXA1500.1 incorporates active thermal rollback designed to reduce output as amplifier temperature rises, helping manage heat during demanding use.
Thermal rollback begins around 167°F (75°C), with thermal protection engaging at approximately 185°F (85°C). Proper ventilation and installation remain essential, even with these protections in place.
Start/Stop Compatibility
Modern vehicles may temporarily reduce system voltage when the engine automatically stops and restarts. The CXA1500.1 is designed to support Start/Stop operation down to 7 volts, helping it remain compatible with supported vehicle electrical systems.
Subwoofer-Focused Crossover Control
The amplifier features a 24dB Linkwitz-Riley crossover for controlling the frequencies sent to the subwoofer. Its fixed 15Hz subsonic filter helps reduce extremely low-frequency content below the intended operating range.
These controls help the installer configure the amplifier for the subwoofer, enclosure and overall system.
Optional Remote Bass Control
The CXA1500.1 is compatible with the optional KICKER CXARC Remote Bass Level Control, sold separately. When installed, the remote lets the driver adjust bass level from a convenient location inside the vehicle.
The remote is not included with the amplifier.
Power Output & Subwoofer Matching
| Final Impedance | RMS Power Output |
|---|---|
| 4 ohms | 550W × 1 |
| 2 ohms | 1,000W × 1 |
| 1 ohm | 1,500W × 1 |
For the best results, select a subwoofer or subwoofer combination with appropriate RMS power handling and a final impedance supported by the amplifier.
A system wired to 1 ohm can access the amplifier's full rated RMS output, provided the subwoofers, wiring and vehicle electrical system are properly configured for the load.
Technical Specifications
Amplifier
| Specification | Details |
|---|---|
| Brand | KICKER |
| Model | 53CXA15001 |
| Series | CXA |
| Amplifier Type | Mono subwoofer amplifier |
| Amplifier Class | Class-D |
| Channels | 1 |
| Maximum Rated RMS Output | 1,500 watts × 1 at 1 ohm |
| RMS Output at 4 Ohms | 550W × 1 |
| RMS Output at 2 Ohms | 1,000W × 1 |
| RMS Output at 1 Ohm | 1,500W × 1 |
| Dynamic Power at 1 Ohm | 1,650W |
| Minimum Rated Speaker Load | 1 ohm |
Installation & Electrical
| Specification | Details |
|---|---|
| Power Input | 0-gauge compatible |
| Ground Input | 0-gauge compatible |
| Speaker Output Terminals | Two positive-negative terminal pairs |
| Start/Stop Compatible | Yes |
| Minimum Supported Start/Stop Voltage | 7V |
| Remote Bass Control | Optional CXARC |
| Vertical Mounting | Not supported |
Crossover & Thermal Management
| Specification | Details |
|---|---|
| Low-Pass Crossover | 24dB Linkwitz-Riley |
| Subsonic Filter | Fixed 15Hz |
| Thermal Rollback | Approximately 167°F / 75°C |
| Thermal Protection | Approximately 185°F / 85°C |
| Thermal Management | Active thermal rollback |
Dimensions
| Measurement | Metric | Approximate Imperial |
|---|---|---|
| Length | 290mm | 11.42" |
| Width | 174mm | 6.85" |
| Height | 56mm | 2.20" |
Mounting note: The 53CXA15001 does not support vertical mounting. Plan for a suitable horizontal mounting surface with adequate ventilation and access to the wiring terminals.
Installation & Compatibility Considerations
The CXA1500.1 is a high-output amplifier, so proper electrical planning and mounting are especially important.
Before installation, verify:
-
The final subwoofer impedance is 1 ohm or higher.
-
The subwoofer system can safely handle the amplifier's available power.
-
Power and ground wiring are properly sized for the installation.
-
The required fuse protection is installed according to the amplifier's instructions.
-
The vehicle's charging system can support the expected electrical demand.
-
The mounting location provides adequate ventilation.
-
The amplifier is mounted horizontally, not vertically.
-
Signal wiring and remote bass-control wiring are routed appropriately.
For factory-radio installations, confirm the source-unit signal level and integration requirements before choosing the connection method. Do not assume a separate line output converter is either required or unnecessary without checking the vehicle and amplifier's supported input specifications.
Pro Audio Center Tip
The KICKER 53CXA15001 is a strong choice for a subwoofer system that needs up to 1,500 watts RMS at 1 ohm. Match the amplifier to the subwoofer's RMS power handling and final impedance, and pay close attention to electrical wiring, charging-system capacity and ventilation. For convenient in-cabin bass adjustment, add the optional CXARC remote.
Recommended Accessories
-
KICKER CXARC Remote Bass Control — Adjust bass level from the driver's seat. Sold separately; verify the remote connection on the amplifier before ordering.
-
0-Gauge Amplifier Wiring Kit — Choose a quality kit with appropriate power and ground wire, fuse protection, and terminals for the installation.
-
Distribution Blocks and Electrical Upgrades — Useful when integrating the amplifier into a larger system. Select components based on total system current demand and the vehicle’s electrical capacity.
Installation Notes
-
Minimum impedance: 1 ohm. Do not wire the connected subwoofer load below the amplifier’s rated minimum.
-
Power wiring: The amplifier uses 0-gauge power and ground inputs. Use appropriately sized wiring and fuse protection based on the amplifier’s manual.
-
Mounting: Install horizontally in a secure, well-ventilated location. This model does not support vertical mounting.
-
Electrical system: A high-output amplifier can place substantial demand on the vehicle’s charging system. Assess battery condition, alternator capacity, grounding, and wiring before installation.
-
Setup: Set gain and crossover controls carefully to help prevent clipping and subwoofer damage. The fixed 15Hz subsonic filter helps limit extremely low-frequency signals.
Frequently Asked Questions
How much power does the KICKER 53CXA15001 produce?
It delivers 550W RMS at 4 ohms, 1,000W RMS at 2 ohms, and 1,500W RMS at 1 ohm. Its listed dynamic power rating is 1,650W at 1 ohm.
Is the KICKER 53CXA15001 stable at 1 ohm?
Yes. It is rated to operate with a final subwoofer load as low as 1 ohm when correctly wired and installed.
Is a remote bass knob included?
The optional KICKER CXARC remote bass controller is sold separately. Confirm compatibility with the amplifier’s remote-bass connection before ordering.
What size power wire does this amplifier use?
The amplifier has 0-gauge power and ground inputs. The complete installation must also use suitable wire, fuse protection, terminals, and grounding according to the manufacturer’s installation instructions.
What subwoofers work best with this amplifier?
Choose subwoofers based on their combined RMS power handling and the final impedance after wiring. The amplifier provides 1,500W RMS at 1 ohm, 1,000W RMS at 2 ohms, and 550W RMS at 4 ohms.
