Upgrade Your Jeep With a 10.1" HD Floating Screen

Give your Jeep Wrangler JL or Gladiator JT a major technology upgrade with this complete JVC KW-Z1000AW Direct Replacement Radio Bundle.

This package combines the JVC KW-Z1000AW 10.1" HD floating-screen receiver with the required iDatalink Maestro integration interface, Jeep-specific APX installation kit, and head-unit adapter harness.

Instead of purchasing the radio, interface, dash components, and wiring separately and trying to determine which parts work together, we've put together the core components needed for a clean, professionally integrated installation.

The result is a dramatically larger 10.1" HD touchscreen with modern smartphone connectivity while maintaining the factory-style appearance and vehicle integration provided by the Maestro APX system. JVC designed the KW-Z1000AW specifically for Direct Replacement applications using Maestro APX components.

Built for Jeep Wrangler JL & Gladiator JT

This bundle is designed for select:

• 2019–2023 Jeep Wrangler JL
• 2020–2023 Jeep Gladiator JT

It is intended for compatible factory-screen configurations using the appropriate iDatalink Maestro APX-FL-JL1 installation kit.

Important: Vehicle compatibility can vary based on factory equipment, radio configuration, and trim. Verify your vehicle and factory radio configuration before ordering.

What's Included

1. JVC KW-Z1000AW 10.1" HD Direct Replacement Receiver

The centerpiece of the upgrade is JVC's premium 10.1" HD floating touchscreen receiver.

Features include:

• 10.1" HD 1280 × 720 touchscreen
• Wireless Apple CarPlay
• Wired Apple CarPlay
• Wireless Android Auto
• Wired Android Auto
• Built-in Bluetooth 5.2
• HDMI input
• Up to 4-camera inputs
• HD front/rear camera support
• Built-in HD Radio tuner
• SiriusXM Ready
• 13-band graphic equalizer
• 3-way crossover
• Time alignment
• High-resolution audio playback
• 3 pairs of 4V RCA preouts
• USB Type-C connectivity
• 3A USB charging
• iDatalink Maestro Ready
• Adjustable floating-screen viewing angle

JVC specifies three pairs of 4V preouts, a 13-band EQ, high-resolution audio, wireless/wired smartphone integration, and up to four camera inputs for the KW-Z1000AW.

2. iDatalink Maestro ADS-MRR

The Maestro RR interface provides the vehicle integration required to connect the aftermarket JVC receiver with compatible factory systems.

When supported by the vehicle and configuration, Maestro integration can allow the aftermarket receiver to retain important factory functions such as steering-wheel controls, factory amplification, vehicle information and other OEM features. JVC notes that available Maestro features vary by vehicle.

3. iDatalink Maestro APX-FL-JL1

The APX-FL-JL1 is the Jeep-specific installation kit designed for the JVC/Kenwood Direct Replacement floating-screen application.

This provides the vehicle-specific components needed to properly install the 10.1" display into the Jeep dashboard rather than attempting to adapt a universal aftermarket dash kit.

4. iDatalink ACC-HU-KEN1

The ACC-HU-KEN1 head-unit adapter harness connects the Maestro system to the compatible JVC/Kenwood receiver and completes the required wiring interface.

Together, these components create a much cleaner solution than attempting to piece together individual adapters and wiring components.

Why Choose This Complete Bundle?

10.1" HD Display

Replace the smaller factory display with a large, high-resolution 10.1" touchscreen.

The KW-Z1000AW uses a 1280 × 720 HD display with optical bonding technology designed to improve visibility and reduce reflections.

Wireless Apple CarPlay & Android Auto

Connect your compatible smartphone wirelessly or through USB and access navigation, music, phone calls, messaging and supported apps directly from the JVC touchscreen.

Jeep-Specific Installation Components

The APX-FL-JL1 is designed specifically around the applicable Jeep dashboard rather than using a generic universal mounting solution.

Factory Integration

The Maestro system is designed to preserve compatible factory functions while allowing you to upgrade the actual radio technology.

Multiple Camera Support

The KW-Z1000AW supports up to four camera inputs, allowing compatible front, rear and additional camera configurations.

Serious Audio Control

For customers building a higher-performance Jeep audio system, the KW-Z1000AW offers:

• 13-band EQ
• 3-way crossover
• Time alignment
• 4V preouts
• Dedicated subwoofer output
• High-resolution audio
• K2 sound-processing technology

That makes this much more than a screen upgrade—it's also a strong foundation for a serious aftermarket audio system.

Vehicle Fitment

Factory Screen Compatibility

The JVC Direct Replacement platform is designed around compatible factory-screen applications and uses Maestro APX components to replace the original display with the 10.1" JVC floating screen.

Please verify your vehicle's factory radio and screen configuration before ordering.

Key Features & Specifications

JVC KW-Z1000AW

Display

• 10.1" HD floating touchscreen
• 1280 × 720 resolution
• Capacitive touch panel
• Optical bonding
• Adjustable viewing angle
• Gesture touch control

Smartphone Integration

• Wireless Apple CarPlay
• Wired Apple CarPlay
• Wireless Android Auto
• Wired Android Auto
• Wireless Android smartphone mirroring

Audio

• 13-band graphic EQ
• 8 preset + 4 user EQ settings
• 3-way crossover
• Time alignment
• High-resolution audio
• K2 technology
• Bass Boost
• High-pass/low-pass filters
• 4V preouts
• Front/rear/subwoofer RCA outputs

Connectivity

• Bluetooth 5.2
• Wi-Fi
• USB Type-C
• HDMI input
• SiriusXM Ready
• Built-in HD Radio

Camera

• Up to 4 camera inputs
• HD camera support
• Front/rear camera capability

Factory Integration

• iDatalink Maestro Ready
• Steering-wheel control ready

JVC lists the KW-Z1000AW with Bluetooth 5.2, Wi-Fi, 13-band EQ, 3-way crossover, 4V preouts, USB Type-C, HDMI, and four-camera capability.

Installation

This bundle is designed around the iDatalink Maestro APX Direct Replacement system.

The JVC receiver's chassis is remotely mounted behind the factory dash area while the 10.1" display replaces the compatible factory screen. The APX components provide the vehicle-specific mounting and integration hardware required for the application.

Professional Installation Recommended

While this bundle is designed to make the installation considerably more straightforward than assembling the components individually, installation involves removing the factory radio/display and configuring the Maestro interface.

Professional installation is recommended.

Frequently Asked Questions

Will this fit my 2019–2023 Jeep Wrangler?

The bundle is designed for select 2019–2023 Jeep Wrangler JL applications. Compatibility depends on the factory radio/screen configuration.

Will this fit my Jeep Gladiator?

Yes. The APX-FL-JL1 application is designed for compatible 2020–2023 Jeep Gladiator JT vehicles.

Does this replace the factory screen?

Yes. The JVC KW-Z1000AW is designed as a Direct Replacement receiver and replaces the compatible factory display with its 10.1" HD floating screen.

Does it have wireless Apple CarPlay?

Yes. The KW-Z1000AW supports both wireless and wired Apple CarPlay.

Does it have wireless Android Auto?

Yes. Wireless and wired Android Auto are supported.

Can I keep my steering-wheel controls?

The Maestro integration is designed to retain compatible factory controls and functions. Exact retained features depend on the vehicle's factory configuration.

Can I keep my factory backup camera?

Compatible factory camera integration is supported through the appropriate vehicle interface, but exact functionality depends on the vehicle and factory equipment.

Does the radio support aftermarket amplifiers?

Absolutely. With three pairs of 4V RCA preouts, dedicated subwoofer control, a 13-band EQ and 3-way crossover, the KW-Z1000AW is well suited for aftermarket amplifier and speaker upgrades.

Can I add additional cameras?

Yes. The KW-Z1000AW supports up to four camera inputs, depending on the configuration and camera type.

Is SiriusXM included?

The receiver is SiriusXM Ready, but a compatible SiriusXM tuner is required separately.

Pro Audio Center Expert Recommendation

If you're looking to modernize the factory radio in your Jeep Wrangler or Gladiator, this is the package we recommend.

Rather than simply installing an aftermarket radio with a generic dash kit, the JVC KW-Z1000AW and Maestro APX system are designed specifically around the vehicle's factory dash and electronics.

The 10.1" HD display gives the Jeep a substantially more modern appearance while wireless Apple CarPlay and Android Auto provide the smartphone connectivity most customers are looking for today.

For customers who also plan to upgrade their speakers, subwoofer or amplifiers, the KW-Z1000AW is an especially strong choice because of its 4V preouts, 13-band EQ, crossover controls and time alignment.

Bottom line: This bundle gives you the screen upgrade, smartphone integration, audio processing and vehicle integration in one professionally matched package.

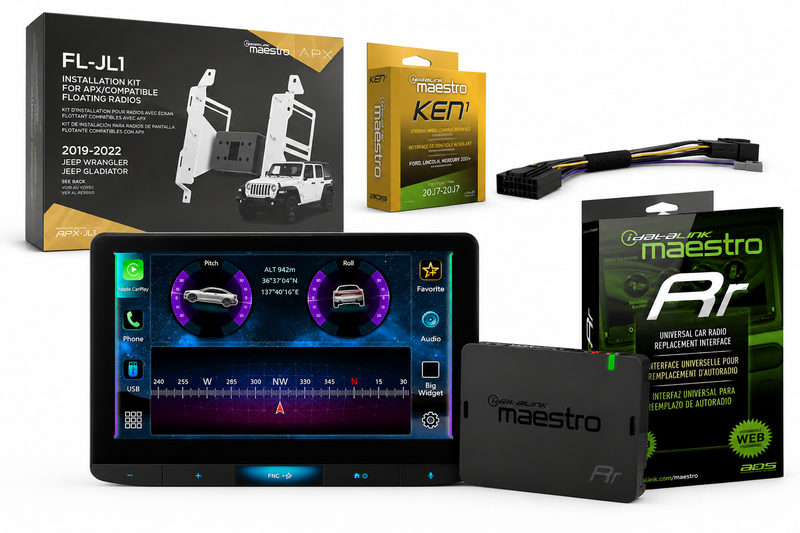

What's Included Summary

1 × JVC KW-Z1000AW
10.1" HD Direct Replacement Floating Screen Receiver

1 × iDatalink Maestro ADS-MRR
Radio Replacement & Vehicle Integration Interface

1 × iDatalink Maestro APX-FL-JL1
Jeep Wrangler JL / Gladiator JT Floating Radio Installation Kit

1 × iDatalink ACC-HU-KEN1
JVC/Kenwood Head-Unit Adapter Harness
