JVC KW-Z1000AW 10.1" Direct Replacement Radio Bundle with Maestro RR & APX-S8-FO1 | Ford & Lincoln 8" Factory Screen Kit
Upgrade Your Factory 8" Ford or Lincoln Screen
Upgrade your compatible Ford or Lincoln vehicle with a 10.1" HD JVC floating-screen radio and a complete iDatalink Maestro integration package.

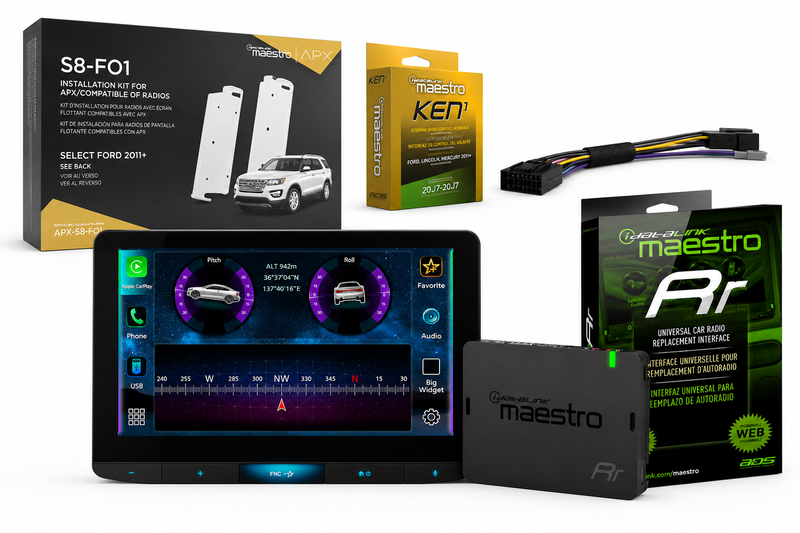

This bundle combines the JVC KW-Z1000AW 10.1" Direct Replacement Receiver with the iDatalink Maestro ADS-MRR, APX-S8-FO1 vehicle-specific installation kit, and ACC-HU-KEN1 head-unit adapter harness.
Everything is matched together to provide a cleaner, more straightforward solution than purchasing the radio, interface, dash components, and wiring separately.
IMPORTANT FITMENT REQUIREMENT
Your vehicle MUST have the factory 8" infotainment screen for this bundle to be compatible.
The APX-S8-FO1 is designed specifically for select Ford and Lincoln vehicles equipped with the factory 8" infotainment system.
If your vehicle has a smaller factory screen, this is NOT the correct installation kit. Instead check out our APX-FL-FO1 bundle.
What's Included
JVC KW-Z1000AW 10.1" HD Direct Replacement Receiver
The KW-Z1000AW gives your vehicle a major technology upgrade with a large 10.1" HD touchscreen while providing the audio processing and smartphone connectivity expected from a premium aftermarket receiver.
Key features include:
- 10.1" HD 1280 × 720 touchscreen
- Wireless Apple CarPlay
- Wired Apple CarPlay
- Wireless Android Auto
- Wired Android Auto
- Bluetooth 5.2
- Built-in HD Radio
- SiriusXM Ready
- HDMI input
- USB Type-C
- Up to 4 camera inputs
- HD camera support
- 13-band graphic EQ
- 3-way crossover
- Time alignment
- High-resolution audio
- 4V RCA preouts
- iDatalink Maestro Ready
The KW-Z1000AW is specifically designed as a Direct Replacement receiver and supports installation using an appropriate ADS installation kit.
iDatalink Maestro ADS-MRR
The Maestro RR provides the interface between the JVC receiver and the vehicle's factory electronics.
When supported by the specific vehicle configuration, the Maestro system can provide integration for features such as:
- Steering-wheel audio controls
- Factory amplifier
- Factory backup camera
- Climate information
- Vehicle settings
- Factory USB functions
- Vehicle information
- Factory warning chimes
Supported features vary by vehicle, trim level, factory equipment and receiver configuration. The APX-S8-FO1 specifically requires a compatible Maestro RR or RR2 interface for full functionality.
iDatalink Maestro APX-S8-FO1
The APX-S8-FO1 is the vehicle-specific Ford/Lincoln installation kit included in this bundle.
It is designed around compatible vehicles with the factory 8" infotainment system and includes the installation components necessary for the APX Direct Replacement application.
The kit includes components such as:
- Vehicle-specific mounting brackets
- Mounting hardware
- USB/hub adapter
- Antenna adapter
- Vehicle-specific wiring harnesses
The APX-S8-FO1 is designed to maintain an OEM-inspired dashboard appearance while supporting the integration of compatible factory systems.
iDatalink ACC-HU-KEN1
The ACC-HU-KEN1 head-unit adapter harness provides the connection between the Maestro/APX installation system and the compatible JVC/Kenwood receiver.
This eliminates the need to piece together multiple separate head-unit connection components.
Why Buy the Complete Bundle?
Replace Your Factory 8" Screen With a 10.1" Display
The KW-Z1000AW gives your dashboard a substantially larger touchscreen while maintaining the Direct Replacement installation concept.
Wireless Apple CarPlay & Android Auto
Enjoy wireless smartphone connectivity for compatible devices, giving you access to navigation, music, calls, messaging and supported applications without having to connect your phone every time.
Keep Important Factory Functions
The Maestro system is designed to integrate compatible factory functions with the new JVC receiver.
Vehicle-Specific Installation
The APX-S8-FO1 is engineered specifically for the applicable Ford and Lincoln applications rather than being a generic universal dash kit.
Built for Serious Audio Upgrades
The KW-Z1000AW provides 4V preouts, 13-band EQ, 3-way crossover and time alignment, making it an excellent source unit for customers who plan to upgrade speakers, amplifiers and subwoofers.
Multiple Camera Capability
The KW-Z1000AW supports up to four camera inputs, providing flexibility for customers who want to add front, rear or additional camera systems.
Vehicle Fitment
Ford
| Vehicle | Years | Factory Screen Required |
|---|---|---|
| Ford Edge | 2011–2020 | 8" |
| Ford Expedition | 2015–2019 | 8" |
| Ford Explorer | 2011–2019 | 8" |
| Ford F-150 | 2013–2020 | 8" |
| Ford Super Duty | 2013–2021 | 8" |
| Ford Flex | 2013–2019 | 8" |
| Ford Fusion | 2013–2020 | 8" |
| Ford Mustang | 2015–2023 | 8" |
| Ford Ranger | 2019–2023 | 8" |
| Ford Taurus | 2013–2019 | 8" |
Lincoln
| Vehicle | Years | Factory Screen Required |
|---|---|---|
| Lincoln MKC | 2015–2019 | 8" |
| Lincoln MKS | 2013–2016 | 8" |
| Lincoln MKT | 2013–2017 | 8" |
| Lincoln MKX | 2011–2018 | 8" |
| Lincoln MKZ | 2013–2016 | 8" |
| Lincoln Navigator | 2015–2017 | 8" |
The Simple Fitment Rule
If your vehicle is listed above AND has the factory 8" infotainment screen, this is the correct APX-S8-FO1 application.
The JVC/Kenwood compatibility documentation identifies the APX-S8-FO1 for the major Ford/Lincoln applications above and identifies an 8" OEM screen as the applicable factory configuration.
Factory screen size is critical. Year and model alone do not guarantee compatibility.
JVC KW-Z1000AW Features & Specifications
Display
- 10.1" HD display
- 1280 × 720 resolution
- Capacitive touchscreen
- Floating-screen design
- Adjustable display position
- HD optical-bonded display
Smartphone Integration
- Wireless Apple CarPlay
- Wired Apple CarPlay
- Wireless Android Auto
- Wired Android Auto
Audio
- 13-band graphic equalizer
- 3-way crossover
- Time alignment
- 4V preouts
- High-resolution audio playback
- K2 technology
- Dedicated subwoofer control
Connectivity
- Bluetooth 5.2
- Wi-Fi
- USB Type-C
- HDMI input
- HD Radio
- SiriusXM Ready
Camera
- Up to 4 camera inputs
- HD camera support
- Front camera support
- Rear camera support
Factory Integration
- iDatalink Maestro Ready
- Steering-wheel control integration
- Compatible factory feature retention through Maestro
JVC's documentation confirms that the KW-Z1000AW is compatible with Maestro integration and that the receiver should be installed with the appropriate ADS installation kit for Direct Replacement applications.
Installation
The APX-S8-FO1 is designed to simplify the installation of a compatible JVC/Kenwood Direct Replacement receiver into the factory dashboard.
Rather than adapting a universal aftermarket radio to the vehicle, the APX system provides vehicle-specific mounting and wiring components intended for the compatible Ford and Lincoln applications.
The JVC installation documentation specifically recommends using the appropriate ADS installation kit for the KW-Z1000AW Direct Replacement installation.
Professional Installation Recommended
Professional installation is recommended.
The installation involves removal of the factory display/radio and configuration of the Maestro interface. Additional setup may be required depending on the vehicle's factory equipment.
Frequently Asked Questions
Will this fit my Ford with a factory 4" screen?
No.
This bundle uses the APX-S8-FO1, which is intended for vehicles equipped with the factory 8" infotainment screen. If you have the 4" screen check out our APX-FL-FO1 bundle instead.
Will this fit a Ford with a factory 8" screen?
If the vehicle is one of the listed compatible applications and has the required factory 8" system, yes, this is the appropriate APX-S8-FO1 application.
Does the 8" factory screen requirement really matter?
Yes.
The APX-S8-FO1 is specifically designed around the factory 8" infotainment configuration. Having the correct vehicle year and model by itself does not guarantee compatibility.
Does this replace my factory screen?
Yes. The JVC KW-Z1000AW is a Direct Replacement receiver designed to replace the compatible factory display with a large 10.1" HD floating touchscreen.
Does it have wireless Apple CarPlay?
Yes.
Does it have wireless Android Auto?
Yes.
Can I retain my factory steering-wheel controls?
The Maestro system is designed to support compatible factory steering-wheel controls. Exact functionality depends on the vehicle configuration.
Can I retain my factory backup camera?
Compatible factory backup-camera integration is supported through the Maestro/APX system, depending on the vehicle configuration.
Can I use my factory amplifier?
The APX-S8-FO1 supports factory amplifier integration on compatible applications. Exact functionality depends on the vehicle's factory audio system and configuration.
Can I add aftermarket amplifiers?
Yes. The KW-Z1000AW has 4V RCA preouts and extensive audio-processing controls, making it well suited for aftermarket amplifiers and upgraded speakers/subwoofers.
Can I add multiple cameras?
Yes. The KW-Z1000AW supports up to four camera inputs.
Pro Audio Center Expert Recommendation
This is the bundle we'd recommend for customers with a compatible Ford or Lincoln equipped with the factory 8" screen who want a major technology upgrade without piecing together the installation components themselves.
The JVC KW-Z1000AW provides the modern features most customers want—10.1" HD display, wireless Apple CarPlay, wireless Android Auto, Bluetooth, multiple camera support and advanced audio controls—while the Maestro APX system is designed to integrate the receiver into the vehicle's existing electronics.
The biggest thing to remember is the factory 8" screen requirement.
If the customer has the correct vehicle and the factory 8" infotainment system, this bundle is an excellent way to turn an aging factory infotainment system into a modern touchscreen platform while maintaining an OEM-inspired installation.
For customers who are also upgrading their speakers, amplifiers or subwoofer, the KW-Z1000AW is an especially strong choice because of its 4V preouts, 13-band EQ, 3-way crossover and time-alignment capabilities.
Our recommendation: Verify the factory screen size before ordering. If it has the factory 8" system and is listed above, this is the bundle to use.
What's Included
1 × JVC KW-Z1000AW
10.1" HD Direct Replacement Floating Screen Receiver
1 × iDatalink Maestro ADS-MRR
Vehicle Integration Interface
1 × iDatalink Maestro APX-S8-FO1
Ford/Lincoln Factory 8" Screen Direct Replacement Installation Kit
1 × iDatalink ACC-HU-KEN1
JVC/Kenwood Head-Unit Adapter Harness
