ZXI-3542 DS18 3.5" 2-Way Coaxial Car Speakers 40W RMS 4-Ohm (Pair)
DS18 ZXI-3542 3.5" 2-Way Coaxial Car Speakers | 40W RMS 4-Ohm - Pair
Small Speaker. Serious Upgrade Over Factory Sound.
Upgrade those small factory speaker locations without overcomplicating your system. The DS18 ZXI-3542 is a 3.5-inch 2-way coaxial speaker designed to deliver improved clarity, stronger vocals, and crisp high-frequency detail from compact factory locations.
Each speaker combines a lightweight glass-fiber woofer cone with a dedicated 1-inch PEI tweeter, giving your music the definition and detail that tired factory speakers often leave behind.
With 40 watts RMS / 120 watts maximum power handling, 4-ohm impedance, and an 87 dB sensitivity rating, the ZXI-3542 is a practical upgrade for factory radio systems while also giving you room to take advantage of clean aftermarket amplifier power.
And with only 1.74 inches of mounting depth, it's especially well suited for tight dash and factory speaker locations where installation clearance matters.
If you're looking for an affordable way to bring more life, detail, and clarity to your front soundstage, the ZXI-3542 is an excellent place to start.
Why You'll Love Them
✔ 3.5" 2-Way Coaxial Design
✔ 40 Watts RMS / 120 Watts Max Power
✔ 4-Ohm Impedance
✔ Glass-Fiber Woofer Cone
✔ Dedicated 1" PEI Tweeter
✔ Neodymium Tweeter Magnet
✔ 87 dB Sensitivity
✔ 80Hz–20kHz Frequency Response
✔ Rubber Woofer Surround
✔ Compact 1.74" Mounting Depth
✔ Ideal for Factory Dash Speaker Upgrades
✔ Sold as a Pair
Perfect For
-
Factory 3.5" speaker replacement
-
Dashboard speaker upgrades
-
Front soundstage improvements
-
Factory radio systems
-
Aftermarket head unit systems
-
Lightly amplified systems
-
Cars, trucks, SUVs, and Jeeps with compatible 3.5" locations
-
Customers looking for better vocal and high-frequency clarity
Product Overview
Factory 3.5-inch speakers play an important role in many vehicle audio systems.
Often positioned high in the dashboard, these small speakers can have a major influence on vocals, instruments, detail, and the overall height of the front soundstage.
The problem is that many factory speakers are built around cost and efficiency rather than sound quality.
The DS18 ZXI-3542 gives you an easy way to improve those locations with better materials and a true 2-way coaxial design.
A glass-fiber woofer cone handles the midrange while a dedicated 1-inch PEI tweeter reproduces the upper frequencies, creating a more detailed and balanced listening experience from a compact 3.5-inch speaker.
True 2-Way Coaxial Design
Unlike a basic single-cone factory speaker, the ZXI-3542 uses separate woofer and tweeter elements to reproduce different portions of the frequency range.
Glass-Fiber Woofer
The lightweight glass-fiber cone provides the rigidity needed for clean, controlled midrange reproduction while remaining responsive enough for musical detail.
1" PEI Tweeter
A dedicated 1-inch PEI tweeter extends the speaker's high-frequency response for improved detail and clarity.
Neodymium Tweeter Magnet
The compact neodymium motor allows the tweeter to deliver strong performance without adding unnecessary size to the speaker assembly.
Together, these components give the ZXI-3542 the ability to reproduce 80Hz–20kHz, making it a versatile upgrade for factory 3.5-inch locations.
Built for Factory Speaker Locations
Installation space is often one of the biggest challenges when replacing factory dashboard speakers.
The ZXI-3542 requires only 1.74 inches (44.3mm) of mounting depth and a 3-inch (77mm) cutout, making it compact enough for many space-restricted applications.
Its steel basket and rubber surround provide a durable foundation while maintaining dimensions that work well for vehicle-specific installations.
Always verify your vehicle's speaker dimensions and mounting requirements before ordering. Speaker size alone does not guarantee vehicle fitment.
Better Clarity Where It Matters
A good 3.5-inch speaker isn't about producing massive bass.
It's about improving the frequencies that make music sound clear, detailed, and present.
Because these speakers are commonly mounted high in the dashboard, upgrading them can make vocals and instruments sound more defined while improving the overall front soundstage.
For the best system balance, allow larger door speakers and your subwoofer system to handle the lower frequencies while the ZXI-3542 concentrates on the midrange and highs.
Recommended 120Hz High-Pass Crossover
DS18 recommends using a 120Hz high-pass crossover with the ZXI-3542.
This helps prevent deep bass frequencies from reaching the small 3.5-inch woofer, allowing the speaker to concentrate on the frequencies it is designed to reproduce.
Proper crossover setup is especially important when using an aftermarket amplifier and can help improve both output and long-term reliability.
Key Features
-
3.5" 2-Way Coaxial Car Speakers
-
40 Watts RMS Power Handling
-
120 Watts Maximum Power Handling
-
4-Ohm Nominal Impedance
-
87 dB Sensitivity
-
80Hz–20kHz Frequency Response
-
Recommended 120Hz High-Pass Crossover
-
Glass-Fiber Woofer Cone
-
Rubber Surround
-
Barium Ferrite Woofer Magnet
-
0.8" Woofer Voice Coil
-
1" PEI Tweeter
-
Neodymium Tweeter Magnet
-
Steel Basket
-
Compact 1.74" Mounting Depth
-
Sold as a Pair
Technical Specifications
Brand: DS18
Series: ZXI
Model: ZXI-3542
Speaker Size: 3.5" / 89mm
Speaker Type: 2-Way Coaxial
Number of Ways: 2
Nominal Impedance: 4 Ohms
RMS Power Handling: 40 Watts
Maximum Power Handling: 120 Watts
Sensitivity (1W/1m): 87 dB
Frequency Response: 80Hz–20kHz
Recommended High-Pass Crossover: 120Hz
Woofer Specifications
Woofer Voice Coil: 0.8" / 20.4mm
Voice Coil Former: ASV
Voice Coil Winding: EISV
Cone Material: Glass Fiber
Surround Material: Rubber
Basket Material: Steel
Basket Finish: Black
Magnet Material: Barium Ferrite
Magnet Weight: 172g
Tweeter Specifications
Tweeter Size: 1" / 25.4mm
Tweeter Voice Coil: 0.52" / 13mm
Voice Coil Former: KSV
Voice Coil Winding: CCAW
Tweeter Diaphragm: PEI
Tweeter Magnet: Neodymium

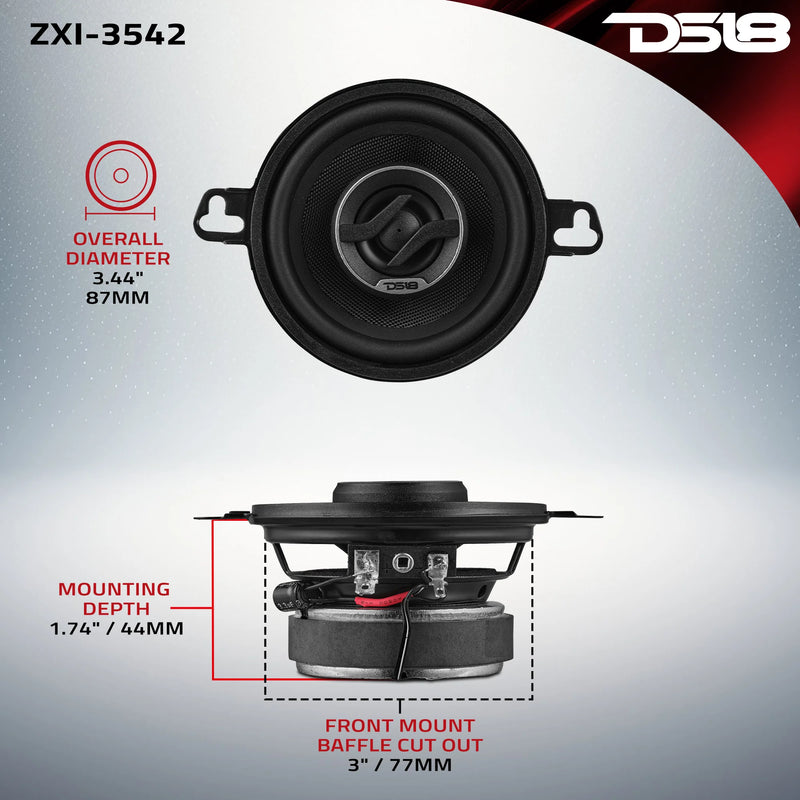

Dimensions
Overall Diameter: 3.44" / 87.3mm
Overall Depth: 2.21" / 56.2mm
Front Mount Cutout: 3" / 77mm
Mounting Depth: 1.74" / 44.3mm
Motor Diameter: 2.56" / 65mm
Grilles Included: No
Sold As: Pair
_____________________________________________________________________________
What's Included
-
(2) DS18 ZXI-3542 3.5" 2-Way Coaxial Speakers
-
Manufacturer Documentation
Sold as a pair.
Will These Fit My Vehicle?
The DS18 ZXI-3542 is designed for applications that accept a 3.5-inch speaker, but speaker size alone does not guarantee fitment.
Before ordering, verify:
-
Factory speaker size
-
Available mounting depth
-
Speaker cutout diameter
-
Factory mounting pattern
-
Factory speaker impedance
-
Required mounting brackets or adapters
-
Required speaker wiring harnesses
The ZXI-3542 requires approximately 1.74 inches of mounting depth and a 3-inch cutout.
Some vehicles use proprietary mounting tabs, brackets, or speaker connectors even when the factory speaker is listed as 3.5 inches. Vehicle-specific adapters may therefore be required for installation.
Factory Radio or Aftermarket Amplifier?
One of the advantages of the ZXI-3542 is its practical 40-watt RMS power rating.
Factory Radio Systems
These speakers can be used as an upgrade in many compatible factory-radio applications.
However, factory audio systems vary considerably in output power, speaker impedance, equalization, and crossover configuration. Always verify that the ZXI-3542's 4-ohm impedance is appropriate for your particular system.
Aftermarket Head Units
A quality aftermarket receiver can provide a good foundation for the ZXI-3542 and may offer better crossover control than many factory radios.
Amplified Systems
Adding clean external amplifier power can provide additional output and control.
When amplified, pay particular attention to gain adjustment and crossover settings. These are 40-watt RMS speakers, so they do not require a large amplifier to perform properly.
Recommended Crossover Setup
DS18 recommends a 120Hz high-pass crossover for the ZXI-3542.
Recommended Starting Point
High-Pass Filter: 120Hz
A high-pass filter reduces the amount of deep bass reaching the small woofer, allowing the speaker to concentrate on the midrange and high frequencies it is better suited to reproduce.
Final crossover settings can vary based on installation location, available power, the other speakers in the vehicle, and listening preferences.
Popular Upgrade Applications
Factory Dash Speaker Replacement
Many vehicles use small speakers high in the dashboard to help reproduce vocals and upper-frequency information.
Replacing worn or basic factory speakers with the ZXI-3542 can improve clarity and detail when the application is compatible.
Front Soundstage Upgrade
Because dashboard speakers are positioned relatively high in the vehicle, they can have a noticeable influence on how the front soundstage is perceived.
The ZXI-3542's dedicated tweeter makes it a useful option for customers looking to improve vocal presence and high-frequency detail.
Aftermarket Radio Upgrades
Installing a new head unit is a great time to address older factory speakers.
Pairing the ZXI-3542 with an aftermarket receiver can give you improved speaker construction along with greater control over crossover and system tuning.
Complete Speaker Upgrades
For the best overall improvement, consider the 3.5-inch speakers as one part of the system.
Pairing upgraded dash speakers with quality door speakers and a dedicated subwoofer allows each part of the system to concentrate on the frequencies it reproduces best.
Installation Notes
Before installation:
-
Confirm your vehicle uses a compatible 3.5" speaker location.
-
Verify the 3" cutout requirement.
-
Confirm at least 1.74" of mounting depth.
-
Check clearance beneath factory grilles and trim panels.
-
Verify factory speaker impedance.
-
Determine whether mounting adapters are required.
-
Determine whether vehicle-specific wiring harnesses are required.
-
Observe correct speaker polarity during installation.
-
Use an appropriate high-pass crossover whenever possible.
Do not assume a speaker will fit solely because your vehicle is listed as having a 3.5-inch factory speaker.
Pro Audio Center Tip
Small dashboard speakers can have a surprisingly large effect on how clear and detailed your system sounds because they're often positioned much closer to ear level than the larger speakers mounted low in the doors.
Let the ZXI-3542 concentrate on vocals, instruments, and high-frequency detail while your larger speakers and subwoofer handle the lower frequencies.
A properly balanced system will usually sound much better than asking a small 3.5-inch speaker to reproduce frequencies it wasn't designed to handle.
Complete Your Speaker Upgrade
Depending on your vehicle and system goals, consider pairing the ZXI-3542 with:
-
Matching front or rear door speakers
-
Vehicle-specific speaker adapters
-
Plug-and-play speaker harnesses
-
Multi-channel amplifier
-
DSP or signal processor
-
Dedicated subwoofer
-
Sound deadening
-
OFC speaker wire
For factory replacement installations, vehicle-specific speaker harnesses and mounting adapters can make installation significantly cleaner and help avoid modifying the original vehicle wiring.
Expert Recommendation from Pro Audio Center
The DS18 ZXI-3542 is a strong choice for customers who want a straightforward upgrade for compatible factory 3.5-inch speaker locations.
What we like most about this speaker is the combination of a glass-fiber woofer, dedicated 1-inch PEI tweeter, manageable 40-watt RMS rating, and compact 1.74-inch mounting depth.
Rather than trying to make a tiny speaker do everything, we'd use the ZXI-3542 for what a good 3.5-inch speaker does best: improving vocal clarity, musical detail, and the upper portion of your front soundstage.
Use the proper crossover, make sure the 4-ohm impedance is appropriate for your system, and pair them with larger speakers or a subwoofer for low-frequency output.
Why Buy From Pro Audio Center?
Choosing replacement speakers isn't always as simple as matching the diameter printed on the box.
Mounting depth, impedance, factory connectors, mounting brackets, crossover settings, and the rest of the audio system all play a role in getting the best results.
At Pro Audio Center, we're here to help you select speakers and installation accessories that work together properly so you can build your system with confidence.
Frequently Asked Questions
Are the DS18 ZXI-3542 speakers sold individually or as a pair?
The ZXI-3542 is sold as a pair, so your purchase includes two 3.5-inch coaxial speakers.
How much power do these speakers handle?
The ZXI-3542 is rated for 40 watts RMS and 120 watts maximum power.
For system planning, we recommend focusing primarily on the RMS rating rather than maximum power.
Will these fit my factory 3.5-inch speaker locations?
Most likely, but 3.5-inch size alone does not guarantee fitment.
The ZXI-3542 requires a 3-inch cutout and 1.74 inches of mounting depth. Your vehicle may also require mounting brackets or wiring adapters.
Are these good for dashboard locations?
Yes. Their compact dimensions and 2-way design make them particularly useful for many compatible factory dash locations.
Always verify physical fitment before ordering.
Can I run these speakers from my factory radio?
They can work with many factory systems, but compatibility depends on the factory radio or amplifier's output, impedance requirements, equalization, and crossover configuration.
Because the ZXI-3542 is 4 ohms, verify your factory system before replacing lower-impedance OEM speakers.
Do I need an amplifier?
Not necessarily.
The ZXI-3542 can be used in many factory-radio and aftermarket-head-unit systems. A properly matched external amplifier can provide additional clean power, but these speakers do not require a high-powered amplifier.
What crossover should I use?
DS18 recommends a 120Hz high-pass crossover.
This is a good starting point for protecting the small woofer from deep bass while allowing it to concentrate on midrange and high-frequency reproduction.
Will these speakers produce good bass?
They're not designed to be your primary source of low-frequency bass.
The ZXI-3542 is better suited for vocals, midrange, and high-frequency detail. Larger door speakers and a dedicated subwoofer should handle the deeper frequencies in a complete system.
Do these have built-in tweeters?
Yes. Each speaker includes a dedicated 1-inch PEI tweeter with a neodymium magnet, making the ZXI-3542 a true 2-way coaxial design.
Do I need speaker adapters or wiring harnesses?
That depends on your vehicle.
Many factory applications use vehicle-specific mounting patterns and electrical connectors. Using the correct adapters can provide a cleaner installation without cutting the factory wiring.
Are speaker grilles included?
No. Speaker grilles are not included. In most factory replacement applications, the speakers will install behind the vehicle's existing factory grille or trim panel.
