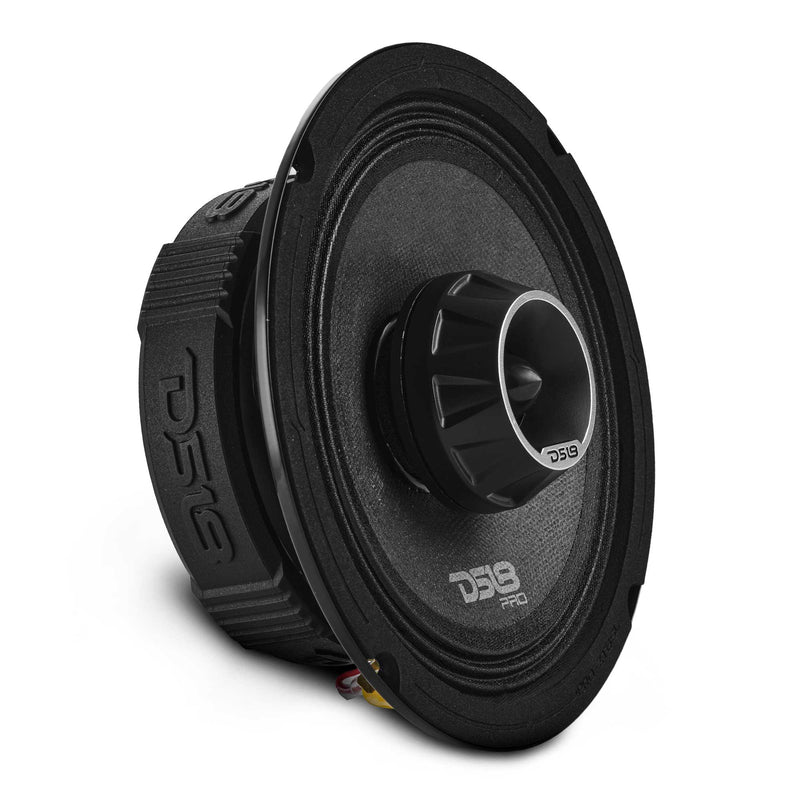

PRO-ZT6SL DS18 6.5" Slim 2-Way Pro Audio Loudspeaker w/ Bullet Tweeter 200W RMS 400W Max 4 Ohm Water-Resistant (Single Speaker)
DS18 PRO-ZT6SL 6.5" Slim 2-Way Pro Audio Loudspeaker with Built-In Bullet Tweeter | 200W RMS 4-Ohm
Big PRO Audio Output. Only 2.15" Deep.
Get the output and clarity of a high-performance PRO Audio speaker without needing the mounting depth of a traditional full-size loudspeaker. The DS18 PRO-ZT6SL combines a powerful 6.5-inch midrange with a built-in bullet tweeter in an ultra-shallow 2.15-inch mounting depth, making it an excellent solution for motorcycles, doors, speaker pods, custom panels, and other space-restricted installations.
Rated for 200 watts RMS and 400 watts maximum power at 4 ohms, the PRO-ZT6SL is built to get loud while maintaining the vocal presence and crisp high-frequency detail PRO Audio systems are known for.
Instead of requiring a separate midrange and tweeter, its integrated 2-way design combines both into a single compact speaker. The 6.5-inch midrange handles the body and presence of your music while the built-in neodymium bullet tweeter extends the high-frequency response for added clarity and projection.
For installations where every inch of mounting depth matters, the PRO-ZT6SL delivers serious output without taking up serious space.
Why You'll Love It
ā Ultra-Shallow 2.15" Mounting Depth
ā 200 Watts RMS / 400 Watts Max Power
ā 4-Ohm Impedance
ā Built-In Neodymium Bullet Tweeter
ā 6.5" Midrange + Tweeter in One Speaker
ā 96.5 dB Sensitivity
ā 80Hzā20kHz Frequency Response
ā Water-Resistant Paper Cone
ā Treated Cloth Surround
ā IP32 Water-Resistance Rating
ā Only 5.7" Front Mount Cutout Required
ā Ideal for Motorcycles, Doors, Pods & Custom Panels
Perfect For
-
Motorcycle audio systems
-
Harley-Davidson audio upgrades
-
Bag and fairing speaker installations
-
UTV and powersports audio
-
Custom speaker pods
-
Shallow vehicle door locations
-
Custom door panels
-
High-output car audio systems
-
Space-restricted PRO Audio builds
Product Overview
The DS18 PRO-ZT6SL solves one of the biggest challenges when building a high-output audio system: finding enough room for the speakers you actually want to use.
Traditional PRO Audio midranges often require significantly more mounting depth than conventional automotive speakers. That can create problems in motorcycle fairings, saddlebag installations, shallow doors, speaker pods, and custom panels.
DS18 engineered the PRO-ZT6SL specifically for those situations.
With a mounting depth of just 2.15 inches (55mm), this 6.5-inch speaker can fit installations where deeper high-output loudspeakers simply won't work.
But the shallow design doesn't mean giving up serious power handling. Each PRO-ZT6SL handles 200 watts RMS and 400 watts maximum power, giving properly amplified systems plenty of output capability.
2-Way PRO Audio Performance
The PRO-ZT6SL isn't simply a shallow midrange.
Mounted directly in the center of the speaker is a 1-inch aluminum-alloy bullet tweeter powered by a neodymium N35H magnet.
This creates a compact 2-way loudspeaker capable of reproducing both the strong vocal range expected from a PRO Audio midrange and the crisp high-frequency detail normally provided by a separate tweeter.
The result is an extremely useful solution for installations where space doesn't allow separate midrange and tweeter locations.
6.5" Midrange
Provides strong vocal presence, musical detail, and the projection needed for high-output systems.
Built-In Bullet Tweeter
Extends high-frequency performance for clearer vocals, instruments, and upper-frequency detail.
One Compact Speaker Location
Combining the midrange and tweeter into one assembly simplifies installations where available speaker locations are limited.
Ultra-Shallow 2.15" Mounting Depth
This is where the PRO-ZT6SL really separates itself.
With only 2.15 inches of required mounting depth, it was designed specifically for installations where conventional PRO Audio speakers may simply be too deep.
That makes it especially useful for:
-
Motorcycle fairings
-
Motorcycle saddlebags
-
Shallow factory doors
-
Custom speaker pods
-
UTV panels
-
Custom door panels
-
Multi-speaker installations
The shallow motor structure gives installers significantly more flexibility when designing high-output systems in tight spaces.
Built for Real-World Installations
The PRO-ZT6SL uses a water-resistant paper cone and treated cloth surround and carries an IP32 water-resistance rating.
That added resistance to moisture makes it especially useful for applications such as motorcycles and powersports vehicles where speakers may experience environmental exposure that traditional interior speakers typically do not.
The PRO-ZT6SL should be considered water-resistant, not waterproof, and should not be treated as a fully waterproof marine speaker.
Key Features
-
6.5" Slim 2-Way PRO Audio Loudspeaker
-
Built-In Bullet Tweeter
-
200 Watts RMS Power Handling
-
400 Watts Maximum Power Handling
-
4-Ohm Nominal Impedance
-
96.5 dB Sensitivity
-
80Hzā20kHz Frequency Response
-
Recommended 120Hz High-Pass Crossover
-
Ultra-Shallow 2.15" Mounting Depth
-
1.5" Midrange Voice Coil
-
1" Bullet Tweeter Voice Coil
-
Ferrite Midrange Magnet
-
Neodymium N35H Tweeter Magnet
-
Aluminum-Alloy Tweeter Diaphragm
-
Water-Resistant Paper Cone
-
Treated Cloth Surround
-
IP32 Water-Resistance Rating
-
Gloss Black Steel Basket
-
Sold Individually
Technical Specifications
Brand: DS18
Model: PRO-ZT6SL
Speaker Size: 6.5"
Speaker Type: Slim 2-Way Coaxial PRO Audio Loudspeaker
Nominal Impedance: 4 Ohms
RMS Power Handling: 200 Watts
Maximum Power Handling: 400 Watts
Sensitivity (1W/1m): 96.5 dB
Frequency Response: 80Hzā20kHz
Recommended High-Pass Crossover: 120Hz
Midrange Voice Coil: 1.5" / 38.1mm
Voice Coil Former: Kapton
Voice Coil Winding: CCAW
Cone Material: Water-Resistant Paper
Surround: Treated Cloth
Basket: Steel
Basket Finish: Gloss Black
Midrange Magnet: Ferrite
Magnet Weight: 21 oz.
Built-In Tweeter
Tweeter Type: Bullet Tweeter
Tweeter Voice Coil: 1" / 25.4mm
Tweeter Voice Coil Former: Kapton
Tweeter Winding: CCAW
Tweeter Diaphragm: Aluminum Alloy
Tweeter Magnet: Neodymium N35H

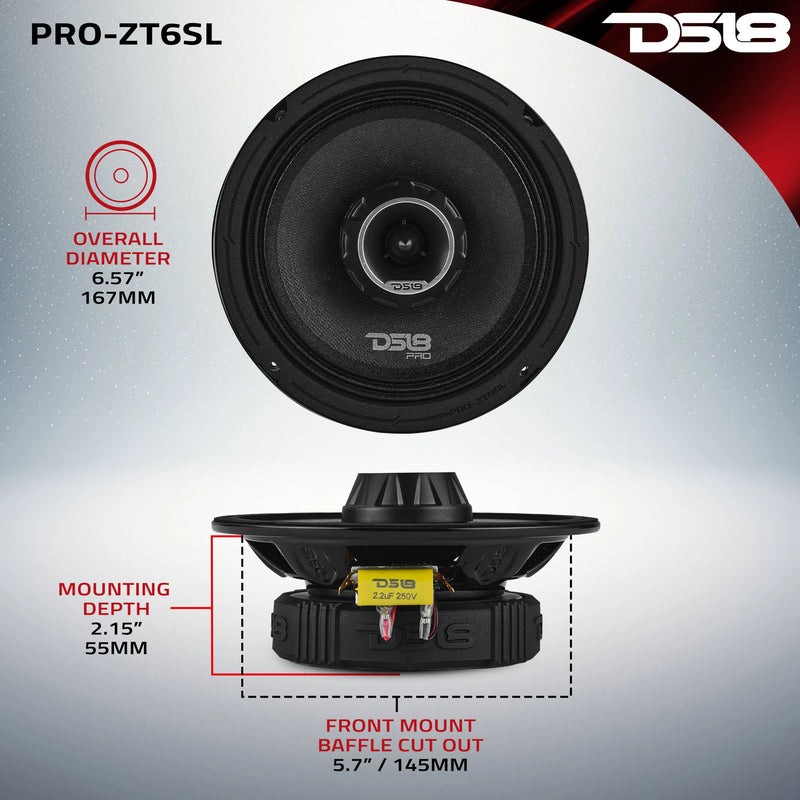

Dimensions
Overall Diameter: 6.57" / 167mm
Front Mount Cutout: 5.7" / 145mm
Mounting Depth: 2.15" / 55mm
Overall Depth: 3" / 78mm
Motor Diameter: 4.3" / 110mm
Water-Resistance Rating: IP32
Grille Included: No
Sold As: Single Speaker
_____________________________________________________________________________
What's Included
-
(1) DS18 PRO-ZT6SL 6.5" Slim 2-Way PRO Audio Loudspeaker
-
Built-In 1" Neodymium Bullet Tweeter
-
Manufacturer Documentation
Please Note: The PRO-ZT6SL is sold individually, not as a pair. Order quantity 2 if you need two speakers.
What These Speakers Pair Best With
The DS18 PRO-ZT6SL performs best when powered by a quality full-range amplifier capable of delivering clean power appropriate for its 200-watt RMS, 4-ohm rating.
For a typical two-speaker installation, look for an amplifier capable of approximately 2 Ć 150ā200 watts RMS at 4 ohmsper channel.
For larger systems using four or more PRO-ZT6SL speakers, a properly matched multi-channel amplifier can provide a clean and efficient installation without requiring multiple amplifiers.
We also recommend using:
-
Quality OFC speaker wire
-
Proper amplifier wiring
-
A high-pass crossover
-
Secure speaker mounting
-
Sound deadening in automotive door applications
-
A dedicated subwoofer for low-frequency bass
The goal isn't simply to give these speakers as much power as possible. Clean amplification and proper crossover settings will help them play louder, cleaner, and more reliably.
Recommended Crossover Setup
DS18 recommends a 120Hz high-pass crossover for the PRO-ZT6SL.
A high-pass filter prevents deep bass frequencies from being sent to the speaker, allowing it to concentrate on the midrange and high-frequency information it was designed to reproduce.
Recommended Starting Point
High-Pass Filter: 120Hz
This is an excellent starting point for most installations. Final crossover settings may vary depending on amplifier power, installation location, listening preferences, and the rest of the audio system.
Important: The PRO-ZT6SL is designed for high-output midrange and high-frequency reproduction. It should not be used as a replacement for a dedicated subwoofer when strong low-frequency bass is desired.
Popular Build Applications
Motorcycle Audio Systems
The ultra-shallow 2.15-inch mounting depth makes the PRO-ZT6SL especially attractive for motorcycle installations where available space behind the speaker can be extremely limited.
Its combination of high sensitivity, strong power handling, and an integrated bullet tweeter makes it a great option for building a system that needs to remain clear and audible in an open-air environment.
Fairing & Saddlebag Builds
Custom motorcycle builds often require several speakers to fit into relatively shallow locations.
The PRO-ZT6SL allows installers to add high-output 6.5-inch speakers without the depth requirements of many traditional PRO Audio designs.
UTV & Powersports Systems
The water-resistant cone, treated surround, and IP32 rating make the PRO-ZT6SL useful for protected powersports installations where occasional environmental exposure may occur.
Remember that IP32 does not mean waterproof, so installation location and protection from direct water exposure should still be considered.
High-Output Car Audio Doors
For customers building loud door systems, the PRO-ZT6SL offers the projection and efficiency of a PRO Audio design while requiring only 2.15 inches of mounting depth.
That can be especially helpful in factory doors where window mechanisms and other components limit available clearance.
Custom Speaker Pods
The combination of shallow depth and integrated tweeter makes the PRO-ZT6SL an excellent candidate for custom pods and panels where installing separate mids and tweeters would require additional space.
Installation Notes
Before installation:
-
Verify the 5.7-inch cutout diameter.
-
Confirm at least 2.15 inches of mounting depth is available.
-
Check clearance for windows, regulators, wiring, and other moving components.
-
Use a properly matched amplifier.
-
Set the high-pass crossover appropriately.
-
Secure the speaker firmly to prevent vibration.
-
Protect electrical connections from moisture in exposed applications.
-
Remember that a grille is not included.
For motorcycle and powersports installations, carefully consider the speaker's location and exposure to water. The PRO-ZT6SL is water-resistant but should not be treated as a waterproof marine speaker.
Pro Audio Center Tip
The PRO-ZT6SL is designed to excel where PRO Audio speakers shine: high-output vocals, midrange presence, and crisp upper-frequency projection.
Using the recommended crossover and allowing a dedicated subwoofer to handle the low frequencies will generally produce a cleaner, louder, and better-balanced system while reducing unnecessary stress on the speakers.
Complete Your System
Customers building a system around the PRO-ZT6SL may also consider:
-
Full-range multi-channel amplifier
-
Dedicated subwoofer and monoblock amplifier
-
OFC amplifier wiring kit
-
OFC speaker wire
-
DSP or active crossover
-
Sound deadening
-
Custom speaker pods
-
Protective speaker grilles
For multi-speaker builds, planning the total impedance and amplifier channel configuration before purchasing can make the installation significantly easier.
Expert Recommendation from Pro Audio Center
The DS18 PRO-ZT6SL makes the most sense for customers who want PRO Audio output but are fighting for mounting space.
At only 2.15 inches deep, it gives installers considerably more flexibility than many conventional high-output 6.5-inch loudspeakers. The integrated bullet tweeter is another major advantage because a single speaker location can cover both the midrange and upper frequencies without requiring a separate tweeter installation.
We especially like it for motorcycles, custom pods, shallow doors, and multi-speaker builds where installation depth matters just as much as output.
Pair it with clean amplifier power, use the proper high-pass crossover, and let your subwoofer system handle the bass.
Why Buy From Pro Audio Center?
At Pro Audio Center, we understand that building a high-output audio system involves more than matching wattage numbers.
Speaker impedance, amplifier output, crossover settings, available mounting depth, and the number of speakers in the system all matter.
Whether you're building a motorcycle audio system, upgrading a UTV, or putting together a high-output door setup, we're here to help you select components that work together properly.
Frequently Asked Questions
Is the DS18 PRO-ZT6SL sold individually or as a pair?
The PRO-ZT6SL is sold individually. If your installation requires two speakers, order quantity 2.
How much power does the PRO-ZT6SL handle?
Each speaker is rated for 200 watts RMS and 400 watts maximum power at 4 ohms.
For best results, focus on clean RMS amplifier power rather than maximum or peak power ratings.
Does the PRO-ZT6SL have a built-in tweeter?
Yes. It combines a 6.5-inch PRO Audio midrange with a built-in 1-inch neodymium bullet tweeter, creating a compact 2-way speaker.
How shallow is the PRO-ZT6SL?
It requires only 2.15 inches (55mm) of mounting depth, making shallow installation capability one of its biggest advantages.
What crossover should I use?
DS18 recommends a 120Hz high-pass crossover.
This keeps deep bass frequencies away from the speaker and allows it to concentrate on the frequencies it is designed to reproduce.
Do I still need a subwoofer?
If you want strong low-frequency bass, yes.
The PRO-ZT6SL is designed primarily for high-output midrange and high-frequency reproduction. Pairing it with a dedicated subwoofer creates a much more complete audio system.
Is the PRO-ZT6SL waterproof?
No. The speaker features a water-resistant paper cone, treated cloth surround, and IP32 water-resistance rating, but it should not be considered waterproof or treated as a fully marine-rated speaker.
Can I use it on a motorcycle?
Yes. Its shallow mounting depth, high output capability, integrated tweeter, and water-resistant construction make it particularly well suited for many motorcycle audio installations.
Always verify the available mounting dimensions and environmental exposure for your specific application.
Can I install these in a car or truck?
Absolutely. They're also a strong option for shallow door locations, custom door panels, and high-output automotive systems.
Does it include a speaker grille?
No. A protective grille is not included.
What amplifier should I use for a pair?
For two PRO-ZT6SL speakers, we recommend looking for a quality full-range amplifier producing approximately 150ā200 watts RMS per channel at 4 ohms.
You don't have to match the speaker's RMS rating exactly. Proper gain adjustment and clean, unclipped power are more important than chasing an exact wattage number.
