PRO-X6M DS18 6.5" PRO Series 8 Ohm Midrange Speaker 250W RMS 500W Max Car Audio Loudspeaker (Single Speaker)
DS18 PRO-X6M 6.5" PRO Series 8 Ohm Midrange Speaker 250 Watts RMS 500 Watts Max
Bring professional-grade vocal performance to your sound system with the DS18 PRO-X6M, a high-output 6.5-inch PRO Series midrange speaker engineered for enthusiasts who demand loud, clean, and reliable performance. Featuring an 8-ohm impedance, this speaker is ideal for multi-speaker configurations where system design and amplifier efficiency are priorities.
With 250 Watts RMS, 500 Watts Max Power Handling, and an impressive 95dB sensitivity, the PRO-X6M delivers exceptional output with crisp vocal reproduction that easily cuts through powerful subwoofer systems. Whether you're building a competition-inspired setup, upgrading a custom door panel, or designing a high-output daily driver, the PRO-X6M is built to perform.
Why You'll Love It
✔ 250 Watts RMS Power Handling
✔ 500 Watts Maximum Power
✔ High-Efficiency 95dB Sensitivity
✔ 8 Ohm Voice Coil for Multi-Speaker System Designs
✔ Wide Frequency Response for Clear Midrange Performance
✔ 30 oz Ferrite Magnet
✔ High-Temperature 1.5" Kapton Voice Coil
✔ Built for High-Output Car Audio Systems
Perfect For
• Multi-Speaker Door Builds
• Competition-Inspired Audio Systems
• Custom Door Panels
• Jeep Audio Systems
• Truck Audio Upgrades
• Motorcycle Audio
• Show Vehicles
• Daily Drivers
• Professional Audio Installations
Product Overview
The DS18 PRO-X6M is designed for enthusiasts who want exceptional vocal clarity and high sound pressure levels without sacrificing reliability. Its 8-ohm impedance makes it an excellent option for installers building systems with multiple speakers per channel, allowing greater flexibility when wiring speakers to achieve the desired amplifier load.
The PRO-X6M combines a durable steel basket, high-temperature Kapton voice coil, and a powerful 30-ounce ferrite magnet to deliver consistent performance even during demanding listening sessions. With a wide frequency response of 90Hz–12kHz, it reproduces vocals and instruments with impressive detail while maintaining the loud, dynamic sound that DS18's PRO Series is known for.
Key Features
- 6.5-Inch PRO Series Midrange Speaker
- 250 Watts RMS Power Handling
- 500 Watts Maximum Power
- 8 Ohm Impedance
- 95dB Sensitivity
- 90Hz–12kHz Frequency Response
- 1.5" High-Temperature Kapton Voice Coil
- 30 oz Ferrite Magnet
- Steel Basket Construction
- Designed for High-Output Amplified Systems
Technical Specifications
Brand: DS18
Model: PRO-X6M
SKU: PRO-X6M
Speaker Size: 6.5"
Speaker Type: Midrange Loudspeaker
Nominal Impedance: 8 Ohms
RMS Power Handling: 250 Watts
Maximum Power Handling: 500 Watts
Sensitivity: 95 dB
Frequency Response: 90Hz – 12kHz
Recommended High-Pass Crossover: 160Hz
Voice Coil Diameter: 1.5" (38.1 mm)
Voice Coil Former: Kapton
Voice Coil Material: CCAW
Cone Material: Non-Pressed Paper
Basket Material: Steel
Magnet Material: Ferrite
Magnet Weight: 30 oz

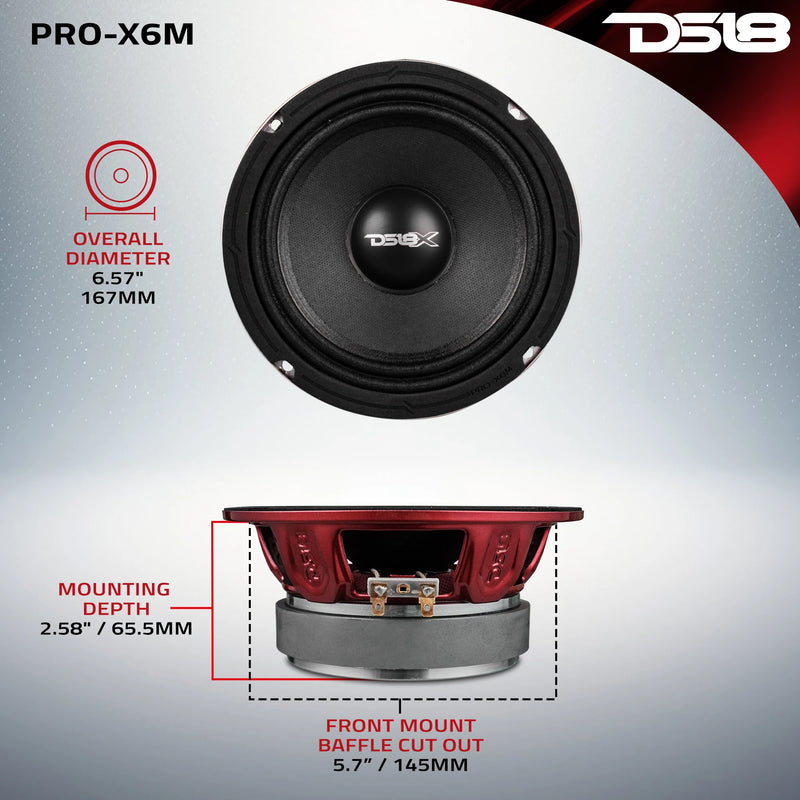

Cutout Diameter: 5.7"
Mounting Depth: 2.44"
What's Included
- (1) DS18 PRO-X6M 6.5" PRO Series 8 Ohm Midrange Speaker
Installation Notes
The PRO-X6M is designed for amplified aftermarket audio systems. For maximum reliability and sound quality, pair it with a clean amplifier, set the gains correctly, and use a high-pass crossover at or above the manufacturer's recommended frequency. Always verify mounting depth and cutout dimensions before installation.
Pro Audio Center Tip
One advantage of the PRO-X6M's 8-ohm impedance is installation flexibility. It's a great choice when you're planning to run multiple speakers on a single amplifier channel while maintaining a safe final impedance. Proper system planning and tuning can make a significant difference in overall performance.
Build Your System
Complete your installation with:
• DS18 PRO Series Super Tweeters
• 4-Channel Amplifier
• OFC Speaker Wire
• OFC Amplifier Wiring Kit
• DSP Processor
• Sound Deadening Material
• Speaker Adapter Rings
Expert Recommendation from Pro Audio Center
If you're building a multi-speaker PRO Audio setup, the PRO-X6M is one of our favorite choices because of its 8-ohm design. It gives installers more flexibility when wiring multiple speakers while still delivering the loud, clean vocal performance DS18 is known for. We often recommend this model for custom door builds where multiple midrange speakers are being powered from the same amplifier. Pair it with DS18 PRO Series super tweeters and proper DSP tuning, and you'll have a front stage capable of impressive output with excellent clarity.
Why Buy From Pro Audio Center?
At Pro Audio Center, we specialize in real-world mobile electronics installations—not just selling products online. When you purchase from us, you're backed by experienced professionals who can help you choose compatible equipment, answer installation questions, and build a system that performs the way you expect. Our goal is to provide expert guidance, competitive pricing, and fast shipping so you can buy with confidence.
Frequently Asked Questions
Is the DS18 PRO-X6M sold individually or as a pair?
The PRO-X6M is sold individually. If you're replacing speakers on both sides of your vehicle, you'll typically need to order two.
What's the difference between the PRO-X6M and the PRO-X6.4M?
The biggest difference is impedance. The PRO-X6M is the 8-ohm version, while the PRO-X6.4M is the 4-ohm version. The 8-ohm model is often preferred for custom installations that use multiple speakers on the same amplifier channel, while the 4-ohm version is a common choice for single-speaker-per-channel systems.
Why would I choose an 8-ohm speaker?
An 8-ohm speaker provides additional wiring flexibility when designing multi-speaker systems. It allows installers to combine speakers in different series or parallel configurations while achieving the desired amplifier load.
Do I need an amplifier for the PRO-X6M?
Yes. While the speaker may function with lower-powered systems, it's engineered to perform with a quality aftermarket amplifier capable of delivering clean power close to its 250-watt RMS rating.
Does the PRO-X6M produce deep bass?
No. The PRO-X6M is a dedicated midrange speaker designed for vocals and midrange frequencies. For full-range sound, pair it with a subwoofer for low frequencies and super tweeters for detailed highs.
What tweeters pair best with the PRO-X6M?
The PRO-X6M pairs exceptionally well with DS18 PRO Series super tweeters to create a balanced, high-output front stage with excellent clarity across the mid and high frequencies.
