PRO-X694BM DS18 6x9 Inch Midrange Bullet Loudspeaker 400W Max 200W RMS 4 Ohm Car Audio Speaker with Grill (Single Speaker)
DS18 PRO-X694BM 6x9" Midrange Bullet Speaker 400W 4 Ohm
The DS18 PRO-X694BM is engineered for car audio enthusiasts who demand loud, accurate, and dynamic midrange performance. Built with DS18's proven PRO Audio technology, this 6x9-inch loudspeaker delivers exceptional vocal clarity and projection while maintaining impressive efficiency and reliability.
Designed around a high-temperature 1.5-inch Kapton voice coil, durable ferrite magnet motor structure, and non-pressed paper cone, the PRO-X694BM handles demanding audio systems with ease. Its aluminum bullet phase plug improves sound dispersion while enhancing cooling and durability for long-term performance.
Whether you're upgrading factory speakers, building a competition SPL system, or creating a custom pro audio setup, the PRO-X694BM delivers the aggressive output and clear midrange response needed to stand out from the crowd.
FEATURES & BENEFITS
• High Output 6x9-Inch Midrange Loudspeaker
• 400 Watts Maximum Power Handling
• 200 Watts RMS Power Handling
• Efficient 96dB Sensitivity
• Wide Frequency Response: 100Hz – 12.5kHz

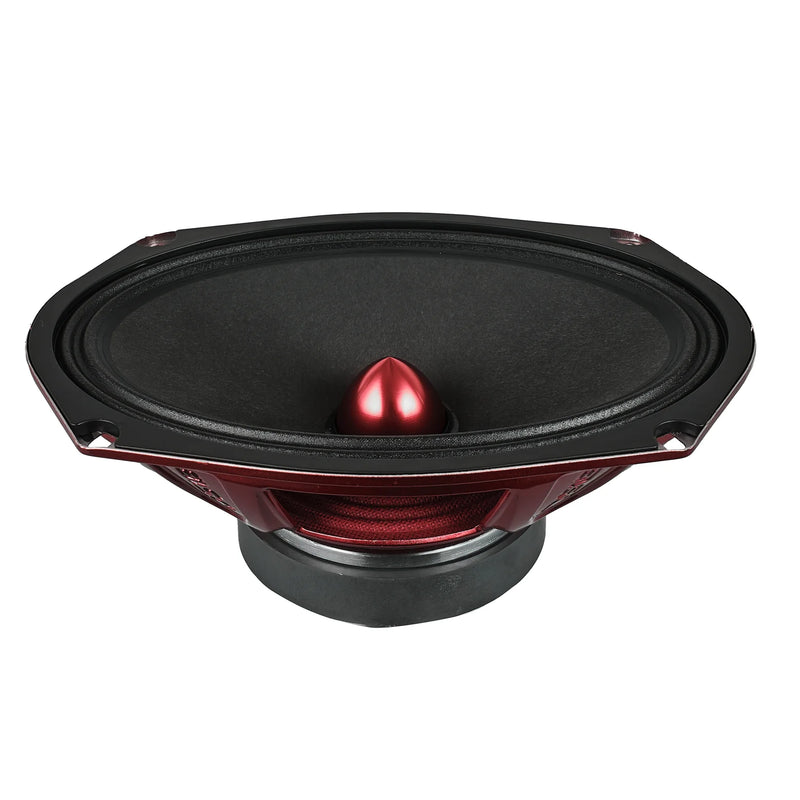

• Aluminum Bullet Phase Plug
• High Temperature 1.5-Inch Kapton Voice Coil
• Powerful Ferrite Magnet Motor

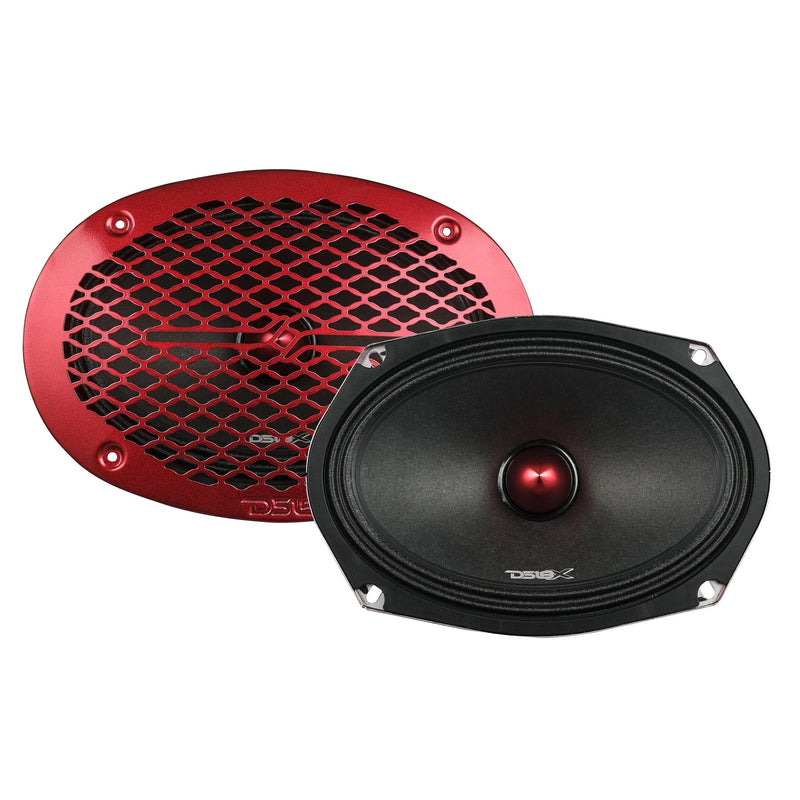

• Included Protective Grill
• Durable Steel Basket Construction
• Excellent Vocal and Midrange Clarity
• Perfect for SPL and Pro Audio Builds
TECHNICAL SPECIFICATIONS
Brand: DS18
Model: PRO-X694BM
SKU: PRO-X694BM
Speaker Size: 6x9 Inches
Speaker Type: Midrange Loudspeaker with Bullet
Sold As: Each
Nominal Impedance: 4 Ohms
RMS Power Handling: 200 Watts
Maximum Power Handling: 400 Watts
Sensitivity: 96dB
Frequency Response: 100Hz – 12.5kHz
Recommended High Pass Crossover: 120Hz
Voice Coil Diameter: 1.5 Inches (38.6mm)
Voice Coil Former Material: Kapton
Winding Material: CCAW
Cone Material: Non-Pressed Paper
Bullet Material: Aluminum
Magnet Material: Ferrite
Magnet Weight: 27 oz
Basket Material: Steel
Grill Included: Yes

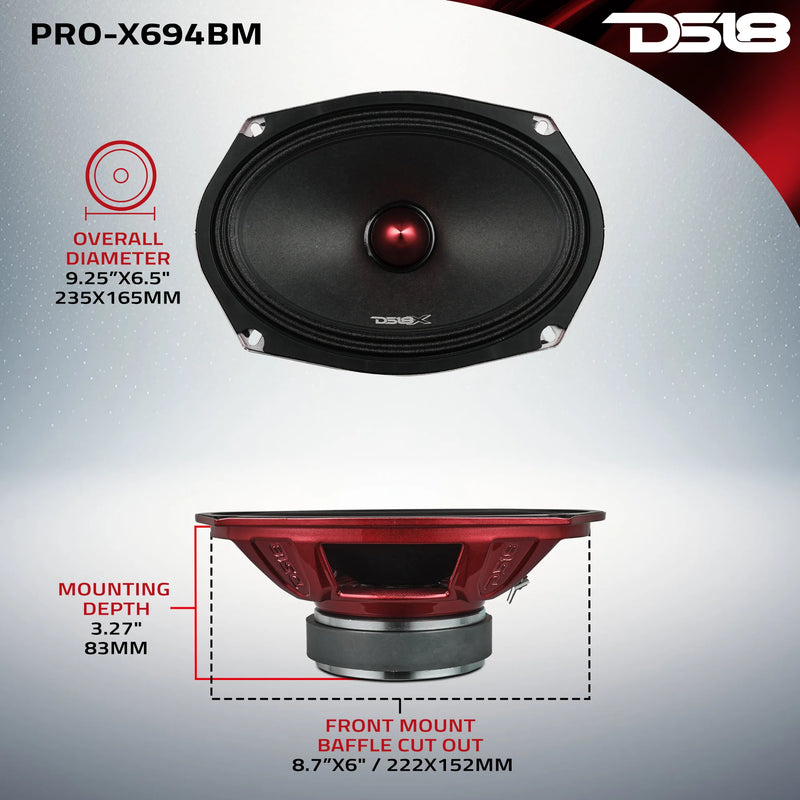

Mounting Depth: 3.27 Inches (83mm)
Cutout Diameter: 8.7 x 6 Inches (222 x 152mm)
WHAT'S INCLUDED
• (1) DS18 PRO-X694BM 6x9" Midrange Loudspeaker
• Protective Grill
• Manufacturer Packaging
