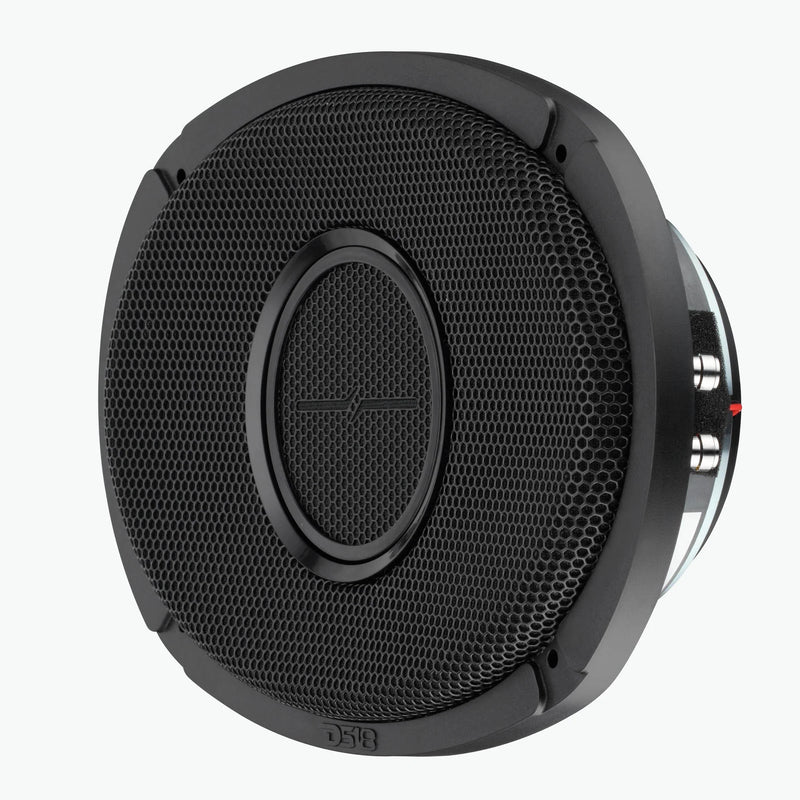

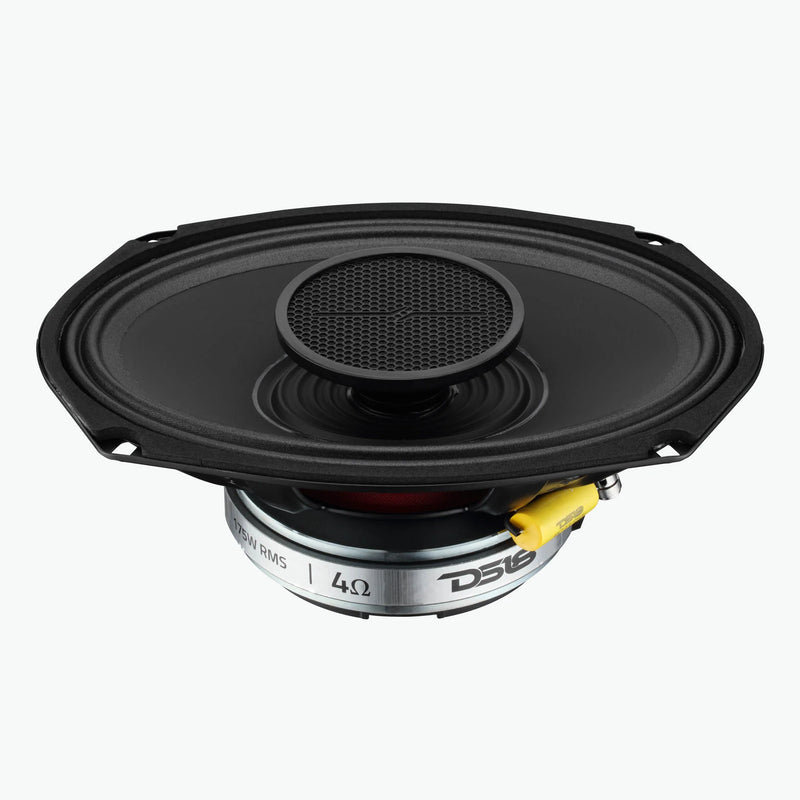

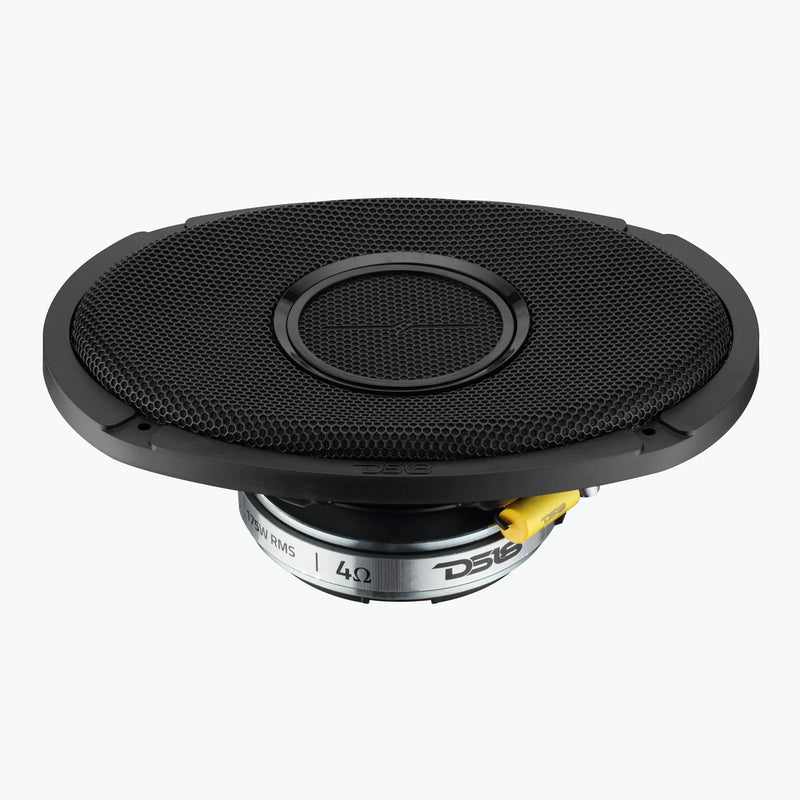

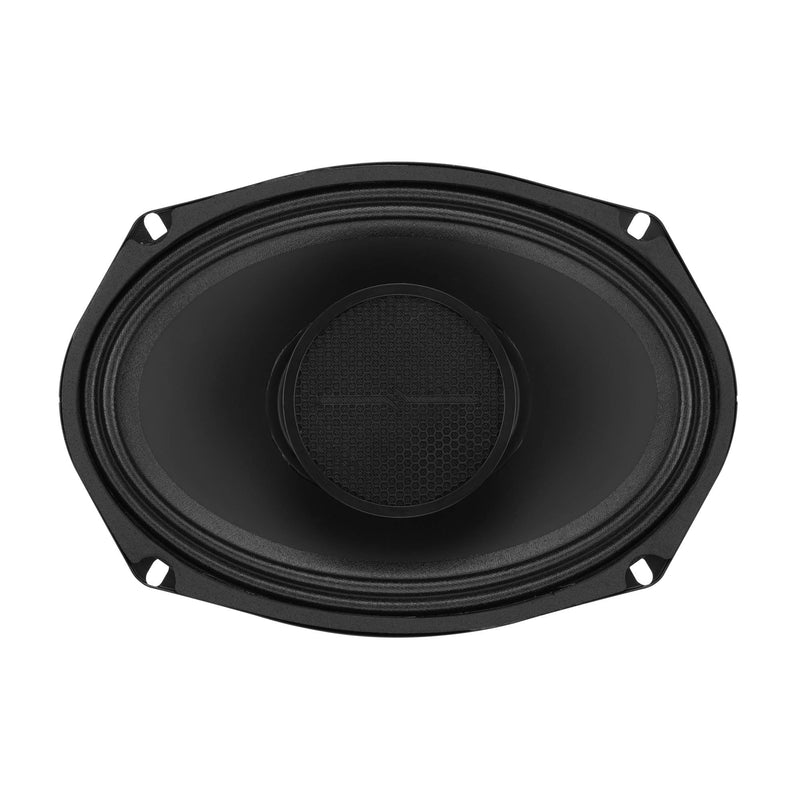

DS18 PRO-HY69.4MSL 6x9" Hybrid Slim Loudspeaker 4 Ohm

Big output. Slim installation. Hybrid full-range performance.

The DS18 PRO-HY69.4MSL is a high-output 6x9" hybrid loudspeaker designed for customers who want significantly more output from a relatively compact installation.

Instead of using a conventional coaxial tweeter mounted directly over the woofer, the PRO-HY69.4MSL combines a 6x9" midrange woofer with a dedicated 1" titanium compression driver and horn. This hybrid design gives the speaker strong midrange output while providing a much more efficient high-frequency section than a typical factory-style coaxial speaker.

With 175 watts RMS of power handling, 97dB sensitivity, and a 60Hz–20kHz frequency response, the PRO-HY69.4MSL is built for systems where output and projection matter.

The slim design is particularly useful for motorcycles, UTVs, Jeeps, Slingshots, custom pods, fairings, and other installations where mounting depth is limited.

The speaker also features an IP65-rated design, a water-resistant paper cone, treated cloth surround, and a protective grille with water and sun protection cloth, making it a strong option for outdoor, marine-adjacent, and powersports applications.

What Makes the PRO-HY69.4MSL Different?

The biggest difference is the hybrid speaker design.

A traditional 6x9" coaxial speaker typically uses a small tweeter mounted in the center of the woofer.

The PRO-HY69.4MSL takes a different approach.

It combines:

6x9" Midrange Woofer
+
1" Titanium Compression Driver
+
Horn Loading
+
High 97dB Sensitivity

This gives the speaker a very different character from a conventional factory-replacement 6x9.

The woofer handles the lower and middle portion of the speaker's range while the compression driver is dedicated to reproducing the higher frequencies.

The result is a speaker designed around high output, strong vocal presence, and projection.

175 Watts RMS of Power Handling

The PRO-HY69.4MSL is rated for 175 watts RMS per speaker at 4 ohms.

That makes it substantially more amplifier-friendly than typical factory replacement speakers.

Power Handling

• 175W RMS
• 350W MAX
• 4-ohm impedance

For the best results, pair the speaker with a quality amplifier capable of delivering clean power appropriate for its RMS rating.

As with any speaker, clean properly set amplifier power is more important than simply choosing an amplifier based on its maximum wattage.

97dB Sensitivity

With a rated sensitivity of 97dB, the PRO-HY69.4MSL is designed to produce strong output without requiring extreme amplifier power.

This is especially useful in applications where the goal is to achieve a loud, energetic system while maintaining reasonable amplifier requirements.

The high sensitivity also makes this speaker particularly well suited to powersports and open-air applications, where sound has to remain clear and noticeable outside of a sealed vehicle cabin.

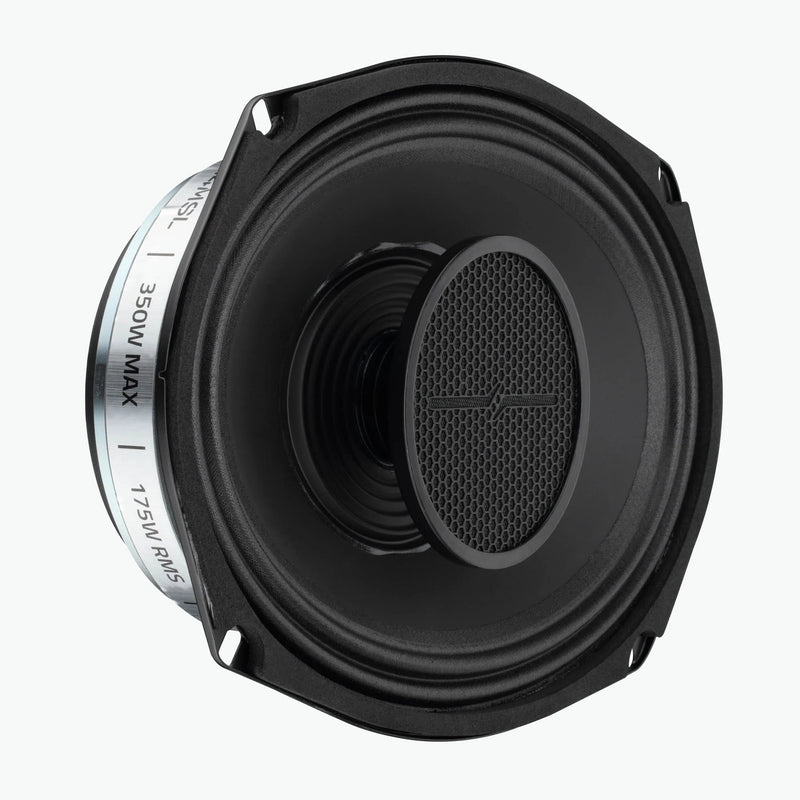

1" Titanium Compression Driver

The PRO-HY69.4MSL uses a 1" titanium compression driver to reproduce the upper portion of the speaker's frequency range.

Compression-driver technology is commonly used in high-output audio applications because it can produce strong output from a relatively compact driver.

The titanium diaphragm provides the high-frequency driver with the rigidity needed for detailed and energetic reproduction.

Combined with the horn, the compression driver helps give the PRO-HY69.4MSL its high-output character.

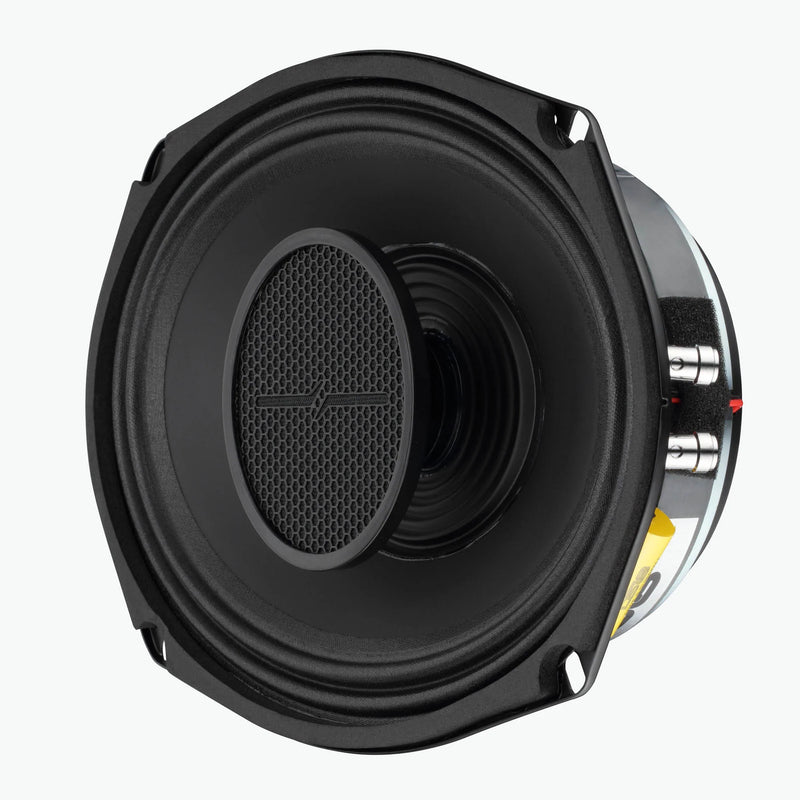

Horn-Loaded High-Frequency Driver

The compression driver is mounted to a 3.15" horn that helps direct and efficiently project the high-frequency output.

This is particularly useful in open-air applications such as:

• UTVs
• ATVs
• Jeeps
• Motorcycles
• Slingshots
• Boats
• Custom outdoor audio systems

Unlike a typical door speaker operating inside a relatively enclosed cabin, these applications often require more output to overcome wind, road, engine, and environmental noise.

The horn-loaded compression driver helps make the high-frequency portion of the system more prominent and efficient.

60Hz–20kHz Frequency Response

The PRO-HY69.4MSL has a rated frequency response of 60Hz–20kHz.

For high-output systems, we recommend using the speaker with a properly configured high-pass filter.

A recommended starting point is approximately 80Hz, particularly when the system includes a dedicated subwoofer.

This allows the 6x9" speaker to focus on the frequencies it is best suited to reproduce while the subwoofer handles the deeper bass.

Recommended 80Hz High-Pass Crossover

The PRO-HY69.4MSL has a recommended high-pass crossover frequency of 80Hz.

This is particularly important when the speaker is being used in a high-output system.

A high-pass filter removes the deepest bass frequencies from the speaker, allowing the woofer and compression driver to concentrate on their intended operating range.

Example Full-Range System

PRO-HY69.4MSL → 80Hz High-Pass

Subwoofer → Low-Pass

This creates a cleaner division of responsibilities between the speakers and subwoofer.

For systems without a subwoofer, crossover settings can be adjusted based on the installation and desired response.

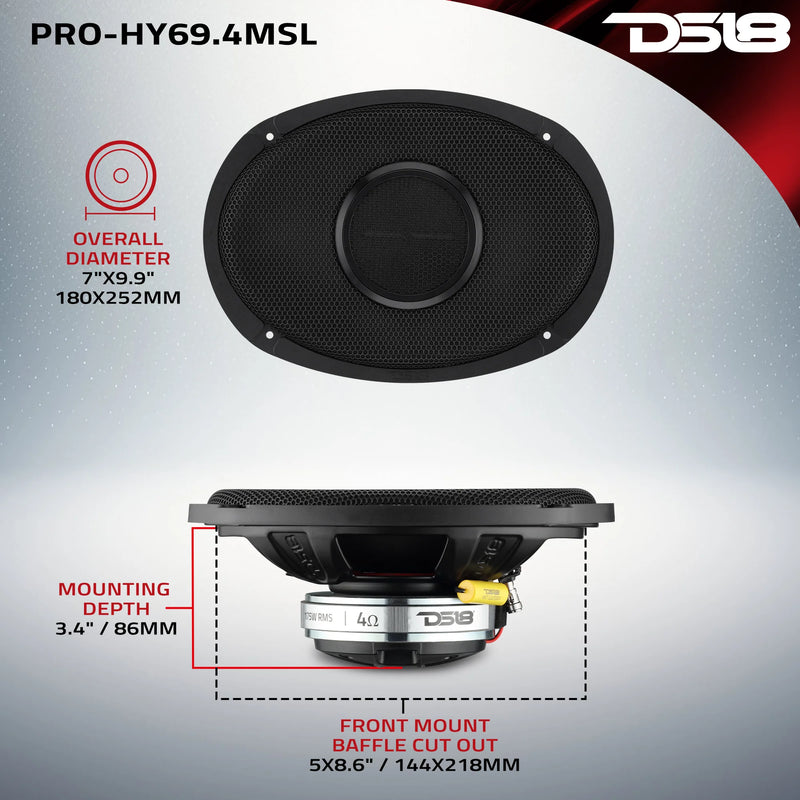

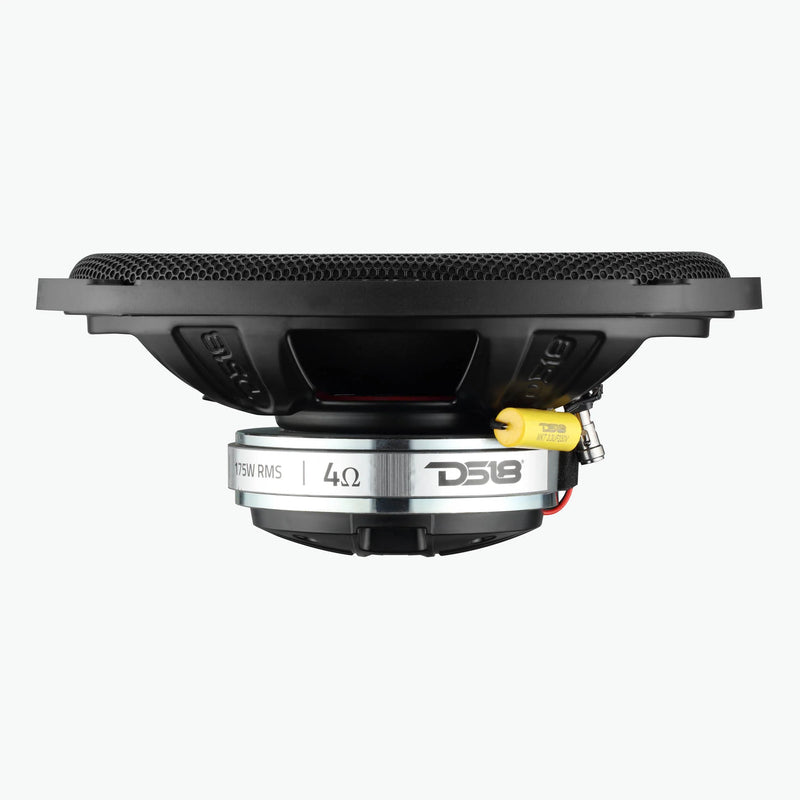

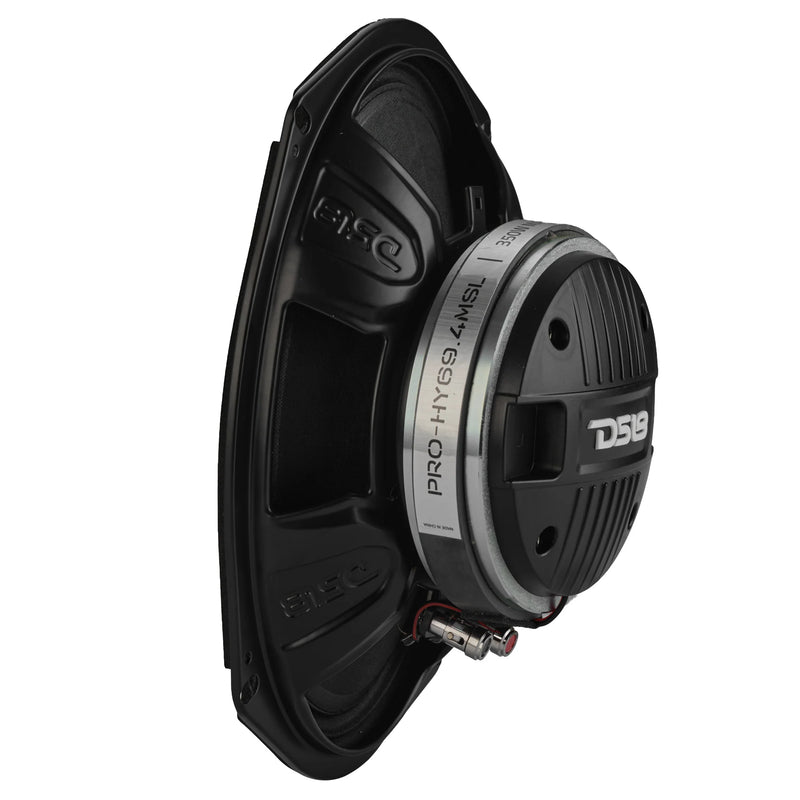

Slim 3.4" Mounting Depth

One of the most useful features of the PRO-HY69.4MSL is its relatively shallow 3.4" mounting depth.

That makes it considerably easier to install in applications where a traditional high-output 6x9 speaker may be too deep.

Potential applications include:

• Motorcycle fairings
• UTV pods
• Jeep custom panels
• Slingshot installations
• Custom speaker enclosures
• Powersports pods
• Marine speaker pods
• Other space-limited installations

The shallow design does not mean the speaker is a low-output driver. It combines the slim form factor with a high-output hybrid design.

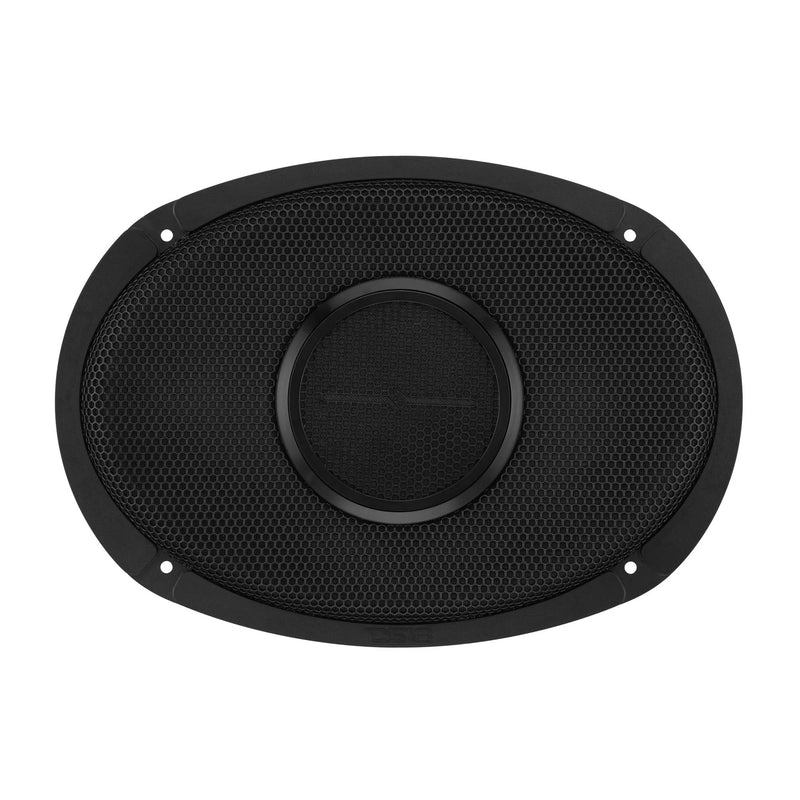

IP65-Rated Construction

The PRO-HY69.4MSL is designed for environments where exposure to the elements is a concern.

The speaker features an IP65-rated design along with a water-resistant paper cone and treated cloth surround.

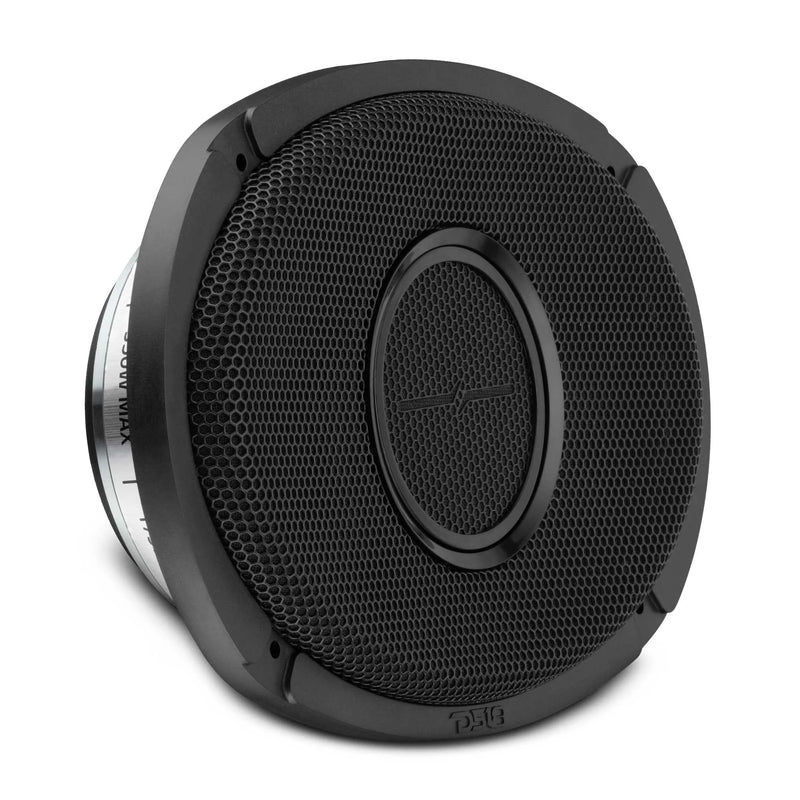

The included grille also features a water and sun protection cloth to provide additional protection for the speaker assembly.

This makes the PRO-HY69.4MSL particularly attractive for:

• UTVs
• ATVs
• Jeeps
• Motorcycles
• Slingshots
• Outdoor audio systems
• Marine-adjacent installations

Important:

The PRO-HY69.4MSL is designed for water-resistant outdoor use, but IP65 does not mean the speaker is designed to be submerged.

Proper installation and protection from prolonged direct water exposure will help maximize the life of the speaker.

Water-Resistant Paper Cone

The 6x9" woofer uses a water-resistant paper cone designed to better handle outdoor environments than a conventional untreated paper speaker cone.

The cone works with a treated cloth surround to provide a balance between durability and the movement required for the woofer to produce its midrange output.

This combination makes the PRO-HY69.4MSL particularly well suited to powersports and other open-air installations.

Ferrite Woofer Magnet + Neodymium Compression Driver Magnet

The PRO-HY69.4MSL uses two different magnet technologies within its hybrid design.

The woofer uses a ferrite magnet, while the compression driver uses a neodymium magnet.

This allows the speaker to combine a conventional high-output woofer motor with a compact, lightweight high-frequency driver.

The result is a hybrid speaker design that delivers substantial output while remaining practical for custom installations.

Built for High-Output Systems

The PRO-HY69.4MSL is not intended to be positioned as a basic factory speaker replacement.

It is better suited to customers who want to build a system around output, efficiency, and projection.

This makes it particularly useful for:

UTV & Powersports Audio

The high sensitivity and compression driver help the speaker maintain strong output in open-air environments.

Jeep Audio

The slim mounting depth makes the speaker useful for custom Jeep pods and enclosures where available space can be limited.

Motorcycle Audio

The hybrid design provides a high-output solution for custom fairing and speaker-pod installations.

Slingshot Audio

The speaker's combination of high sensitivity, weather-resistant construction and shallow depth makes it well suited to open-air Slingshot systems.

Marine & Outdoor Audio

The IP65-rated design and water-resistant materials make the speaker a practical option for appropriate protected outdoor and marine-related installations.

Key Features

• 6x9" hybrid slim loudspeaker
• 175W RMS power handling
• 350W maximum power handling
• 4-ohm impedance
• 97dB sensitivity
• 60Hz–20kHz frequency response
• Recommended 80Hz high-pass crossover
• 2-way hybrid design
• 1" titanium compression driver
• Horn-loaded compression driver
• 3.15" horn diameter
• Water-resistant paper woofer cone
• Treated cloth surround
• IP65-rated design
• Grille included
• Water and sun protection cloth
• Ferrite woofer magnet
• Neodymium compression-driver magnet
• 3.4" mounting depth
• 1.5" woofer voice coil
• CCAW winding
• Steel basket
• Ideal for powersports and custom high-output applications

Technical Specifications

Installation & Fitment Considerations

The PRO-HY69.4MSL uses a 6x9" mounting footprint, but customers should not assume that any factory 6x9 location will accept this speaker without modification.

The compression-driver and horn assembly requires additional clearance above the mounting surface compared with a conventional shallow coaxial speaker.

Before ordering, verify:

• Available mounting depth
• Cutout dimensions
• Front-panel clearance
• Rear clearance
• Grille clearance
• Magnet clearance
• Compression-driver clearance
• Available amplifier power
• Speaker impedance requirements

For custom pods and enclosures, the speaker's published mounting dimensions should be used when designing the mounting location.

Expert Recommendation

The DS18 PRO-HY69.4MSL is a strong choice for builders who want substantially more output-oriented performance from a 6x9" format without moving to a much deeper speaker.

The combination of 175W RMS power handling, 97dB sensitivity, a 1" titanium compression driver, and 3.4" mounting depth makes it particularly attractive for motorcycles, UTVs, Slingshots, Jeeps, and other custom open-air systems.

Its IP65-rated construction and water-resistant materials also make it a practical option for outdoor environments when properly installed and protected.

For a simple factory-style replacement in a conventional enclosed vehicle, a traditional coaxial 6x9" may be a more straightforward choice. For a custom high-output build where projection and output are priorities, the hybrid design of the PRO-HY69.4MSL offers a very different approach.

Frequently Asked Questions

Is the DS18 PRO-HY69.4MSL a 6x9" speaker?

Yes. The PRO-HY69.4MSL is a 6x9" hybrid loudspeaker.

Is the PRO-HY69.4MSL 4 ohms?

Yes. The PRO-HY69.4MSL has a nominal impedance of 4 ohms.

How much power does the PRO-HY69.4MSL handle?

The speaker is rated at 175W RMS and 350W maximum power handling.

Is this speaker sold individually or as a pair?

The PRO-HY69.4MSL is sold as one speaker. Purchase two if you need a pair.

Does this speaker have a tweeter?

It uses a 1" titanium compression driver with a horn, rather than a conventional small coaxial tweeter.

What is the recommended high-pass crossover?

An 80Hz high-pass crossover is recommended.

How deep is the PRO-HY69.4MSL?

The mounting depth is approximately 3.4 inches.

Is the PRO-HY69.4MSL waterproof?

The speaker is IP65 rated and uses water-resistant construction, including a water-resistant paper cone and treated cloth surround.

IP65 protection does not mean the speaker is designed to be submerged. Proper installation and protection from prolonged water exposure are still important.

Can I use this speaker in a motorcycle?

Yes. Its slim design, high sensitivity, and weather-resistant construction make it well suited for appropriately designed custom motorcycle audio installations.

Can I use this speaker in a UTV or ATV?

Yes. The PRO-HY69.4MSL is well suited for custom powersports installations where its dimensions and mounting requirements can be accommodated.

Does the speaker require an amplifier?

It can be used with a variety of audio systems, but an appropriately matched aftermarket amplifier is recommended when you want to take advantage of its 175W RMS power handling and high-output capabilities.

Can I use two PRO-HY69.4MSL speakers?

Yes. Two speakers create a stereo pair. Each speaker is 4 ohms, so the amplifier should be selected and configured appropriately for the final system load.

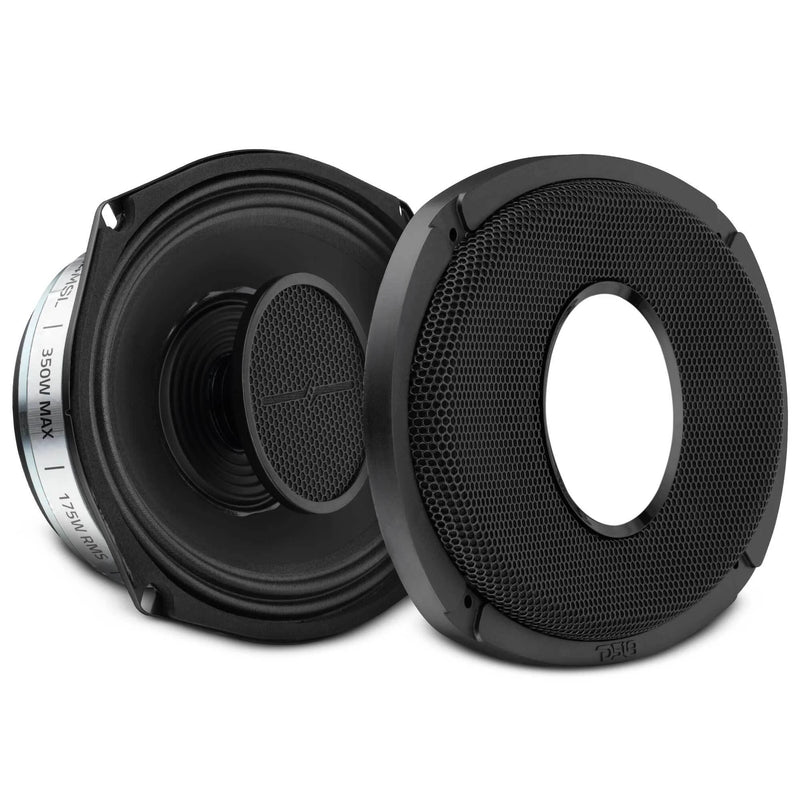

Does the grille come with the speaker?

Yes. A protective grille is included, along with water and sun protection cloth
