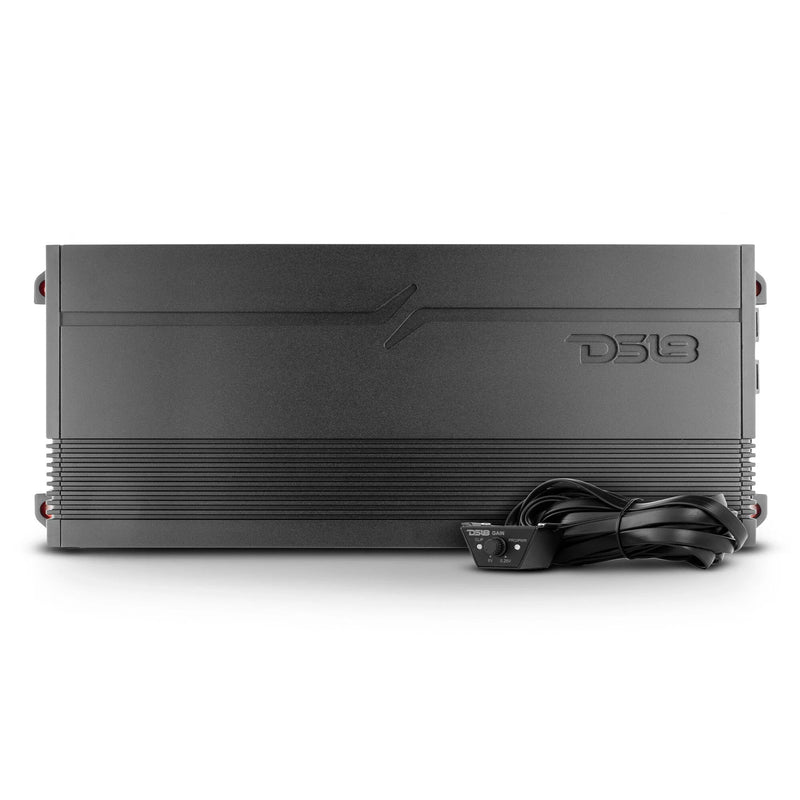

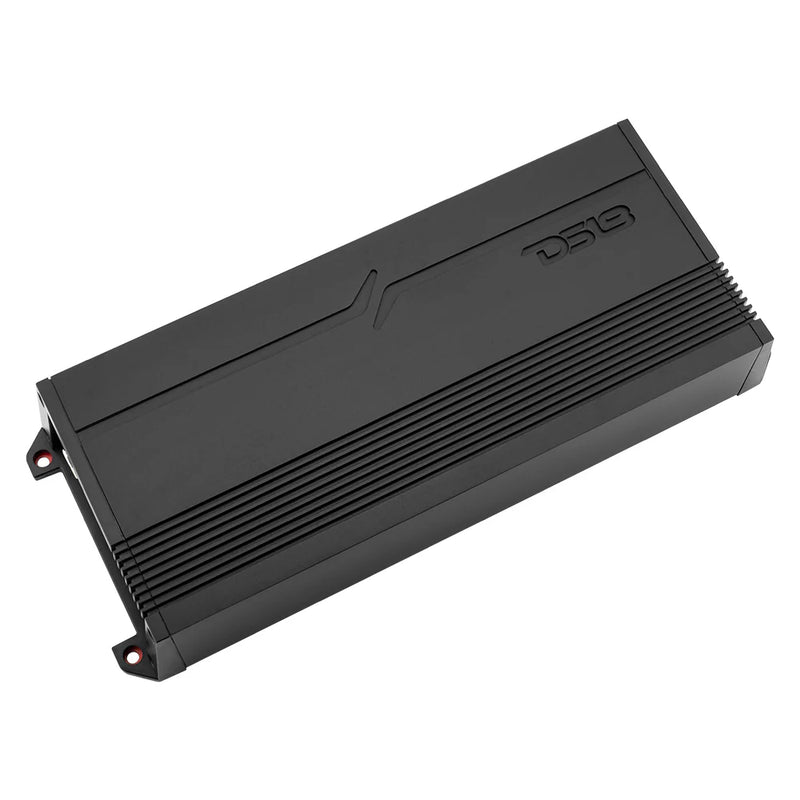

DS18 G3600.1D Class D Monoblock Subwoofer Amplifier | 1200W RMS @ 1 Ohm | 3600W Max

Bring powerful, controlled bass to your system with the DS18 G3600.1D, a compact Class D monoblock amplifier engineered to deliver dependable low-frequency performance for everyday enthusiasts and serious bass lovers alike. Producing up to 1,200 Watts RMS at 1 Ohm, the G3600.1D offers the power, efficiency, and tuning flexibility needed to get the most from today's aftermarket subwoofers.

Designed with a proven Class D architecture that has undergone rigorous sound quality verification using AP Instruments, the G3600.1D combines clean output with excellent efficiency in a compact chassis that's easy to integrate into a wide variety of vehicle applications. High-level input capability, an included remote bass level control, adjustable low-pass crossover, subsonic filter, and bass boost allow you to fine-tune your system while advanced protection circuitry helps safeguard your investment.

Whether you're upgrading a single high-performance subwoofer or building a powerful daily-driver bass system, the G3600.1D delivers the reliable performance expected from the DS18 G Series.

Why You'll Love It

✔ Delivers 1,200 Watts RMS @ 1 Ohm for serious bass performance

✔ Efficient Class D design helps reduce heat while maximizing output

✔ Stable from 1 to 4 Ohms

✔ Includes Remote Bass Level Control for convenient adjustment

✔ Built-in Low Pass Filter, Subsonic Filter & Bass Boost

✔ High-Level Input Compatibility for easier factory radio integration

✔ Clip, Protection & Power LED Indicators help protect your system

✔ Compact chassis simplifies installation in a variety of vehicles

✔ Designed for reliable daily performance and enthusiast-level systems

Perfect For

• Single 10", 12", or 15" high-performance subwoofer systems
• Daily driver bass upgrades
• Truck audio systems
• Jeep audio builds
• SUV bass systems
• Ported enclosure builds
• Sealed enclosure systems
• SQL (Sound Quality + Loudness) systems
• Customers looking for clean, efficient monoblock power

Product Overview

The DS18 G3600.1D was developed to provide serious bass performance without sacrificing efficiency or installation flexibility. Built around a reliable Class D platform, it delivers clean, consistent power while maintaining compact dimensions that fit comfortably into a wide variety of custom and factory-style installations.

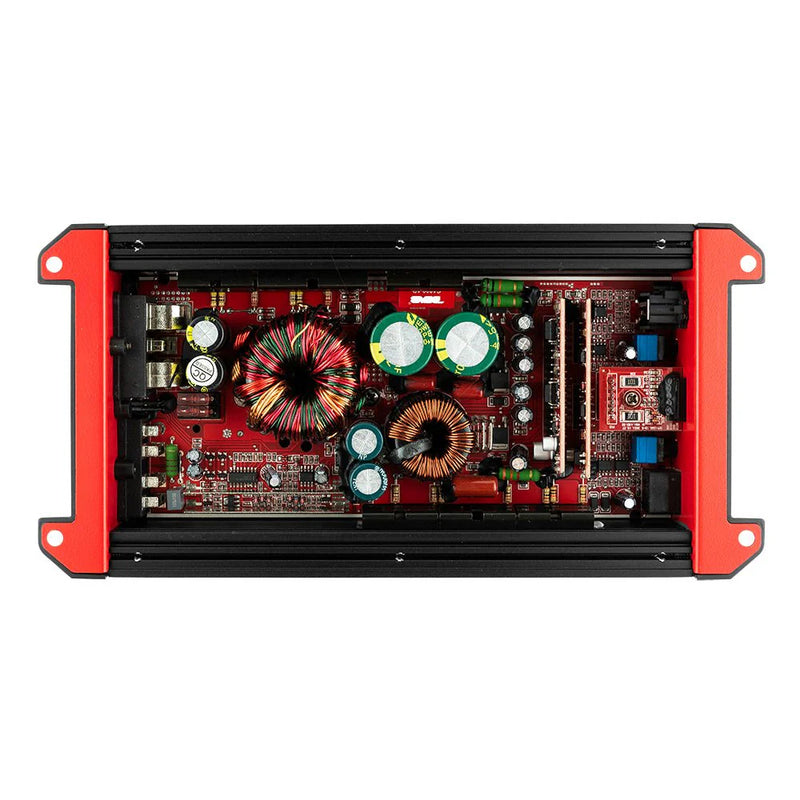

Rigorous sound quality verification using AP Instruments helps ensure accurate audio reproduction, while surface-mount component technology contributes to long-term reliability and a compact footprint. The integrated high-level inputs make installation straightforward in vehicles retaining the factory radio, while the included remote bass level control allows quick adjustment of subwoofer output from the driver's seat.

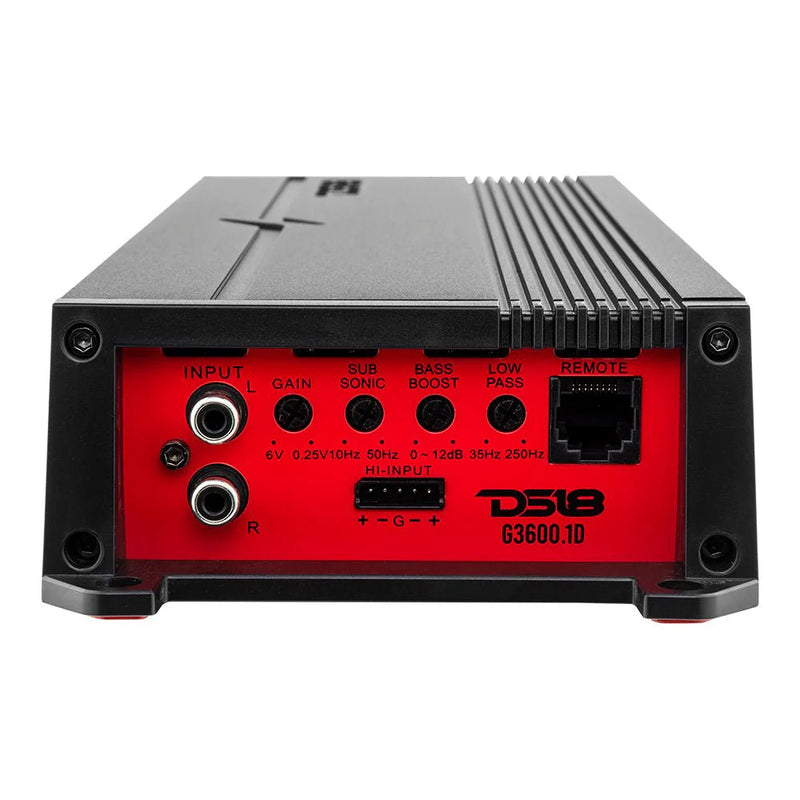

Fine-tuning your system is easy thanks to the adjustable low-pass crossover, variable subsonic filter, and bass boost controls. Protection, clipping, and power status LEDs provide valuable feedback during setup and everyday use, while built-in thermal, short circuit, clipping, and voltage protection systems help keep both the amplifier and connected equipment operating safely.

Whether you're powering a single premium subwoofer or building a strong daily-driver bass system, the G3600.1D offers an excellent balance of performance, efficiency, and reliability.

Ideal Applications

The G3600.1D is an excellent choice for enthusiasts looking to build a powerful, reliable bass system without stepping into oversized competition amplifiers.

It performs exceptionally well in applications including:

• Single 600–1,200 Watt RMS subwoofer systems
• Dual 500–600 Watt RMS subwoofer systems
• Daily-driver SQL systems
• Truck bass upgrades
• Jeep and SUV audio builds
• Compact custom installations
• Sealed and ported enclosure systems

Its efficient Class D design and compact footprint make it equally at home in space-conscious installations and high-performance custom builds.

Key Features

• Monoblock Class D Subwoofer Amplifier
• 1,200 Watts RMS @ 1 Ohm
• 900 Watts RMS @ 2 Ohms
• 500 Watts RMS @ 4 Ohms
• 3,600 Watts Max Power
• Stable from 1–4 Ohms

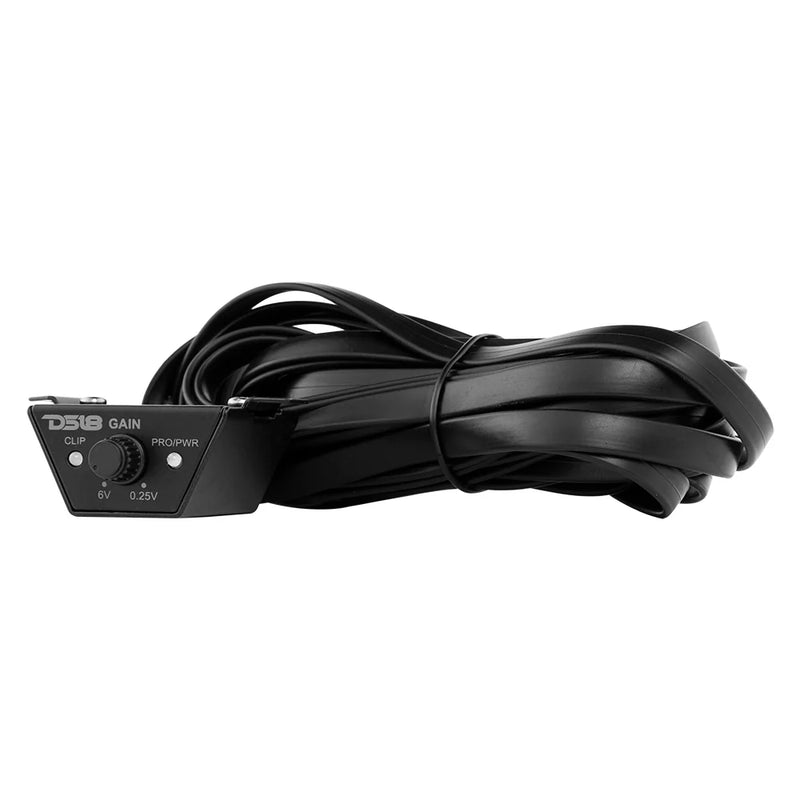

• Remote Bass Level Control Included
• Adjustable Low Pass Filter
• Variable Subsonic Filter
• Variable Bass Boost
• High-Level Input Compatible
• Surface Mount Component Technology
• AP Instrument Verified Sound Quality
• Power / Protection / Clip LED Indicators
• Advanced Thermal, Voltage & Short Circuit Protection

Technical Specifications

Brand: DS18

Series: G Series

Model: G3600.1D

SKU: G3600.1D

Amplifier Type: Monoblock Subwoofer

Amplifier Class: Class D

Channels: 1

Peak Power: 3,600 Watts

RMS Power @ 1 Ohm: 1 x 1,200 Watts

RMS Power @ 2 Ohms: 1 x 900 Watts

RMS Power @ 4 Ohms: 1 x 500 Watts

Minimum Impedance: 1 Ohm

Operating Voltage: 9–15V

Frequency Response: 10Hz–500Hz

Signal-to-Noise Ratio: >93 dB

Low Pass Filter: 35Hz–250Hz

Subsonic Filter: 10Hz–50Hz

Bass Boost: 0–9 dB @ 45Hz

Input Sensitivity: 0.25V–6V

Efficiency @ 4 Ohms: 90%

THD: 0.0014%

Selectable Crossover: Fixed LPF

High-Level Inputs: Yes

Remote Bass Control: Included

LED Indicators: Power / Protection / Clip

Protection Features: Voltage, Thermal, Short Circuit & Clipping Protection

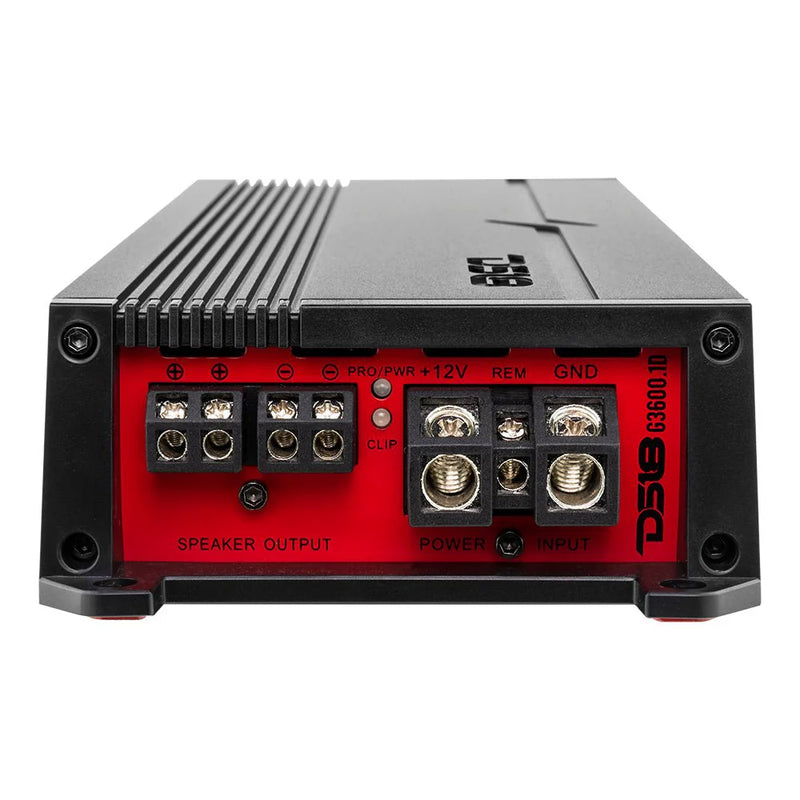

Power Wire Input: 4 AWG

Speaker Output: 8 AWG

Fuse Rating: 120A

Dimensions (L × W × H): 14.25" × 7.25" × 3.25"

Weight: 5.5 lbs



What's Included

• (1) DS18 G3600.1D Class D Monoblock Amplifier
• Remote Bass Level Control
• Owner's Manual

What This Amplifier Powers Best

The DS18 G3600.1D is designed to provide clean, efficient power for a wide range of aftermarket subwoofer systems.

It is an excellent match for:

• Single subwoofers rated between 600–1,200 Watts RMS
• Dual subwoofer systems with a combined power handling of 1,000–1,200 Watts RMS
• Daily driver bass systems
• SQL (Sound Quality + Loudness) builds
• High-output truck and Jeep audio systems
• Compact custom installations where efficiency and performance matter

When paired with the proper enclosure and electrical system, the G3600.1D provides outstanding low-frequency performance while maintaining excellent reliability.

Installation Notes

For the best performance, install the G3600.1D using high-quality OFC power and ground wiring sized appropriately for the amplifier's current demands.

The built-in High-Level Inputs make this amplifier an excellent option for both aftermarket and factory radio installations, while the included Remote Bass Level Control allows convenient adjustment of subwoofer output from the driver's seat.

During setup, properly adjust the amplifier gain and crossover settings to match your subwoofer system. Utilizing the built-in clip indicator can help prevent distortion and reduce the risk of damaging your equipment.

Pro Audio Center Tip

One of the most common misconceptions is choosing an amplifier based solely on its maximum power rating.

For real-world performance, always compare an amplifier's RMS output to your subwoofer's continuous power handling. The G3600.1D delivers 1,200 Watts RMS at 1 Ohm, making it an excellent choice for many premium aftermarket subwoofer systems while providing clean, controlled bass for everyday listening.

A properly tuned 1,200-watt RMS amplifier will typically outperform a poorly matched amplifier with a much higher advertised peak power rating.

Build Your System

Complete your installation with:

• OFC 4 AWG amplifier wiring kit
• High-quality RCA cables
• Sound deadening material
• AGM battery upgrade (recommended for demanding systems)
• Custom sealed or ported subwoofer enclosure
• Premium line output converter (when retaining a factory radio)
• Additional battery or upgraded charging system for larger multi-amplifier builds

Expert Recommendation from Pro Audio Center

The G3600.1D occupies one of the most useful power levels in today's car audio market. With 1,200 Watts RMS at 1 Ohm, it offers enough power to drive many high-performance subwoofers confidently while remaining manageable for everyday street systems.

We especially like this amplifier for customers building a serious daily-driver bass system. Its compact footprint, built-in tuning controls, high-level input capability, and included remote bass knob make it versatile enough for a wide variety of vehicles without sacrificing performance.

When installed correctly and paired with a properly matched subwoofer, the G3600.1D delivers clean, dependable bass that exceeds what many customers expect from an amplifier in this class.

Why Buy From Pro Audio Center?

At Pro Audio Center, we believe a great amplifier is only one part of a great audio system. That's why we're committed to helping customers choose equipment that works together—not just equipment that looks impressive on paper.

Every amplifier we sell is selected based on real-world performance, reliability, and value. Whether you're upgrading a factory system or building a custom installation, we're here to help you select the right amplifier, wiring, enclosure, and supporting components for your goals.

When you purchase from Pro Audio Center, you're buying from enthusiasts who understand mobile electronics and are committed to helping you get the most from your investment.

Frequently Asked Questions

How much RMS power does the G3600.1D produce?

The G3600.1D delivers:

• 1 x 1,200 Watts RMS @ 1 Ohm
• 1 x 900 Watts RMS @ 2 Ohms
• 1 x 500 Watts RMS @ 4 Ohms

Is this amplifier 1 Ohm stable?

Yes. The G3600.1D is engineered for stable operation down to 1 Ohm, making it compatible with many aftermarket subwoofer configurations.

Does this amplifier include a bass knob?

Yes. A Remote Bass Level Control is included, allowing you to conveniently adjust subwoofer output from the driver's seat.

Can I use this amplifier with my factory radio?

Yes. The built-in High-Level Inputs allow the G3600.1D to integrate with many factory audio systems without requiring a traditional RCA preamp output.

Does this amplifier have a clip indicator?

Yes. The G3600.1D features Power, Protection, and Clip LED indicators to assist with setup and help protect your system during operation.

What size power wire should I use?

The amplifier accepts 4 AWG power wire, and we recommend using high-quality oxygen-free copper (OFC) wiring for maximum performance and reliability.

Is the G3600.1D a good amplifier for a daily driver?

Absolutely. Its efficient Class D design, flexible tuning controls, and reliable protection features make it an excellent choice for customers looking to build a powerful, dependable daily-driver bass system.
