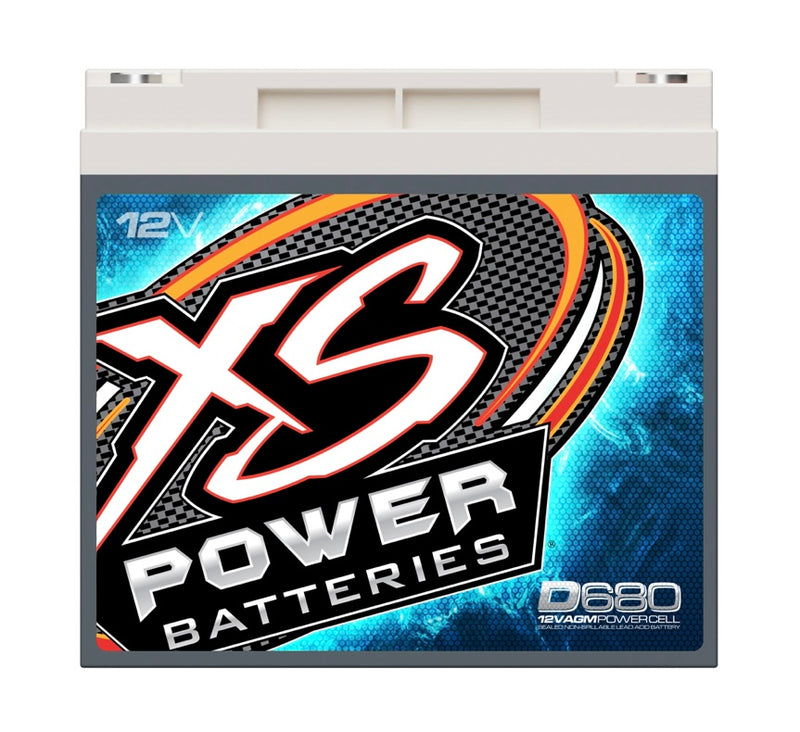

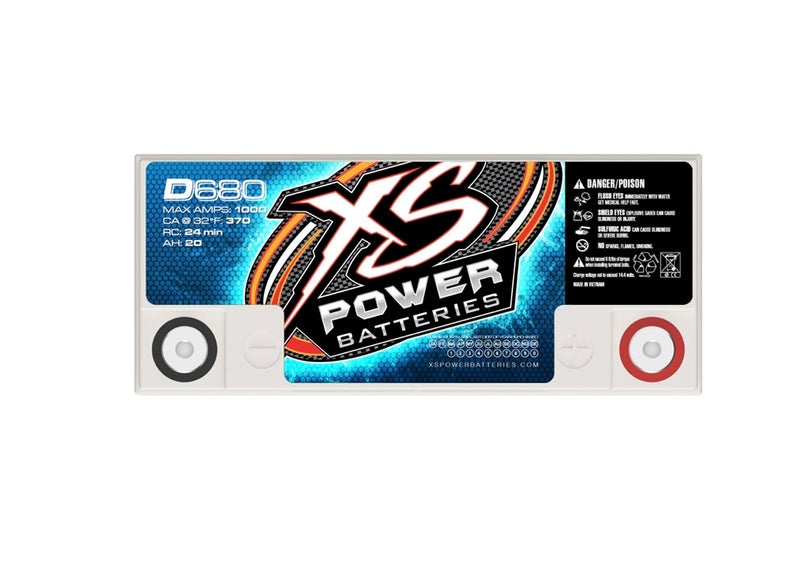

D680 XS Power Batteries AGM D-Series
12V AGM Battery, Up to 1000W
Give your vehicle the necessary juice to perform at its best. XS Power deep cycle batteries can act as replacements for your car's standard battery, or you can use them as auxiliaries to power your high-performance sound system and hydraulics reliably. If you've got a boat or an RV, XS Power's got a solution for your electric needs, too.
Weight Lbs. – 13.69
Weight Kgs. – 6.21
Length – 7.13 in
Height – 6.57 in
Width – 3.03 in
Max Amps – 1,000A
CA – 370
CCA – 326
Ah – 20
RC – 24
Primary Watts – N/A
Secondary Watts – 1,000

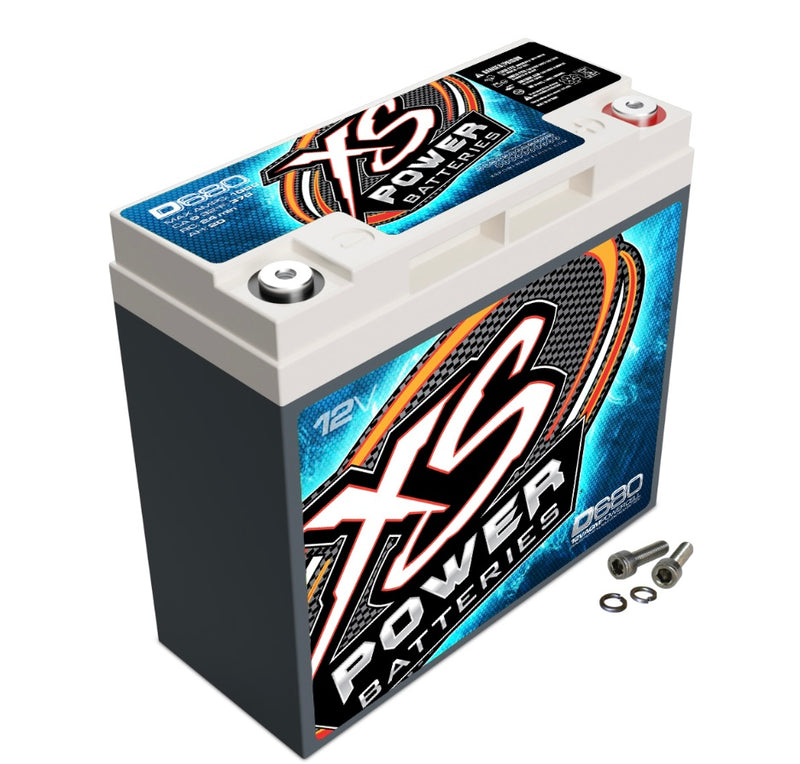

M6 Terminal Hardware Included
AGM TECHNOLOGY
XS Power deep cycle batteries feature a sealed absorbed glass mat (AGM) design that incorporates special glass fiber mats that contain the acid electrolyte between the lead plates, rather than a standard flooded (liquid) design. This leak-proof, non-hazardous configuration typically lasts longer than normal replacement batteries if properly charged. These batteries actually store energy, so you don't have to add a capacitor to your system to get a quick burst when you need it.
LEAK-PROOF DESIGN
Since there are no external vents on an XS Power battery, you can mount it in a passenger compartment, below a seat, or inside a glove box without fear of leaks. No leaks mean no corrosion or damage to chrome or paint. XS Power guarantees their batteries will not leak, even if damaged. These batteries also resist extreme vibrations so they'll perform in the trunk or hatch area without skipping a beat.
| BCI |
N/A
|
| Max Amps |
1000
|
| Cranking Amps |
370
|
| RC |
24
|
| Ah |
20
|
| Voltage |
12
|
| Terminal Orientation |
Right Hand
|
| Brand |
XS Power Batteries
|
FREQUENTLY ASKED QUESTIONS
Do XS power batteries make a difference?
XS Power batteries, when compared to the batteries of yesteryear, deliver much more power more quickly. This instant burst energy is what we call “MAX amps”.
Can you charge an XS Power battery?
Proper charging is crucial to the life of your XS Power battery. It is very important that the temperature of the battery remains cool with respect to the charge voltage. The charts show on the top of each instruction sheet below will help ensure proper charge voltage with different ranges of temperature.
Do XS Power batteries have a warranty?
Toughest Construction: Rugged, reinforced ABS plastic housings and extreme vibration resistant internal connections make XS Power batteries almost impossible to break! Best Warranty: With up to 3 years replacement, our products are designed to perform!
What happens if you charge an AGM battery with a normal charger?
AGM batteries don't have nearly as much internal resistance, which is how they absorb 30, 40, even 50 amps at a time instead of a regular battery getting stressed out at more than 10 amps. This is also why an AGM battery needs special charging. Regular battery charging can break AGM batteries.
What does AGM battery mean?
An AGM (absorbed glass mat) battery contains a special glass mat separator that wicks the electrolyte solution between the battery plates. This material's design enables the fiberglass to be saturated with electrolytes – and to store the electrolyte in a “dry” or suspended state rather than in free liquid form.
Is AGM better than lead acid?
AGMs typically have higher cold-cranking amp ratings, meaning they can withstand freezing temperatures better than conventional lead-acid batteries. The absorbed electrolyte in AGM batteries is also less likely to freeze than liquid electrolyte.
What is the lifespan of an AGM battery?
AGM batteries keep the battery's electrolyte in a solid, or absorbed, state that can impressively provide two to three times the lifespan of a flooded battery. AGM batteries last about seven years and are ideal for vehicles with start-stop technology.
