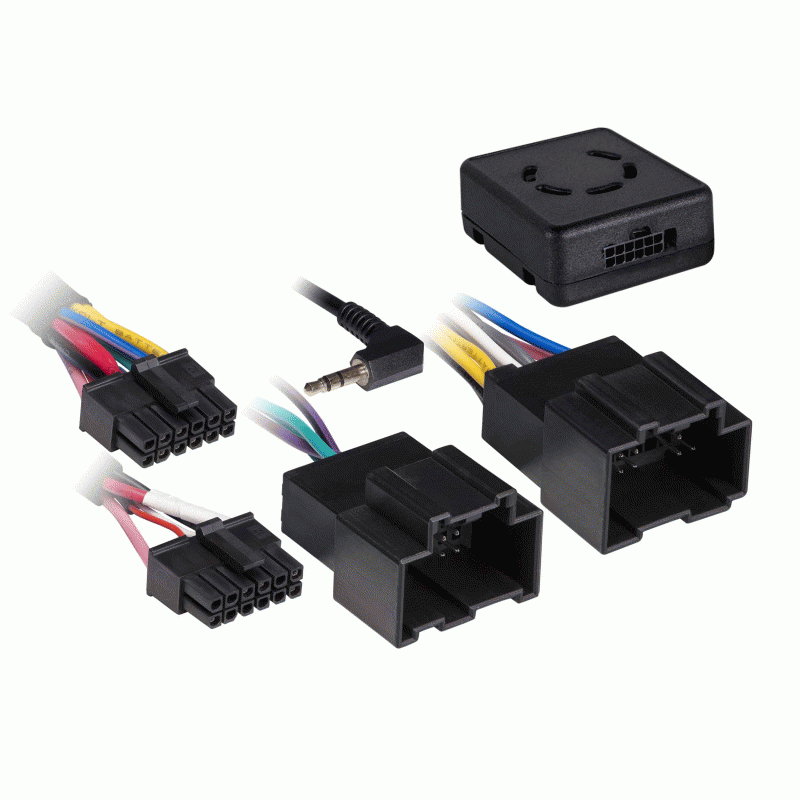

AXDI-GLNLN29  METRA

GM Data Interface Harness 2006-up

• Provides accessory power (12-volt 10-amp)
• Retains R.A.P (Retained Accessory Power)
• Used in non-amplified and analog amplified systems
• Retains all warning chimes through onboard speaker
• Pre-wired AXSWC harness (AXSWC sold separately)
• Low profile case
• Micro-B USB updatable

Applications

Buick

• Enclave 2008-Up
• Lucerne 2006-2011

Cadillac

• DTS 2006-2011 (2)
• Escalade / Escalade ESV & EXT 2007-2011 (2)
• SRX 2007-2009 (2)

Chevrolet

• Avalanche 2007-2013 (1) (4)
• Captiva Sport 2012-2015 (4)
• Equinox 2007-2009
• Express 2008-Up (3)
• Impala 2006-2013
• Impala Limited 2014-2016
• Monte Carlo 2006-2007
• Silverado 2500 / 3500 2014 (1) (4)
• Silverado (new body) 2007-2013 (1) (4)
• Suburban 2007-2014 (1) (4)
• Tahoe 2007-2014 (1) (4)
• Traverse 2009-Up

GMC

• Acadia 2007-2016
• Acadia Limited 2017
• Savana 2008-2023 (3)
• Sierra 2500 / 3500 2014 (1) (4)
• Sierra (new body) 2007-2013 (1) (4)
• Yukon / Yukon XL 2007-2014 (1) (4)

Hummer

• H2 2008-2009 (2)

Pontiac

• Torrent 2007-2009

Saturn

• Outlook 2007-2010
• Vue 2008-2010

Suzuki

• XL-7 2007-2009

(1) These vehicles have a digital amplifier option. Please reference the Service Parts Identification sticker located in the glove box for the RPOcodes STZ or Y91. If either code is present then the vehicle is equipped with a digital amplifier. Either use the AX-GMLAN29-SWC or bypass the amplifier.

(2) These vehicles are standard for a digital amplifier. Either use the AX-GMLAN29-SWC or bypass the amplifier.

(3) For 2013-2015 models equipped with NAV use the AX-GMLAN44-SWC.

(4) For 2012-Up models equipped with NAV use the AX-GMLAN44-SWC.
