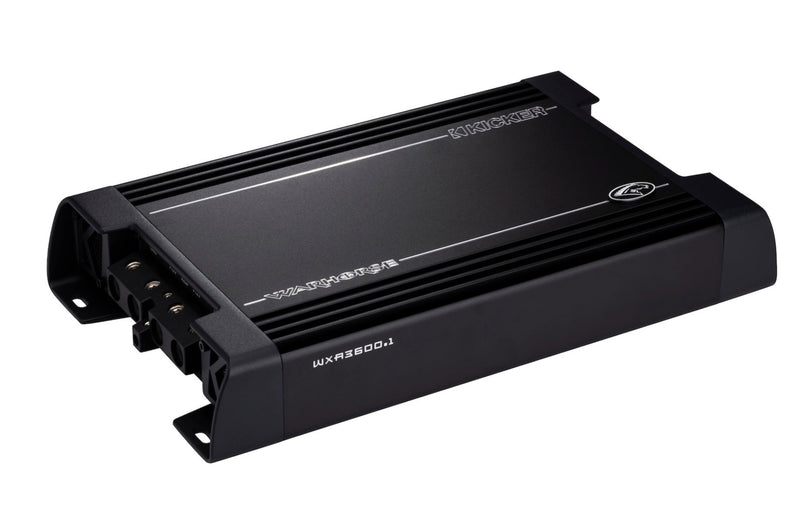

49WXA36001 KICKER Warhorse 3600.1 RMS Mono Class D Subwoofer Amplifier Car Audio 1 Ohm Stable
WXA3600.1 Mono Amplifier
The Warhorse WXA3600.1 was engineered completely in-house by KICKER Research and Development for ultra-high SPL applications.
Not your Average Amp
- Features extreme reliability under intense bass power and overall use
- Full-bridge Class-D design
- Quad micro-controller-regulated cooling fans
- Capable of daisy-chaining remote power across multiple amps
- Competition mode switch to avoid potentiometer creep, fix crossover setting, and gain-match multiple amps
- Includes premium remote bass-level control with a magnetic mount
- Includes a heavy-duty, magnetic-mount diagnostic tool for monitoring voltage measurements and amp protection status
- Fully compatible with most factory or aftermarket source units (with FIT+ differential inputs)
- Engineered completely in-house by KICKER R&D
Extreme Engineering
Every aspect of the Warhorse was tortured mercilessly in our labs to ensure extreme performance and reliability. It was engineered completely in-house by KICKER Research and Development for ultra-high SPL applications.
Fortified to Go Hard

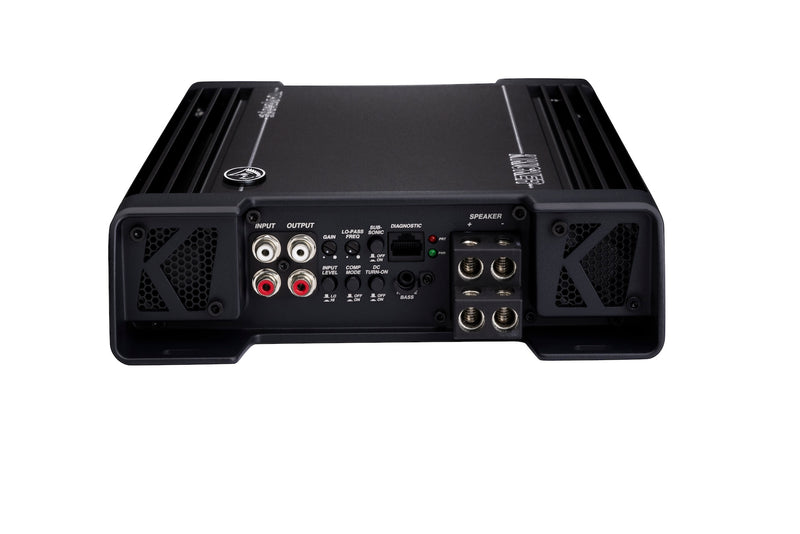

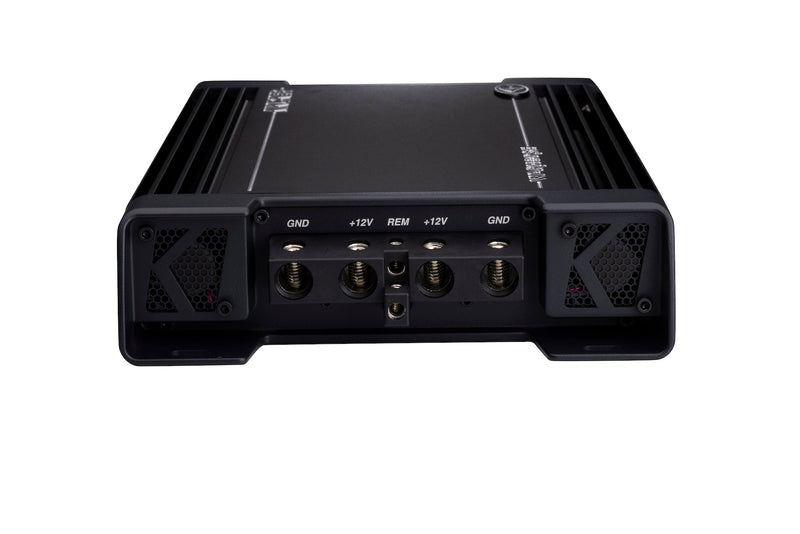

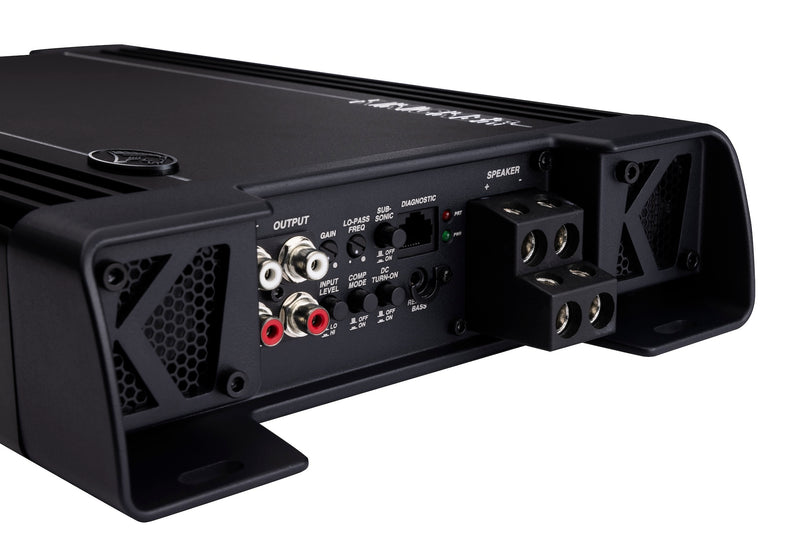

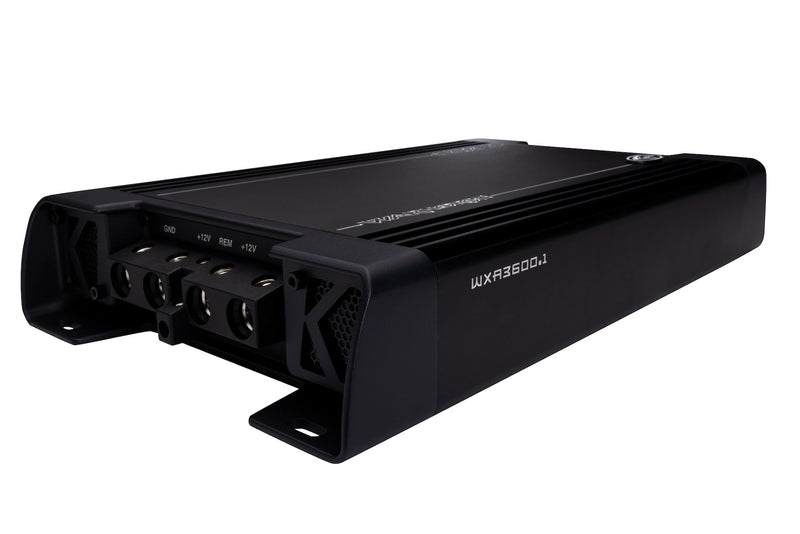

From the board layout to the rails, to the Tiffany-style RCA connectors, everything about these amps will make a bass head smile from ear to ear. This full-bridge, one-Ohm stable amplifier features dual 1/0 power and ground connections, 4 AWG speaker terminals, dual 8 AWG remote terminals, and quad microprocessor-controlled fans for fast but quiet cooling when you need it.
Engage Competition Mode!
The Warhorse was bred to compete! Engage Competition mode to lock the gain voltage at 4 volts for easy gain-matching across multiple amps, amongst other slick features.
Real-Time Status Tools

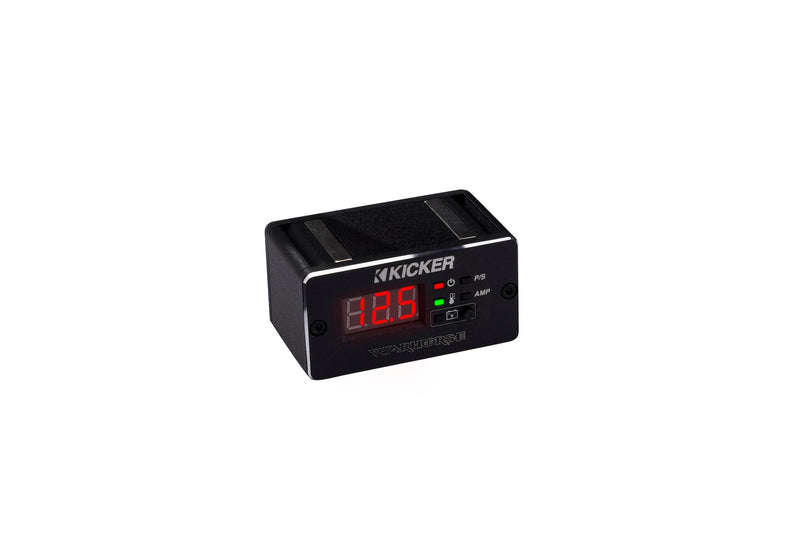

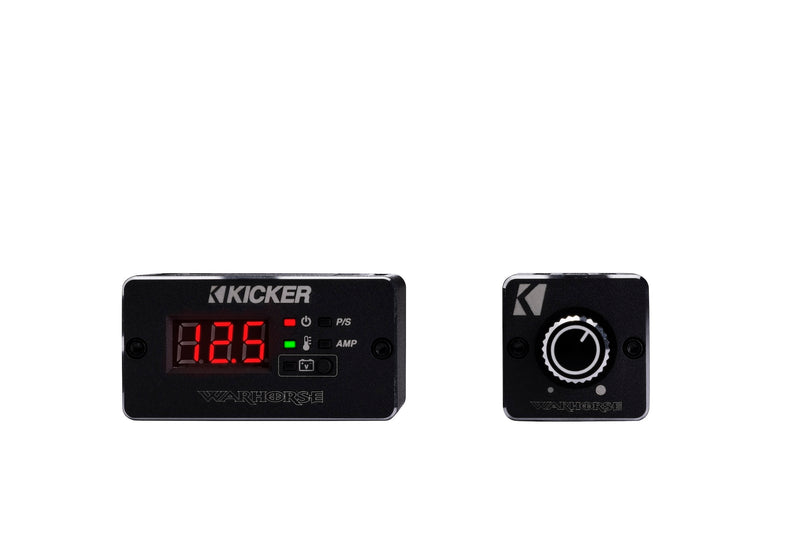

Warhorse Amps come with a heavy-duty, magnetic-mount diagnostic tool, displaying battery voltage, amp temp, power-supply protection, and speaker current overload, all in real time! A premium remote bass-level control, also with magnetic mount, is included with the mono amp as well.
Specifications
| MODEL |
| WXA3600.1 |
| WARHORSE 3600.1 white paper with full tech graph data |
| 49WXA36001 Whitepaper PDF |
| WARHORSE 3600.1 Dimensions |
| 49WXA36001 Product Dimensions PDF |
| *RMS Power (watts/ch) 1 Ohm Mono (@ 14.4v, <1%THD) |
| 3600x1 |
| *RMS Power (watts/ch) 2 Ohm Mono (@ 14.4v, <1%THD) |
| 2500x1 |
| RMS Power (watts/ch) 4 Ohm Mono (@ 14.4v, <0.5%THD) |
| 1400x1 |
| **Dynamic Power (watts) |
| 5000 |
| Frequency Response (Hz) |
| 10-200 |
| Signal-to-Noise Ratio (dB; A-weighted, re: rated power) |
| >90 |
| Signal-to-Noise Ratio (dB; ref: 1W output) |
| >70 |
| Input Sensitivity |
| low level 125mV-5V high level 1V-40V |
| Selectable Electronic Crossover |
| Variable Low-pass 50-200Hz, 24dB/octave |
| Subsonic Filter |
| Defeatable @ 15Hz, 24dB/octave |
| Competition Mode |
| See manual |
| Dimensions (in, cm) |
| H – 2-9/16, 6.5; W – 9-1/8, 23.2; L – 15-3/8, 39.1 |
