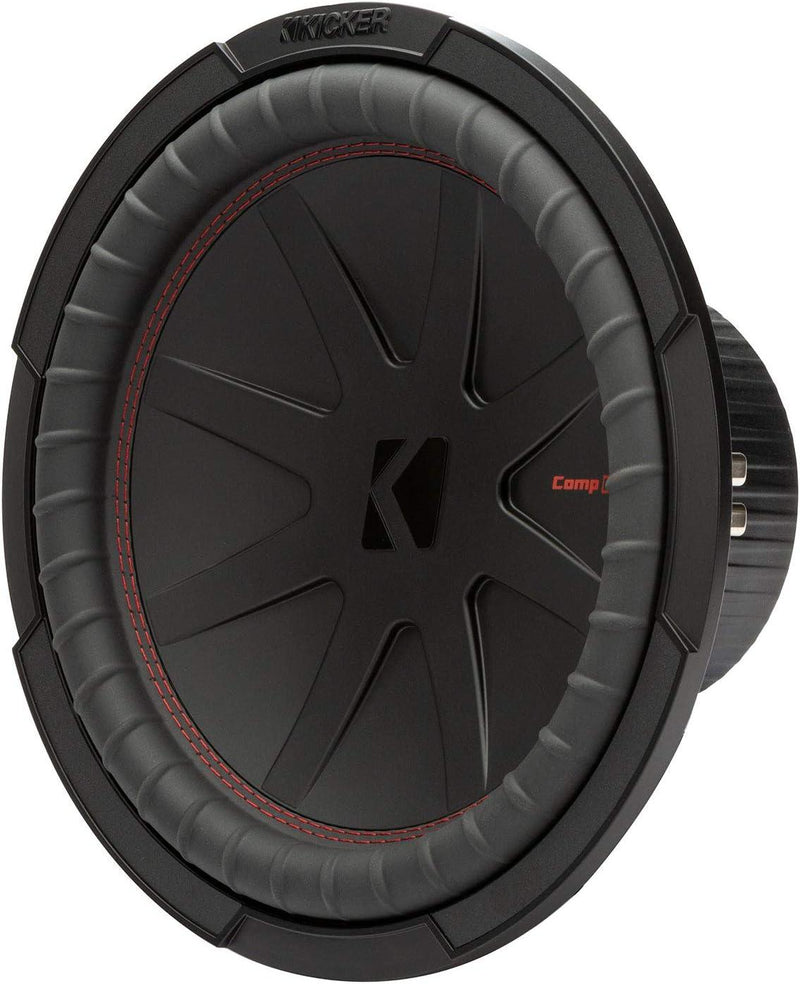

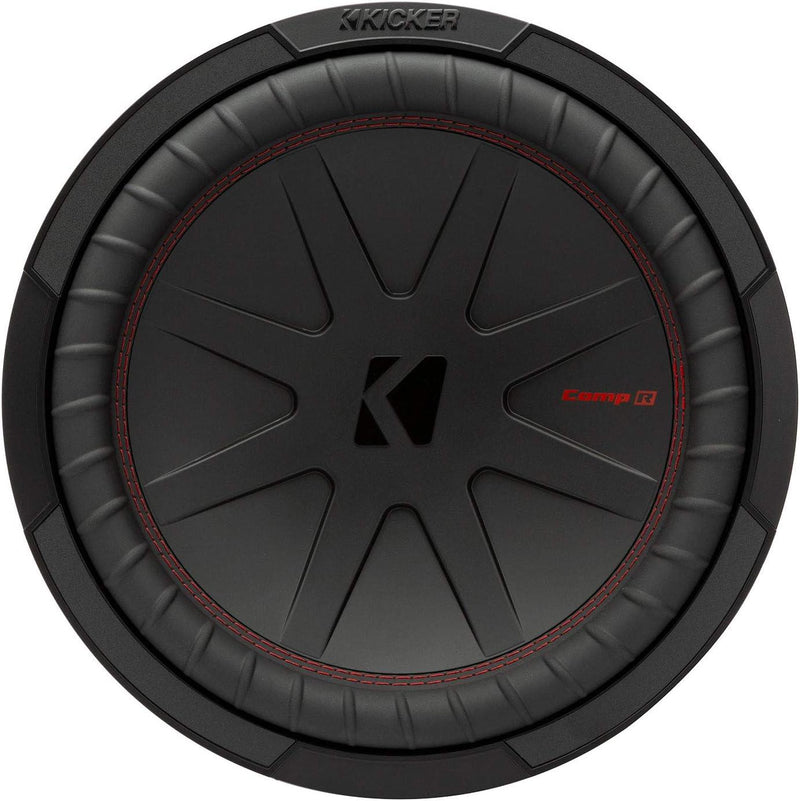

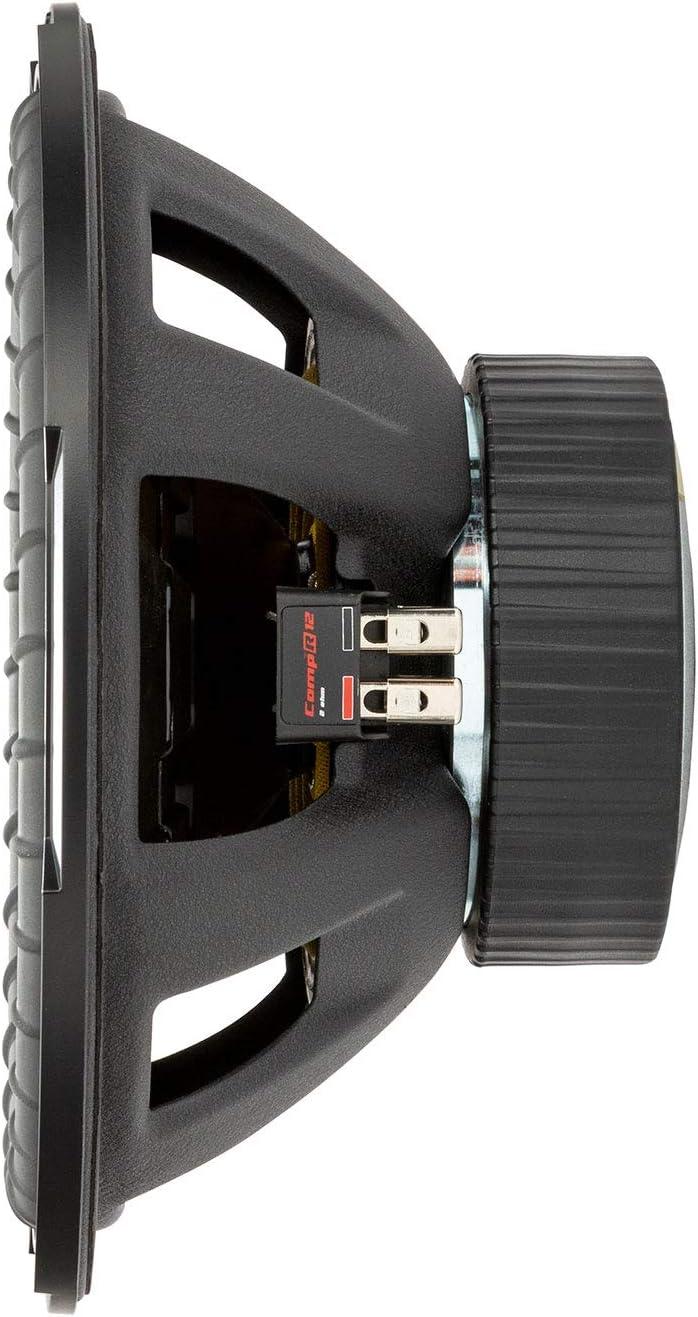

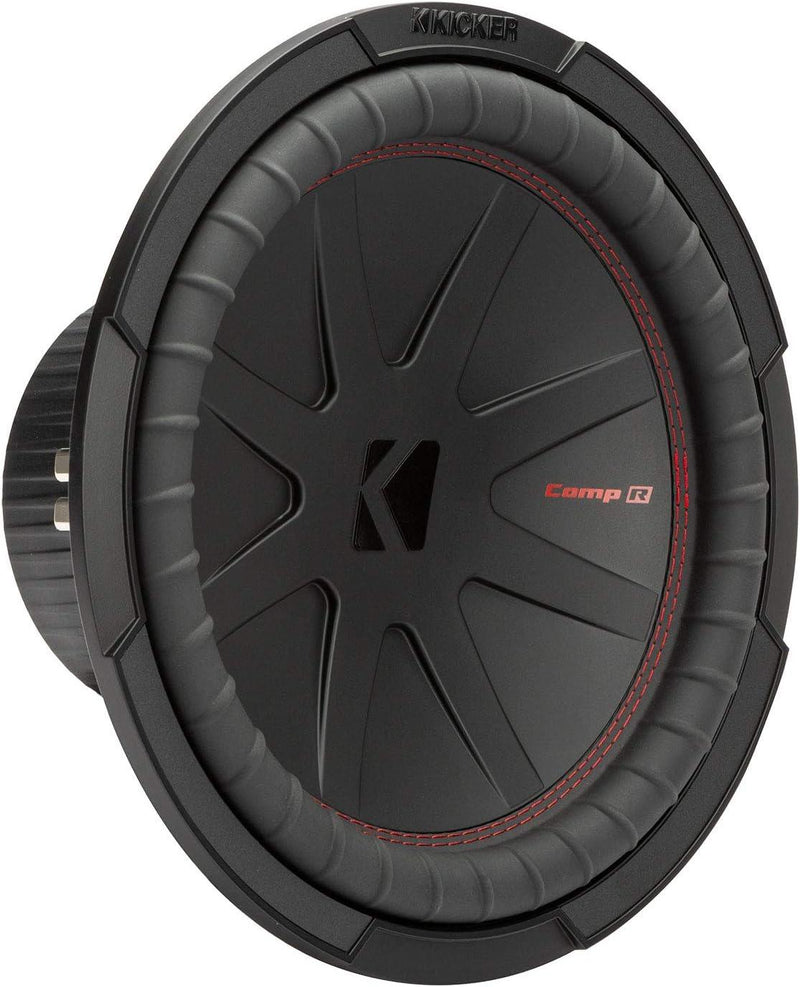

48CWR122 KICKER 12" CompR Subwoofer Sub 500W RMS 2 Ohm DVC
12" CompR 2 Ohm
The CompR Twelve-Inch Subwoofer is a 2Ω dual voice coil design, making it easy to get the most out of your amp.
Our signature red double stitching makes an outstanding bond between the improved Santoprene® surround and polypropylene woofer cone. Revolutionary SoloKon™ technology joins the cone to the back brace, creating a single integrated unit that both cools the motor and eliminates distortion.
To make our subs even more reliable, KICKER engineers developed Forced Air Cooling to help our subs run 25% cooler than before.
The CompR Twelve-Inch Subwoofer works best with a sealed or ported enclosure and 500 watts of recommended power. See below for more details.
Specifications
Thiele/Small Parameters |
48CWR122 T/S Parameters |
Product Dimension Sheet |
48CWR12 Dimensions |
SIZE [in, cm]: |
12, 30 |
IMPEDANCE [Ohms]: |
2 DVC |
Recommended Amplifier Power (watts RMS) |
500 |
Peak Power (watts, per ANSI/CTA-2031-A) |
1000 |
SENSITIVITY [dB 1w/1m]: |
86.9 |
MOUNTING DEPTH [in, cm]: |
5-3/4, 14.6 |
MOUNTING DIAMETER [in, cm]: |
11, 27.9 |
MIN SEALED BOX VOL [cu. ft, L]: |
1.0, 28.3 |
MAX SEALED BOX VOL [cu. ft, L]: |
2.0, 56.64 |
MIN VENTED BOX VOL [cu. ft, L]: |
1.75, 49.6 |
MAX VENTED BOX VOL [cu. ft, L]: |
2.25, 63.7 |
