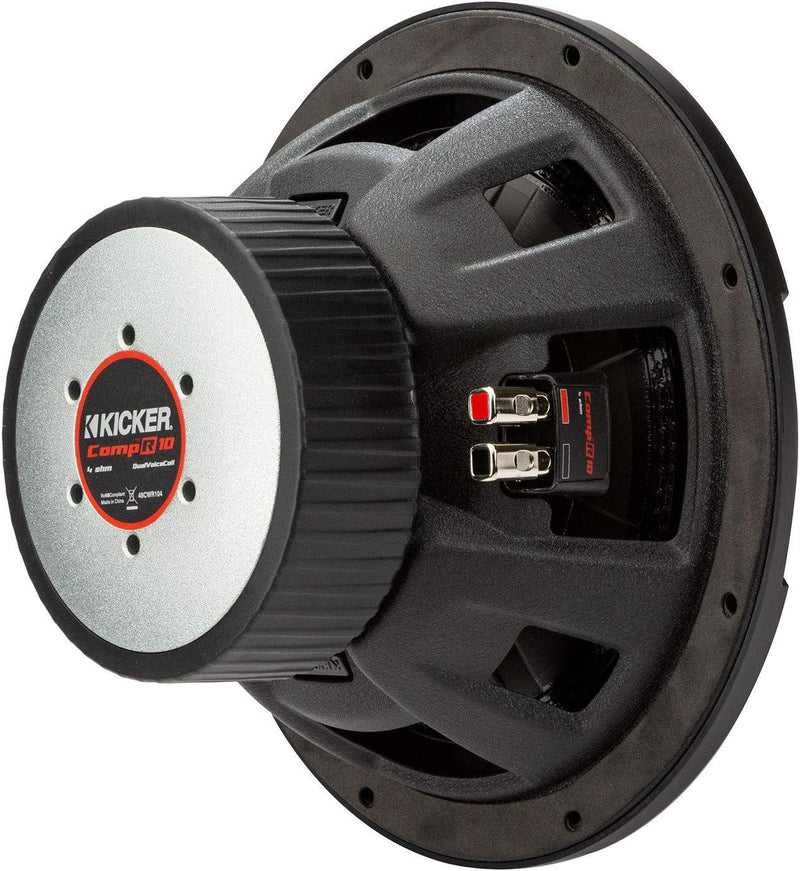

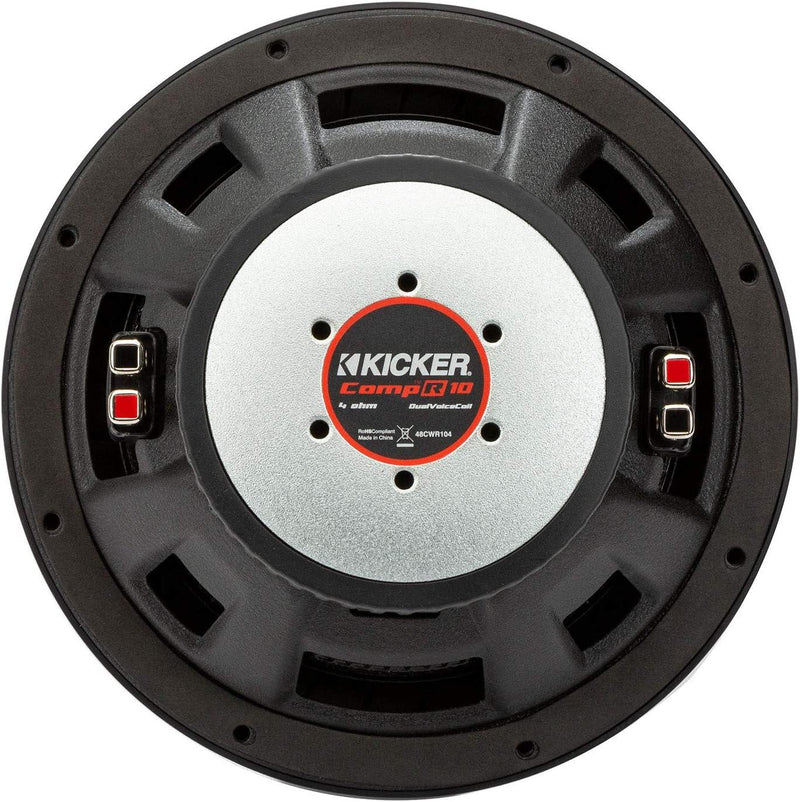

48CWR102 KICKER 10" CompR Subwoofer Sub 400W RMS 2 Ohm DVC
10" CompR 2 Ohm
The CompR Ten-Inch Subwoofer is a 2Ω dual voice coil design, making it easy to get the most out of your amp.

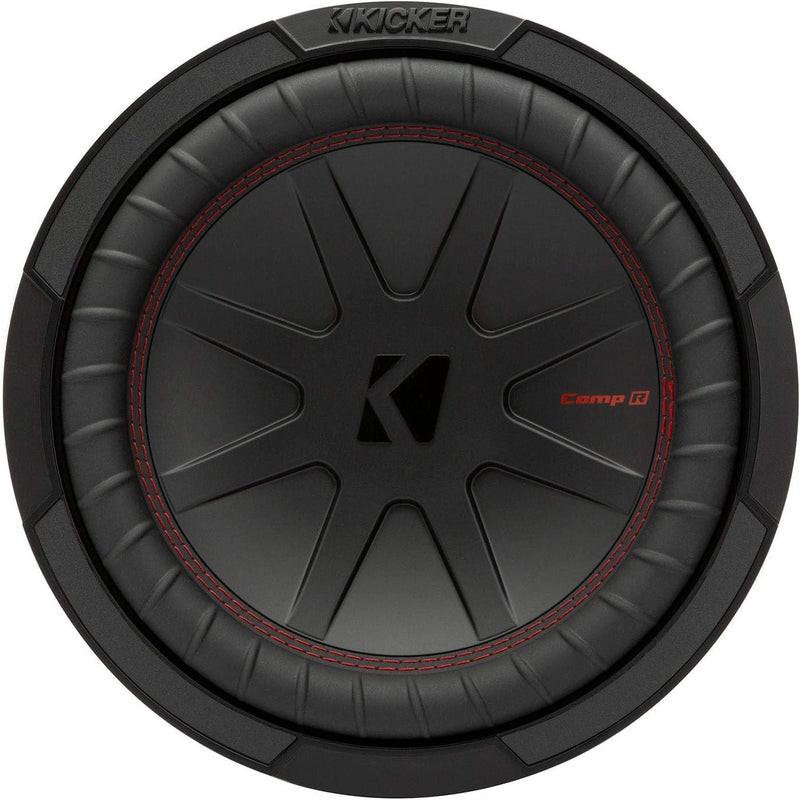

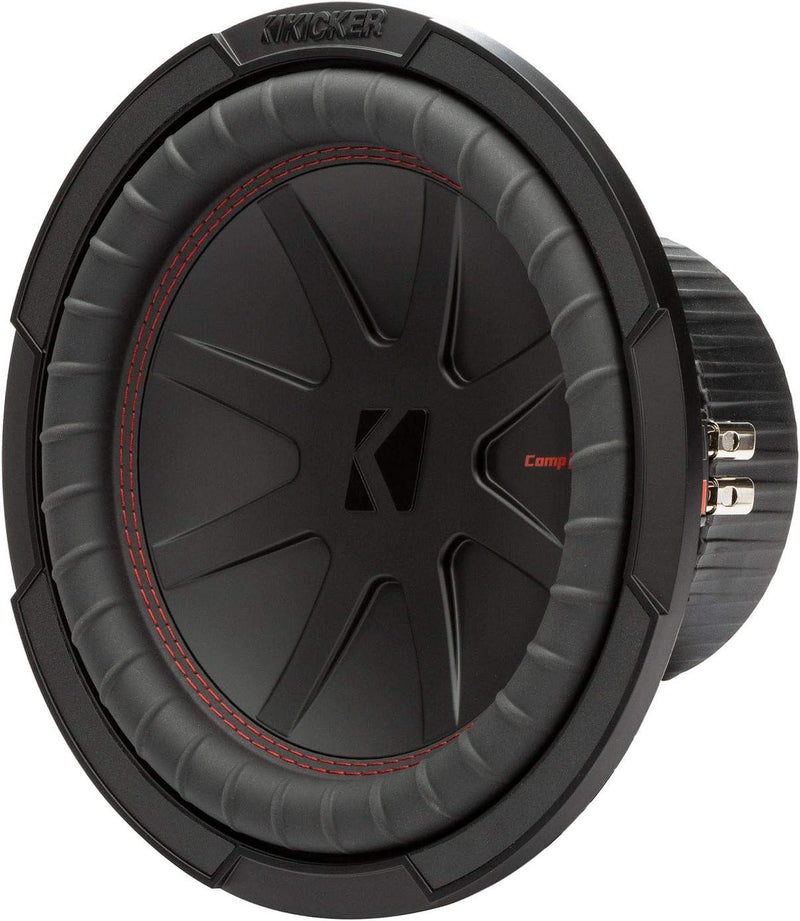

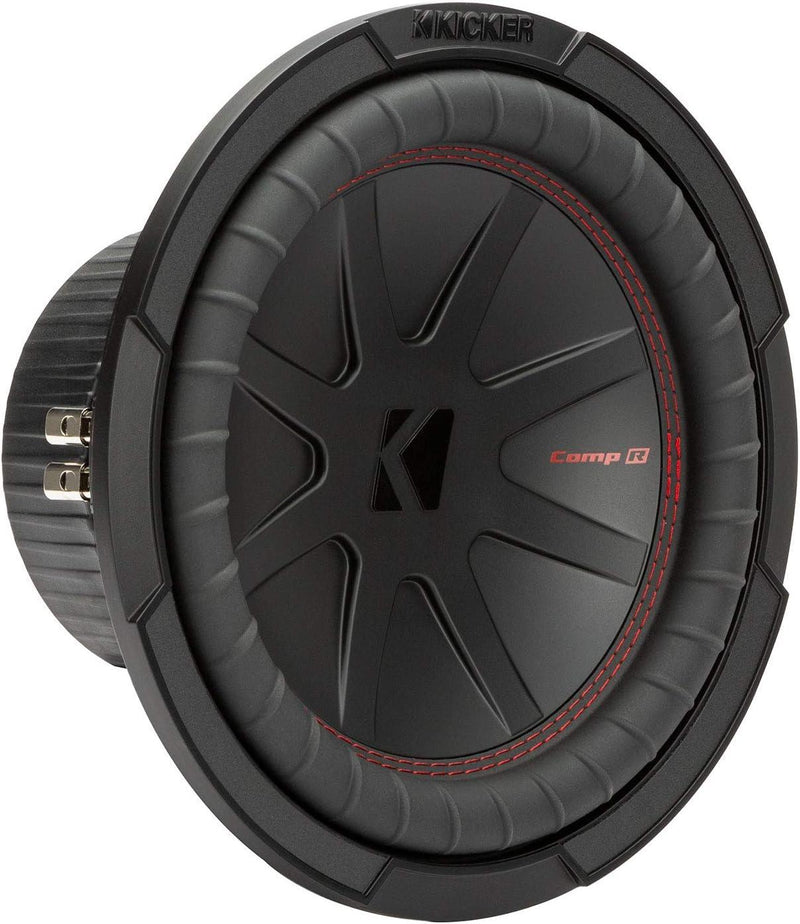

Our signature red double stitching makes an outstanding bond between the improved Santoprene® surround and polypropylene woofer cone. Revolutionary SoloKon™ technology joins the cone to the back brace, creating a single integrated unit that both cools the motor and eliminates distortion.
To make our subs even more reliable, KICKER engineers developed Forced Air Cooling to help our subs run 25% cooler than before.
The CompR Ten-Inch Subwoofer works best with a sealed or ported enclosure and 400 watts of recommended power. See below for more details.
Specifications
|
Thiele/Small Parameters |
|
48CWR102 T/S Parameters |
|
Product Dimension Sheet |
|
48CWR10 Dimensions |
|
SIZE [in, cm]: |
|
10, 25 |
|
IMPEDANCE [Ohms]: |
|
2 DVC |
|
Recommended Amplifier Power (watts RMS) |
|
400 |
|
Peak Power (watts, per ANSI/CTA-2031-A) |
|
800 |
|
SENSITIVITY [dB 1w/1m]: |
|
84.6 |
|

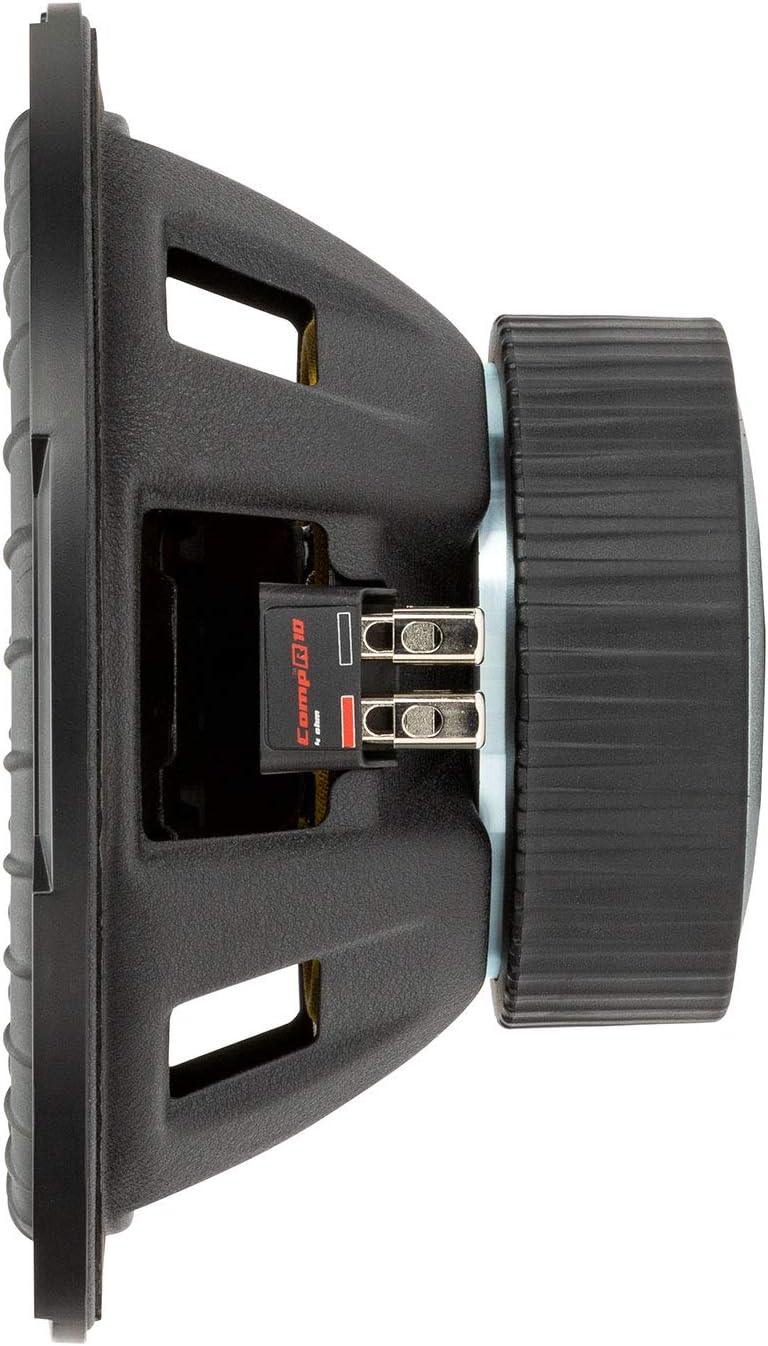

MOUNTING DEPTH [in, cm]: |
|
5-1/4, 13.3 |
|
MOUNTING DIAMETER [in, cm]: |
|
9-1/8, 23.1 |
|
MIN SEALED BOX VOL [cu. ft, L]: |
|
0.8, 22.7 |
|
MAX SEALED BOX VOL [cu. ft, L]: |
|
1.25, 35.4 |
|
MIN VENTED BOX VOL [cu. ft, L]: |
|
1.25, 35.4 |
|
MAX VENTED BOX VOL [cu. ft, L]: |
|
1.75, 49.6 |
