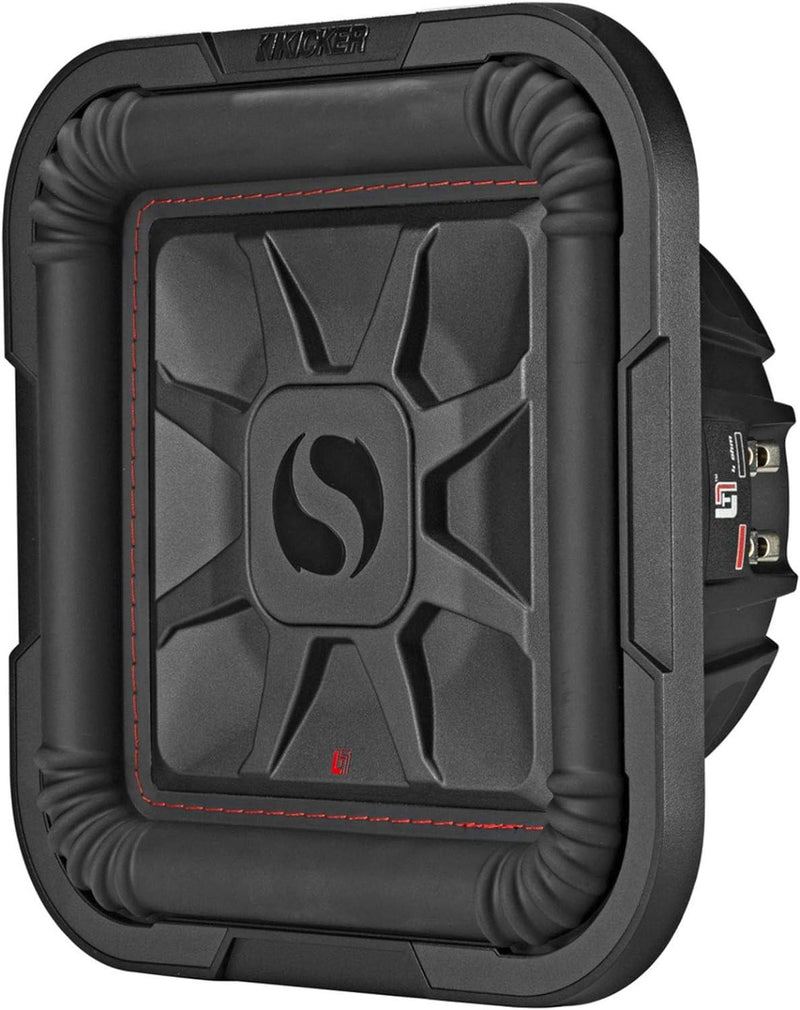

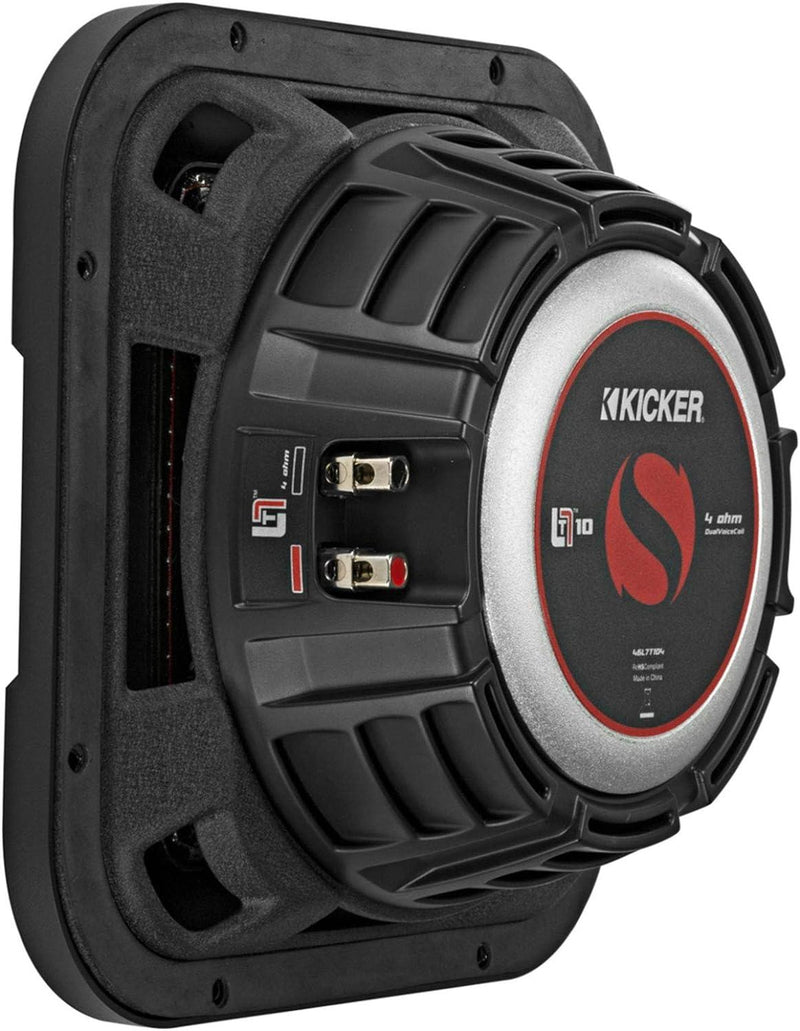

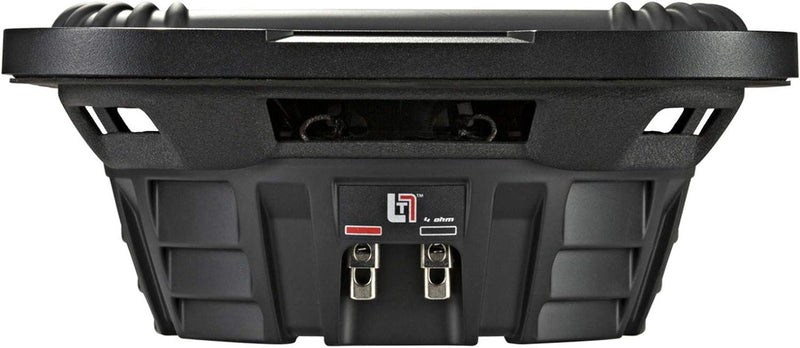

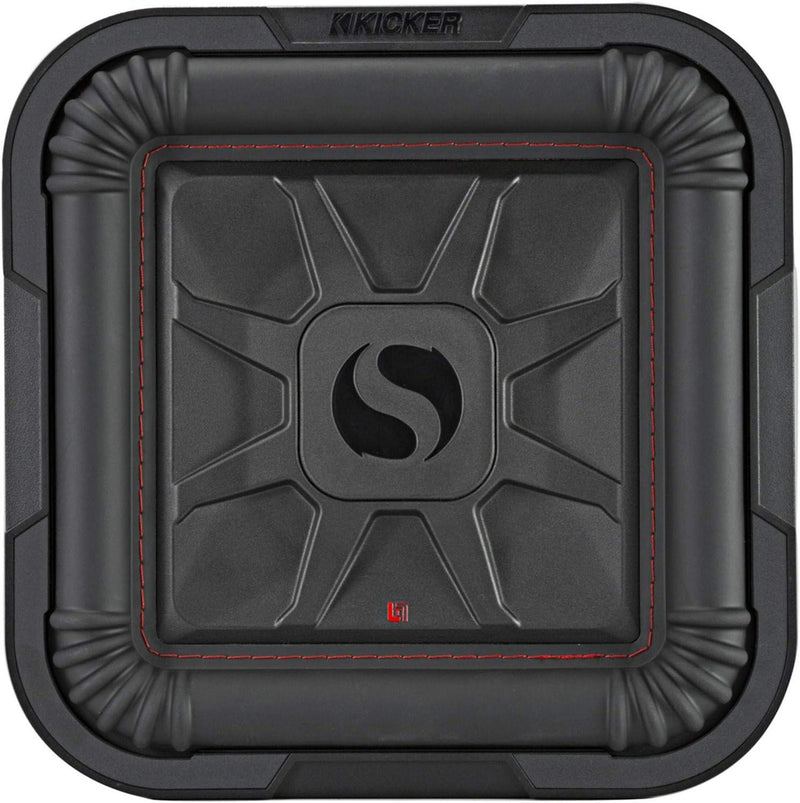

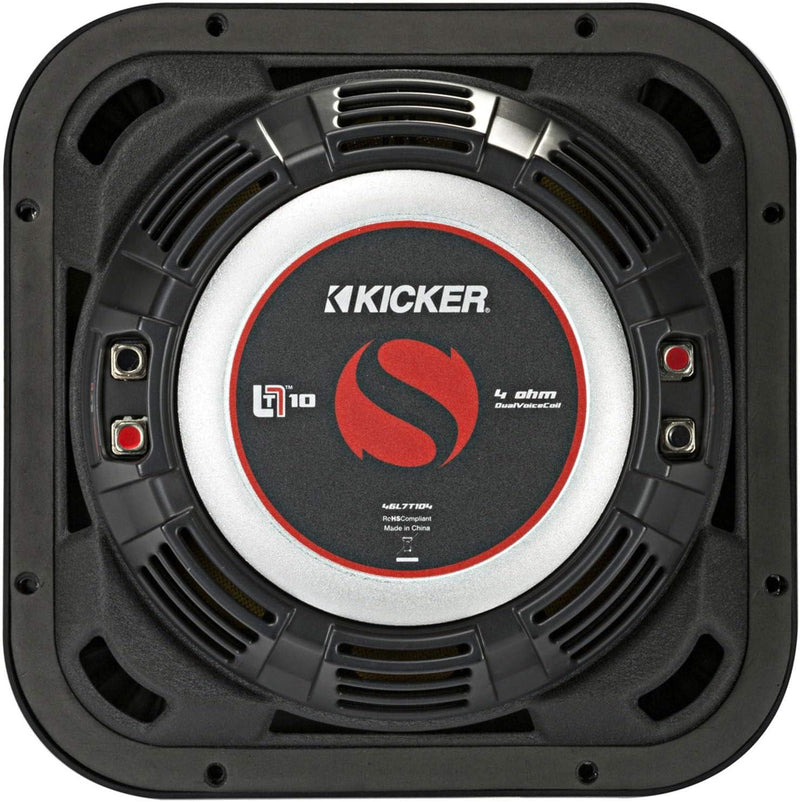

46L7T104 KICKER 10" L7T Thin Solo-Baric Square Subwoofer Sub 500W RMS 4 Ohm DVC

by Kicker
Save 29% Save 29%
Original price $279.99
Original price $279.99 - Original price $279.99
Original price $279.99
Current price $199.96
$199.96 - $199.96
Current price $199.96
🚚 Order within the next 2 hours, 15 minutes for delivery by 29 Dec, 2024.
Availability:
in stock

10" Solo-Baric L7T 4 Ohm

The L7T 10-inch Subwoofer is a true-bass, thin subwoofer with a pair of 4Ω voice coils.

With our custom SoloKon™ technology and the L7T’s unique interior support system, the sub sounds fat – but keeps it thin! Match any L7T thin sub with a CX-Series mono amplifier for an outstanding combination of power and size.

Features:

  • Uses a Sealed or Ported Enclosure
  • Square Sub Design Moves 20% More Air Than Round Subwoofers
  • Easily Mounts Under or Behind a Seat
  • Dual Voice Coil Design
  • Ribbed Santoprene Surround Resists Heat And Degrading
  • Bumped Top Plate For More Excursion & Smoother Performance
  • SoloKon™ Cone With 360-Degree Back Bracing
  • UniPlate™ Solid Pole Piece & Backplate For Excellent Heat Dissipation
  • Durable Steel Basket

*The L7T 10-inch Subwoofer works best with a sealed or ported enclosure and 500 watts of recommended power. See below for more details.

Specifications
Thiele/Small Parameters
46L7T104 T/S Parameters
Product Dimension Sheet
46L7T10 Dimensions
Size (IN.,CM)
10, 25
Impedance (OHMS)
4 DVC
Recommended Amplifier Power (watts RMS)
500
Peak Power (watts, per ANSI/CTA-2031-A)
1000
Sensitivity (dB 1w/1m)
85.98
Frequency Response (Hz)
25-100
Mounting Depth (IN.,CM)
3-3/4, 9.5
Mounting Cutout, Square (IN.,CM)
9-5/16, 23.7
Min Rec Sealed Box Volume (CU. FT., Liters)
0.4, 11.3
Max Rec Sealed Box Volume (CU. FT., Liters)
1.0, 28.3
Min Rec Vented Box Volume (CU. Ft., Liters)**
1.25, 35.4
Max Rec Vented Box Volume (CU. Ft., Liters)**
1.75, 49.6
What's in the box?
one 10-inch subwoofer, one owner's manual, two stickers
