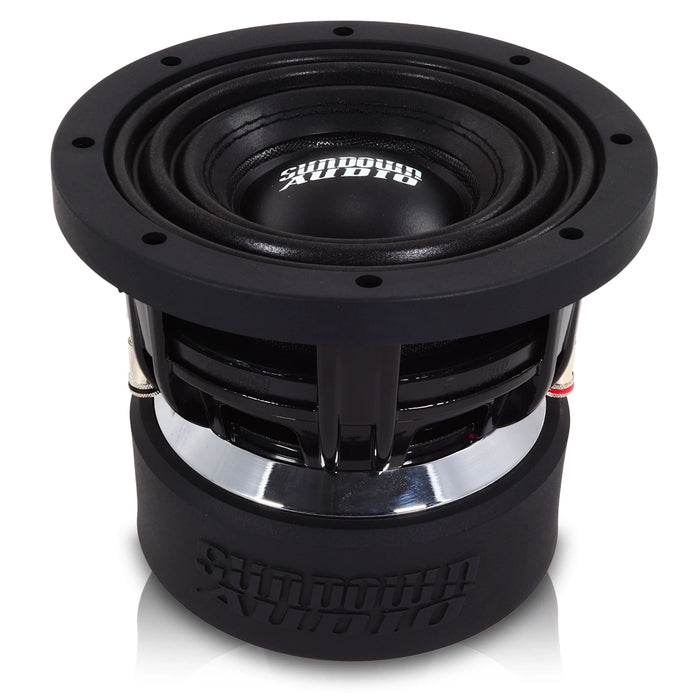

SW-UV16.5D2 Sundown Audio U-Series U-65SW v.1 6.5" inch Subwoofer Sub 400W RMS 2 Ohm DVC
by Sundown
Sold out
Original price
$203.99
Original price
$203.99
-
Original price
$203.99
Original price
$203.99
Current price
$169.99
$169.99
-
$169.99
Current price
$169.99
🚚 Order within the next 2 hours, 15 minutes for delivery by 07 Dec, 2024.
Availability:
Out of stock
U-Series v1 6.5" 400W Subwoofer
2 Ohm Dual Voice Coil
FEATURES
-
RMS: 400W
-
Black Aluminum 1.753” voice coil former for superior heat dissipation
-
High Temperature Round-Wire Copper voice coil
-
Double stitched surround
-
Heavy duty cast basket
-
Spring loaded terminals accept up to 8 gauge
-
Stitched-on heavy-duty tinsel leads
-
Solid pole with vent channels and aluminum shorting ring cap
-
Rear drilled gap-venting
-
Magnet ID shorting ring
-
Top-Plate Cooling Channels
-
Optimized for small ported enclosures
U-6.5SW
| T/S SPECS | U-6.5SW" D2 | U-6.5SW" D4 |
|---|---|---|
| RE (Ohms) | 4.0586 | 6.6274 |
| FS (Hz) | 41.9533 | 38.6925 |
| VAS (L) | 2.9053 | 3.7701 |
| Qes | 0.5238 | 0.5005 |
| Qms | 8.5834 | 7.2470 |
| Qts | 0.4937 | 0.4681 |
| Le (mH) | 4.0112 | 5.5892 |
| BL (NA) | 16.7428 | 20.0082 |
| Mms (Grams) | 137.2546 | 124.3518 |
| Cms (uM/N) | 104.8528 | 136.0613 |
| Sens (dB @ 1w/1m) | 77.8706 | 78.1460 |
ENCLOSURE SPECS
-
Ported Enclosure
-
-
Size: .25-.35 cuft net
-
Port Area: 4-5 sqin
-
Port Tuning: 35hz -40hz
-
Size: .25-.35 cuft net
-
Sealed Enclosure
-
-
Size: 0.125-0.2 cuft net
-
Displacement: .04 cu. ft.
-
Size: 0.125-0.2 cuft net
-
Depth: 5.71"
-
Outside Diameter: 7.17"
- Cutout: 5.94"
