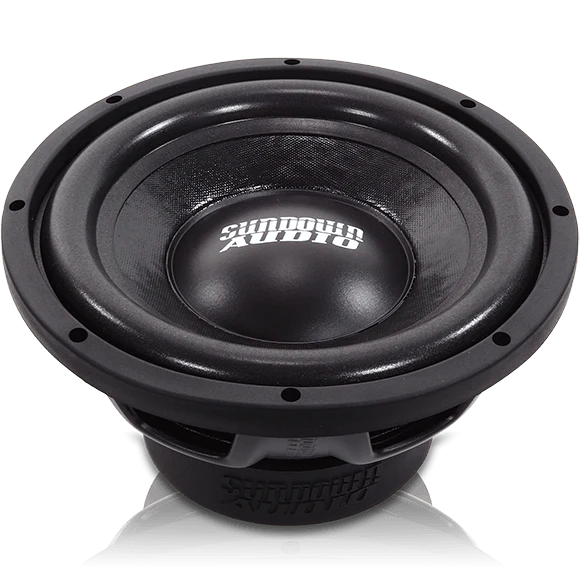

SW-LCSV210D4 Sundown Audio LCS-Series LCS-10 v.2 10" inch Subwoofer Sub 300W RMS 4 Ohm DVC

by Sundown
Save 42% Save 42%
Original price $131.99
Original price $131.99 - Original price $131.99
Original price $131.99
Current price $76.99
$76.99 - $76.99
Current price $76.99
🚚 Order within the next 2 hours, 15 minutes for delivery by 07 Dec, 2024.
Availability:
in stock

LCS V.2 10" 300W DUAL-4-OHM SUBWOOFER

LCS V.2 SERIES 300W DVC SUBWOOFER

Since their introduction in 2017 the Sundown LCS series woofers have been known for their impressive bass response and high levels of dependability. Typical entry level woofers are highly limited in terms of linear excursion, mechanical ruggedness, and thermal performance – these are all aspects that we have taken to the next level in the Sundown LCS series. The refreshed v.2 update was released in 2020 and added an all new, custom tooled frame, push terminals, a rubber mounting gasket, and upgraded tinsel leads.

A double stacked magnet structure and an extremely long voice coil allow us to achieve a class-leading linear x-max of 14mm one-way in addition to high mechanical clearances (over 2” peak-to-peak). The large coil combined with gap venting, chamfered pole-piece design, and optimized pole vent give the LCS Series impressive thermal performance. Mechanical stability and durability are addressed via the strong paper cone, rugged foam surround, and a high quality spider with fully tied-on tinsel leads. All major areas of woofer durability have been addressed to the maximum level possible in this category.

Bottom-line; if you are looking for a great subwoofer option and you have a tight budget the Sundown LCS Series woofers are for you. These woofers have absolutely no frills – simply raw performance for the dollar.

FEATURES

  • Xmax = 14mm one-way by 70% BL
  • RMS Power = 300-watts
  • Vented magnetic gap
  • Vented Pole piece with chamfered edges for increased air powered voice coil cooling
  • Custom tooled & vented, extra thick stamped steel frame
  • Black Aluminum 2” voice coil former for superior heat dissipation
  • High Temperature 4-Layer copper voice coil wire
  • High Quality Push Terminals
  • Stitched-On Flat Tinsel Leads to prevent fatigue and failure
  • Optimized for small, ported enclosures

LCS V.2 10" / 12"

T/S SPECS LCS V.2 10″D4 LCS V.2 12″D4
RE (Ohms) 7.140 6.9
FS (Hz) 34.642 33.442
VAS (L) 27.182 52.522
Qes 0.500 0.548
Qms 3.377 3.684
Qts 0.436 0.477
Le (mH) coming soon... 3.15
BL (NA) 19.313 20.073
Mms (Grams) 120.124 152.328
Cms (uM/N) 175.713 14.869
Sens (dB @ 1w/1m) 85.4 87.4
