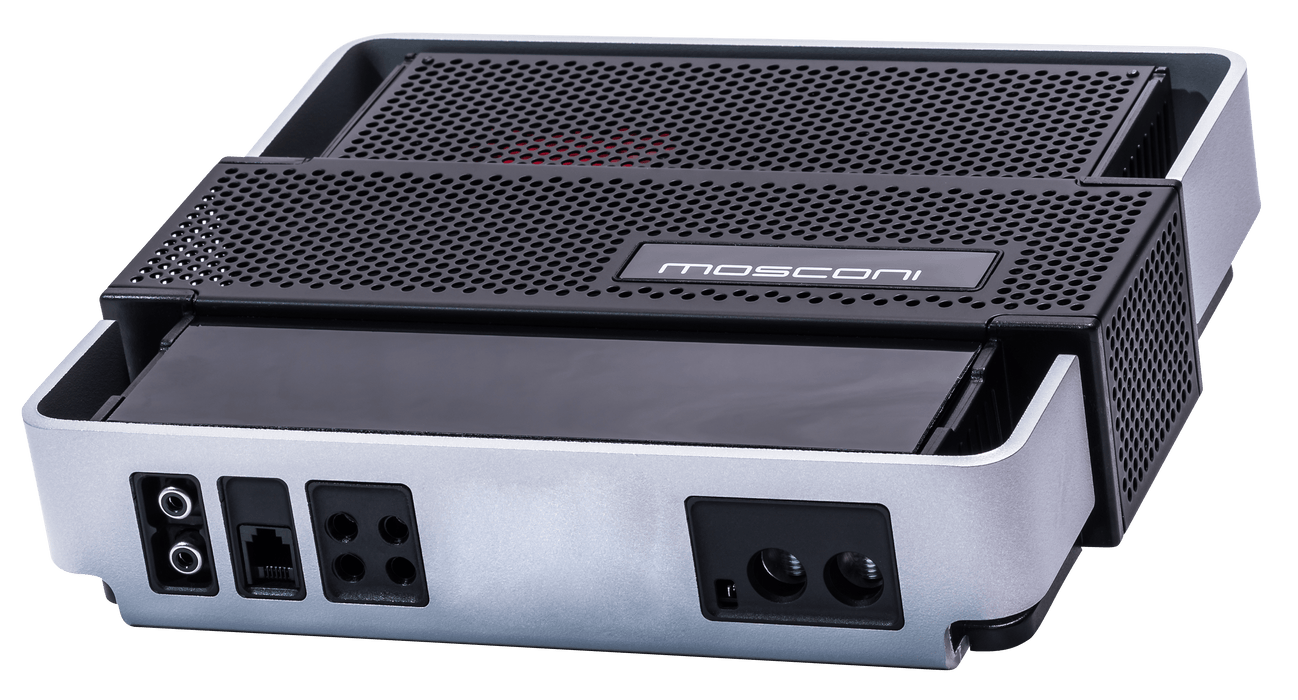

PRO 1|10 Mosconi Gladen Pro Line 1 Channel Class D Mono Amplifier 1x670W 4 Ohm, 1x974W 2 Ohm Car Audio Amplifier

• Single channel Full Range Class D amplifier
• Available in Black/Silver finishing
• Power Rating: 670 Watt @ 4 Ohm < 1% THD+N
• CEA-2006-A Specs – Sn Ratio: > 80 dBA (DDSP)  (ref: 1 Watt into 4 Ohm)
• Pro 1|10 – Sn Ratio: (AP filter 10Hz / 22kHz – DDSP – 600Wrms ref) 108 dB
• Click here to download the Specifications

SPECS:

Input sensitivity: (Power rating ref)

• (600 Wrms / 4 Ohm) 0,14V / 5.9V

Xover functions:

• LOW PASS 43 / 200Hz [24 dB/oct]

Special features:

• DDSP – Direct DSP (bypass all the preamplifier circuitry but the differential input interface)
• High Level / Low Level selectable input
• Single Input capability (RCA bypass capability
• Autosense (BTL mode only)
• Controlled via uC – Internally controlled via Atmel Processor

Size:

• 235 x 205 x 55 mm / 9.25" x  8.07" x  2.17" inches

Weight:

• 2.5 Kg / 5.51 lbs
