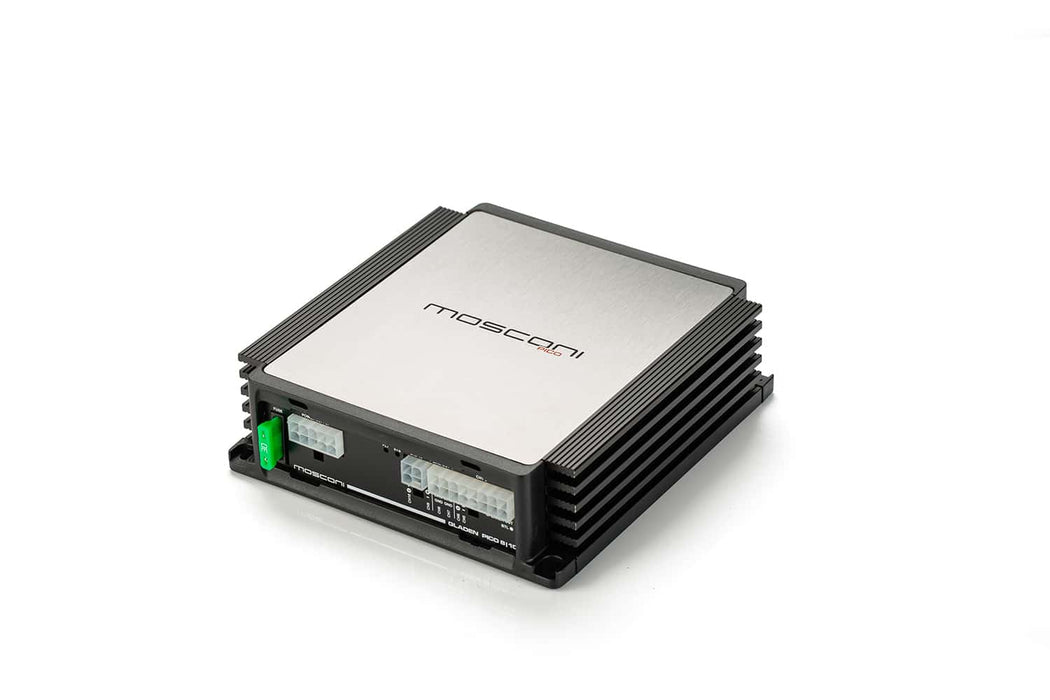

PICO 8|10 DSP - 18 Volt Mosconi Pico Line 8 Channel Class D 18 Volt Amplifier With Built-In 10 Channel DSP, 4x50W + 4x80W 4 Ohm, Car Audio Amplifier
by Mosconi
Save 17%
Original price
$1,560.00
Original price
$1,560.00
-
Original price
$1,560.00
Original price
$1,560.00
Current price
$1,299.99
$1,299.99
-
$1,299.99
Current price
$1,299.99
🚚 Order within the next for delivery by 2 hours, 15 minutes02 Jan, 2025.
Availability:
Almost Gone
PICO 8|10 DSP - 18 Volt
8 Channel Class D Amplifier with Built-In 10 Channel DSP
FEATURES:
- 18 Volt
- Ultracompact Multichannel DSP Amplifier
OPTIONAL ACCESSORIES:
- RTC-2 for Remote Control
- EXT4RCA (2) for Low Level Input
- EXT4HLIN for Channel Expansion
SPECIFICATIONS:
- Power Supply Voltage: 18V
- Onboard fuse: 1 x 30A
- Overall efficiency: >80%
- Power output: 50Wx4 + 80Wx4 (or 45×4 + 210Wx2) RMS on 4Ohm @ 14.4V, BTL connection allowed only on CH 5-6 and CH 9-10 Outputs
- Analog DSP processed output: 2 x 2Vrms
- Analog Input: 4x high level + 4x high/low level (EXT4RCA adapter available)
- Low level + High level input sensitivity range: 2Vrms (LL) – 15Vrms (HL) by default
- Input impedance >15k Ohm (LL) – 600 Ohm / ~22 Ohm (HL)
- Low Level Ground Reference: Full Floating/ ~22 Ohm
- Autosense power-on: Available by High Level, BTL source only
- Digital input: Optical (Toslink), CARD (MOS standard modules and Extended cards)
- Onboard DSP: 294.912 Mhz – 64 bit
- Onboard ADC: 96kHz/24bit Sample Rate – 107dB S/N ratio
- Onboard ADC: 96kHz/24bit Sample Rate – 106dB S/N ratio
- Remote control (optional): RTC
- Dimensions: 150 x 160 x 46mm / 5.90" x 6.30" x 1.81" inches
- Weight: 1.05Kg / 2.31 lbs
