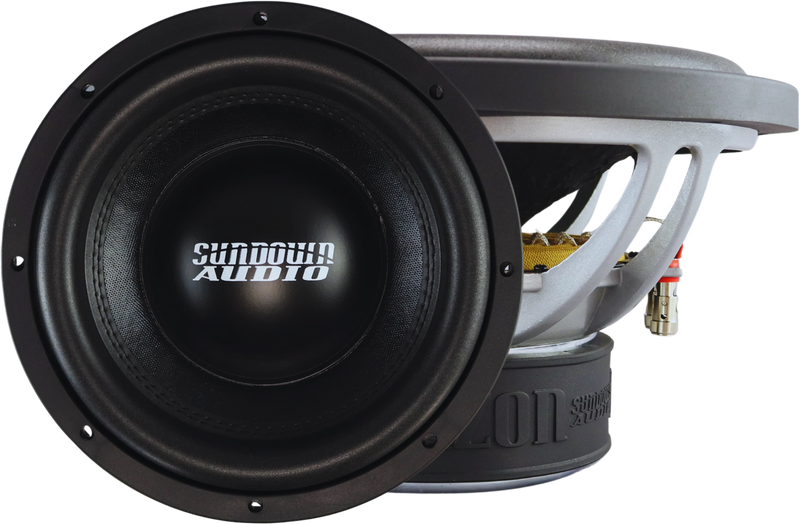

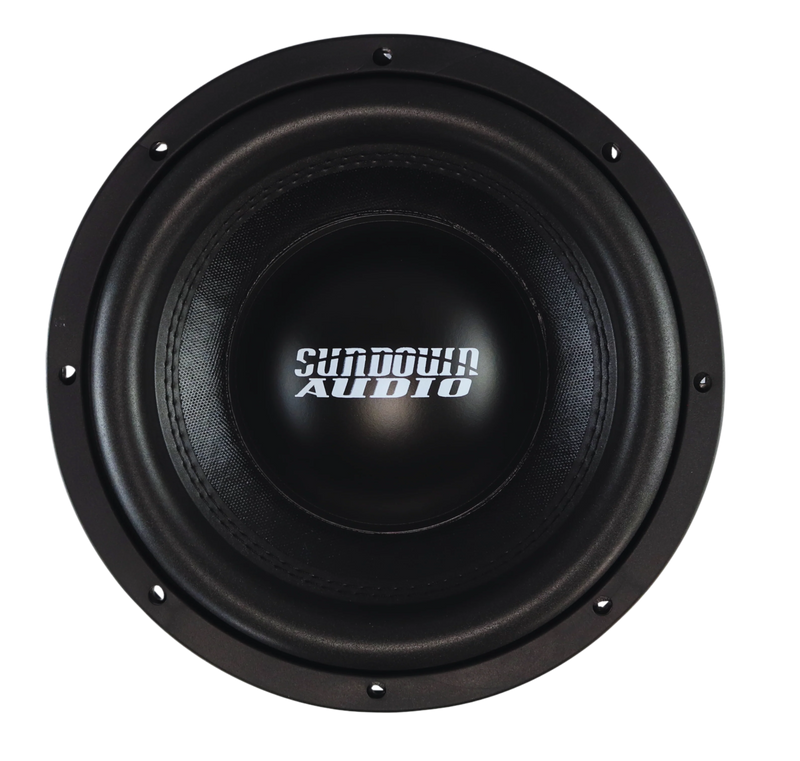

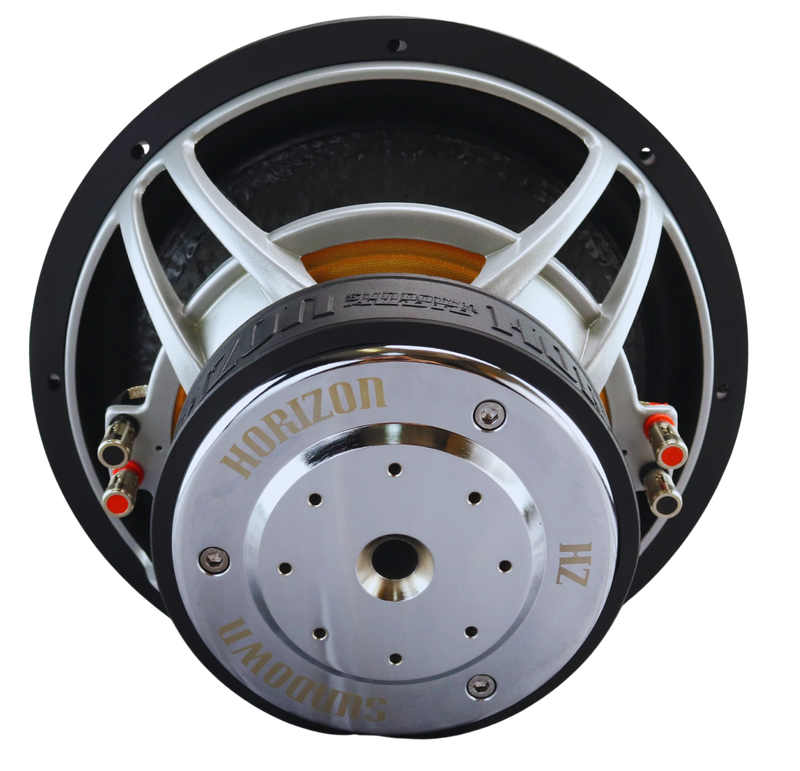

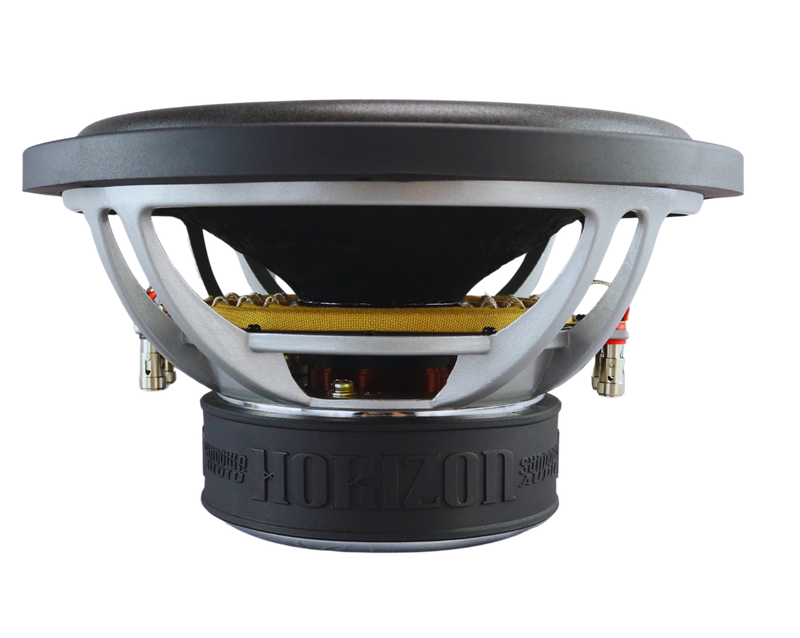

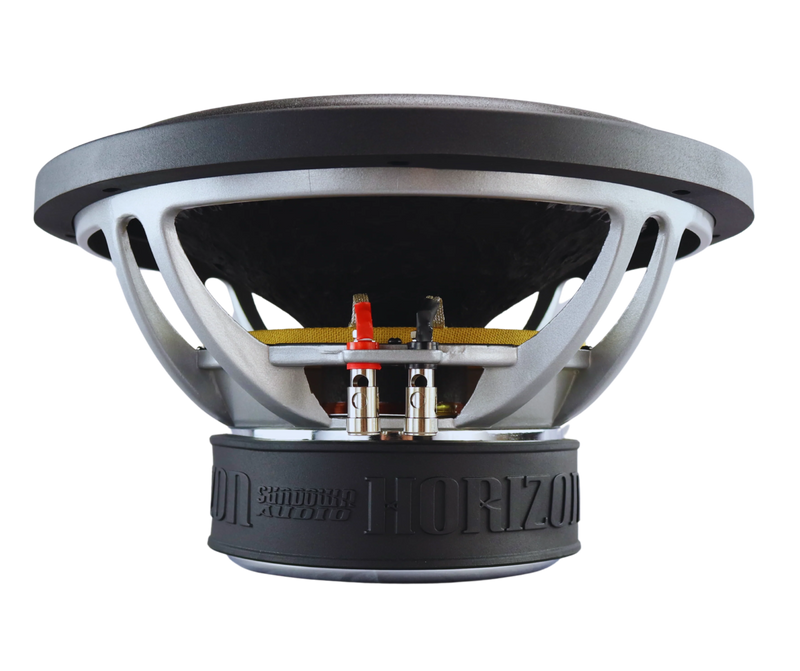

SW-HZ12D4 Sundown Audio Horizon HZ Series 12" inch Subwoofer Sub 750W RMS 4 Ohm DVC
by Sundown
🚚 Order within the next 2 hours, 15 minutes for delivery by 28 Aug, 2025.
Save 17%
Original price
$383.99
Original price
$383.99
-
Original price
$383.99
Original price
$383.99
Current price
$319.99
$319.99
-
$319.99
Current price
$319.99
Availability:
in stock
HORIZON HZ 12" SUBWOOFER
HZ Series Key Features:
- RMS Power:
- 12" – 750W RMS / 2.5" Voice Coil
- Voice Coil Options: Dual 4Ω - High temp 4-layer copper voice coil wire
- XMAX: Class-leading 14mm Xmax
- Frame: Heavy-duty cast aluminum basket
- Cooling: Vented motor gap and pole piece for optimized heat dissipation
- Durability: Stitched Mini-XL tinsel leads and bolted spider pack
- Suspension: High-roll surround with progressive spider for smooth, controlled excursion
- Recommended Enclosure: Ported for maximum efficiency and output
|
RE (Ohms) |
6.130 |
|
FS (Hz) |
31.696 |
|
VAS (L) |
54.368 |
|
Qes |
0.598 |
|
Qms |
3.774 |
|
Qts |
0.516 |
|
BL (NA) |
18.731 |
|
Mms (Grams) |
171.761 |
|
Cms (mm/N) |
146.795 |
|
Sens (dB @ 1w/1m) |
86.5 |
|
Xmax |
14mm |
|
T/S SPECS |
-
Ported Enclosure
- Size: 1.75 cuft net
- Port Area: 26 sq in
- Port Tuning: 35hz
-
Sealed Enclosure
- Size: 1.0 cuft net
- Displacement: 0.12 cuft.
- Depth: 6.3"
- Outside Diameter: 12.5"
- Cutout: 11.2"
