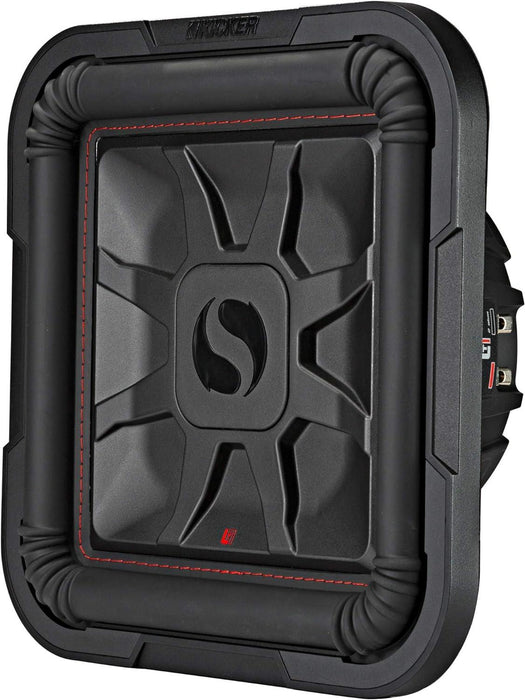

46L7T122 KICKER 12" L7T Thin Solo-Baric Square Subwoofer Sub 600W RMS 2 Ohm DVC

by Kicker
Save 27% Save 27%
Original price $329.99
Original price $329.99 - Original price $329.99
Original price $329.99
Current price $239.96
$239.96 - $239.96
Current price $239.96
🚚 Order within the next 2 hours, 15 minutes for delivery by 29 Dec, 2024.
Availability:
in stock

12" Solo-Baric L7T 2 Ohm

The L7T 12-inch Subwoofer is a true-bass, thin subwoofer with a pair of 2Ω voice coils.

With our custom SoloKon™ technology and the L7T’s unique interior support system, the sub sounds fat – but keeps it thin! Match any L7T thin sub with a CX-Series mono amplifier for an outstanding combination of power and size.

Features:

  • Uses a Sealed or Ported Enclosure
  • Square Sub Design Moves 20% More Air Than Round Subwoofers
  • Easily Mounts Under or Behind a Seat
  • Dual Voice Coil Design
  • Ribbed Santoprene Surround Resists Heat And Degrading
  • Bumped Top Plate For More Excursion & Smoother Performance
  • SoloKon™ Cone With 360-Degree Back Bracing
  • UniPlate™ Solid Pole Piece & Backplate For Excellent Heat Dissipation
  • Durable Steel Basket

*The L7T 12-inch Subwoofer works best with a sealed or ported enclosure and 600 watts of recommended power. See below for more details.

Specifications

Thiele/Small Parameters
46L7T122 T/S Parameters
Product Dimension Sheet
46L7T12 Dimensions
Size (IN.,CM)
12, 30
Impedance (OHMS)
2 DVC
Recommended Amplifier Power (watts RMS)
600
Peak Power (watts, per ANSI/CTA-2031-A)
1200
Sensitivity (dB 1w/1m)
86.54
Frequency Response (Hz)
25-100
Mounting Depth (IN.,CM)
4-1/8, 9.5
Mounting Cutout, Square (IN.,CM)
11-1/16, 28.1
Min Rec Sealed Box Volume (CU. FT., Liters)
.55, 15.6
Max Rec Sealed Box Volume (CU. FT., Liters)
1.25, 35.4
Min Rec Vented Box Volume (CU. Ft., Liters)**
1.75, 49.6
Max Rec Vented Box Volume (CU. Ft., Liters)**
2.25, 63.7
What's in the box?
one 12-inch subwoofer, one owner's manual, two stickers
