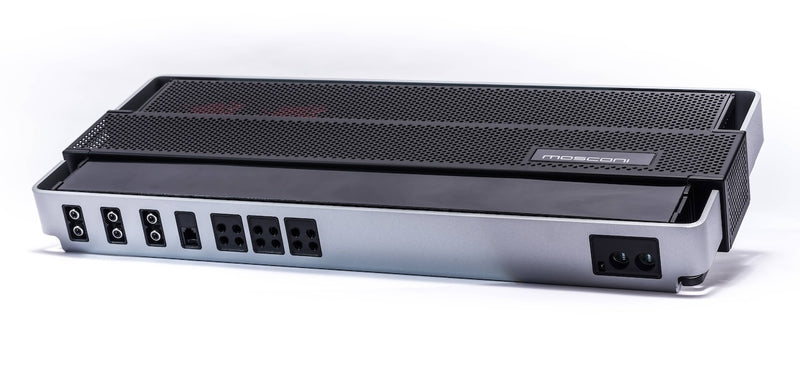

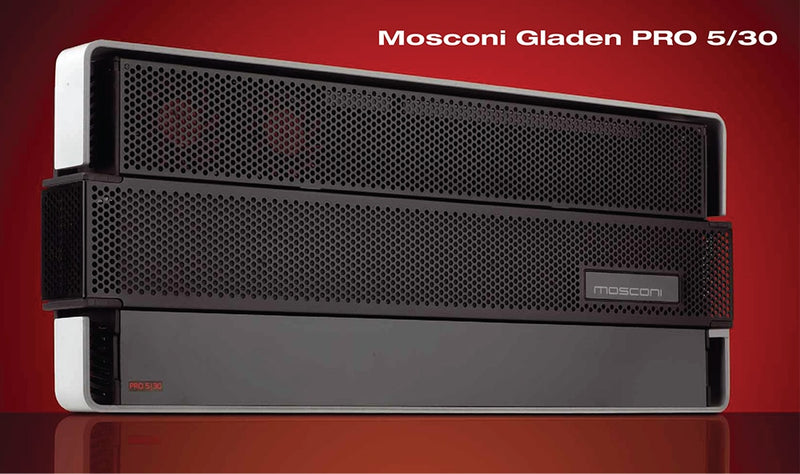

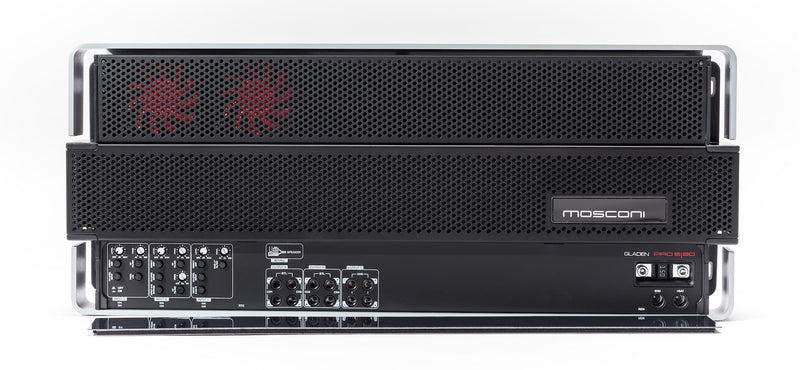

PRO 5|30 Mosconi Gladen Pro Line 5 Channel Class A/B Full Range Amplifier + Class D Sub Output, 2x95W 4 Ohm + 2x185W 4 Ohm, 1x660W 4 Ohm or 1x1030W 2 Ohm, Car Audio Amplifier

PRO 5|30 Mosconi Gladen Pro Line 5 Channel Class A/B Full Range Amplifier + Class D Sub Output, 2x95W 4 Ohm + 2x185W 4 Ohm, 1x660W 4 Ohm or 1x1030W 2 Ohm, Car Audio Amplifier

by Mosconi
Save 17% Save 17%
$3,000.00
$3,000.00 - $3,000.00
$3,000.00
$2,499.99
$2,499.99 - $2,499.99
$2,499.99
🚚 Order within the next 2 hours, 15 minutes for delivery by 24 Dec, 2024.
Availability:
Almost Gone

PRO 5|30

5 Channel Class A/B Full Range Amplifier + Class D Sub Output

SPECIFICATIONS:

Low Pass Filter 40-220 Hz
Target Powers
  • 95×2 + 185×2 + 660×1 Watt @ 4 Ohm
  • 150×2 + 290×2 + 1030×1 Watt @ 2 Ohm
Input Sensitivity (Power rating ref)
  • 0.35V ÷ 12V (5.3V in DDSP mode) [CH1/2/3/4]
  • 0.14V ÷ 5.9V (3.1V in DDSP mode) [CH5]
X-over Functions
  • CH1/2= HP: 43 ÷ 500Hz(x1) or 430 ÷ 5000Hz(x10) [12 dB/oct – Q: 0.7]
  • CH3/4= HP: 50 ÷ 200Hz & LP:(430 ÷ 5000Hz) [12 dB/oct – Q: 0.7]
  • CH5= LP: 43 ÷ 200Hz [24 dB/oct]
Special Features
  • Direct DSP (bypass all the preamplifier circuitry but the differential input interface)
  • High Level / Low Level selectable input
  • RTC input
  • Internally controlled via Atmel Processor
Size 500 x 205 x 55 mm / 19.69" x 8.07" x 2.17" inches
Weight 5.4 Kg / 11.9 lbs
View/Download Full Specsheet: Mosconi Pro 5|30 Specifications
