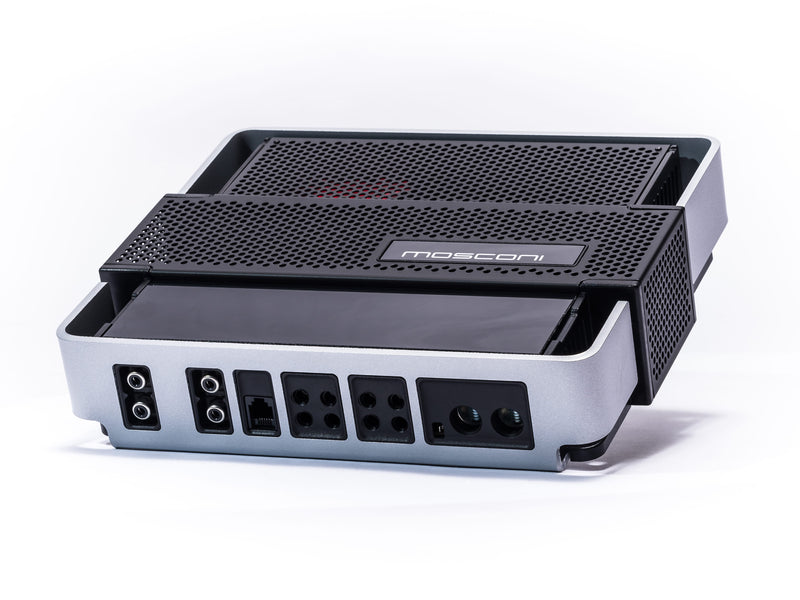

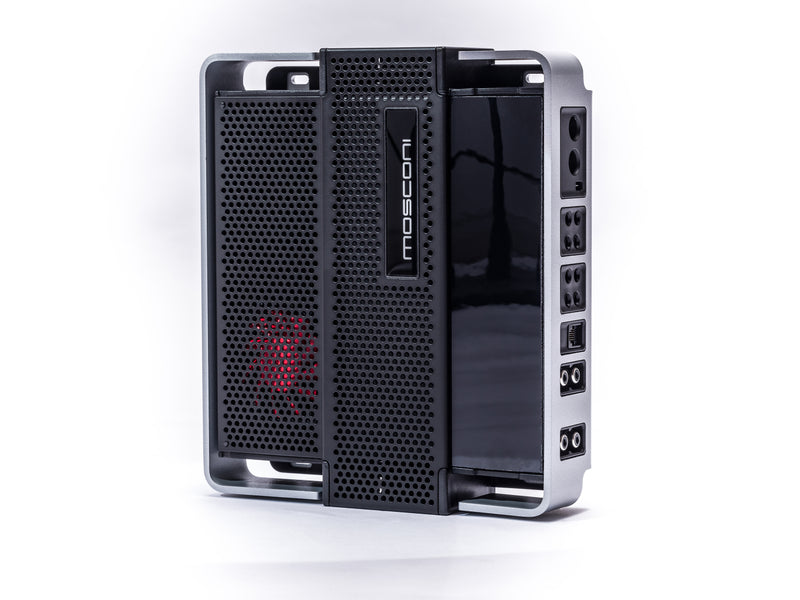

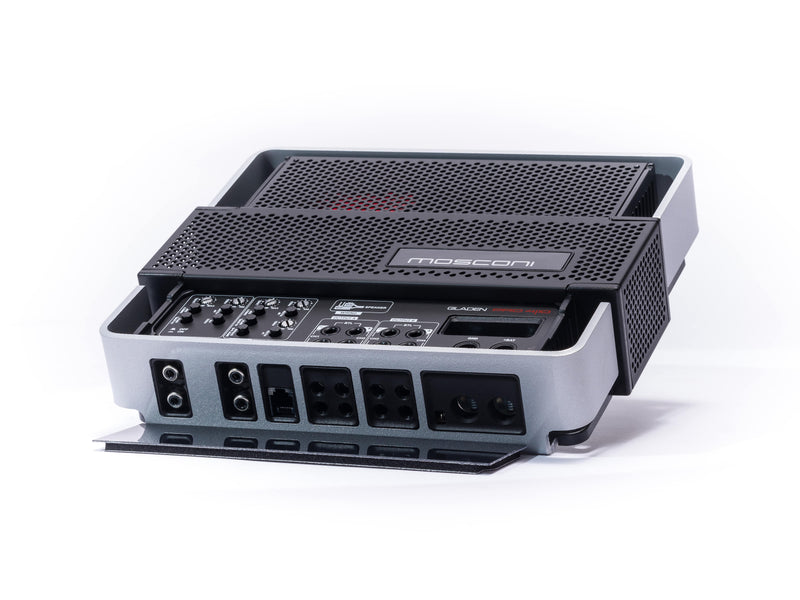

PRO 4|10 Mosconi Gladen Pro Line 4 Channel Class A/B Full Range Amplifier 4x120W 4 Ohm, 4x160W 2 Ohm, Car Audio Amplifier

by Mosconi
Save 17% Save 17%
Original price $1,560.00
Original price $1,560.00 - Original price $1,560.00
Original price $1,560.00
Current price $1,299.99
$1,299.99 - $1,299.99
Current price $1,299.99
🚚 Order within the next 2 hours, 15 minutes for delivery by 12 Dec, 2024.
Availability:
Almost Gone

PRO 4|10

4 Channel Class A/B Full Range Amplifier

FEATURES:

  • 4 channel amplifier
  • Available in Black/Silver finishing
  • Power Rating: 120 Watt per channel @ 4 Ohm < 1% THD+N
  • Sn Ratio: > 74 dBA / >95 dBA (DDSP)  (ref: 1 Watt into 4 Ohm)
  • Click here to download the Specifications

(*) VERY IMPORTANT NOTE – READ CAREFULLY
4 Ohm ST or 8 Ohm BTL – CONTINUOUS SINEWAVE SIGNAL – pure resistive load or speaker load
2 Ohm ST or 4 Ohm BTL – MUSICAL SIGNAL – pure resistive load or speaker load
2 Ohm – MUSICAL SIGNAL – – pure resistive load or speaker load (only CH5)

SPECS:

Target powers:

  • 120×4 Watt (Stereo) @ 4 Ohm
  • 160×4 Watt (Stereo) @ 2 Ohm
  • 320×2 Watt (BTL) @ 4 Ohm

Input sensitivity: (Power rating ref)

  • 0.35V ÷ 12V (5.3V in DDSP mode) [CH1/2/3/4]

Xover functions:

  • CH1/2= HP: 43 ÷ 500Hz(x1) or 430 ÷ 5000Hz(x10) [12 dB/oct – Q: 0.7]
  • CH3/4= HP: 50 ÷ 200Hz & LP:(430 ÷ 5000Hz) [12 dB/oct – Q: 0.7]

Special features:

  • Direct DSP (bypass all the preamplifier circuitry but the differential input interface)
  • High Level / Low Level selectable input
  • RTC input
  • Internally controlled via Atmel Processor

Size:

  • 235 x 205 x 55 mm /  9.25" x 8.07" x 2.17" inches

Weight:

  • 2.4 Kg, 5.29 lbs
