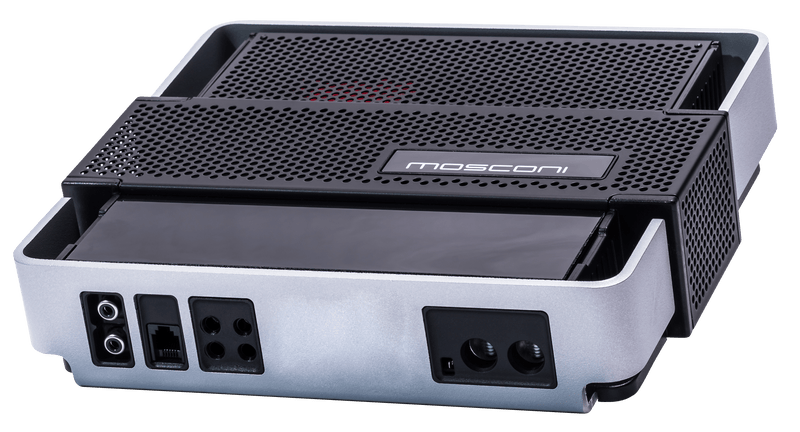

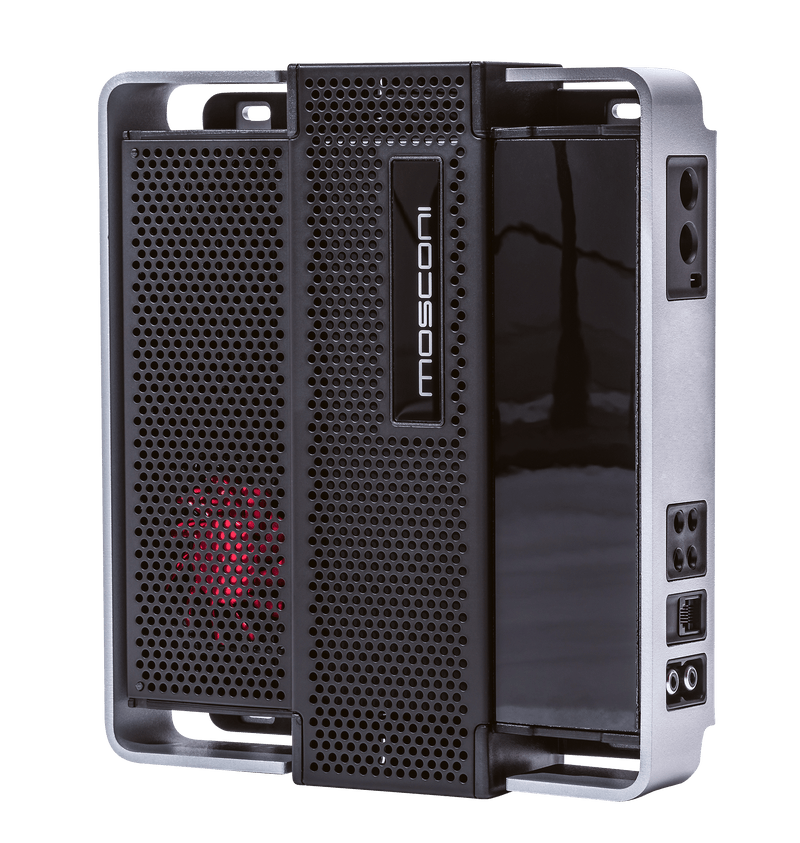

PRO 1|10 Mosconi Gladen Pro Line 1 Channel Class D Mono Amplifier 1x670W 4 Ohm, 1x974W 2 Ohm Car Audio Amplifier

by Mosconi
Save 17% Save 17%
Original price $1,560.00
Original price $1,560.00 - Original price $1,560.00
Original price $1,560.00
Current price $1,299.99
$1,299.99 - $1,299.99
Current price $1,299.99
🚚 Order within the next 2 hours, 15 minutes for delivery by 12 Dec, 2024.
Availability:
in stock

PRO 1|10

Mono Class D Subwoofer Amplifier

FEATURES:

  • Single channel Full Range Class D amplifier
  • Available in Black/Silver finishing
  • Power Rating: 670 Watt @ 4 Ohm < 1% THD+N
  • CEA-2006-A Specs – Sn Ratio: > 80 dBA (DDSP)  (ref: 1 Watt into 4 Ohm)
  • Pro 1|10 – Sn Ratio: (AP filter 10Hz / 22kHz – DDSP – 600Wrms ref) 108 dB
  • Click here to download the Specifications

SPECS:



Input sensitivity: (Power rating ref)

  • (600 Wrms / 4 Ohm) 0,14V / 5.9V

Xover functions:

  • LOW PASS 43 / 200Hz [24 dB/oct]

Special features:

  • DDSP – Direct DSP (bypass all the preamplifier circuitry but the differential input interface)
  • High Level / Low Level selectable input
  • Single Input capability (RCA bypass capability
  • Autosense (BTL mode only)
  • Controlled via uC – Internally controlled via Atmel Processor

Size:

  • 235 x 205 x 55 mm / 9.25" x  8.07" x  2.17" inches

Weight:

  • 2.5 Kg / 5.51 lbs
