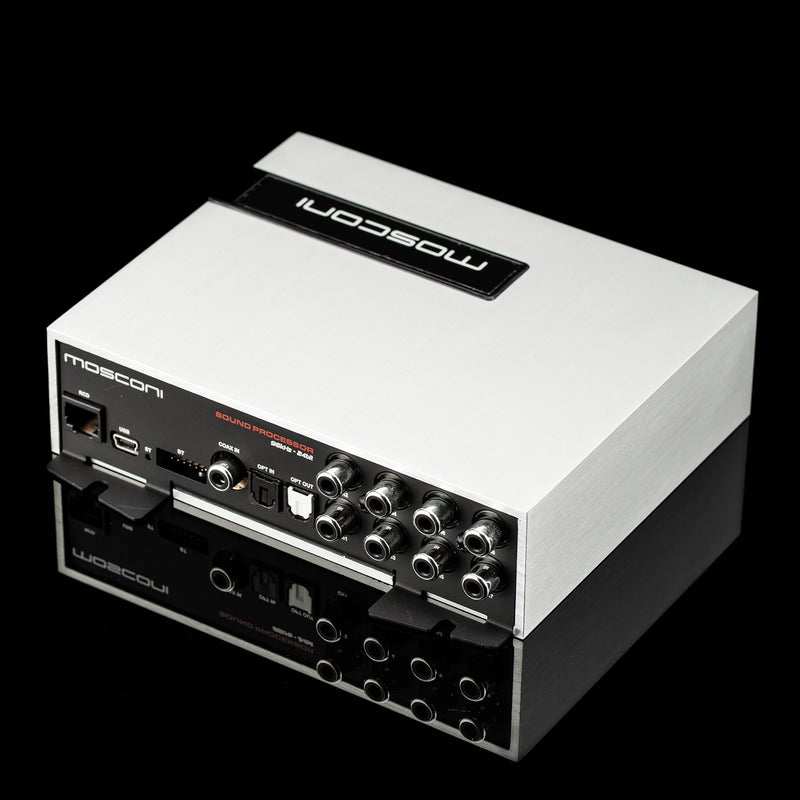

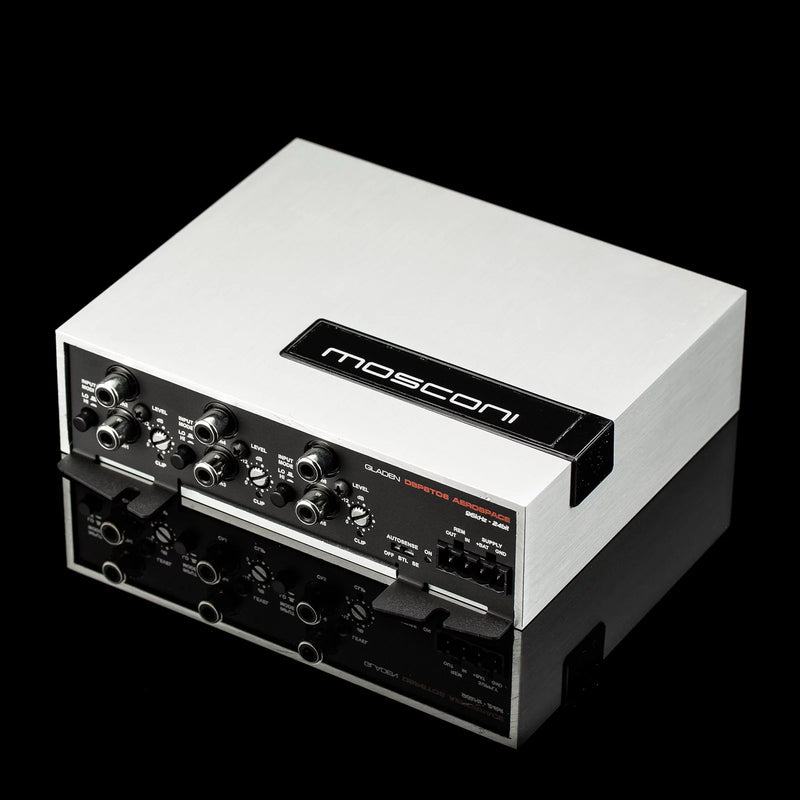

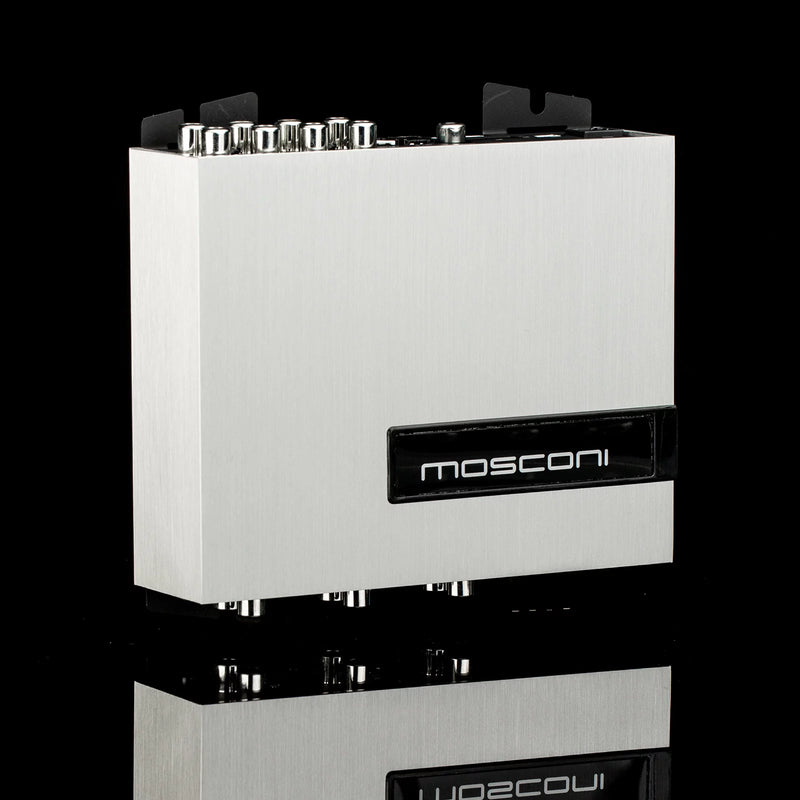

6|8 AEROSPACE Mosconi DSP Digital Signal Processor (6 CHANNELS IN, 8 CHANNELS OUT, AUDIOPHILE VERSION) Standalone DSP

6|8 AEROSPACE Mosconi DSP Digital Signal Processor (6 CHANNELS IN, 8 CHANNELS OUT, AUDIOPHILE VERSION) Standalone DSP

by Mosconi
Save 17% Save 17%
$1,560.00
$1,560.00 - $1,560.00
$1,560.00
$1,299.99
$1,299.99 - $1,299.99
$1,299.99
🚚 Order within the next 2 hours, 15 minutes for delivery by 02 Jan, 2025.
Availability:
Almost Gone

6|8 AEROSPACE

(6 CHANNELS IN, 8 CHANNELS OUT, AUDIOPHILE VERSION)

FEATURES:

  • 6 channel input
  • 8 channel output
  • DSP Technology made by cooperation MOSCONI-GLADEN
  • Designed and made by MOSCONI, Italy

OVERVIEW MOSCONI DSP 6TO8 AEROSPACE

96 kHz / 24 Bit  High Resolution-Audio

With the incredibly powerful chip, the GLADEN DSP 6to8 AEROSPACE is faster than ever.

We have developed the best DSP since MOSCONI exists.

Without limit in signal processing...96kHz /24 bit "A GAME CHANGER".

TECHNICAL DATA MOSCONI DSP 6TO8 AEROSPACE

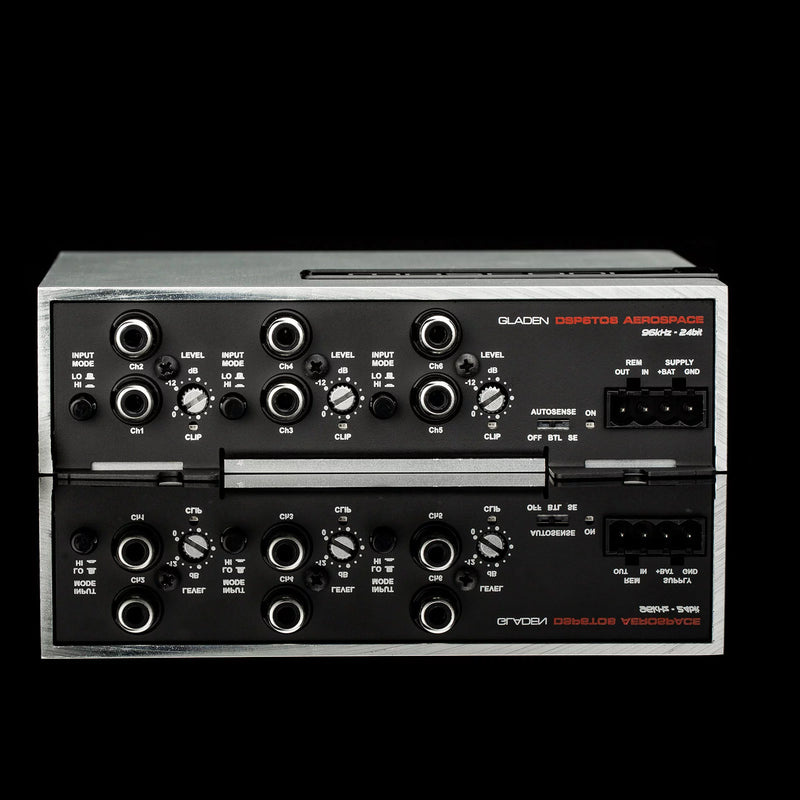

INPUTS:


  • 6 x RCA (Cinch), switchable high/ low level with autosense


  • 1 x S/PDIF digital optical


  • 1 x RCA digital COAX


  • 4 of them freely selectable as prioritized auto-fade/aux


  • ATOM Mixer menu with dynamic preset switching and "trigger" control

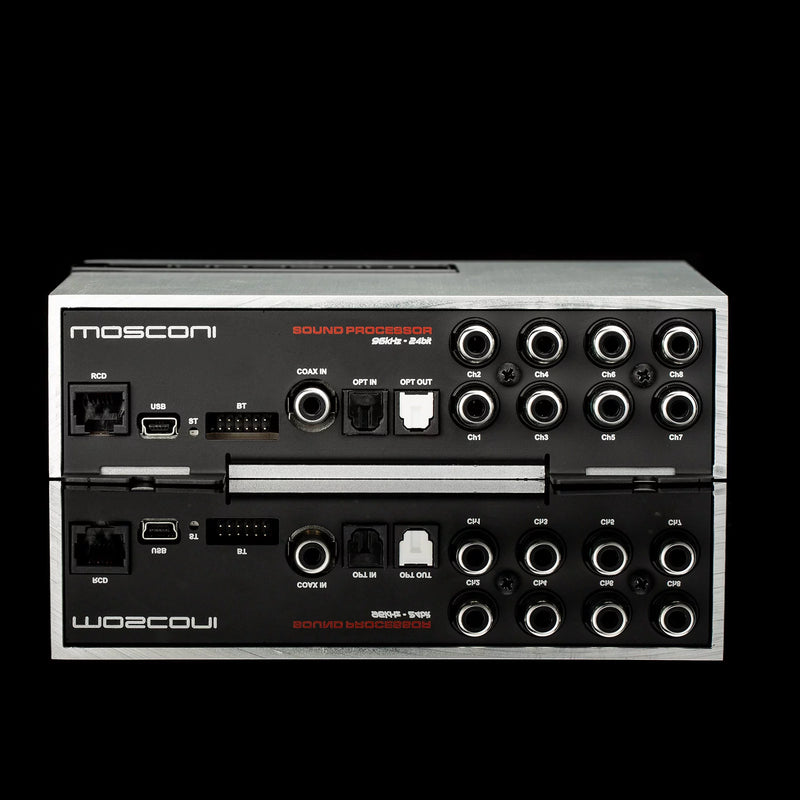

OUTPUTS:


  • 8 x RCA analog


  • 1 x S/PDIF optical (freely assignable, volume controlled)


  • 12 V remote-out

EQUALIZER:


  • Fully parametric 30 band EQ, can also be used graphically, + 12 to - 12 dB, Q: 0.5 - 40


  • Fixed: channels front (1 - 4)


  • Assignable channels: 5 + 6 = front, rear 7 + 8 = sub, center, free

FILTERS:


  • 10 per channel freely configurable


  • Highpass, lowpass, shelf, notch, allpas, peak EQ


  • Slope 6 - 120 dB/Oct, variable Q, time and level

OTHERS:


  • Time correction 0 - 12 ms (0.010 ms steps)


  • Input delay (channels 1 - 6) for correction of run-time delayed plant systems


  • Phase shift 0 - 180°


  • Level adjustment outputs (0.5 - dB steps)


  • Mute function


  • 4 x preset memory (switching without sound interruption)


  • Dimensions: 150 x 125 x 40 mm (incl. mounting flange)

SPECIFICATIONS:

Input Mode: Low Level {LL} / High Level {HL}
Input Impedance:

12Kohm (LL) / 47ohm (HL)
Input Sensitivity:

1.2 – 8 Vrms (LL) / 3 – 20Vrms (HL)
Input Voltage Regulation:

-16.5dB ÷ 0dB
Max Output Signal: 8Vrms
Output Impedance: 600 ohm
T.H.D. Distortion: <0.003% @ 4Vrms
Frequency Response:

10Hz-40Khz
Channel Separation:

>90dB (@100Hz)
Supply Voltage: 10V ÷ 16V DC
Autosense: Off / BTL / SE
Remote Output: 100mA max
Communication Peripherals: USB, RCD/RC-Mini (optional), MOS-BTM (optional)
Size

150x125x40mm (including fixed feet)

5.90" x 4.92" x 1.57"
