TE-JPKT METRA

 Jeep Wrangler Spare Tire Bracket with Flush Mount Backup Camera

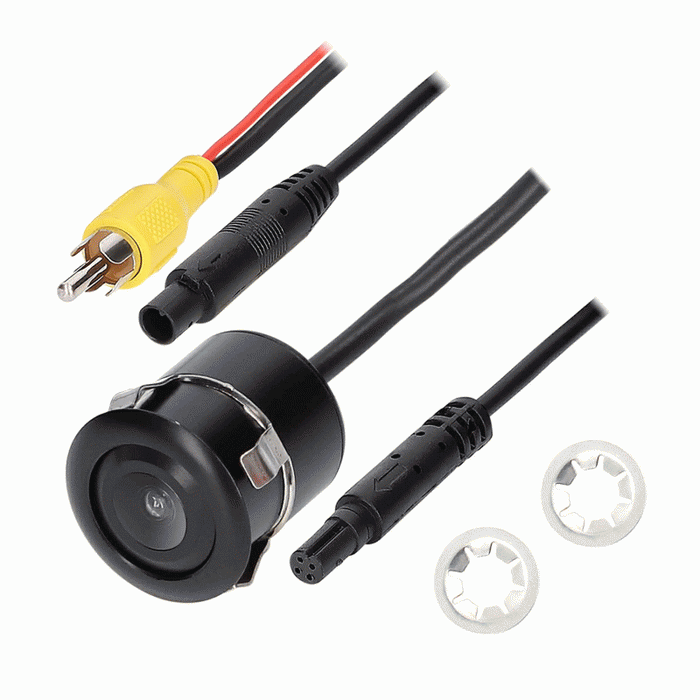

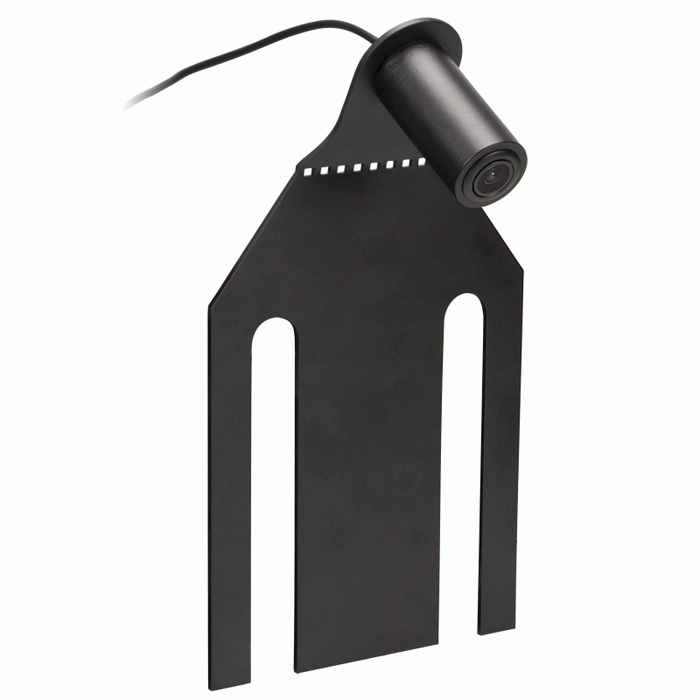

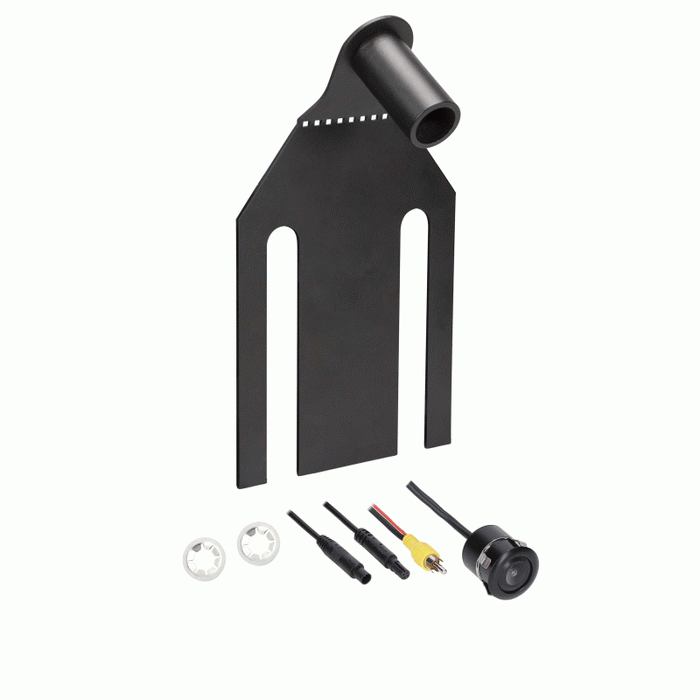

This camera kit solves the visibility challenge when adding an aftermarket backup camera to a Jeep® with a rear spare tire. Designed to mount to the factory studs of the spare wheel, the adjustable bracket creates an inconspicuous solution for the camera to be placed at the optimal position for rearview visibility. This kit includes iBeam’s Flush Mount Backup Camera with metal housing (TE-FLC). This CMOS camera features a 110-degree viewing angle and 0.5 lux night vision. This camera is AHD and CVBS compatible. The camera is small, unobtrusive, and has high-quality metal housing, rated IP68.

Specifications:

• High-quality metal housing
• 1/4-inch CMOS camera
• AHD & CVBS compatible
• Defeatable Parking Lines
• Resolution: 720 x 480 (CVBS), 1280 x 720 (AHD)
• Field of View: 110-degrees (Horizontal), 170-degrees (Diagonal)
• 0.5 lux night vision
• IP68 Rating (water-resistant & dust proof)
• 3-year warranty

Note: iBEAM recommends the TE-CAMFLTR be used if power is being connected via the taillight. (sold separately)

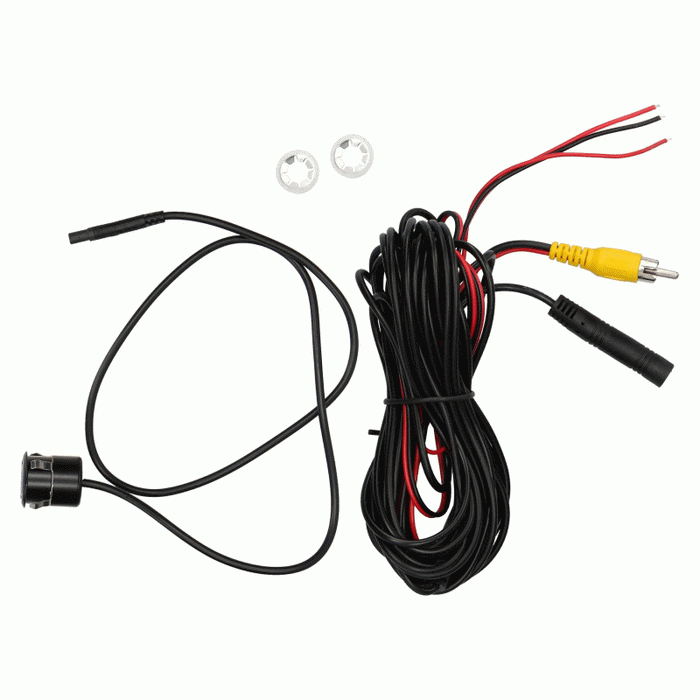

Wire Length:

• Camera Cable: 0.61m / 2ft
• Extension Cable: 6.7m / 22ft
