46KMC5 KICKER Premium Marine Media Center Receiver w/Bluetooth/AM/FM/Sirius XM Ready/Weather-Band Tuner/Video Input/NMEA

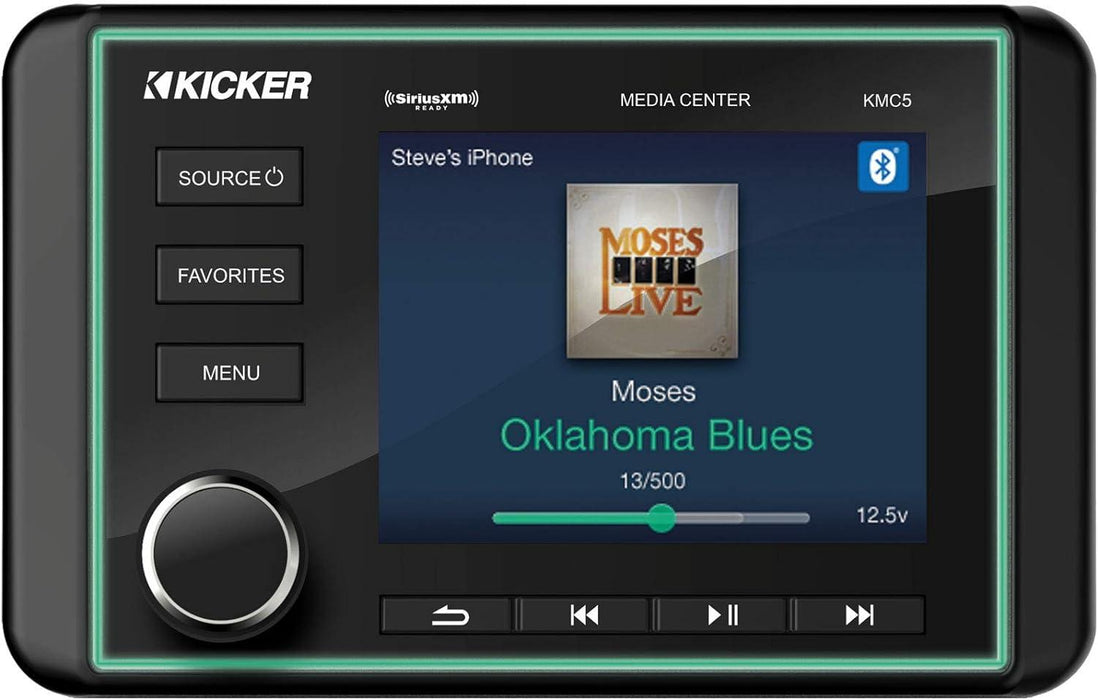

KMC5 Premium Marine Media Center
Tons more fun for your cruise! KICKER’s premier KMC5 Media Center features six channels of built-in power, delivering up to 240 watts to your speakers! Equipped with an AM/FM/satellite/weather-band tuner, charging USB connection and four sets of RCA outputs for easy expansion.
Includes RGB LED trim ring, and chrome and black trim bezels.
Connect to Your Music
Connect your Bluetooth to the KMC5, plug into the USB or RCA inputs, or turn on the AM/FM or satellite radio. Add a wired KRC12 Remote Commander or KRC55 Digital Remote Controller for even more control. This durable Media Center is ready for some fun on the water! (IP66)
- Charging USB w/Thumb-Drive Playback
- Bluetooth Connectivity
- Full-Color LCD Display
- Ability to control Zone 2
- SiriusXM ready
- 3” Hole Cutout
- Dedicated Zone 2 speaker outputs
- NMEA Port
- Video RCA Input with Remote trigger wire
- AM/FM and Weather-band Tuner
- Up to 16 Favorites for each source: AM, FM and SiriusXM
- Front, Rear, Subwoofer and Zone-2 RCA Outputs
- AUX RCA Input
- Day/Night Mode
- Low Battery alert
- Loudness control
- Customizable EQ with Five Presets
- Voltage Display
Video Input
Exclusive to the KMC5, the included video input can be configured in a variety of ways. Monitor your rider at the end of the rope, use it as a backup camera, even use it as a video baby monitor! The video input can be toggled with either a trigger wire or a button push.
Specifications
Power Output @ 14.4V, 4Ω stereo, <10% THD+N |
25x6 |
Power Output @ 14.4V, 2Ω stereo, <10% THD+N |
40 x 6 |
Frequency Response [Hz] |
20 - 20k |
Signal-to-Noise Ratio [dB] |
108 |
RCA Outputs |
Pre-amp Outputs: Front Rear Subwoofer Zone2 |
Line-Out Level [V] |
4 |
Outer Trim Ring Dimensions [in, cm] |
3.5 x 5.5, 8.89 x 13.97 |
Protrusion From Mounting Surface [in, cm] |
1-5/16, 3.33 |
Mounting Depth [in, cm] |
5, 12.7 |
Mounting Hole Diameter [in, cm] |
3, 7.62 |
Mounting Panel Thickness Range [in, cm] |
Any |
IP Rating |
IP66 |
AUX Input Sensitivity |
Adjustable from 500mV-1.5V |
USB:Playback, Charging, Compatible File System |
MP2, MP3, WMA, WAV16, FLAC, AAC, ALAC, M4A DC 5V, 1 Amp FAT32 |
BT Range (feet) |
30 |
