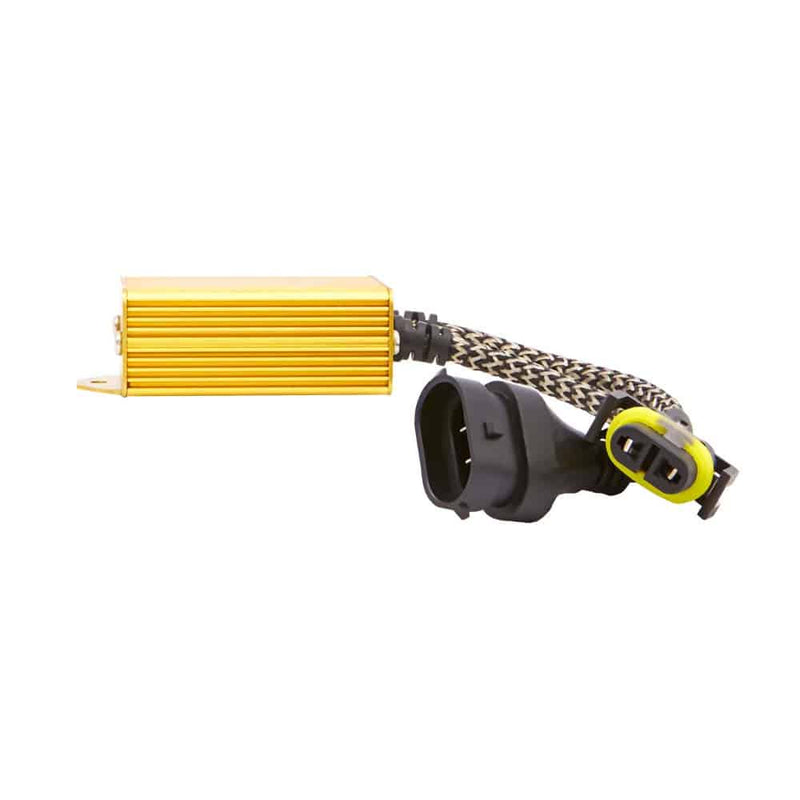

L-H11DE Lucas Lighting Intelligent Decoder – H11 LED Headlight CANBUS Decoder (Pair)
Lucas Lighting Intelligent Decoder – H11 LED Headlight CANBUS Decoder (Pair)
Upgrade your H11 LED headlight installation with the Lucas Lighting L-H11DE Intelligent Decoder, designed to help resolve common compatibility issues between modern LED bulbs and factory vehicle lighting systems.
If your vehicle displays a bulb-out warning, LED flickering, headlight error message, or other electrical compatibility issue after installing H11 LED bulbs, an intelligent decoder can help restore proper operation. The Lucas decoder installs inline between the vehicle's factory wiring and the LED bulb and is designed to work with modern CANBUS and pulse-width-modulated (PWM) lighting circuits.
Lucas Lighting recommends decoders for many German vehicles and for Chrysler, Dodge, Jeep, and Ram vehicles after 2007, while some applications may require an additional resistor. The decoder can also help with certain Toyota high-beam applications and other vehicles where the factory lighting system monitors or modifies the bulb's electrical load.
Key Features
- Lucas Lighting L-H11DE Intelligent Decoder
- Designed for H11 LED headlight and fog light applications
- Helps resolve bulb-out and headlight warning messages
- Helps eliminate LED headlight flickering
- Designed to improve compatibility with CANBUS and PWM lighting systems
- Helps stabilize the electrical signal supplied to the LED bulb
- Can help prevent issues caused by factory bulb-monitoring systems
- May resolve certain radio interference issues caused by LED installations
- Plug-and-play inline installation
- Installs between the vehicle harness and H11 LED bulb
- Lucas recommends chassis grounding the decoder's mounting tab for best performance
- Compatible with Lucas H11 LED lighting applications
- Some vehicles may require an additional resistor
What Does the Lucas L-H11DE Decoder Do?
Modern vehicles frequently monitor the electrical characteristics of factory halogen bulbs. When an LED bulb is installed, its lower electrical load and instant response can sometimes cause the vehicle's computer to interpret the bulb as failed or malfunctioning.
The Lucas Intelligent Decoder is designed to help address these issues by providing the electrical characteristics needed for compatibility with the vehicle's lighting system.
The decoder can help with:
Bulb-Out Warnings
Helps correct dashboard or vehicle-computer warnings that occur after replacing H11 halogen bulbs with LEDs.
LED Flickering
Helps stabilize PWM-controlled headlight circuits that can cause LED bulbs to flicker.
CANBUS Compatibility
Provides additional compatibility for vehicles with factory bulb-monitoring systems.
Electrical Signal Stabilization
Lucas explains that its decoders use resistance and capacitance to help stabilize modulated electrical signals supplied to LED bulbs.
Radio Interference
In certain applications, a decoder can help resolve AM/FM radio reception issues that occur after LED headlights are installed.
Designed for H11 LED Bulb Applications
The L-H11DE is designed specifically for H11 applications and is a useful compatibility accessory for Lucas Lighting H11 LED bulbs.
It can be used when an H11 LED installation produces compatibility problems such as:
- Bulb-out warning
- Headlight error message
- Flickering
- Unstable LED operation
- Certain PWM-related issues
- Certain CANBUS compatibility problems
- Radio interference after LED installation
The decoder is not automatically required for every H11 LED installation. Many vehicles will operate correctly without an additional decoder, particularly when the LED bulb already provides appropriate CANBUS compatibility.
Recommended for Certain Vehicle Applications
Lucas Lighting specifically recommends using its Intelligent Decoder at installation for many German vehicles and Chrysler, Dodge, Jeep, and Ram vehicles after 2007. Lucas also identifies pulse-width-modulated lighting circuits and some Toyota high-beam applications as situations where a decoder may be necessary.
Because vehicle electrical systems vary, compatibility should be verified for the specific vehicle before installation.
Some applications may require both a decoder and an additional resistor.
Plug-and-Play Inline Installation
The L-H11DE installs inline between the vehicle's factory H11 connector and the LED bulb.
Basic Installation
- Connect the decoder to the vehicle's factory H11 wiring.
- Connect the H11 LED bulb to the decoder.
- Verify correct positive and negative polarity where applicable.
- Secure the decoder so it is not left dangling or exposed to excessive heat.
- Lucas recommends using the decoder's mounting tab to ground it to the vehicle chassis for best performance.
- Test the headlights and check for warning messages or flickering before completing reassembly.
Lucas' decoder manual emphasizes maintaining correct polarity on applicable two-pin connections and securing the decoder after installation.
Pairing With Lucas H11 LED Bulbs
The L-H11DE is an excellent accessory to offer alongside Lucas Lighting H11 LED bulbs when additional vehicle compatibility is needed.
It can be paired with Lucas H11 applications including:
- Lucas Lighting L1-H11
- Lucas Lighting L2-H11
- Lucas Lighting L3-H11
- Other compatible Lucas H11 LED applications
The L2 and L3 series already provide CANBUS functionality in many applications, so an additional decoder may not be necessary. Lucas notes that L2 and higher series bulbs can eliminate the need for an external decoder in many, but not all, vehicles.
