10" SoloX L7X 1 Ohm DVC

 The legend returns! The KICKER SoloX L7X Ferrite Magnet Competition Subwoofer brings the most advanced bass technology and unprecedented performance, from the guys in Oklahoma who invented it for a vehicle. This driver is designed for those looking for extreme excursion and performance from their subwoofer; whether in the SPL competition lanes, big bass demos or just love tons of low, deep, bass from their music.

Incomparable

SoloX always promises high-excursion design, made for ultra-deep bass at very high volume. It’s developed like no other KICKER subwoofer.

Features:

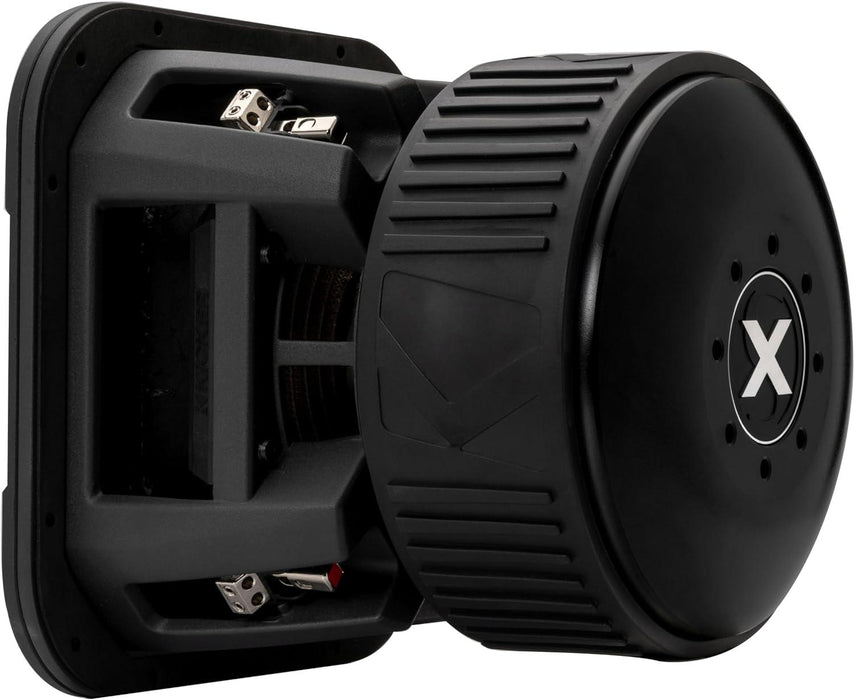

• Monster Performance from a motor like no other – it includes a massive, triple-stacked ferrite magnet surrounding a hyper-extended pole piece, engineered for an enormous, more linear magnetic field and amazing heat dissipation. It's ultra-deep bass at very high volume.

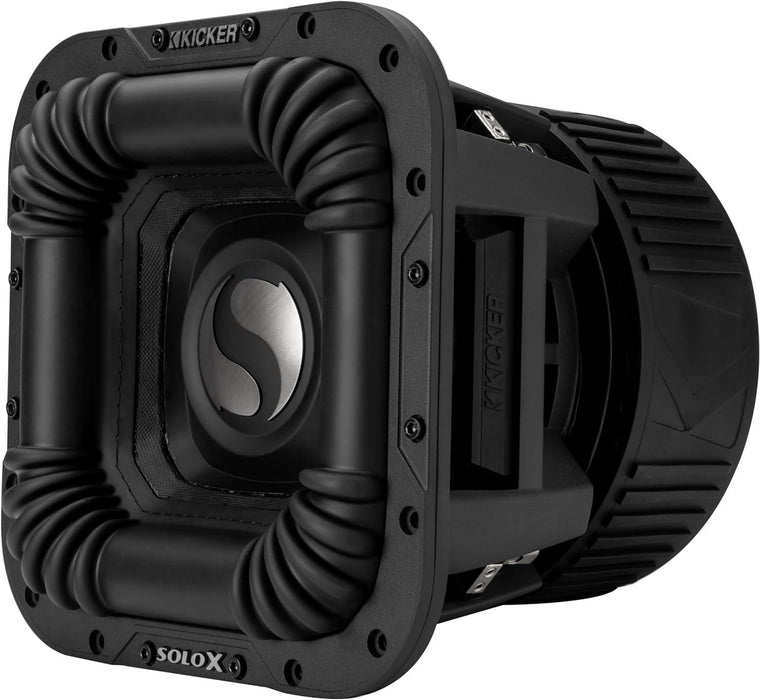

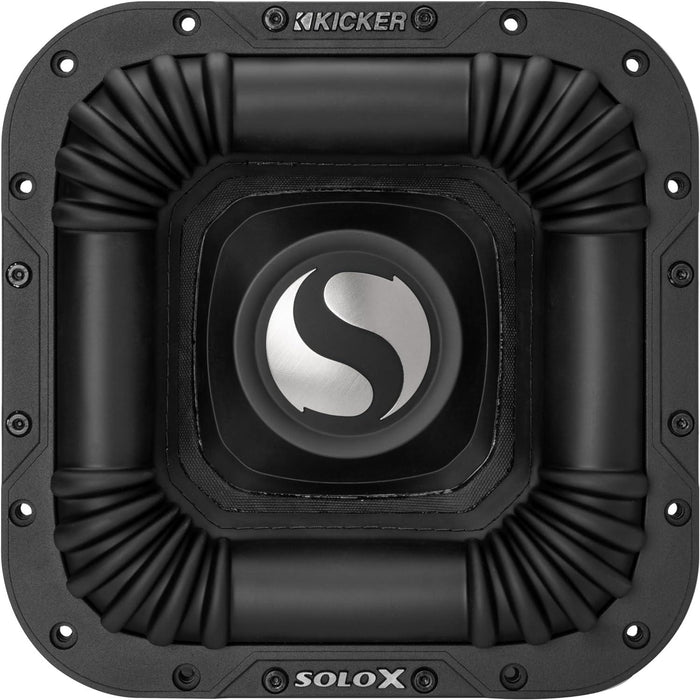

• Stability is Key and the L7X's three-inch voice coil is supported by a dual-spider suspension system, and the double-pressed pulp cone is attached to an ultra-long-throw Santoprene surround - equipped with KICKER's square cone tech and ribbed corners for continuous force and air movement.

• Keeping it Cool is the name of the game and heat is the enemy of endurance. To make our subs even more reliable, KICKER engineers developed Forced-Air Cooling which helps SoloX subwoofers run significantly cooler and last longer.

• Big Power takes Big Connections and the L7X does not disappoint with custom designed terminals for maximum power transfer. Wiring has never been easier with KICKER’s unique SoloX terminals. Each spring-loaded terminal accepts up to an 8 AWG wire, plus a dual, 8 AWG terminal block above it, making series or parallel wiring a breeze.

• Field-Replaceable Recone Kit means the Music Never Stops! Using an exclusive, surround compression system, bolt-on spider landing, and helpful alignment shims, the L7X pre-assembled cone assembly gets you from blown to bumpin’ in minutes – no gluing required!

1. Field-Replaceable Recone Kit – cone/voice coil/spider assembly, and no gluing required
2. Forced Air Cooling™
3. Three-inch, aluminum voice coil former
4. Dual-spider suspension
5. Double-pressed pulp cone
6. Heavy-duty UV-resistant Santoprene surround
7. Custom rubber magnet boot
8. Cast-aluminum basket
9. Single 8 AWG terminal and dual 8 AWG terminal block
10. Triple-Stacked Ferrite Magnet

Specifications

Thiele/Small Parameters

49L7X101 T/S Parameters

Size (in, cm)

10, 25

Rated Impedance (Ohms)

1 DVC

Rec Amp Power rms

1000-2000

Frequency Response

25-100

Magnet Diameter (in, cm)

8-11/16, 22

Total Magnet Weight (oz, kg)

406, 11.5

Voice Coil Diameter (in, mm)

3, 75

Voice Coil Winding Width (in, mm)

2.5, 62.5

Product Dimension Sheet

49L7X10 Dimensions

Top Plate Thickness (in, mm)

0.5, 13

Xmax (in, mm)

1.25, 31.25

Mounting Cutout (in, cm)

9-5/16, 23.7

Mounting Depth (in, cm)

9-7/16, 24

Recommended Vented Box Volume (Cu. Ft., L)

2, 56.6

Port Opening (in x in, cm x cm)

2.5 X 12.25, 6 X 31

Port Length (in, cm)

38.5, 98

Vented Enclosure Tuning Frequency (Hz)

31



SoloX History

There's a reason we compete. The ceaseless drive to learn, improve and ultimately - to win - is indelibly woven into KICKER's DNA.

In the early 2000's, car audio competition was thriving, and KICKER was dominating the lanes - winning world championships both in sound pressure and sound quality. Leading the charge was Alma Gates, her legendary “Beast" Bronco, and the KICKER Competition Group. We watched the KICKER Competition Group collect a seemingly endless streak of awards, earning trophy after trophy – championship after championship – all while using high-power-handling, high-efficiency SoloX Subwoofers.

As time went by, we labored to create another generation of high-SPL subwoofer. We experimented with ideas, threw them away and made something better. We scoured social media discussion groups, looking for every burp, demo and hair trick we could find. We asked elite competitors their opinions (the first time in our history we did so before production was underway), and then, during our streaming hit show “KICKER UnMASKED! Live," we unveiled it online to record-breaking crowds.

We invite you to experience the legend for yourself, for one reason: we made something better.
