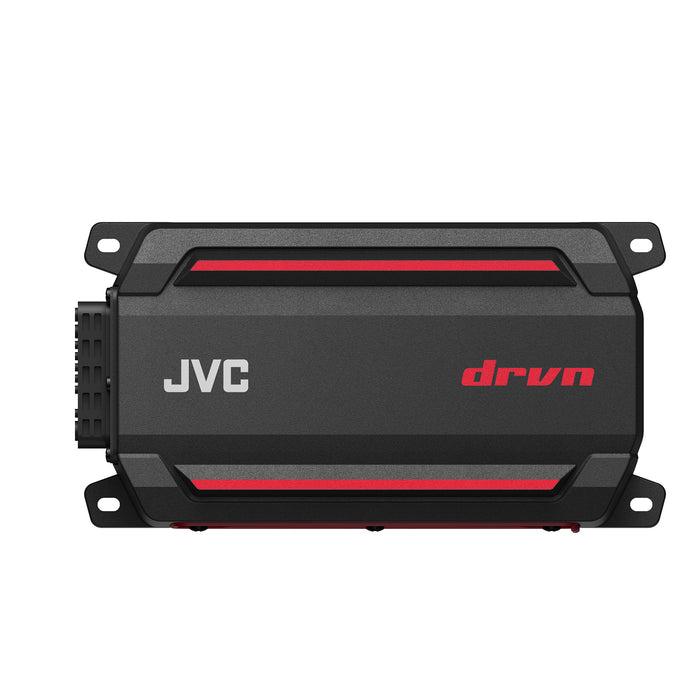

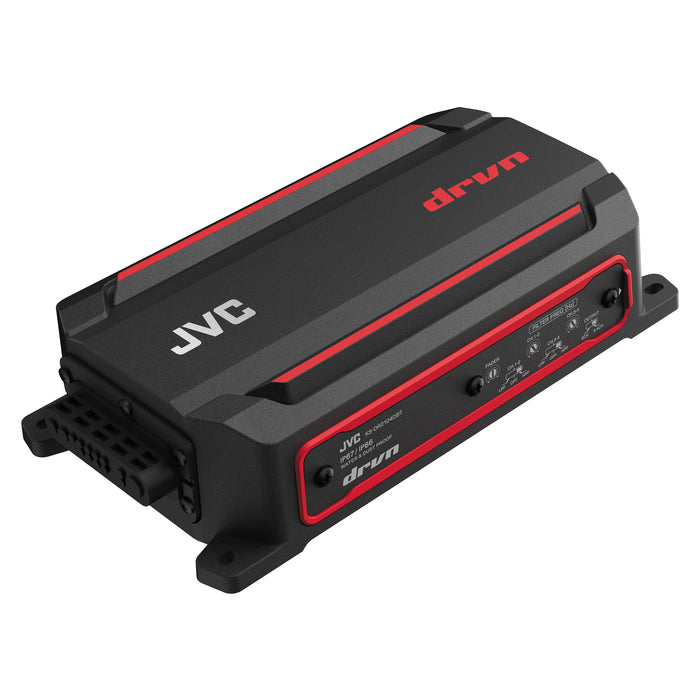

KS-DR2104DBT JVC 4-Channel Compact Powersports Amplifier with Built-in Bluetooth Streaming Controller, 50Wx4 at 4ohms 75Wx4 at 2ohms RMS 600W Peak Marine, ATV and Powersport Applications IP66 / IP67 Waterproof, Dustproof, Rust Proof and Vibration Proof
KS-DR2104DBT
4-Channel Compact Digital Amplifier featuring Bluetooth for Compact Car, Marine, UTV and Motorcycle / Max Power 600W / 50W RMS x 4 @ 4 ohms
Mud, Sand, Dirt, Rocks or Water —
The JVC KS-DR2104DBT is BUILT TO LAST.
IP67/IP66 Waterproof & Dustproof
PX6: Protection against Powerful Water Jets / Water projected in powerful jets, up to 12.5mm (0.49 inch) against the amplifier from any direction shall have no harmful effects.
IPX7: Protection against Immersion, up to 1 m (3 feet, 3 inch) depth / Restricts harmful amounts of water entry when the amplifier is immersed in water under defined conditions of pressure and time, up to 1 m (3 feet, 3 inches) of submersion.
IP6X: Effective against Dust-tight / Dust entry is restricted to avoid damage to the amplifier.
A Drain Tunnel Structure is employed for creating a gap between the amplifier and the installation surface. This prevents saltwater and sand from accumulating on the bottom, increasing corrosion protection.
ASTM B117 Rustproof
Saltspray-proof: ASTM B117 salt spray (or salt fog) corrosion test simulates harsh conditions in a saltwater environment to ensure the amplifier does not corrode or fail in these harsh conditions.
By adopting the Corrosion-Resistant Sealed Cast Aluminum Chassis and stainless-steel screws resistant to rust and corrosion, this amplifier achieves the highest level of durability in its class.
Vibration-proof
Vibration-proof: Vibration can be damaging to amplifier if it is not designed to withstand it. This amplifier passes a 3-axis multi-frequency vibration test.
The amplifier mounting section is made of 15/64 inch die-cast material to suppress the amplification of vibration. In addition, the thick heat-transfer sheet was also placed to the substrate and the Aluminum die cast heat sink to suppress the vibration of the substrate.
Increased Power Flow

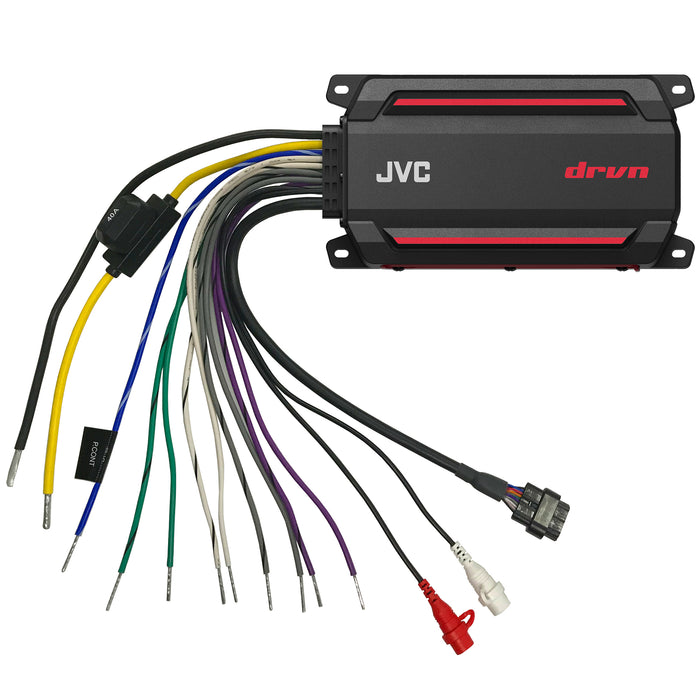

Thicker terminal connection points and increased wire size enables maximum current flow and higher output for better low frequency response and cleaner output.
High Quality Capacitors
Magnetic Shielding
Magnetic Shielding for the output coils reduce radiated noise, delivering smooth and accurate sound.

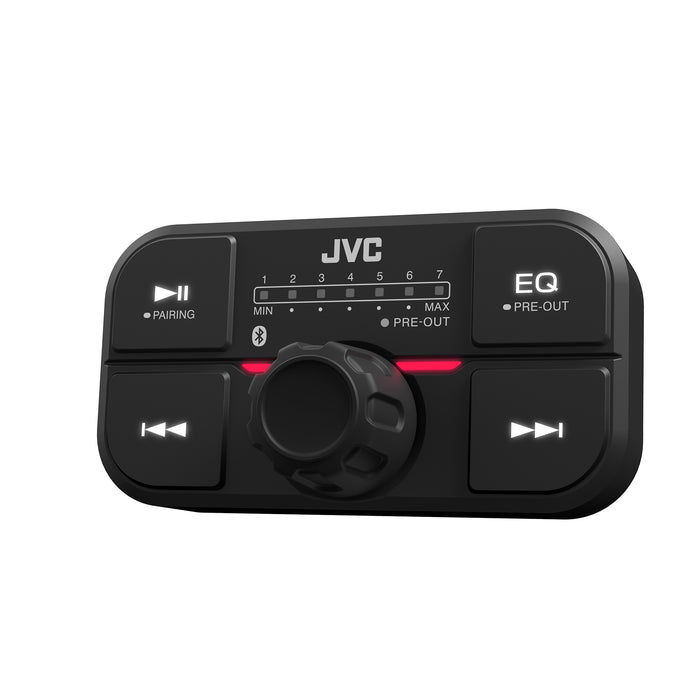

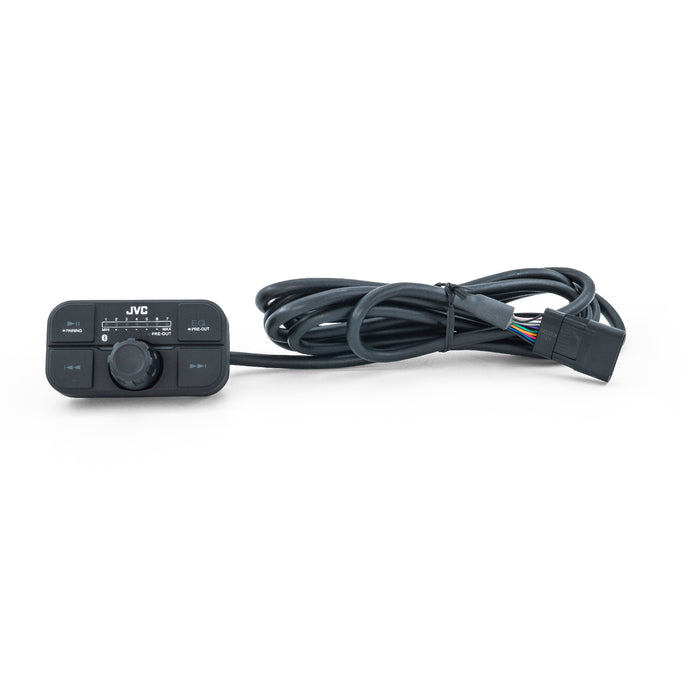

Waterproof Bluetooth Remote Control
The Bluetooth antenna is housed inside the remote control. This provides more sensible range for device connectivity, ensuring uninterrupted music playback.
Qualcomm Bluetooth 5.0
This premium Bluetooth solution delivers high-quality wireless audio performance for aptX and AAC codecs.
Versatile Installation
Multiple installation options are available, giving you complete control where you want it.

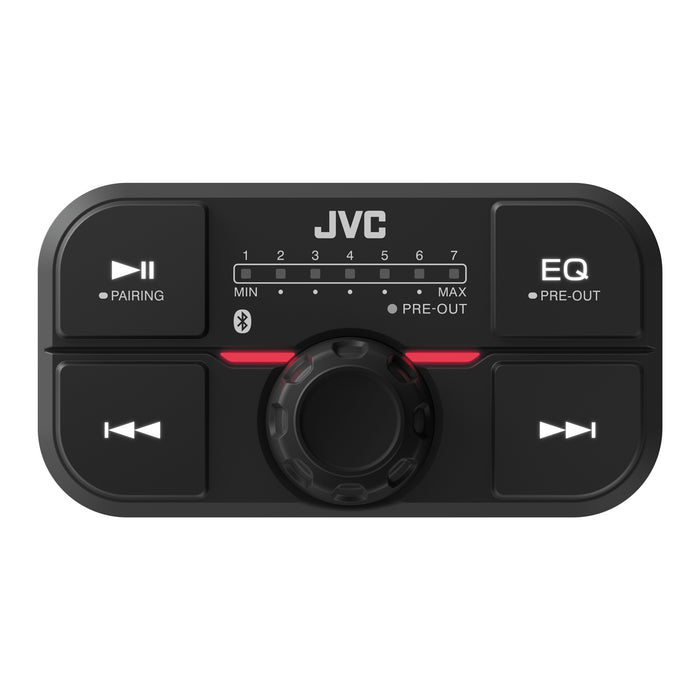

Easy-to-Use Remote Control

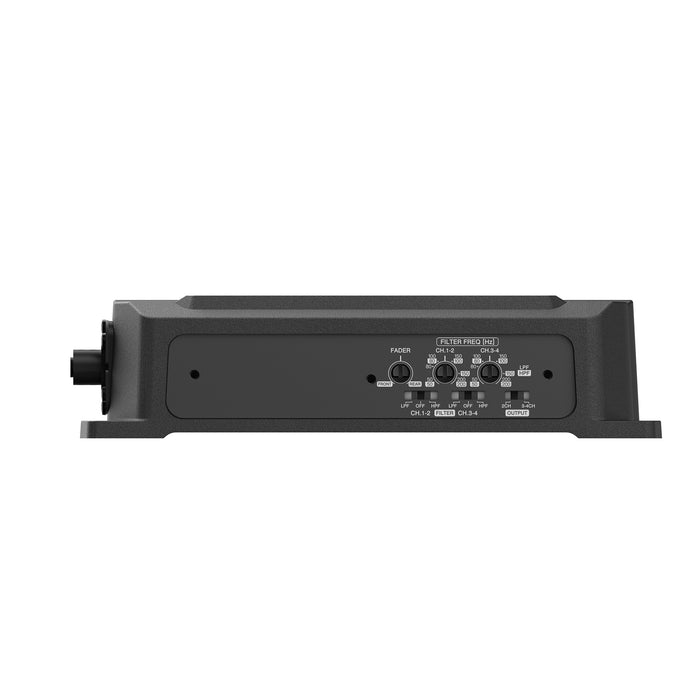

Enhanced fine-tuning controls are available for installation and setup flexibility.

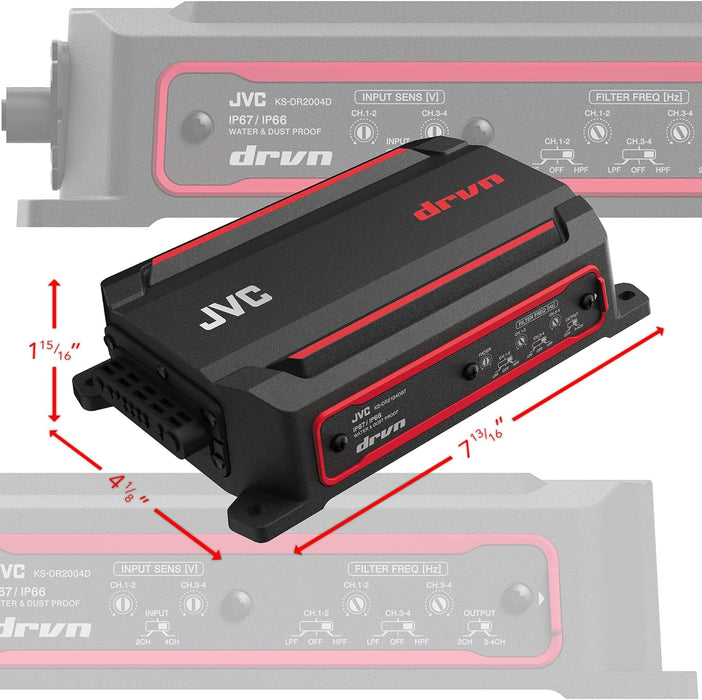

Dimensions
KS-DR2104DBT features compact size for versatile installation even in tight spaces.
KS-DR2104DBT
Audio unit
- Max Power Output 600W
- Rated Power Output
- Stereo (4 ohms) 50W x 4 (20Hz - 200Hz, less than or equal to 1.0% THD)
- Stereo (2 ohms) 75W x 4 (1kHz, less than or equal to 1.0% THD)
- Bridged (4 ohms) 150W x 2 (1kHz, less than or equal to 1.0% THD)
- Speaker Impedance 4 ohms (2 ohms to 8 ohms allowable)
- Frequency Response (+0, -3dB) 10Hz - 35Hz
- Input Sensitivity (+0, -3dB) 0.2V - 5.0V
- Signal to Noise Ratio 89dB
- Low Pass Filter Frequency (-12dB/oct.) 50Hz - 200Hz (variable)
- High Pass Filter Frequency (-12dB/oct.) 50Hz - 200Hz (variable)
Bluetooth
- Version Bluetooth Ver. 5.0
- Frequency Range 2,402 GHz - 2,480 GHz
- RF output power (E.I.R.P.) +4 dbm (Max), Power Class 2
- Profile A2DP, AVRCP
General
- Waterproof Yes (IPX6, IPX7)
- Dustproof Yes (IP6X, IP7X)
- Rustproof Yes
- Vibration-proof Yes
- Operating Voltage 12V DC car battery
- Current Consumption 26A
- Dimensions (W x H x D) 7-13/16" x 1-15/16" x 4-1/8"
- Weight 1.6kg (3.5lbs)
