KD-MR305BTS JVC Marine Gauge Receiver Weatherproof 2.7" Inch LCD, Built in Amplifier, Bluetooth, USB Port, AM/FM/ Weather Band Tuner, SiriusXM Ready, Video Camera Input
KD-MR305BTS
Digital Media Receiver featuring Bluetooth® / USB / SiriusXM / 2.7" Color Display / Dust-proof & Waterproof (IP66) / UV Protection (ASTM D4329) / Rustproof (ASTM B117) / Global Tuner with Weather Band / 13-Band EQ / Variable Color Illumination
IP66 Waterproof & Dust-proof
Withstands jets of water from any direction thanks to IPX6 waterproof compliance. As a result, the receiver can be safely used not onl y in cars, but also in other types of motor vehicles including marine and motorsports use.
Dustproof structure compliant with IP6X to prevent sand and dust.
ASTM D4329 UV Protection
Designed for use in harsh outdoor environments prone to strong sunlight.
ASTM B117 Rustproof
Saltspray-proof: ASTM B117 salt spray (or salt fog) corrosion test simulates harsh conditions in a saltwater environment to ensure the receiver does not corrode or fail in these harsh conditions.
Vibration-proof
The receiver passes a 3-axis multi-frequency vibration test to ensure its ability to sustain vibrations.
Conformal Coating
A conformal coating is a protective chemical coating to safeguard electronic circuits from harsh environments that may contain moisture or chemical contaminants. It provides a barrier to airborne contaminants from the operating environment, such as salt-spray, thus preventing corrosion

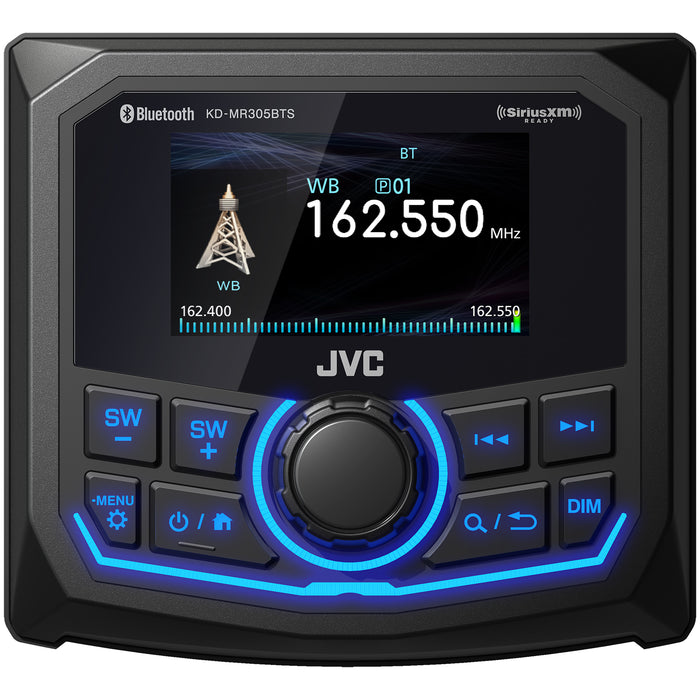

Weather Band Tuner
Weather band reception for safety information.

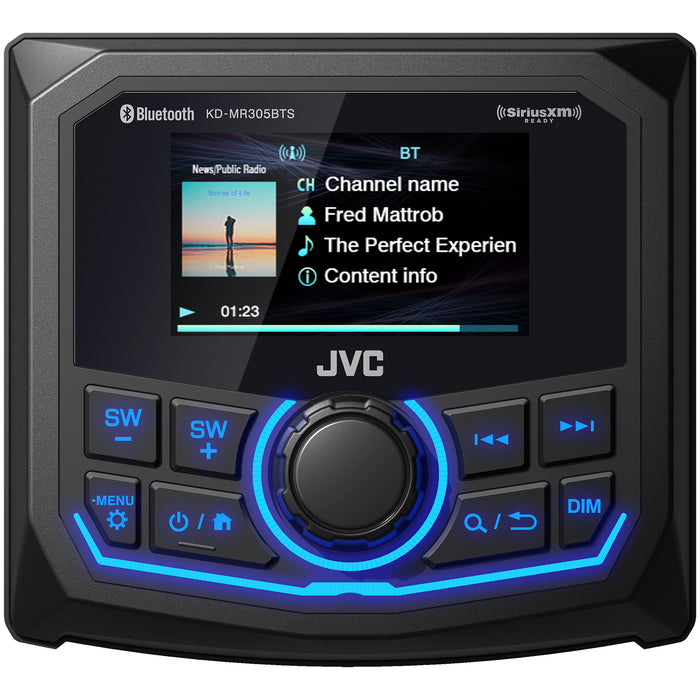

Ready for SiriusXM Radio
(optional SiriusXM tuner required, sold separately)
Ready for SiriusXM Radio. You can listen to over 100 Channels of music, sports, and entertainment.
Variable-Color Illumination
You can choose illumination colors from one of 24 presets or customize your own color by adjusting the intensity of RGB (Red, Green, and Blue).
Streaming Music
Listen to popular music applications and music stored on your device with basic audio controls.

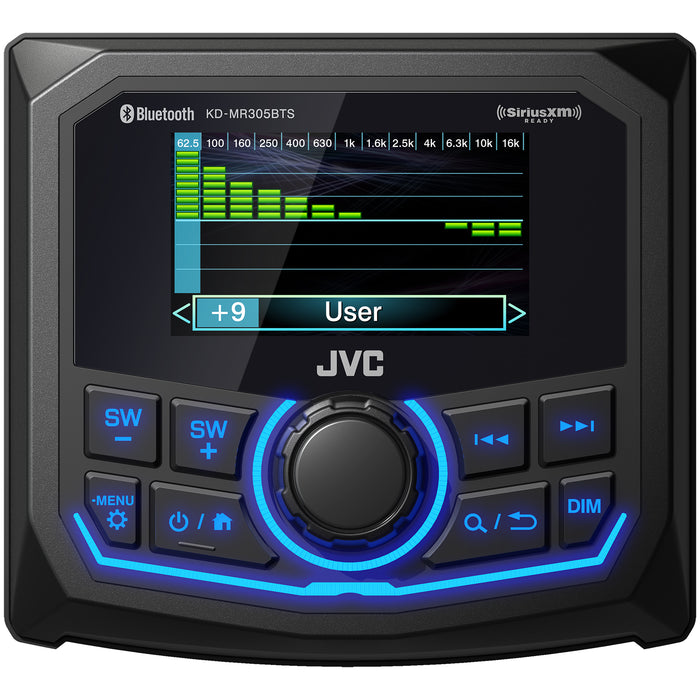

13-Band Equalizer
Use the 13-Band Equalizer to manually adjust the sound to your taste.
Rear View Camera Input Support
KD-MR305BTS is equipped with a rear view camera input. With an optional KV-CM30 camera (or other) connected, you have increased safety while driving UTVs or marine vessels.
Wired Remote Control (Optional)
IPX7 Waterproof wired remote control (RM-RK62M) is optionally available. You can connect up to 6 remotes in-line with each other.
KD-MR305BTS
Monitor
- LCD Type 2.7" Color TFT
- Screen Brightness Yes (Day / Night mode)
Display
- Key Color Variable Color
- Spanish Text Display Compatible Yes
- French Text Display Compatible Yes
Media Playback
- MP3 Compatible with Tag Yes
- WMA Compatible with Tag Yes
- AAC Compatible with Tag Yes
- FLAC Compatible with Tag Yes (Up to 24bit, 48kHz)
Bluetooth Control
- Built-in Bluetooth[1] Yes (Ver 5.0)
- Audio Streaming & Control (A2DP, AVRCP) Yes (AVRCP 1.5)
- Supported Audio Formats AAC / SBC
Android Control
- Android Music Playback Yes (via Bluetooth)
iPod/iPhone Control
- iPhone Music Playback Yes (via USB)
USB
- Position Rear
- USB Power Supply Yes (1.5A)
Inputs and Outputs
- AUX Input Rear (RCA L, R)
- Line Output Terminals (Pair) 3 Pairs (Front + Rear + Subwoofer)
- Pre-Output Level 2.0V
- Subwoofer Output with Level/Frequency Control Yes (Level 0 - 20)
- Subwoofer Output Level 4.0V
Tuner
- SiriusXM Ready Yes
- Radio Data Broadcast System (RBDS) Yes
- Preset Stations 18FM + 12AM + 6WB + 18SXM
- Weather Band Selection Yes
- FM Frequency Range (Frequency Step) 87.9 - 107.9MHz
- AM Frequency Range (Frequency Step) 530 - 1700kHz
- WB Frequency Range 162.40MHz - 162.55MHz (USA/Canada)
Audio
- Maximum Power Output 50W x 4
- EQ 13 Band EQ
- Preset EQ Yes (8-Preset)
- Loudness Control Yes
- High-Pass Filter/Low-Pass Filter Yes/Yes
General
- Conformal Coating Yes
- Waterproof Yes (IPX6 - Panel, IPX4 - Chassis)
- Dustproof Yes (IP6X)
- Rustproof Yes (ASTM B117)
- UV Protection Yes (ASTM D4329)
- Vibration-proof Yes
- Rear View Camera Input Yes
- Back Up Memory Yes
- Wired Remote Control Ready (RM-RK62M required)
- Dimensions (W x H x D)
- Installation Size Front Panel:4-9/16 x 4-3/16 x 1-9/16(115 x 106 x 39mm) , Body:Dia. 3-1/16 x 2-1
- Weight 2.0 lbs. (0.9kg) includes Trim Bezel, Mounting Plate, Screws
- Unit weight in individual package 2.76 lbs. (1.25kg)
