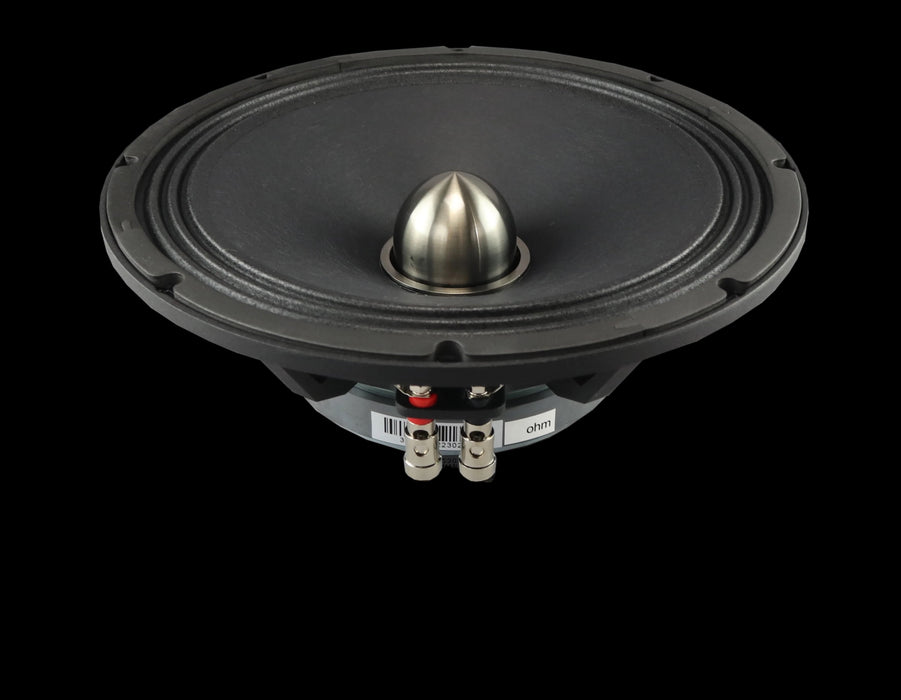

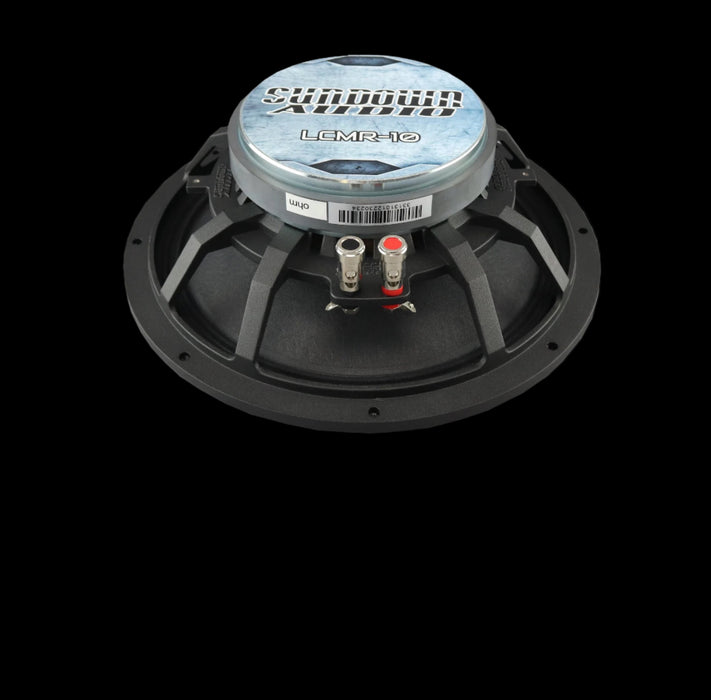

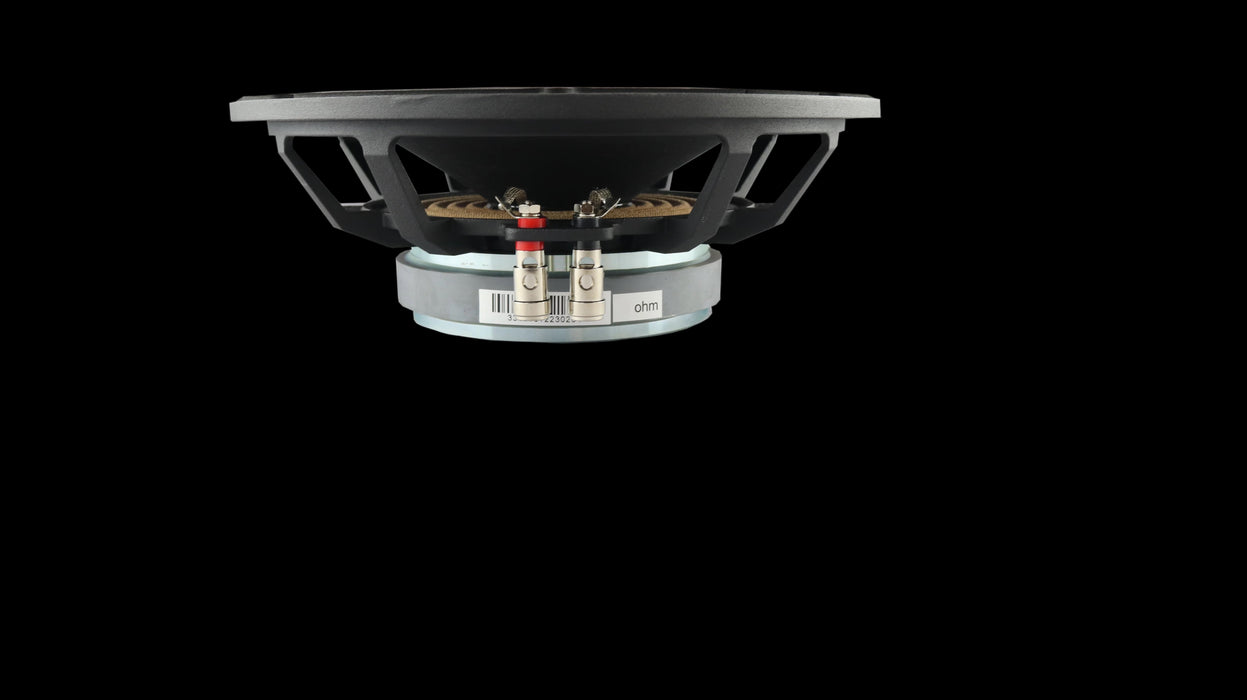

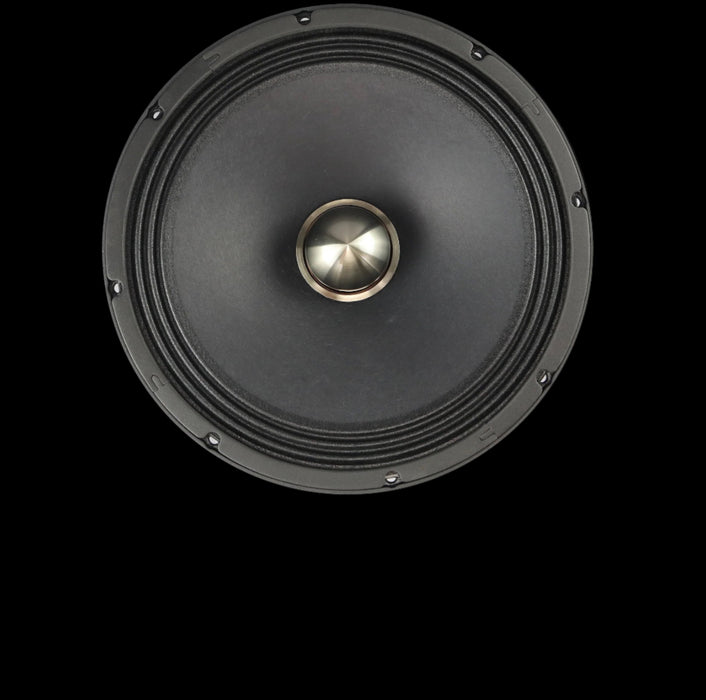

S-LCMRV2104 Sundown Audio LCMR 10" Pro Audio Midrange Driver 120W RMS SPL High Output 4 Ohm (Single)

S-LCMRV2104 Sundown Audio LCMR 10" Pro Audio Midrange Driver 120W RMS SPL High Output 4 Ohm (Single)

by Sundown
Sold out
$95.99
$95.99 - $95.99
$95.99
$79.99
$79.99 - $79.99
$79.99
🚚 Order within the next 2 hours, 15 minutes for delivery by 08 Sep, 2025.
Availability:
Out of stock

LCMR-10 120 WATT PRO AUDIO MIDRANGE SPEAKER - 4 Ohms



    • Sold Individually
    • Power Handling: 120 Watts RMS
    • Impedance: 4 Ohm
    • Frequency Range: 20Hz - 10kHz
    • Phase Plug
    • Outside Diameter: 10.23"
    • Cutout Diameter: 9.17"
    • Mounting Depth: 3.25"
    • Resonant Frequency, FS: 69.45Hz
    • D.C.Voice coil resistance, Re:  3.3
    • Mechanical quality factor, Qms: 13.22
    • Electrical quality factor, Qes: 0.44
    • Total quality factor, Qts: 0.42
    • Equivalent air volume to Cms. Vas: 49.14L
    • Mechanical compliance, Cms: 0.24MM/N
    • BL factor, Bl: 6.3N/A
    • Effective surface area,Sd: 12.469Mm*
    • Sensitivity (1w/1m): 96.18dB +/- 2dB
