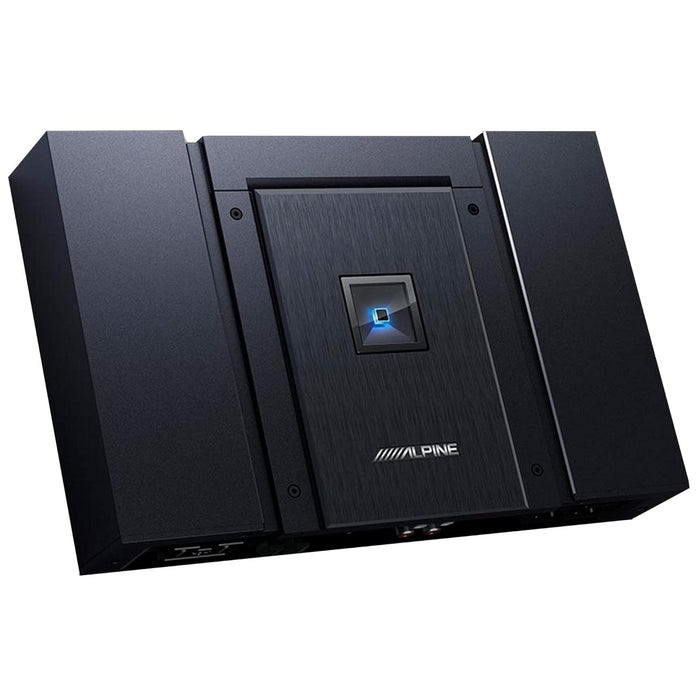

HDA-F60 Alpine Status Hi-Res 4-Channel Amplifier, 100W x 4 at 4-Ohm, 150W x 4 at 2-Ohm 4ch Car Audio Amplifier

HDA-F60 Alpine Status Hi-Res 4-Channel Amplifier, 100W x 4 at 4-Ohm, 150W x 4 at 2-Ohm 4ch Car Audio Amplifier

by Alpine
🚚 Order within the next 2 hours, 15 minutes for delivery by 21 Nov, 2024.
Save 6% Save 6%
$850.00
$850.00 - $850.00
$850.00
$799.95
$799.95 - $799.95
$799.95
Availability:
Almost Gone
Request a quote

HDA-F60

Alpine Status Hi-Res 4-Channel Amplifier

With the highest quality music streaming available on the market, Alpine Status delivers a superior level of audio performance that will take your music to a whole new level.

SUPERIOR SOUND

Using expertise gleaned from over five decades of crafting premium car audio products and trickle-down engineering and design from the Ultra Hi-Res AlpineF#1Status system technologies, the Alpine Status System features exceptional tooling and rich build quality for the best possible sound reproduction. Each component was hand-picked from the highest-quality materials for the highest in-class audio performance, that when used as a complete system, can achieve 192kHz/24Bit playback.

IMPRESSIVE OUTPUT

Powering a Hi-Res sound system without contributing noise during playback requires efficiency and precision and the HDA-F60 was intentionally designed to provide impressive power output to the system while ensuring the purest audio performance. The amplifier’s wide dynamic range capability provides impressive output in a compact chassis that fits most vehicle applications.

PRECISE SOUND REPRODUCTION

The HDA-F60 features a high-efficiency digital circuit design that ensures ultra-Low distortion levels for precise sound reproduction and superb sound quality. Intentional designs, like a copper-plated chassis and black circuit board, bring the signal-to-noise ratio up to 83dB and minimize noise and distortion during playback for complete music fidelity that's true to the original source.

INCREDIBLE RELIABILITY

Featuring technology unique to Alpine, the amplifier features Alpine's dual negative feedback control circuit to improve linearity for the most accurate sound amplification. This technology also stabilizes the amplifier output while driving the speakers for ultimate reliability.

EASY INSTALLATION

The HDA-F60 features Alpine's quick-connect power and speaker connectors for quick and safe installation. The one-sided terminal layout and top-panel sound controls give the user quick access to controls on the amplifier.



Product highlights:

  • 4-channel car amplifier
    • 100 watts RMS x 4 at 4 ohms
    • 150 watts RMS x 4 at 2 ohms
    • 300 watts RMS x 2 bridged at 4 ohms
  • Hi-Res Class-D amplifier technology
    • frequency response: (-3 dB) 10 to 60,000 Hz
  • variable high- and low-pass filters (50-400 Hz, 12 dB/octave)
More info:
  • preamp and speaker-level (up to 10V) inputs
    • speaker-level inputs require speaker wire to RCA adapters
    • speaker-level inputs feature signal-sensing amplifier turn-on
  • optional RUX-KNOB.2 wired remote level control for bridged channels 3/4
  • quick-connect speaker and power connectors
  • wiring and hardware not included with amplifier
    • 4-gauge power and ground wire recommended
  • fuse rating: 35A x 2
  • 11.4375"W x 2.125"H x 7.5"D
  • MFR # HDA-F60

What's in the box:

Alpine HDA-F60 owner's manual

  • 4-Channel amplifier
  • Two 35-amp ATO fuses (installed)
  • Top cover (installed)
  • Power connector plug
  • 2 Speaker connector plugs
  • 2 Mounting legs
  • 2mm Allen wrench
  • 2.5mm Allen wrench
  • 4mm Allen wrench
  • Four 3/4" Screws
  • Eight 3/8" Screws
  • Owner's manual (English/ German/ French/ Spanish/ Italian/ Swedish/ Russian/ Chinese)
  • Alpine verification certificate
  • Warranty information
  • Product registration information
  • Power wiring note
