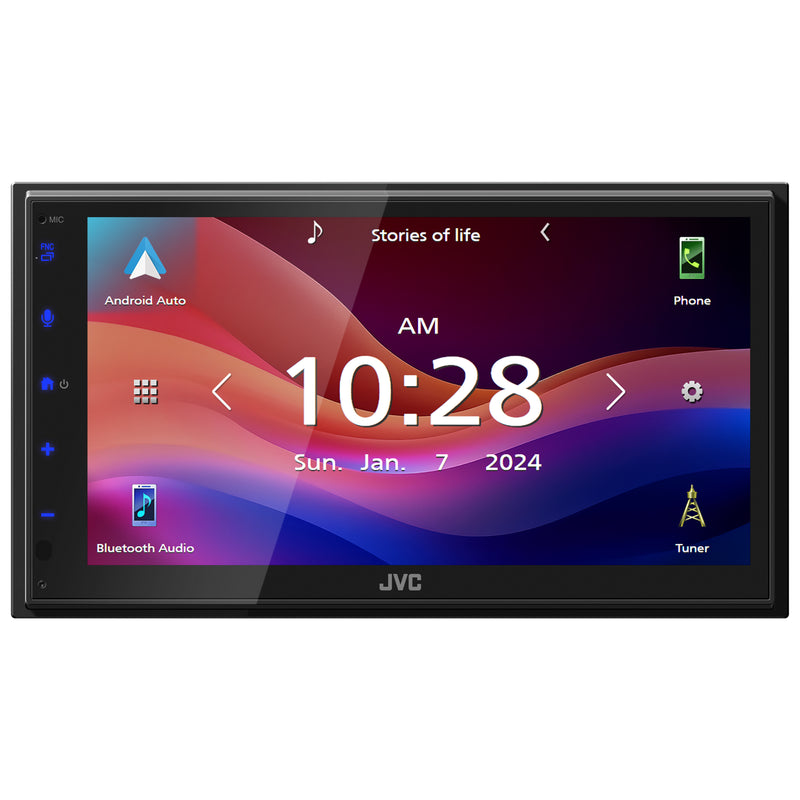

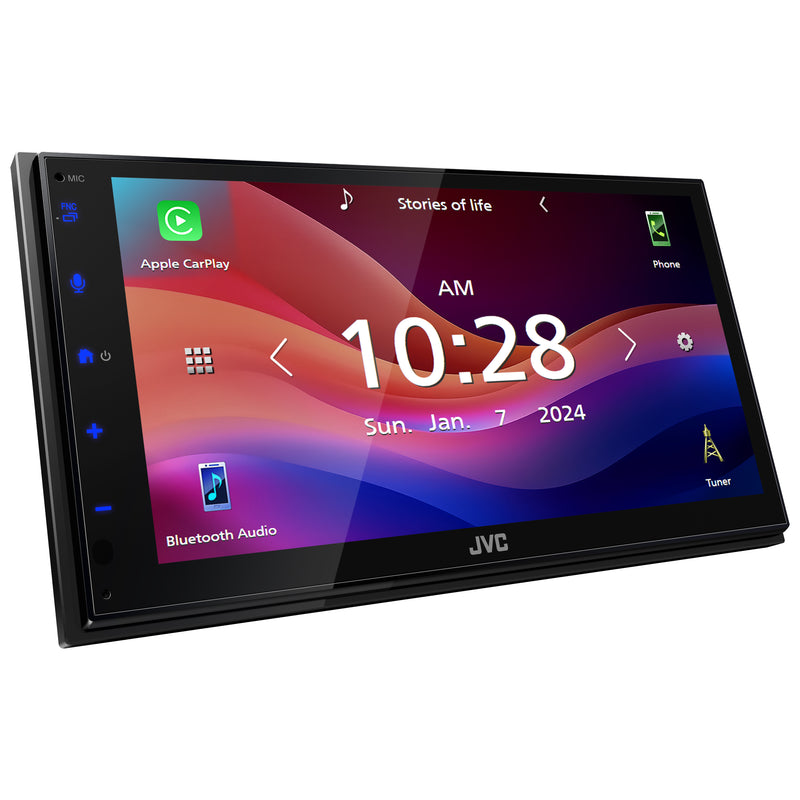

KW-M590BT JVC Digital Multimedia Receiver 6.8” Double-Din Touchscreen Head Unit with CarPlay and Android Auto, AM/FM, Bluetooth, USB Port, Car Radio
KW-M590BT
Digital Media Receiver featuring 6.8" Capacitive Touch Monitor / Apple CarPlay® / Android Auto™ / USB Mirroring / Bluetooth® / 13-Band EQ / Short Chassis
SMARTPHONE
INTEGRATION
JVC multimedia receivers interface your smartphone with your car to enrich your driving experience. Enjoy your favorite apps and view content on a big screen, in comfort and safety.
Apple CarPlay® – Connect via USB
A smarter, safer and more fun way to use your iPhone in the car. Apple CarPlay gives iPhone users an intuitive way to make calls, use Maps, and listen to music with just a word or a touch.
Some features, applications, and services are not available in all areas.

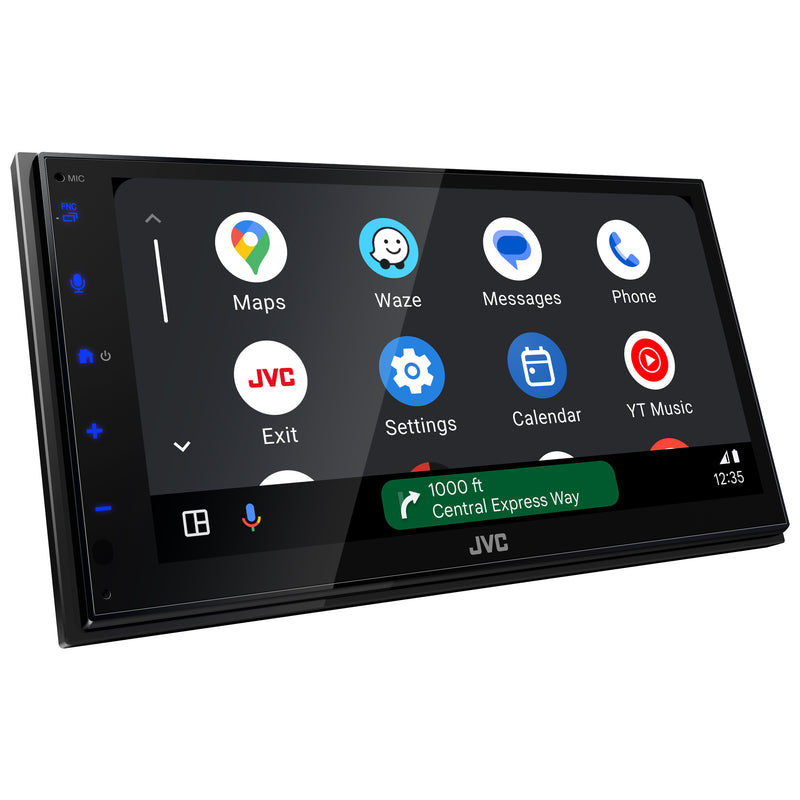

Android Auto™ – Connect via USB
Android Auto was designed with safety in mind. With larger touch targets, a split-screen interface, and easy-to-use voice actions, it's designed to minimize distraction so you can stay focused on the road.
*Compatible Android phone and compatible active data plan required.
*Some features and devices may not be available in all countries. Subject to availability.
USB Mirroring
By installing the “MirrorApp+” app, your mobile phone is seamlessly displayed on the receiver's screen via USB. You can enjoy a variety of apps such as Waze, YouTube, and Instagram. Touch control is possible from both screen and mobile phone.
*Selected mobile phones only
Time Alignment
By selecting the speaker type and the distance to the center of the listening position, the receiver will automatically adjust the timing of the sound output from each of the speakers so that the sound from each of the speakers will arrive exactly at the same time to the listening position.
13-Band Equalizer
Use the 13-Band Equalizer to manually adjust the sound to your taste.
Bluetooth Voice Recognition
Improved Sound Quality with HFP 1.8 Wideband Speech
Improved sound quality thanks to HD Voice contributes to a higher level of voice recognition accuracy.
Bluetooth AVRCP1.6 for Versatile Song Selection
In addition to repeat and random playback of music files, you can also easily search for songs using the browsing function. Just look for and choose the song you want to hear from the folder name and song name lists.
Streaming Music
Listen to popular music applications and music stored on your device with basic audio controls.
6.8" WSVGA LCD Display
The WSVGA display reproduces approximately 1.6 times higher resolution than the conventional WVGA display. You can enjoy finely detailed expression of color gradients and lifelike visuals in dramas and movies, enhancing your viewing experience.
Capacitive Touchscreen
The Capacitive touch screen provides high clarity and uses a superior touch control, requiring lighter contact with greater accuracy
Gesture Touch Control
Just touch and move your finger over the screen for various operations corresponding to your finger-movements (for some sources, the Gesture Touch Control is not available). Intuitive control provides safer operation for in-car entertainment.
High Current 2.1A Charging
Rapidly charge your smartphone using the USB port, with up to a maximum of 2.1A.
*Compatibility depends on the smartphone.

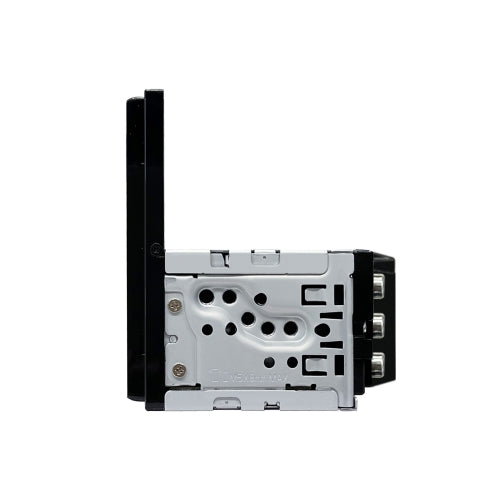

Short Chassis
Despite a double-DIN display, our unit stands out with its remarkably compact rear chassis, ensuring hassle-free installation and optimal cable management.
Steering Wheel Remote Control Ready
Factory steering wheel control functions can be retained with a third-party adapter (sold separately).
Remote Control (Optional)
Remote control (RM-RK259) is optionally available.
Technical Specifications
Monitor
- Screen Size
- 6.8"W SVGA
- Touch Panel
- Capacitive
- Customizable GUI
- Yes
- Key Illumination Color
- Blue
- Dimmer
- Yes
- Multilingual Display
- Yes[4]
Media Playback
- MP3 Compatible with Tag
- USB
- WMA Compatible with Tag
- USB
- WAV Compatible with Tag
- USB
- AAC Compatible with Tag
- USB
- FLAC Compatible with Tag
- USB
- H.264 Compatible
- USB
- WMV Compatible
- USB
- MPEG 1/2 Compatible
- USB
- MPEG 4 Compatible
- USB
- MKV Compatible
- USB
Bluetooth Control
- Built-in Bluetooth[1]
- Yes (Hands-Free MIC Built-in)
- Hands Free Call
- Yes (HFP1.8 Wideband Speech)
- Audio Streaming & Control (A2DP, AVRCP)
- Yes
- Supported Audio Formats
- AAC / SBC
- Voice Dialing (voice recognition compatible mobile phone required)
- Yes
- Phone Book Access Profile (PBAP)
- Yes
- Auto Pairing for iPhone/Android
- Yes
Android Control
- Android Auto[2]
- Yes (via USB)
- Mirroring for Android
- Yes (via USB) *Need mirroring App
- Android Music Playback
- Yes (via Bluetooth®)
iPod/iPhone Control
- CarPlay[3]
- Yes (via USB)
- Mirroring for iPhone
- Yes (via USB) *Need mirroring App
- iPhone Music Playback
- Yes (via USB or Bluetooth®)
USB
- USB Port
- x 1 (High Speed)
- Position
- Rear
- USB Power Supply
- Yes (2.1A High Current Charging)
Radio Tuner
- Radio Broadcast Data System (RBDS)
- Yes
- Preset Stations
- 36(FM:24ch, AM:12ch)
- Auto Memory Entry
- Yes
- FM
- Frequency Range
- 87.9 - 107.9MHz
- AM
- Frequency Range
- 530-1,700kHz
Audio
- Maximum Power Output (Front & Rear)
- 50Wx4
- Full Bandwidth Power (Front & Rear)
- 22W x 4
- EQ
- Yes (13-Band Graphic EQ)
- Preset EQ
- Yes (7Preset + 3user)
- Bass Boost
- Yes
- High-Pass Filter/Low-Pass Filter
- Yes/Yes
- Speaker Size Control
- Yes

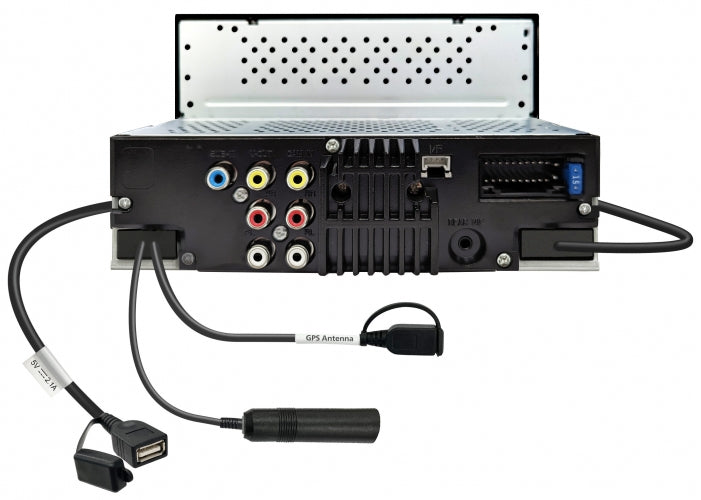

Inputs and Outputs
- Video Out
- x 1 (V:RCA)
- Rear view camera Input
- Yes
- Line Output Terminals
- 2Preouts + Sub WF (Mono)
- Pre-output Level/Impedance
- 2.5V / 10k ohms
- Subwoofer Output with Level/Frequency Control
- Yes (Normal / Reverse)
General
- Back Up Memory
- Yes
- Short Chassis
- Yes
- Wireless Remote Control
- Optional (RM-RK259 required)
- Steering Remote Control Ready
- Yes
