iLX-W770-M Alpine 7" Digital Multimedia Receiver Shallow Chassis Double-Din Touchscreen Head Unit with Wireless CarPlay and Android Auto, iDatalink Maestro Compatible
ILX-W770-M
7-inch Digital Multimedia Receiver with Wireless Apple CarPlay & Android Auto, iDatalink Maestro Compatible
You asked, we listened! Alpine’s popular Shallow-Chassis Digital Multimedia Receiver platform just got an upgrade with added iDatalink® Maestro® compatibility for enhanced vehicle information and control. With the added features of wireless smartphone pairing and an additional camera input, the iLX-W770-M is THE step-up radio you’ve been looking for!

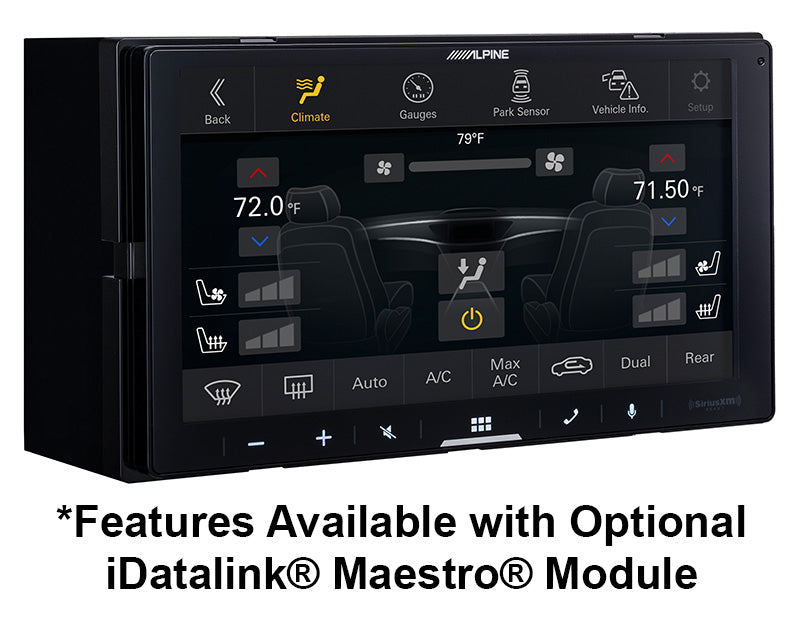

Elevated OEM Experience – Get an enhanced, integrated experience with the new iDatalink® Maestro® connection point on the iLX-W770-M. Coupled with the ultra-shallow chassis for expanded fitment options and the sleek, responsive 6.75-inch touchscreen, get added customization and data visualization in a screen that feels like an elevated factory screen.
WIRELESS SMARTPHONE INTEGRATION
ENHANCED AUDIO & AMBIANCE

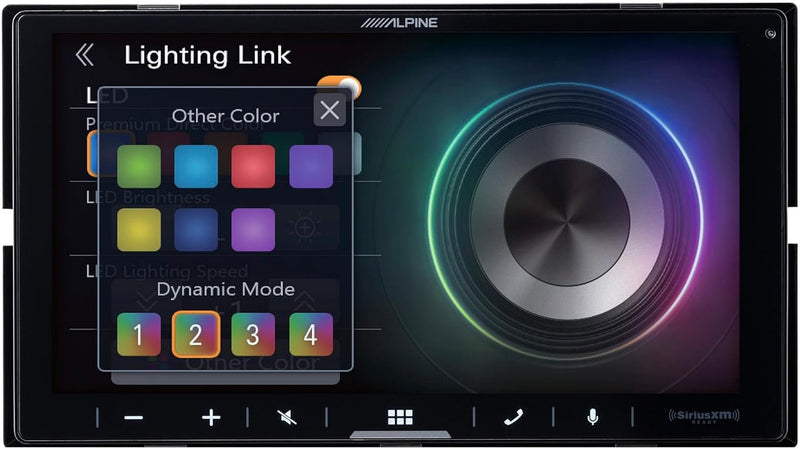

Enhance your music with the new Sound Boost menu, featuring expanded Bass Boost & Mid-Bass Boost controls, subwoofer controls, and a new Lighting Link feature which allows you to control the lighting on Alpine's PrismaLinkT™ subwoofer enclosures directly from your screen, creating a visual symphony that complements your music.
FINE TUNE YOUR SOUND
Unleash the full potential of your music with the 13-band graphic EQ, 6-channel time correction, and versatile crossovers for the front speakers, rear speakers, and subwoofer. The iLX-W770-M gives you the tools to fine-tune your sound to perfection.
POWERSTACK™ CAPABLE
Measuring only 2.4" deep, the iLX-W770-M features an ultra-shallow chassis that is PowerStack™ capable, allowing you to mount the Alpine KTA-450 or KTA-200M Power Pack Amplifiers (sold separately) directly to the back. This award-winning design allows you to add more power to your sound system while occupying the same depth as a traditional 2-DIN radio.

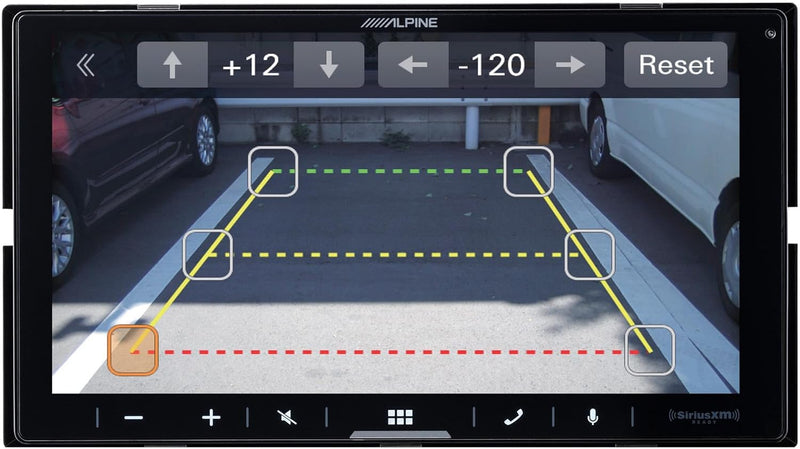

ADD A BACKUP CAMERA
With an integrated camera input, the Alpine iLX-W770 allows you to add a front or rear-view camera to your vehicle making parking and maneuvering in tight spaces a breeze.
OVERVIEW FEATURES
SYSTEM COMPONENTS

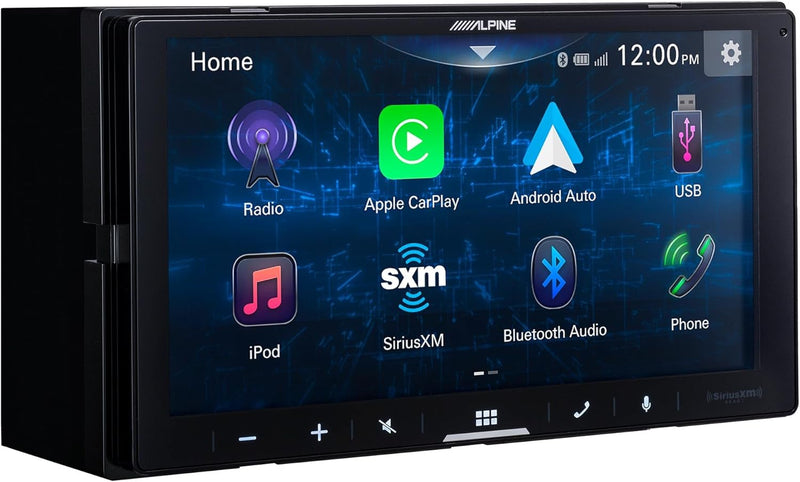

• 6.75” Capacitive Touchscreen Display with AM/FM Tuner
• Mech-Less (Does not play discs)
• Standard Double-Din Fitment (4” tall dash openings)
• 5-Color Key Illumination (Red, Green, Blue, Amber, White)
• Customizable Home Screen (Add your own background image)

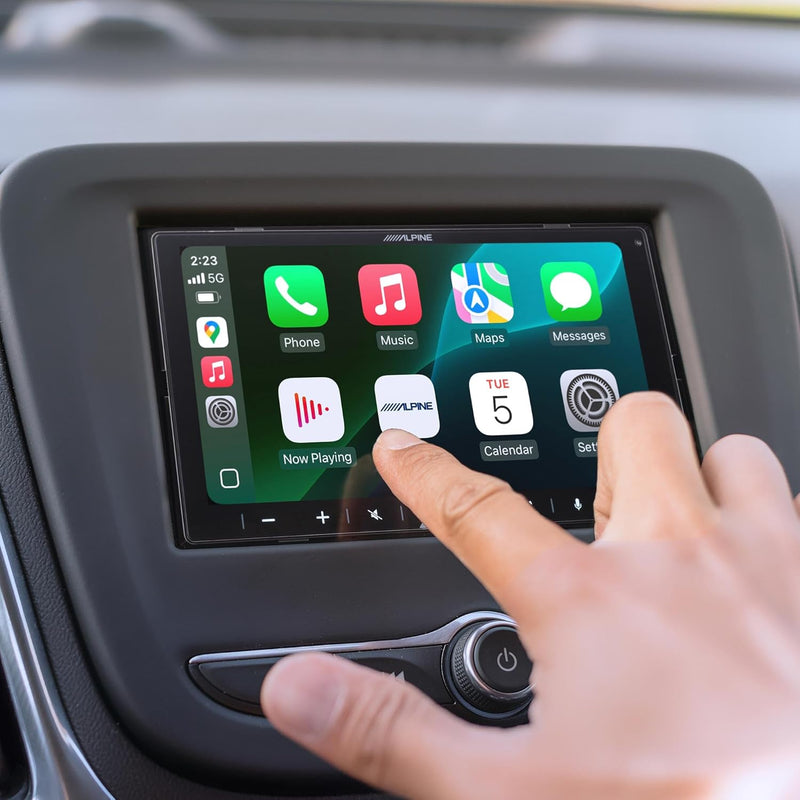

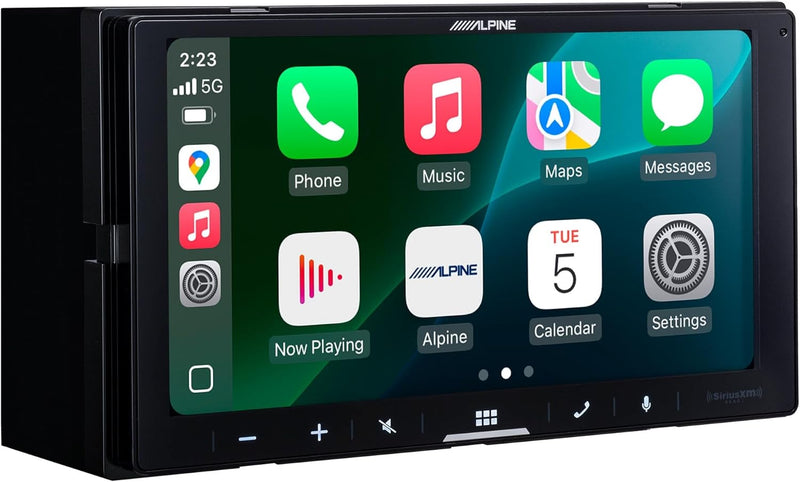

• Apple CarPlay® (Wireless & Wired)
• Android Auto (Wireless & Wired)
• Bluetooth® Hands-Free (Calling and Audio Streaming)
• SiriusXM-Ready® (requires SXV300 Tuner; Sold separately)
• PowerStack Capable (Mount the Alpine KTA-200M or KTA-
450 amplifiers directly to the back)
• Lighting Link Control (Compatible with Alpine PrismaLink
Subwoofer Enclosures (S2-SB8, S2-SB10, & S2-SB12)
• Sound Boost Menu (Bass Boost, Mid-Bass Boost, & Subwoofer Controls)

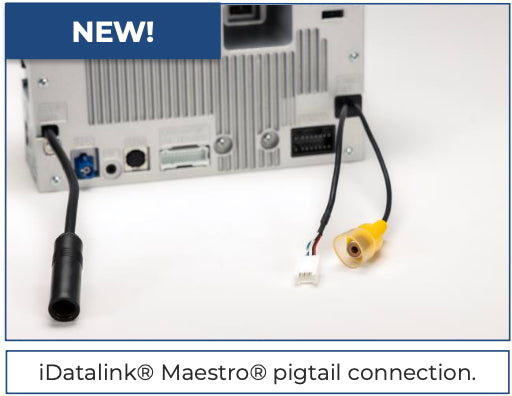

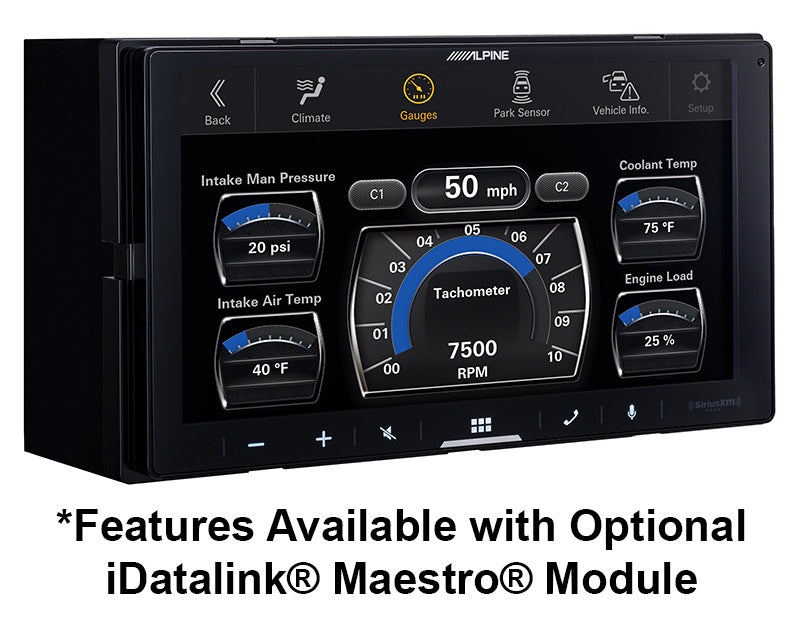

• ***NEW! iDatalink® Maestro® Compatibility (module sold
separately)
What's In The Box
• (1) Digital Media Receiver
• (1) Wiring Harnes (15A fuse)
• (1) Pre-Out/Camera Harness/SWC Harness
• (1) 42” USB Extension Cable
• (1) GPS Antenna
• (1) Self-Adhesive Mount
• (1) Microphone w/ Bracket
• (4) Pan-Head ISO Screws
• (4) Counter-sunk ISO Screws
• Quick Reference Guide
• Registration Card
• Owners/Installation Manual
SYSTEM TECH SPECS
• Screen Size: 6.75”
• Screen Resolution: 800 x 480 px
• Aux Input: 1

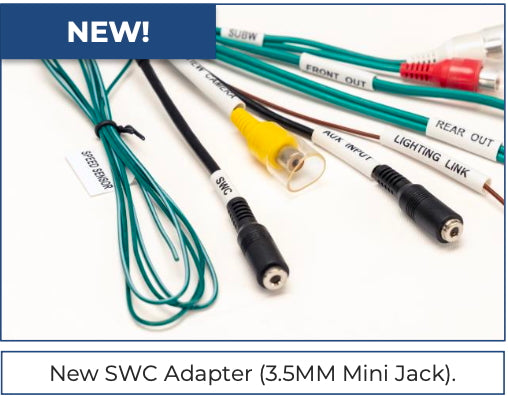

• ***NEW! Updated SWC Adapter (Uses 3.5mm Mini Jack)
• Camera Input: 2
• USB Input: 1
• 4V Pre-Outs: 3 (Front, Rear, and Subwoofer)
• Built-In Amplifier: 16W RMS / 50W Peak x 4
• EQ: 13-Band Graphic

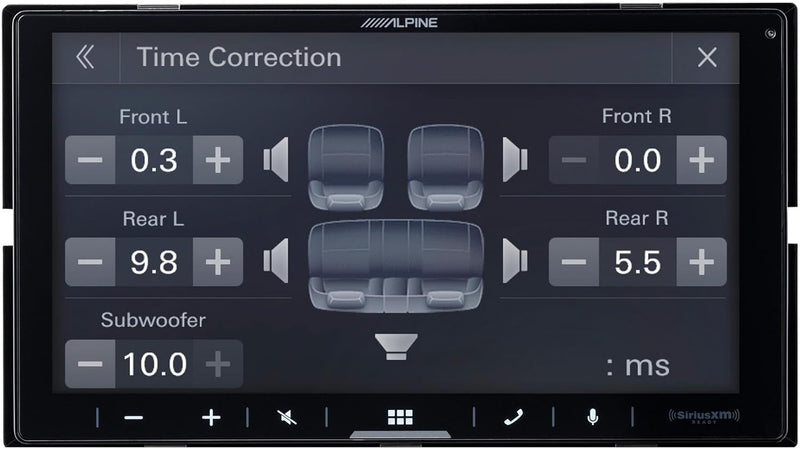

• Time Correction: 6-Channel
• Crossovers: Front, Rear, and Subwoofer
• Audio Playback: AAC, FLAC, MP3, WMA
• Video Playback: AVC, FLV, H.264, MP4, MPEG-4, MKV, MOV
