ONBOARD AUDIO TUNING

The Alpine Halo11 has on-board tuning features including a 13-band parametric EQ per channel, for continuous frequency control. The 6-channel time correction ensures that music is staged properly in the front and center of the vehicle. If more power is needed, additional amplifiers can be added using the three sets of true 4V preamp outputs with front, rear, and subwoofer control.

HI-RES MUSIC STREAMING WITH TIDAL

Experience music as the artist originally intended with the industry's first full TIDAL integration. The iLX-F511 allows you to access select TIDAL features directly on the head unit and receive a high-res streaming experience with the TIDAL catalog of over 90 million songs. Lossless audio and high-fidelity music options are also available for TIDAL HiFi and HiFi Plus Members, for superior sound quality that elevates the music experience. A TIDAL subscription is required and sold separately. To access TIDAL on the Alpine Head Unit, the head unit must be tethered to a mobile or smartphone hotspot. Data rates may apply.

SIRIUSXM WITH 360L

Alpine is the first aftermarket car audio company to offer SiriusXM-Ready® head units enhanced with 360L. SiriusXM with 360L combines satellite and streaming features, to give you the widest variety of ad-free music, and the best in sports, news, talk, and comedy. SiriusXM-Ready® with 360L is available on compatible Alpine head units and requires the SXV300 Tuner and subscription (sold separately）*.

INCREASED ADJUSTABILITY

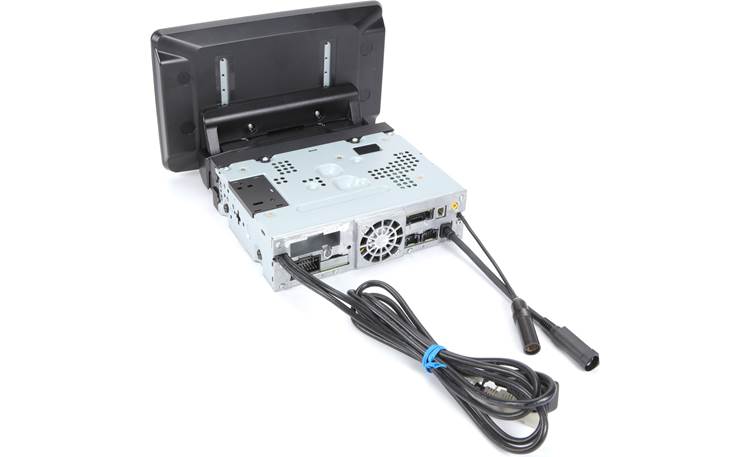

The screen is attached to an adjustable mount on a single-DIN chassis that's designed to fit in most dash openings. Once the unit is installed, the screen has five vertical adjustments and two separate depths that lock into position for a sturdy installation. A new pressure tilt mechanism allows for more flexibility when positioning the screen for optimized viewing and access to dash and HVAC controls.

KEEP SELECT FACTORY CONTROLS

The Alpine Halo11 is compatible with the iDatalink Maestro Module (sold separately) to retain and display vehicle information on the large, 11-inch screen. Information such as steering wheel controls, tire pressure, and engine codes, and HVAC control may be accessible from the ILX-F511 (information will vary by vehicle).

ADD A REAR CAMERA AND MORE

The Alpine Halo11 includes two camera inputs to add a front, side, or rearview camera (sold separately). The rearview camera includes a distance guide display that overlays guidelines onto the screen for ease when moving in reverse.

DASH CAM INTEGRATION

Take driving safety even further by connecting your Alpine Halo11 with the DVR-C320R Premium 1080P Front and Rear Dash Camera with built-in drive assist (sold separately). View real-time and recorded drives in high definition on your Alpine Halo11, plus receive drive assist features that help get you to your destination.

QUICK SOUND CONTROL

The new RUX-H02 Alpine Halo Subwoofer Controller (sold separately) easily mounts to the Alpine Halo Display and allows quick-access controls to the subwoofer and main volume through a wireless Bluetooth® connection. The sleek, tapered lines and silver trim of the RUX-H02 compliments the Alpine Halo Display design.

General features:

• digital multimedia receiver with AM/FM tuner (does not play discs)
• 11" hi-res capacitive touchscreen with adjustable vertical mounting positions and viewing angles
• high-resolution (1280x720 pixels) display
• fits single-DIN dash openings
• HD Radio tuner built-in
• Bluetooth hands-free calling and audio streaming (external microphone included)

Smartphone features (see Details for info on compatibility with specific smartphones and apps):

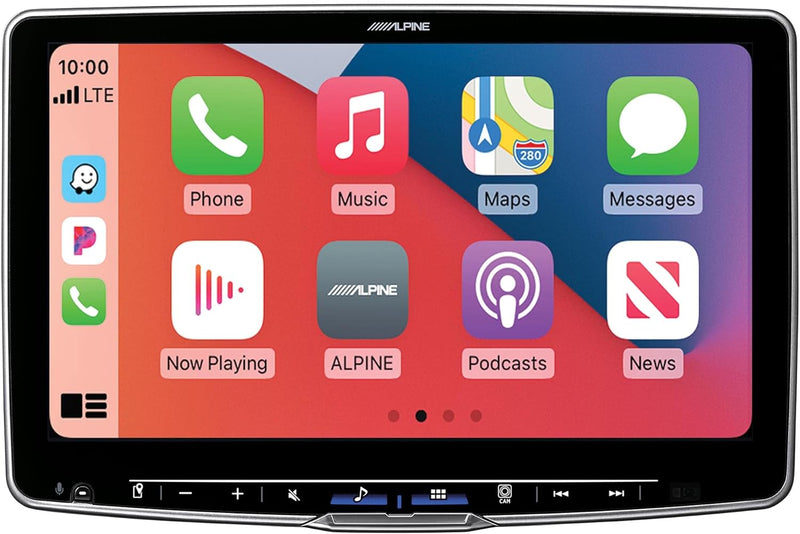

• Apple CarPlay compatible (wired and wireless)
• Android Auto compatible (wired and wireless)
• built-in iPod, iPhone, and iPad control
• playback and control of music files on compatible Android devices
• Pandora and Spotify control with iPhone and Android
• full Tidal integration with custom display (requires a wi-fi connection and Tidal smartphone app)

Audio/video features:

• plays MP3, WMA, AAC, APE, and FLAC music files (see Details tab for full capabilities)
• plays AVC, FLV, H,264, MP4, MPEG-4, and MOV video files
• plays lossless FLAC audio files up to 96kHz/24-bit
• 24-bit digital-to-analog converter (DAC)
• 13-band parametric equalizer (Basic and Advanced options)
• 6-channel time correction
• high- and low-pass filters
• Bass Engine SQ
• MediaXpander HD

Expandability:

• works with SiriusXM SXV300 tuner—supports Tune Mix, Traffic & Weather Now, and Sports Flash features
• compatible with optional Halo wireless level controller
• compatible with optional 2-camera switcher
• compatible with optional HD dash cam with rear-view camera

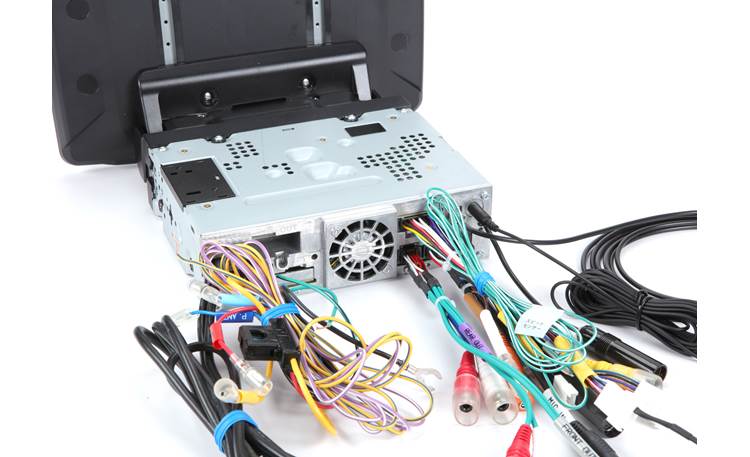

• inputs: 2 rear USB ports; rear HDMI input; rear auxiliary input; 2 proprietary camera inputs (one composite video adapter is included for non-Alpine cameras)
• outputs: HDMI output; 6-channel preamp outputs (4-volt front, rear, subwoofer)

Other information:

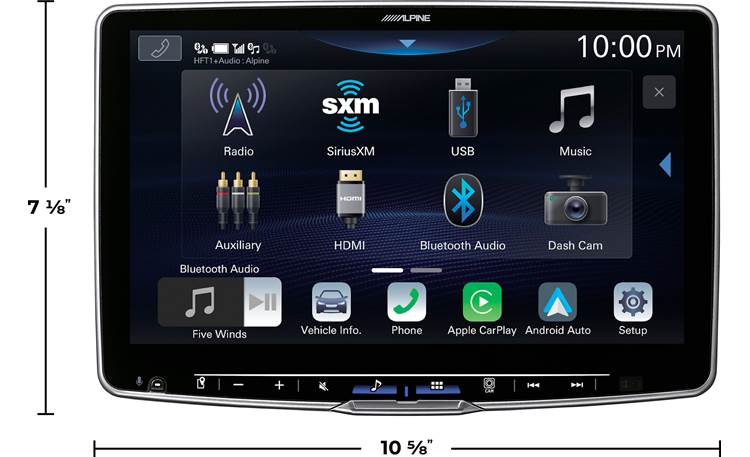

• Important Note — Monitor dimensions are 10.585" x 6.995". Before ordering, check for possible interference with your dash.
• wired connection to parking brake required to access settings, video display, and other features on this receiver (the parking brake must be connected and set, released, and set again)
• built-in internal amp (16 watts RMS CTA-2006/50 peak x 4 channels)
• compatible with most factory steering wheel audio controls (adapter required)
• CTA-2006 compliant
• compatible with iDatalink Maestro
  • retains factory features in a wide selection of vehicles
  • displays engine performance data on touchscreen
• MFR # ILX-F511
